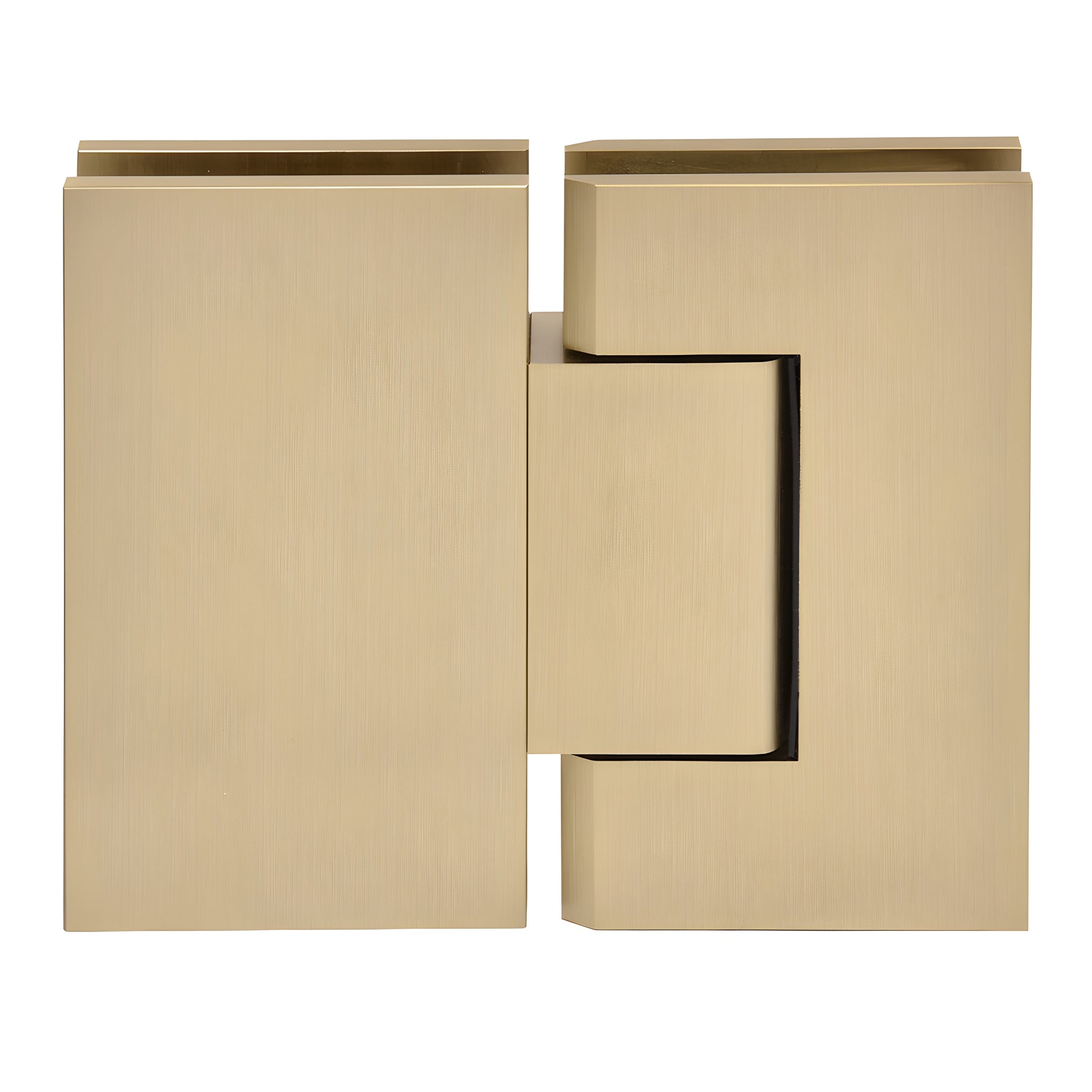

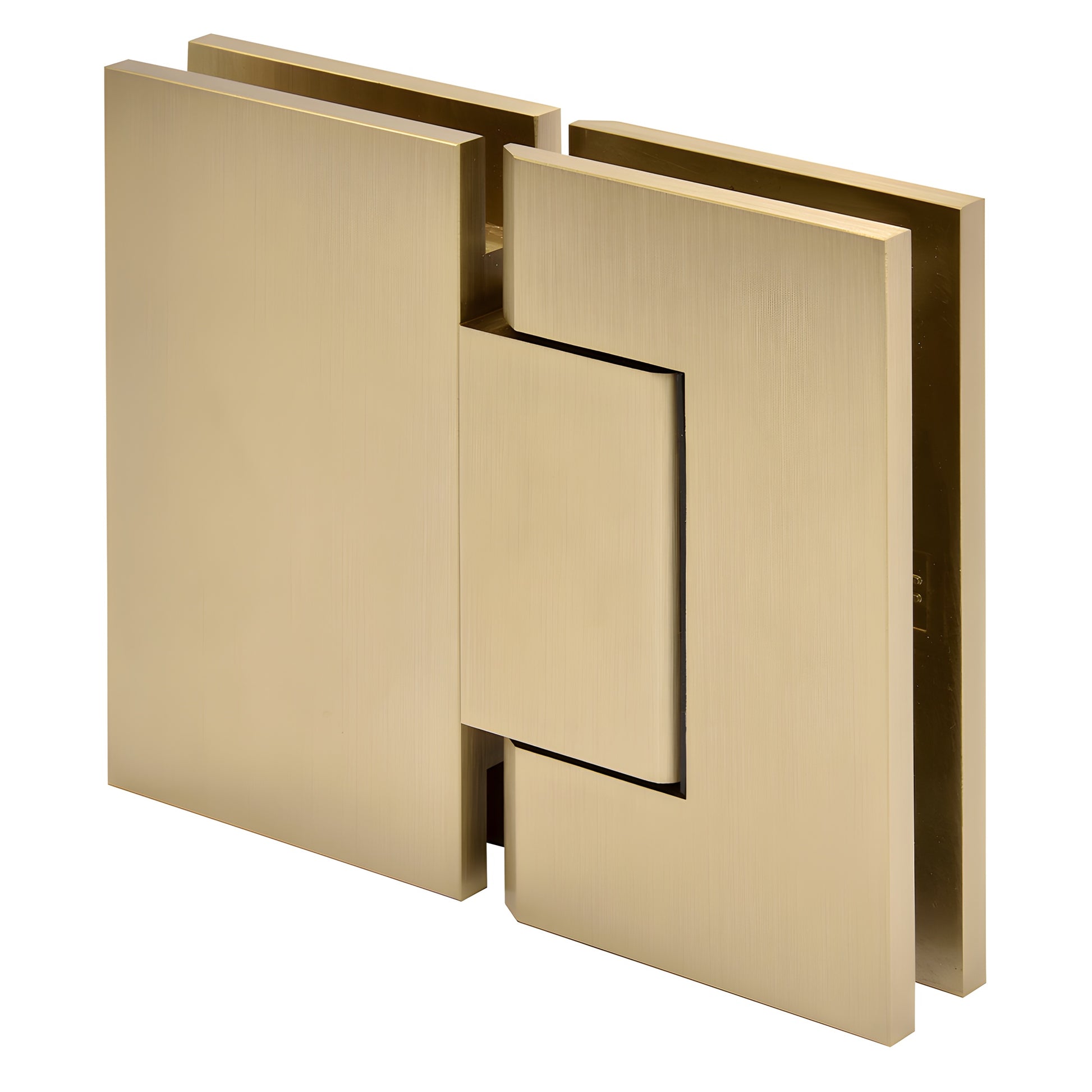

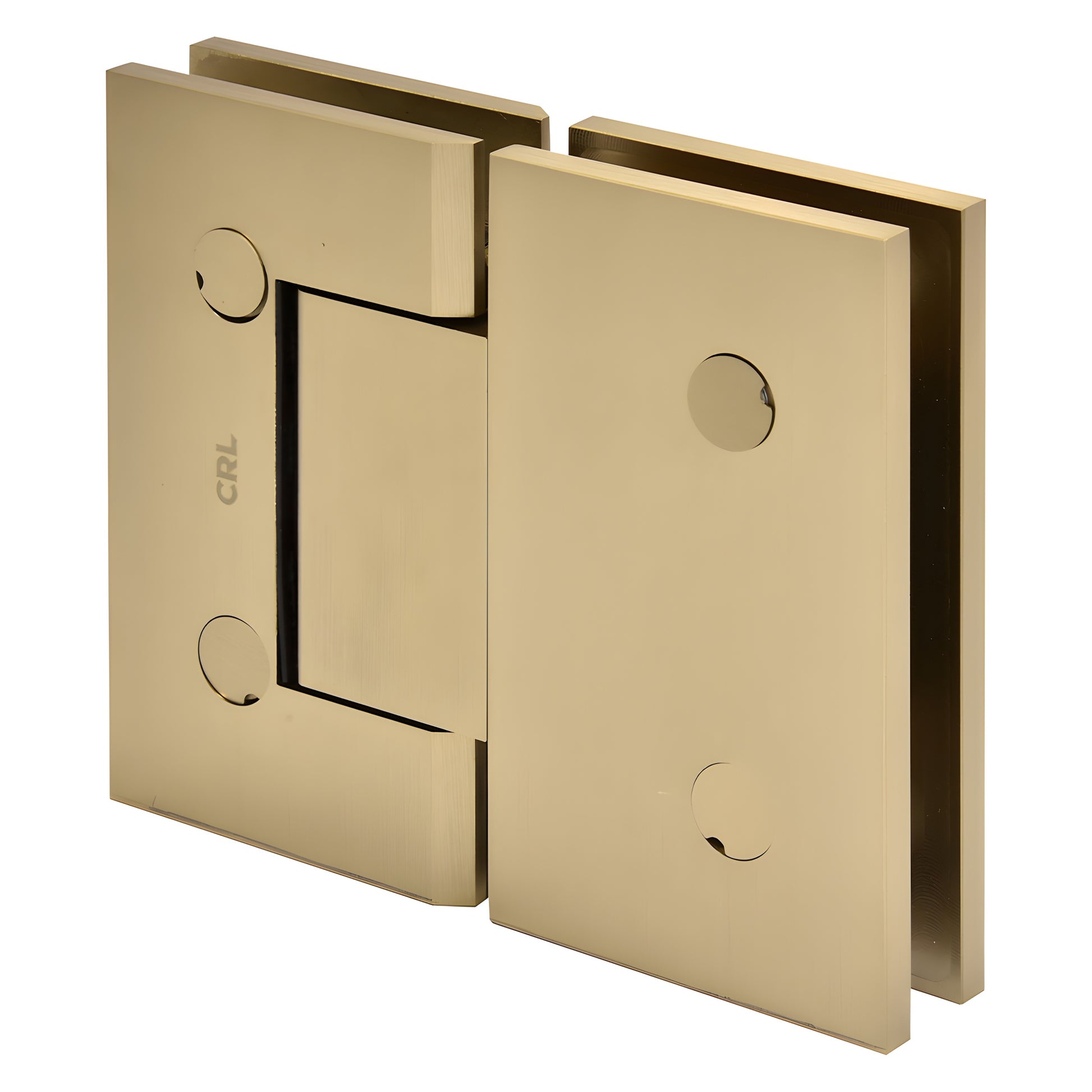

CRL Trento 180 Degree Brushed Bronze Glass-to-Glass Shower Hinge

• Supports heavier frameless glass shower doors (up to 140 lb with two hinges; up to 175 lb with three hinges)
• Concealed screws for a clean, modern look
• 180° glass-to-glass standard model

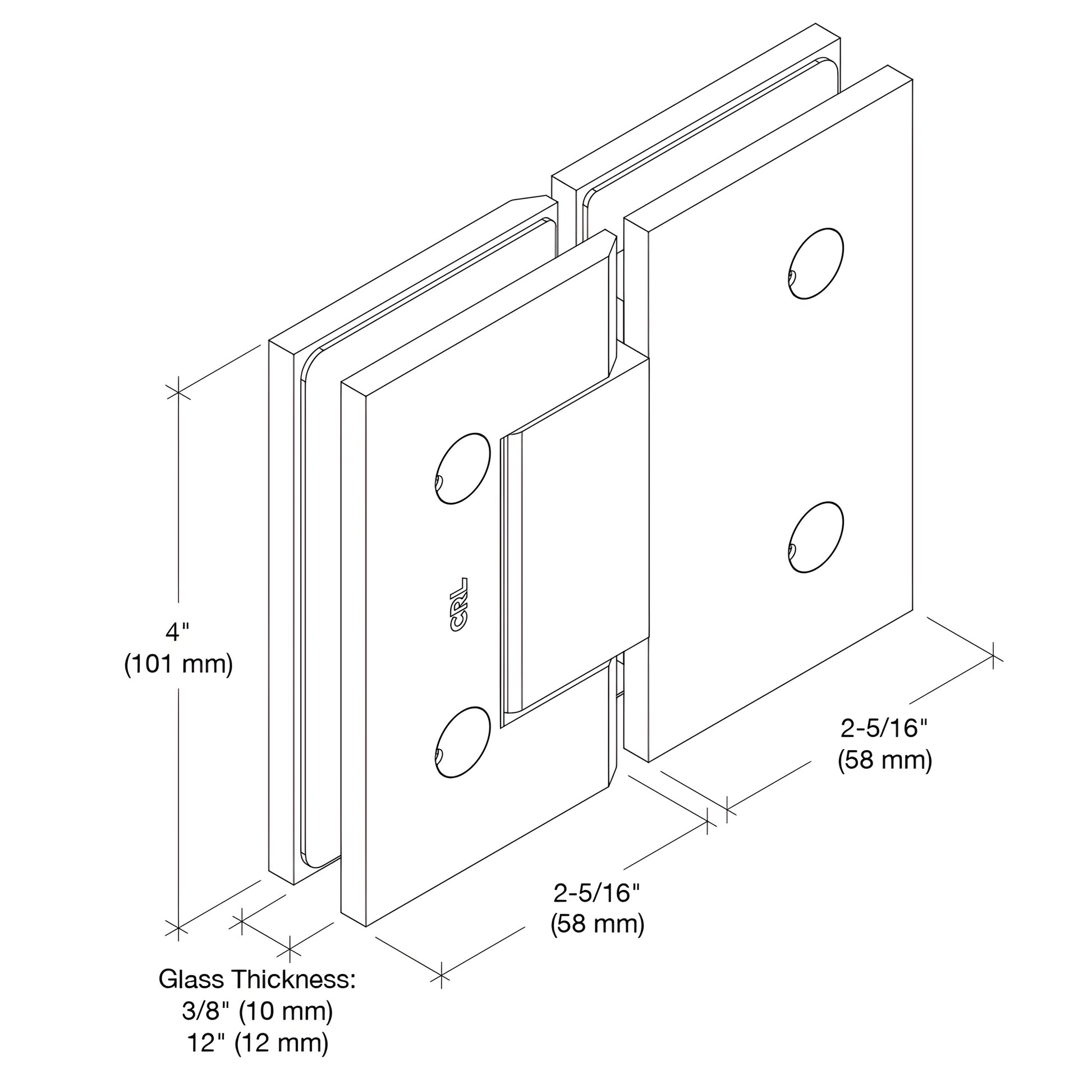

• Single NAF gasket compatible with both 3/8" and 1/2" (10 and 12 mm) monolithic tempered glass
• Use with monolithic tempered glass only

The CRL Trento Hinge (SKU: TNT180BBRZ) is a heavy-duty, rectangular-profile hinge engineered for frameless shower doors. Its narrow gap and fully concealed mounting screws deliver a refined appearance while supporting substantial glass panels—ideal as a frameless shower door hinge for 3/8 and 1/2 inch glass.

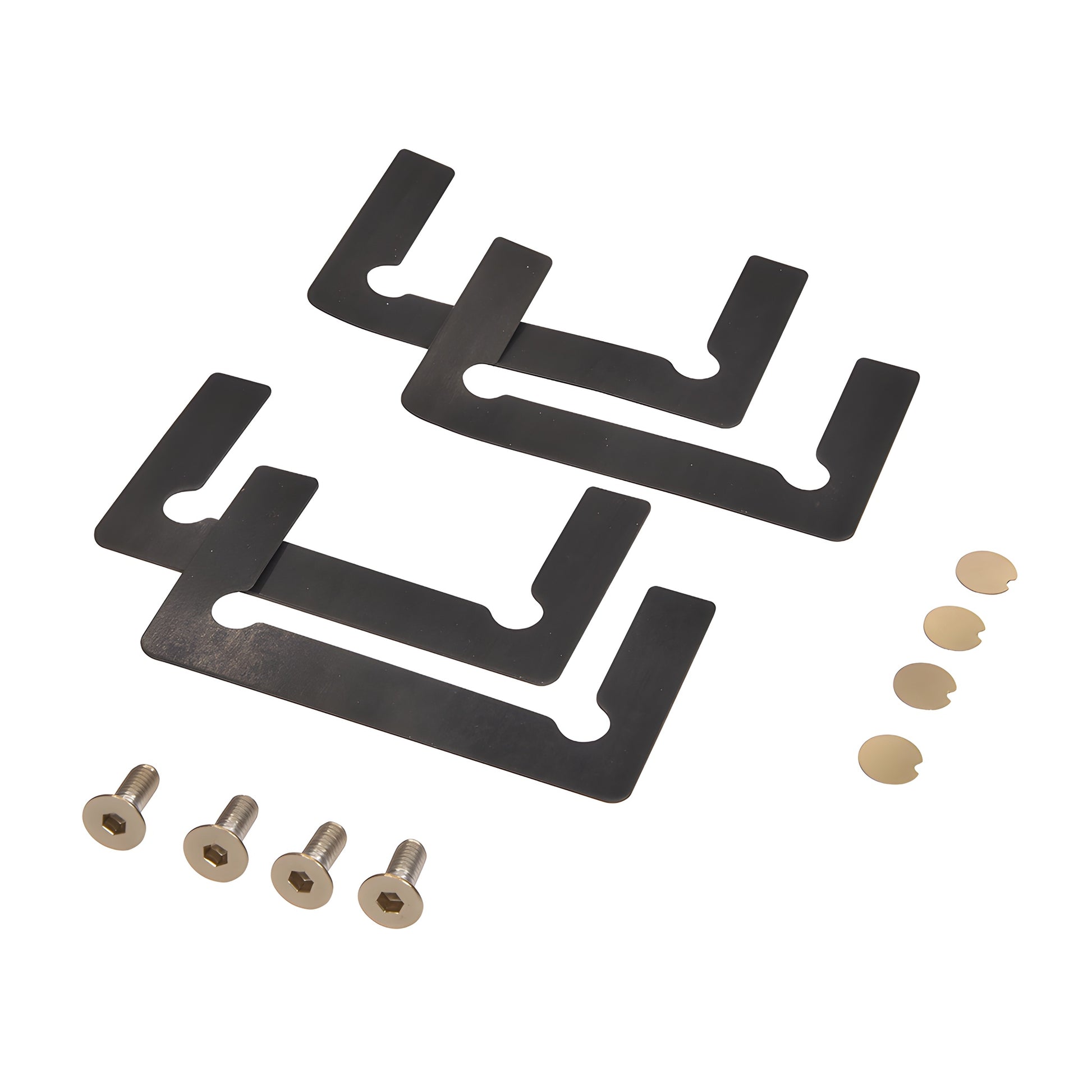

The hinge uses compressible NAF gaskets that adapt to surface variations to maintain a consistent grip between hinge and glass. NAF gaskets are compatible with both 3/8" and 1/2" (10 and 12 mm) monolithic tempered glass.

Standard reversible pivot pin: Each Trento Hinge includes a reversible pivot pin that adjusts the door’s closed position by 5° (rotate the pin to select 95° or 85°). This feature improves alignment, helps maintain a tight seal, and ensures smooth operation.

Load capacity:

• Using two hinges with 3/8" or 1/2" glass: supports doors up to 140 lb (63 kg), maximum width 40" (1016 mm)
• Using three hinges with 3/8" or 1/2" glass: supports doors up to 175 lb (79 kg), maximum width 40" (1016 mm)

Product warning:
CRL shower door hinges are intended for residential or hotel shower use only. For other applications, obtain approval from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge—cut-out dimensions may differ from other brands.

Order the CRL Trento Hinge (TNT180BBRZ) to upgrade to a sleek, heavy-duty frameless shower door hinge—contact us to buy or request technical assistance.
