CRL Trento Brushed Bronze Full-Back Glass Door Hinge
CRL Trento Brushed Bronze Full-Back Glass Door Hinge
Regular price
$162.66 CAD
Regular price
Sale price
$162.66 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# TNT037BBRZ
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
5 Degree Pre-Set
No
Adjustable
No
Back Plate
Full
Finish/Color
Brushed Bronze

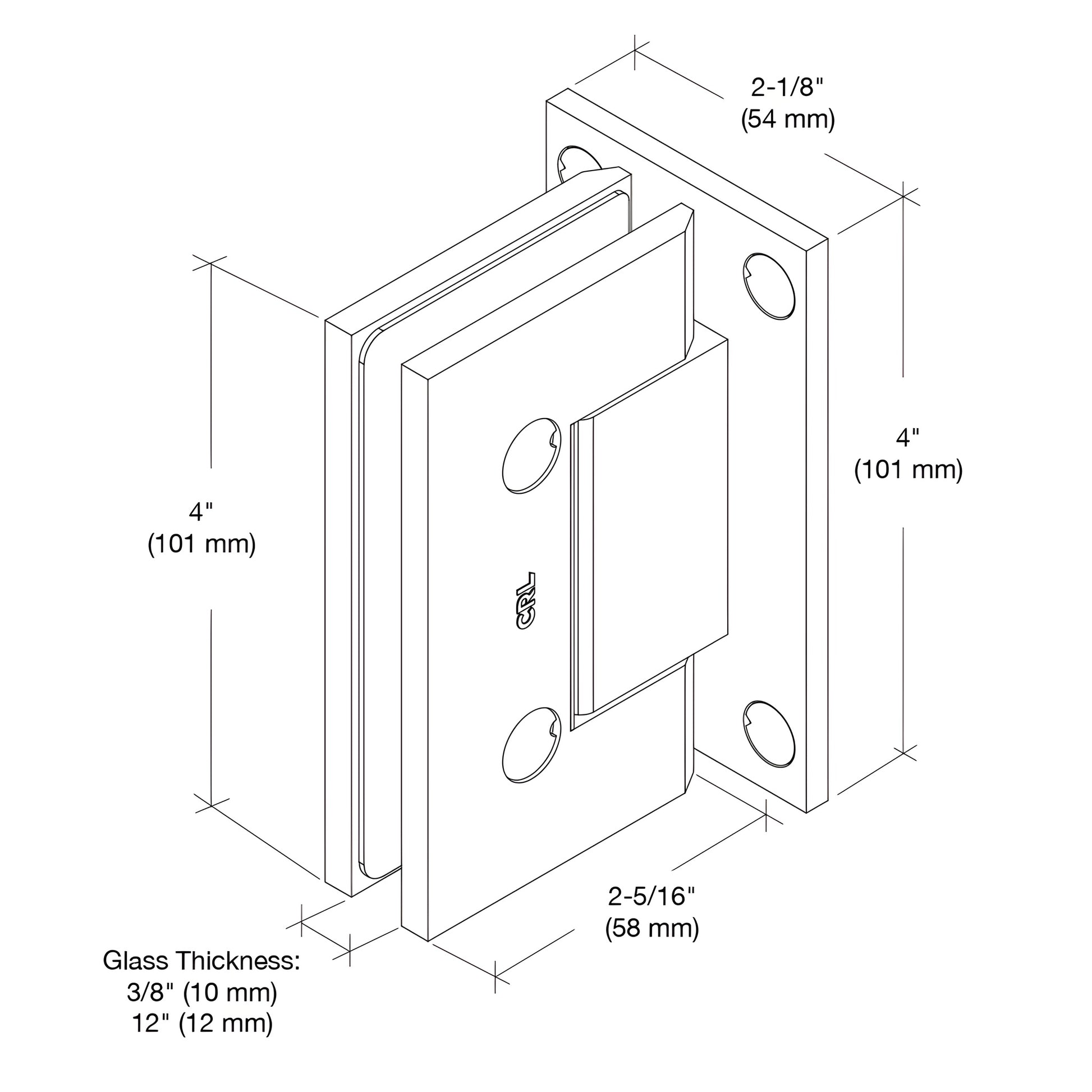

Glazing Thickness
3/8 in. to 1/2 in. (10 mm to 12 mm)
Height
4 in. (101 mm)
Material
Brass
Maximum Door Weight - 2 Hinges
140 lbs. (63 kg)
Maximum Door Weight - 3 Hinges
175 lbs. (79 kg)
Maximum Door Width
40 in. (1016 mm)
Mounting Type
Wall Mount
Positive Close
No
Self-Centering
Yes
Series
Trento
Width
2-5/16 in. (58 mm)
Overview
- Supports heavier glass shower doors—up to 140 lb (two hinges) or 175 lb (three hinges)
- Concealed mounting screws for a clean, modern finish
- Wall-mount full back plate, standard model
- Single NAF gasket compatible with both 3/8" and 1/2" (10 mm & 12 mm) monolithic tempered glass
- Designed for frameless shower doors with narrow gap profile

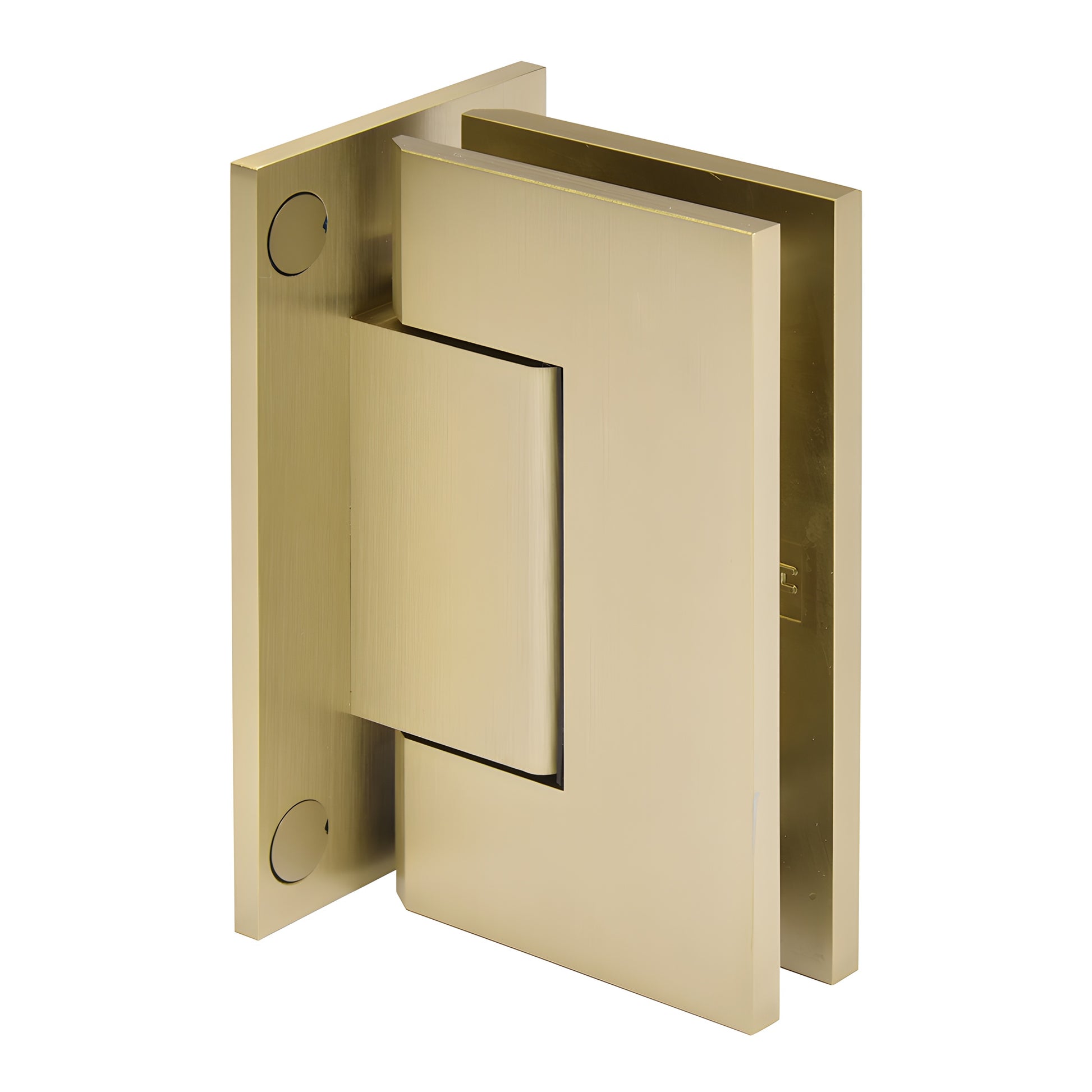

The CRL Trento Hinge (SKU: TNT037BBRZ) is a heavy-duty frameless shower door hinge engineered for modern bathrooms. Its sleek rectangular body and fully concealed screws provide a refined appearance while supporting larger glass panels in residential or hotel installations.
The Trento uses durable NAF gaskets that compress to maintain a consistent grip on monolithic tempered glass (3/8" and 1/2"). This makes it ideal for frameless shower doors where a tight seal and smooth operation are essential.
Standard reversible pivot pin: Each hinge includes a reversible pivot pin that adjusts the self-centering closing angle by 5°—set to 95° or 85° by rotating the pin (do not flip). This adjustment helps the door align correctly and maintain a tight seal with adjacent panels.
Load & size capacities:
- Two-hinge installation: supports doors up to 140 lb (63 kg) and 40" (1016 mm) wide
- Three-hinge installation: supports doors up to 175 lb (79 kg) and 40" (1016 mm) wide
Product warning:
CRL Shower Door Hinges are intended for residential or hotel shower use. For other applications, obtain approval from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge—cut-out dimensions may differ from other brands.
Ready to upgrade to a durable, concealed-screw hinge for heavy frameless shower glass? Add the CRL Trento Hinge (TNT037BBRZ) to your cart or contact us for technical assistance.
