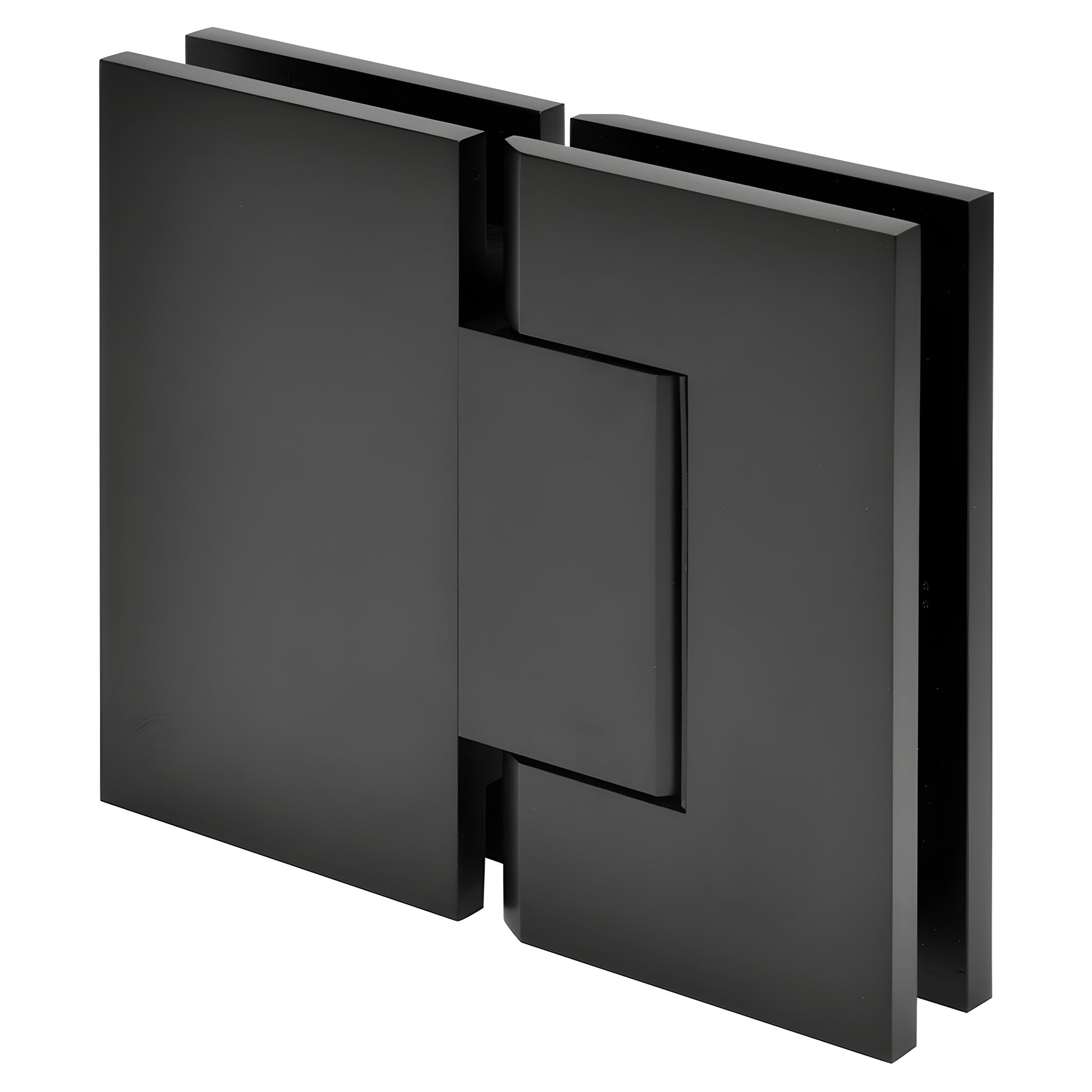

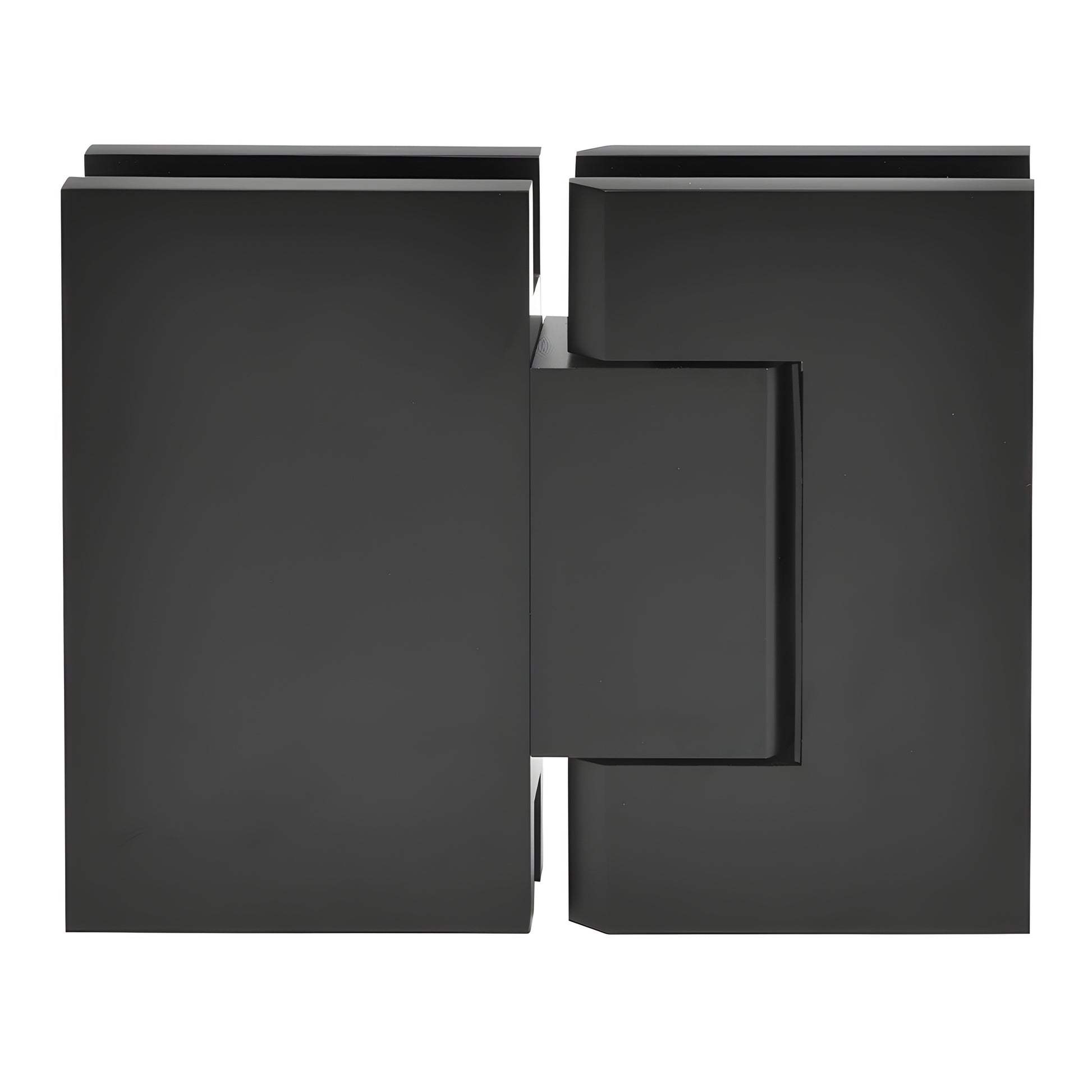

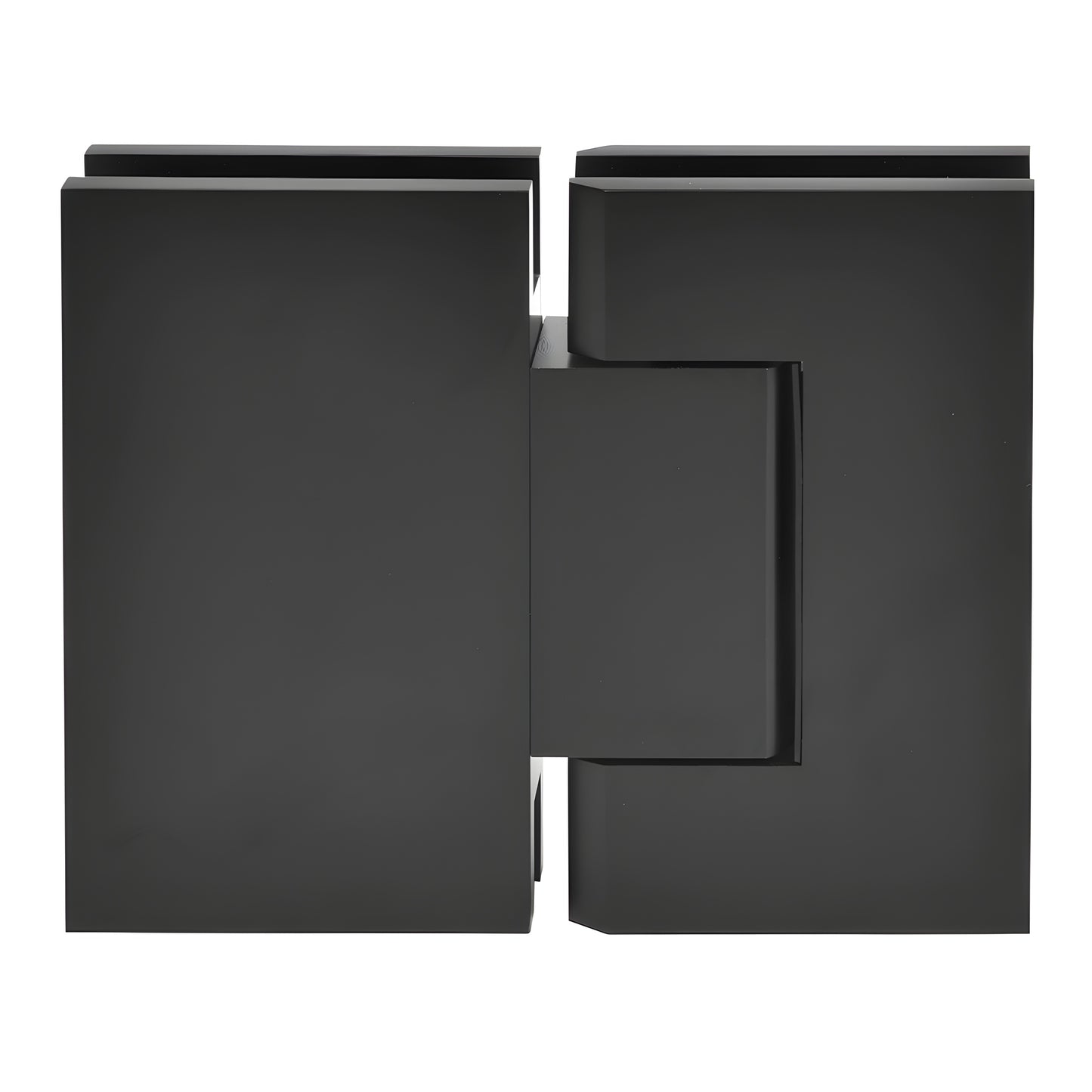

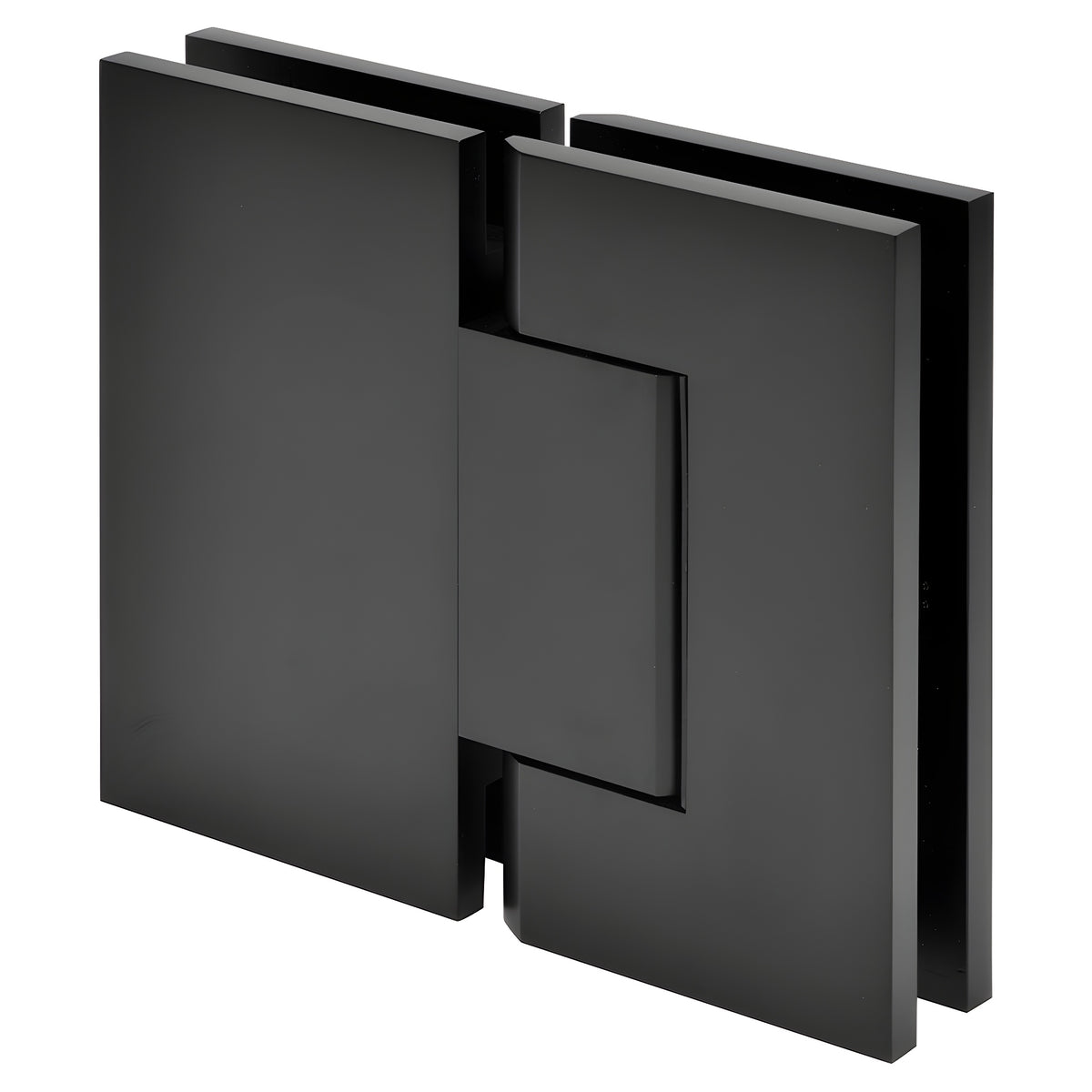

CRL Trento Matte Black 180° Glass-to-Glass Shower Door Hinge

• Supports heavier glass shower doors

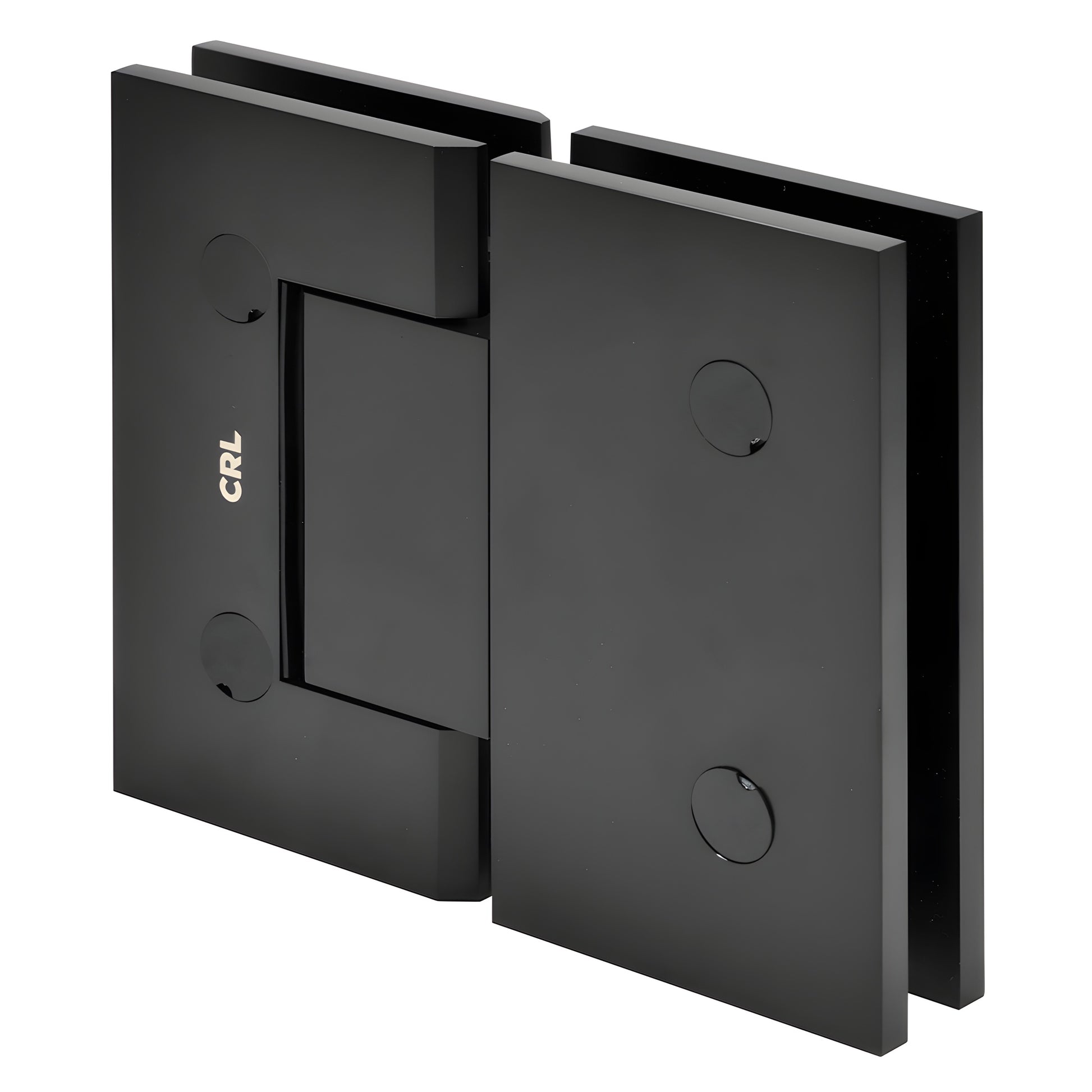

• Concealed mounting screws for a clean, modern look
• 180° glass-to-glass hinge — standard model

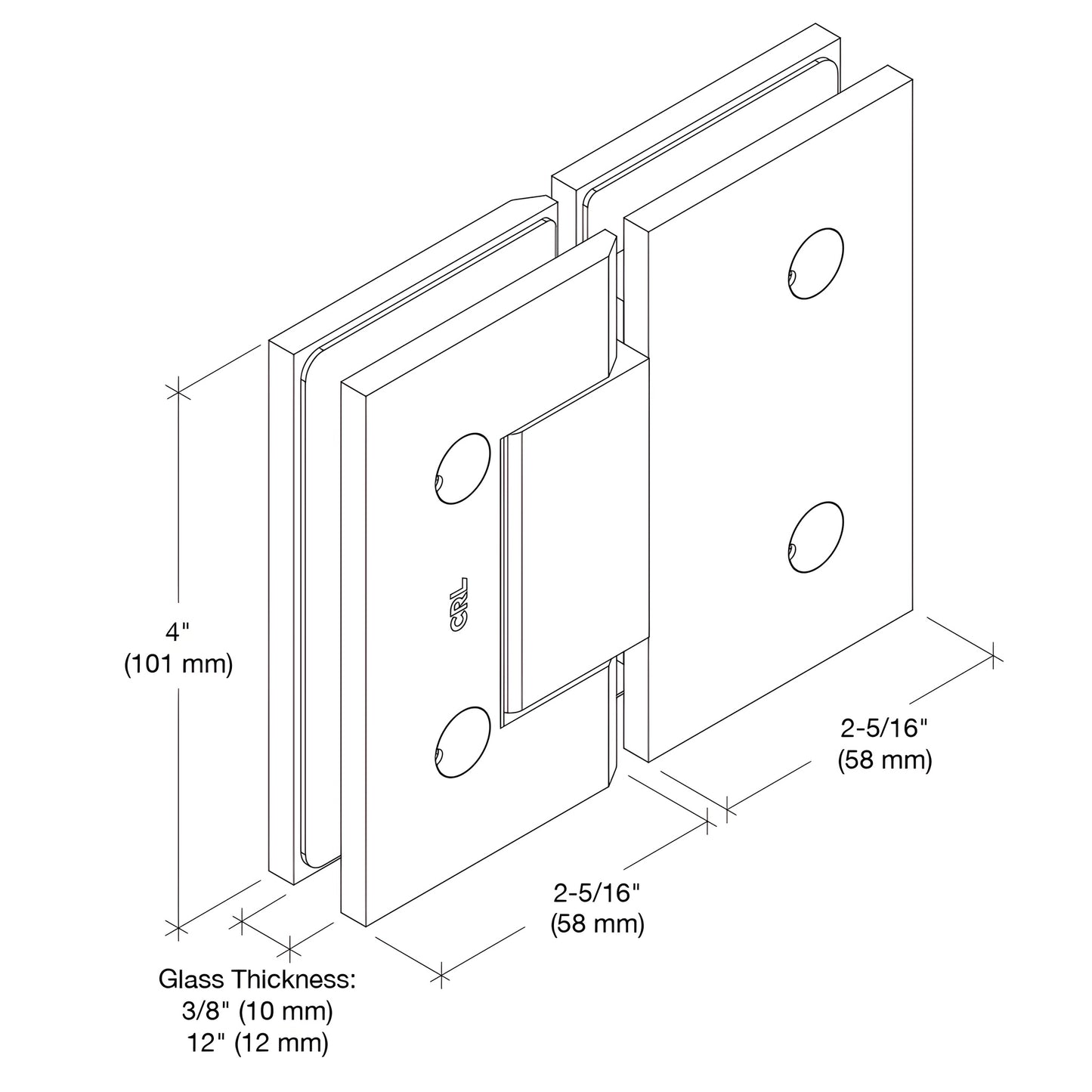

• Single NAF gasket compatible with 3/8" and 1/2" (10 and 12 mm) glass
• Use with monolithic tempered glass

CRL Trento Hinge (SKU: TNT180MBL) is a heavy-duty, rectangular-profile hinge engineered for frameless shower doors. In a standard two-hinge installation it supports panels up to 140 lbs (63 kg) and features a narrow gap with fully concealed screws for a refined appearance—ideal for modern bathroom remodels and high-end hotel showers.

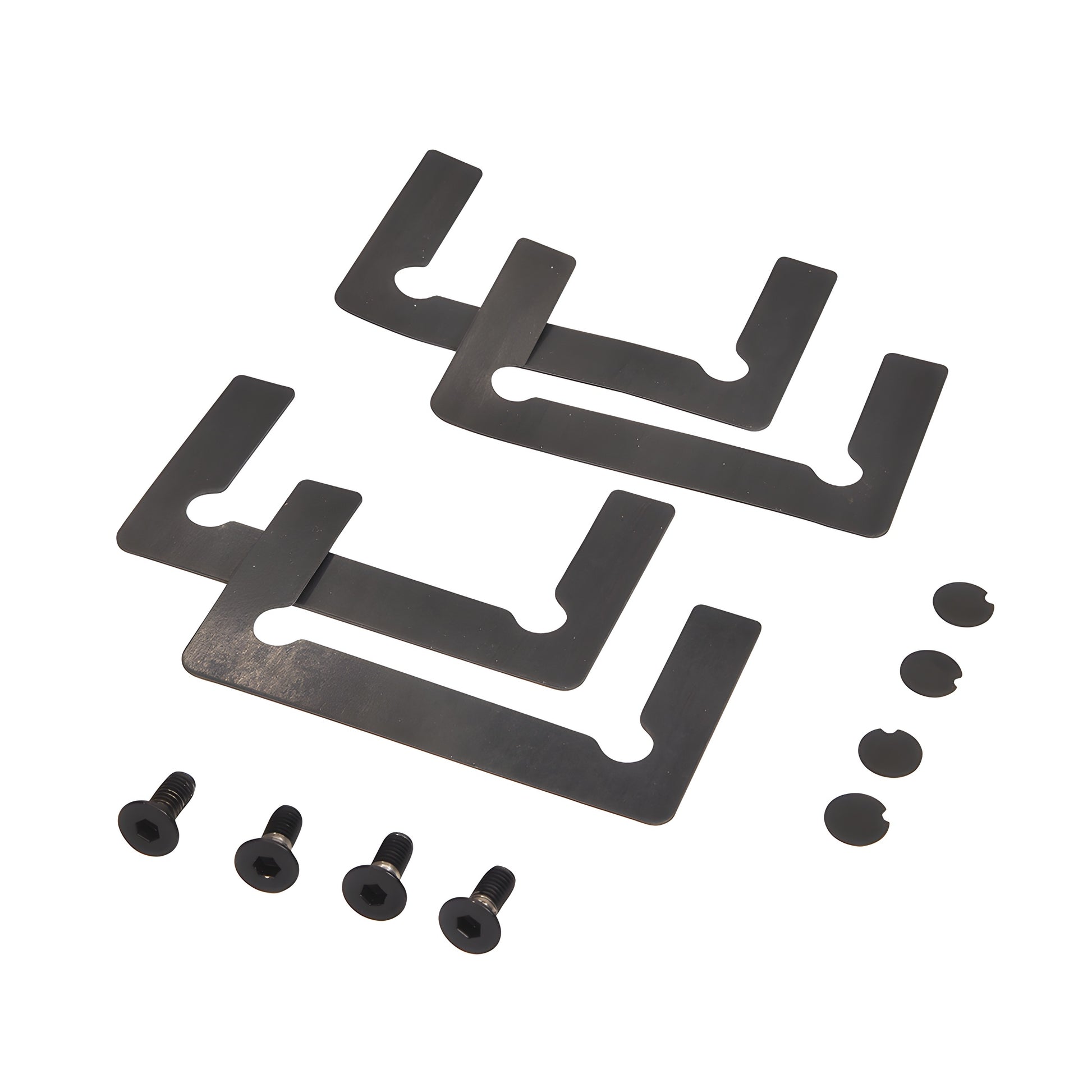

The Trento uses compressible NAF gaskets that adapt to surface variations and are compatible with both 3/8" and 1/2" (10 and 12 mm) monolithic tempered glass, providing a consistent grip between hinge and glass.

Standard reversible pivot pin: Each hinge includes a reversible pivot pin that adjusts the door’s closed position. Rotate (do not flip) the pin to shift the self-centering angle by 5°—choose 95° or 85°—to improve alignment, achieve a tighter seal, and ensure smooth operation.

Load capacities:

• Using two hinges with 3/8" or 1/2" glass: supports doors up to 140 lbs (63 kg), maximum width 40" (1016 mm).
• Using three hinges with 3/8" or 1/2" glass: supports doors up to 175 lbs (79 kg), maximum width 40" (1016 mm).

Product warning:

CRL Shower Door Hinges are intended for residential and hotel shower use only. For any other application, obtain approval from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge—cut-out dimensions may differ from other brands.
