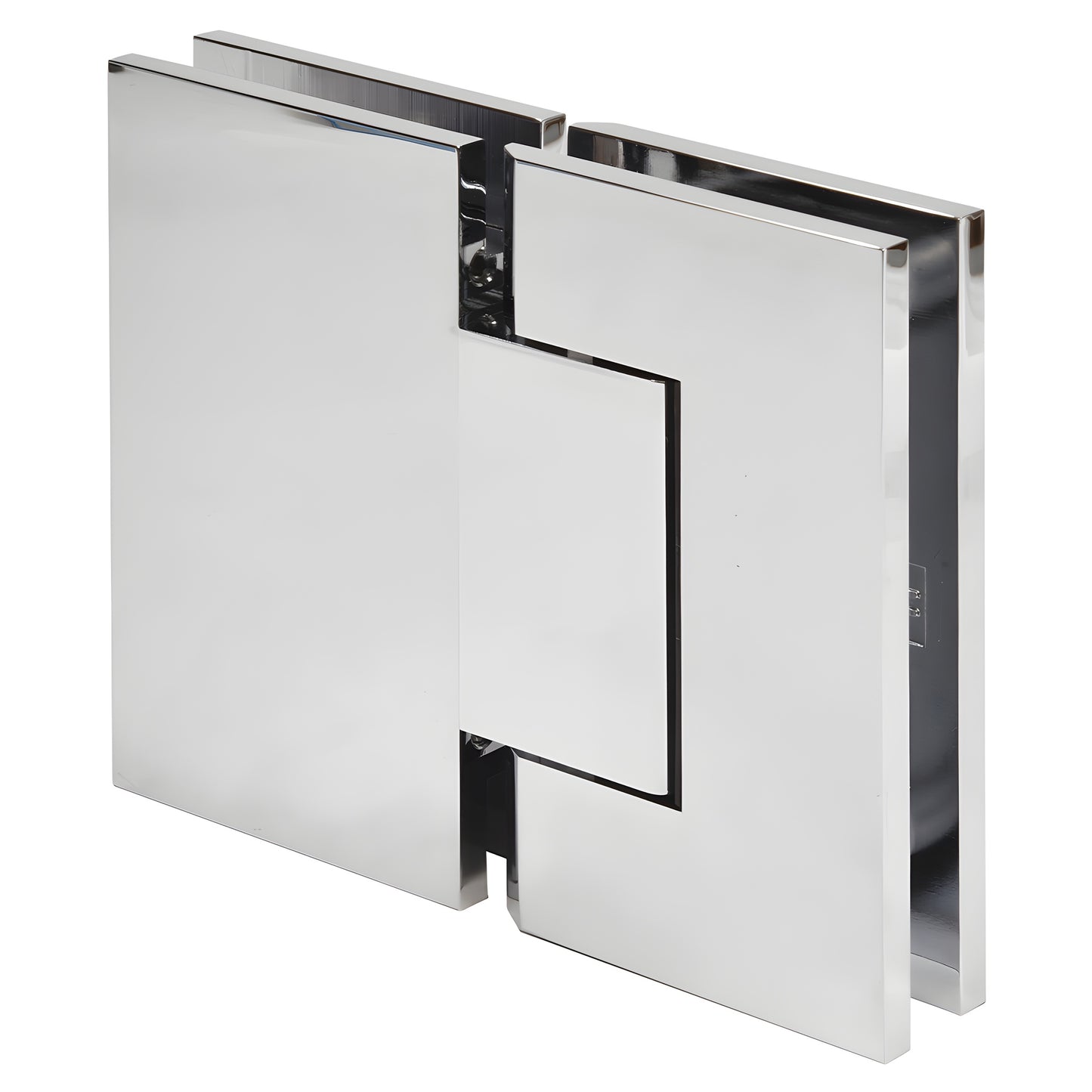

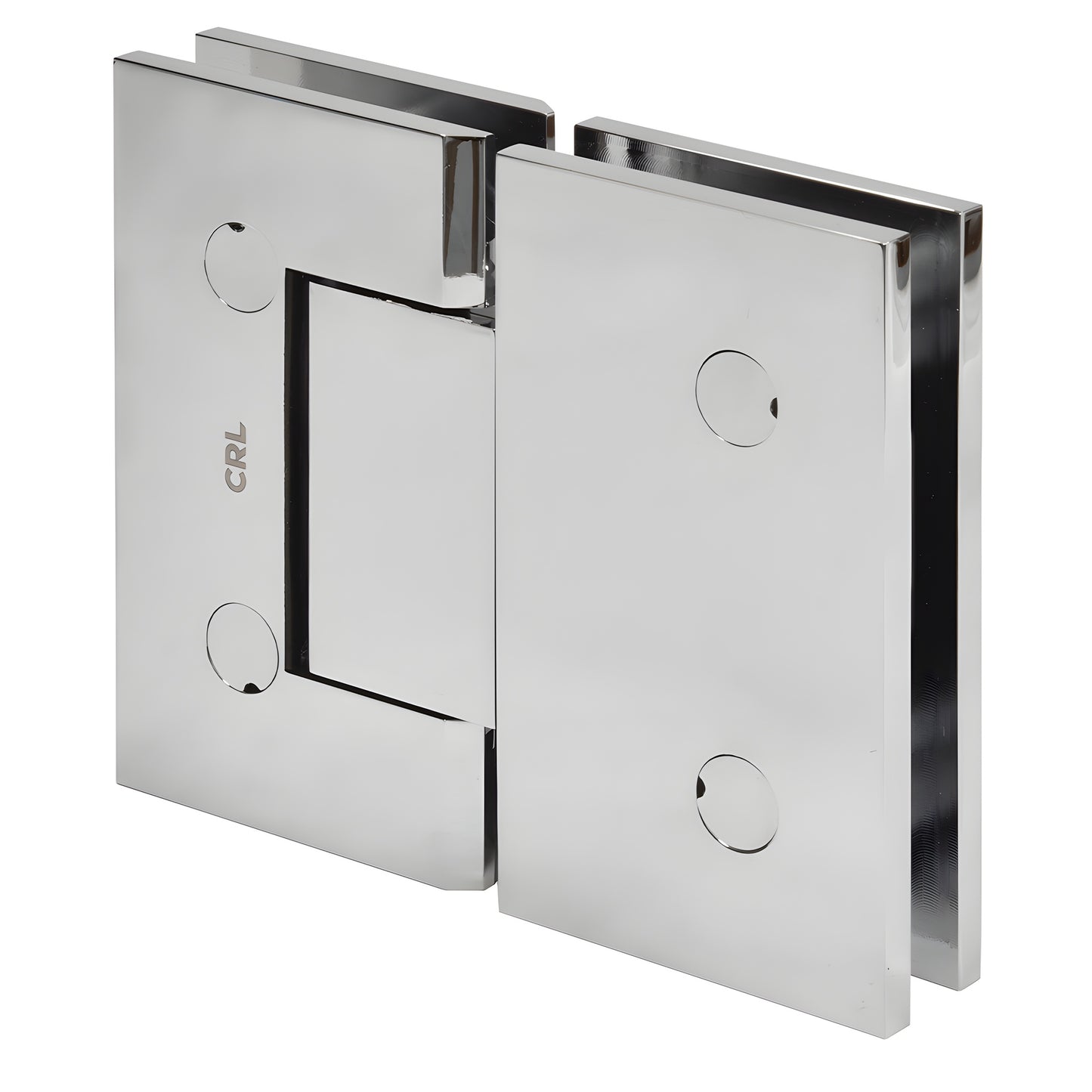

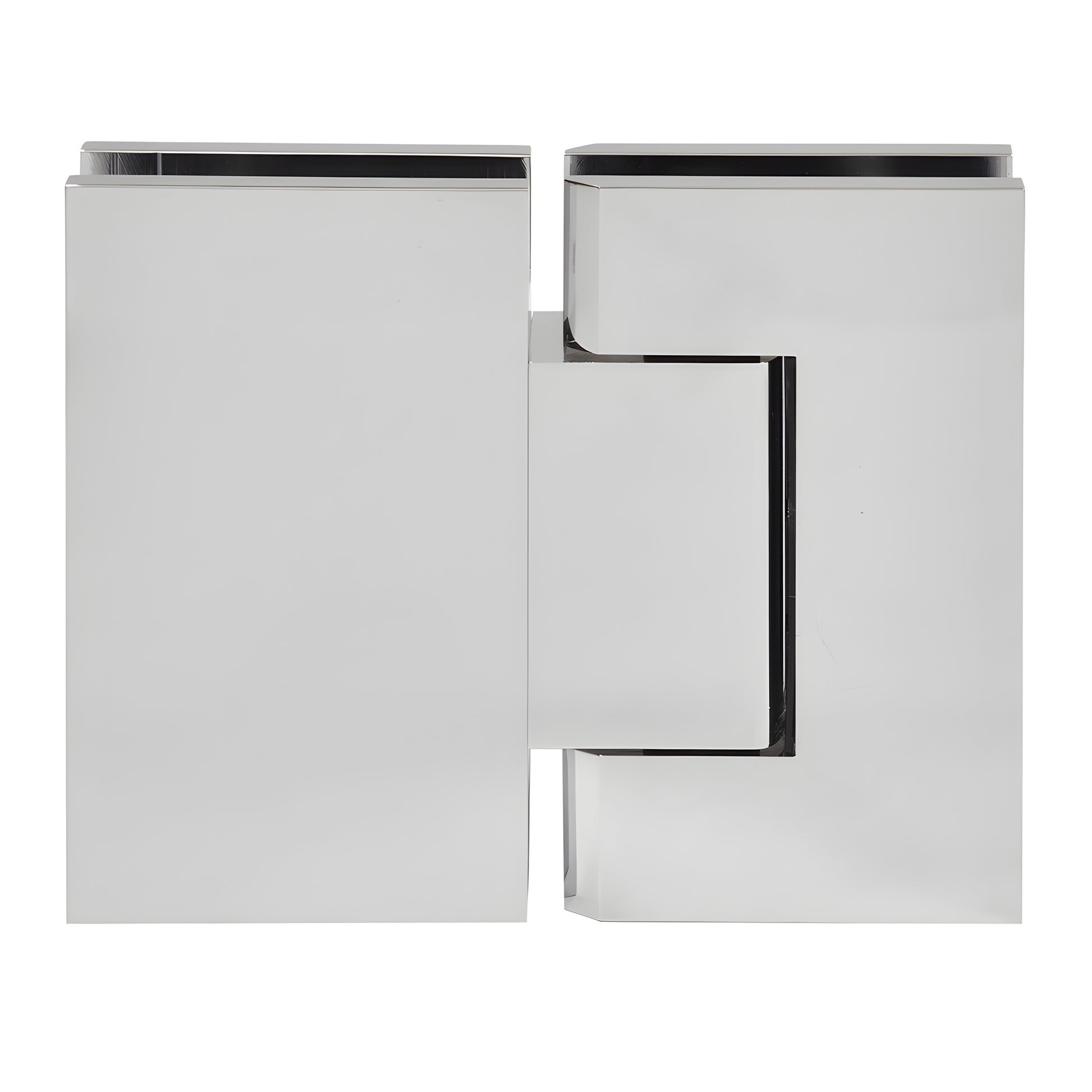

CRL Trento 180° Polished Chrome Glass-to-Glass Shower Door Hinge

• Supports heavier glass shower doors (up to 175 lbs with three hinges)
• Concealed screws for a clean frameless look
• 180° glass-to-glass hinge — standard model (TNT180CH)

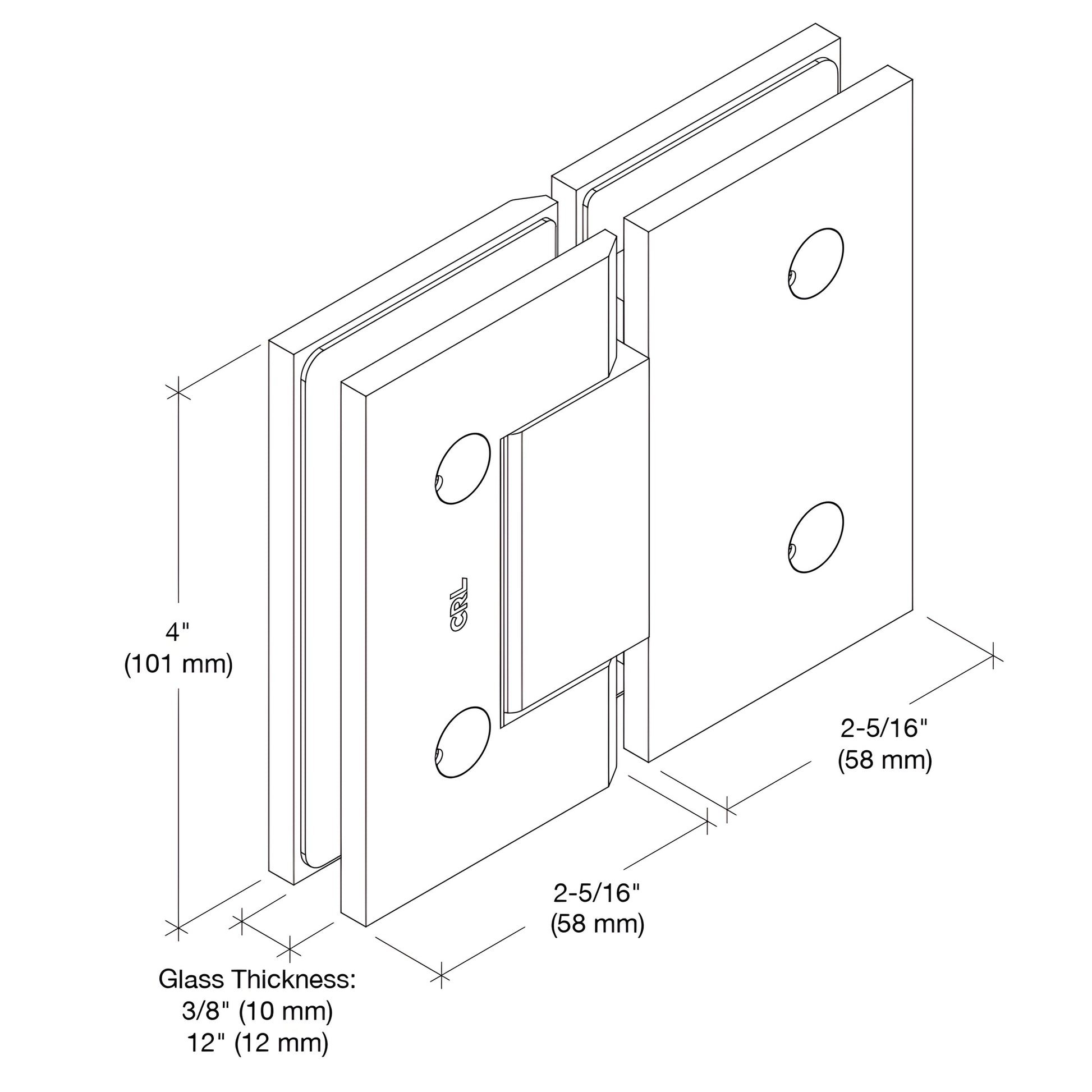

• Single NAF gasket compatible with both 3/8" and 1/2" (10 and 12 mm) monolithic tempered glass
• Designed for use with monolithic tempered glass panels

CRL Trento Hinge (SKU: TNT180CH) is a heavy-duty, low-profile hinge engineered for modern frameless shower doors. Its sleek rectangular body, narrow gap and fully concealed mounting screws deliver a refined appearance ideal for high-end residential and hotel shower installations.

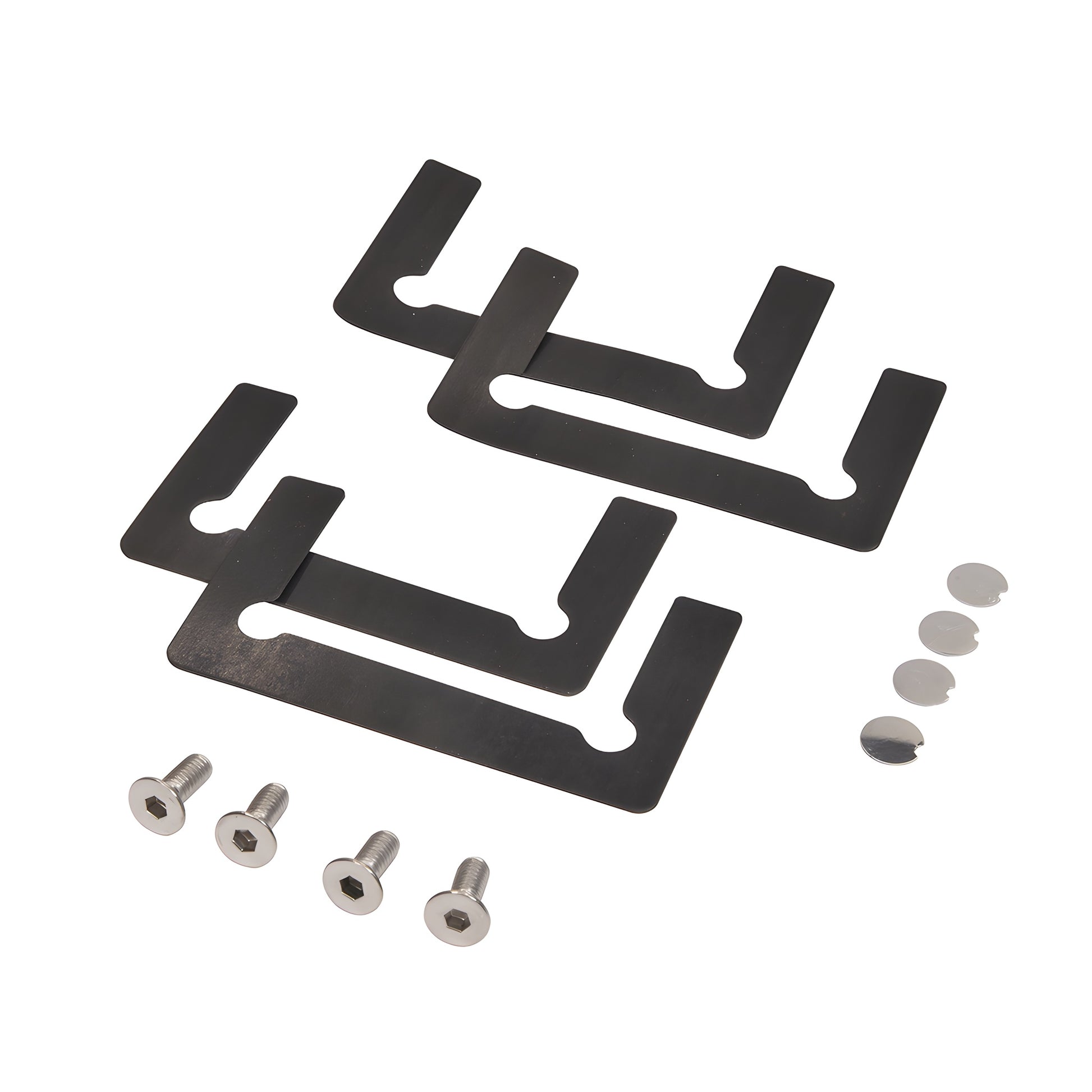

The Trento hinge is a durable, 180-degree glass-to-glass hinge and a top choice when you need a heavy-duty concealed hinge for 3/8" and 1/2" glass. It uses compressible NAF gaskets that adapt to varying surface conditions to maintain a consistent grip between hinge and glass.

Standard reversible pivot pin: Each hinge includes a reversible pivot pin that adjusts the door’s self-centering angle by 5°—rotate (do not flip) to set either 95° or 85° closed position. This simple adjustment improves alignment, ensures a tight seal, and promotes smooth operation.

Capacity & sizing:

• Two-hinge installation: supports doors up to 140 lbs (63 kg) and 40" (1016 mm) wide
• Three-hinge installation: supports doors up to 175 lbs (79 kg) and 40" (1016 mm) wide

Installation notes & warning:

CRL shower door hinges are designed for residential or hotel use only. For applications outside intended use, obtain approval from the CRL Shower Door Technical Sales Department. Use only the template supplied with this hinge—cut-out dimensions may not match other brands.

Choose the Trento hinge (TNT180CH) for a heavy-duty, concealed 180° frameless shower door hinge compatible with 3/8" and 1/2" tempered glass. Buy now or contact us for technical assistance.
