Product Details
- Supports Heavier Glass Shower Doors
- Concealed Screws
- 90 Degree Glass-to-Glass
- Single NAF Gasket compatible with both 3/8” and 1/2” glass
- Use Monolithic Tempered Glass
- Apply medium-strength threadlocker on cover plate screws

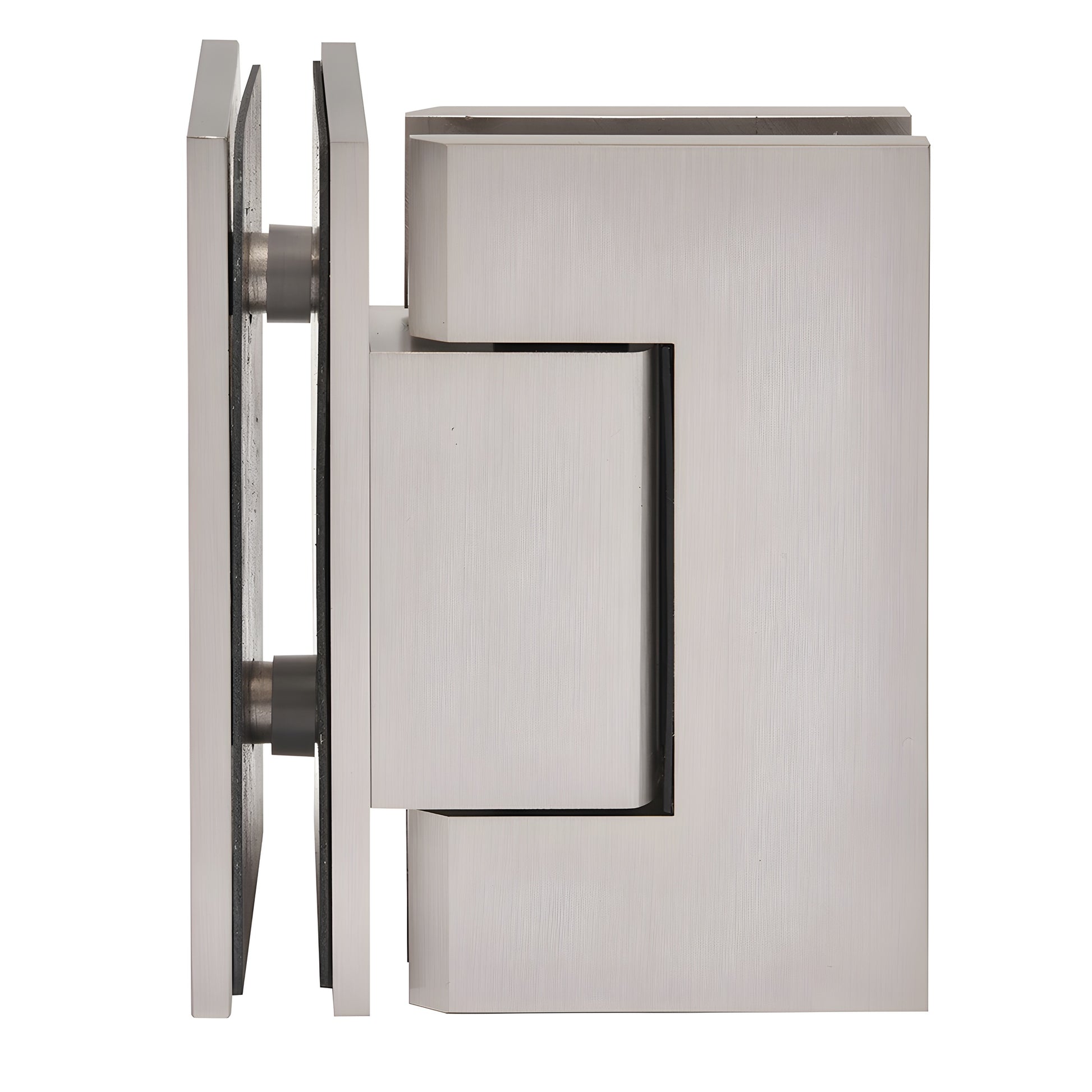

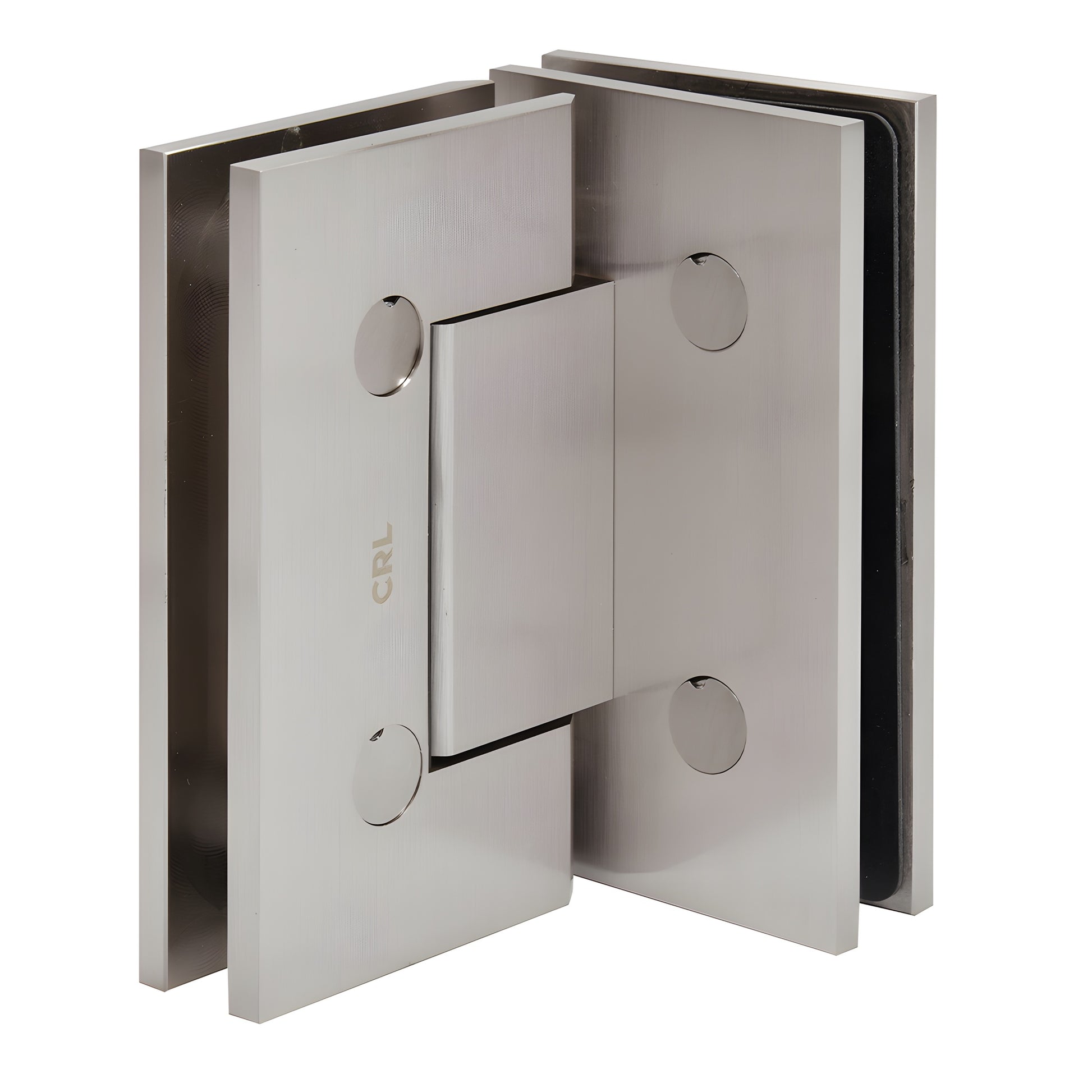

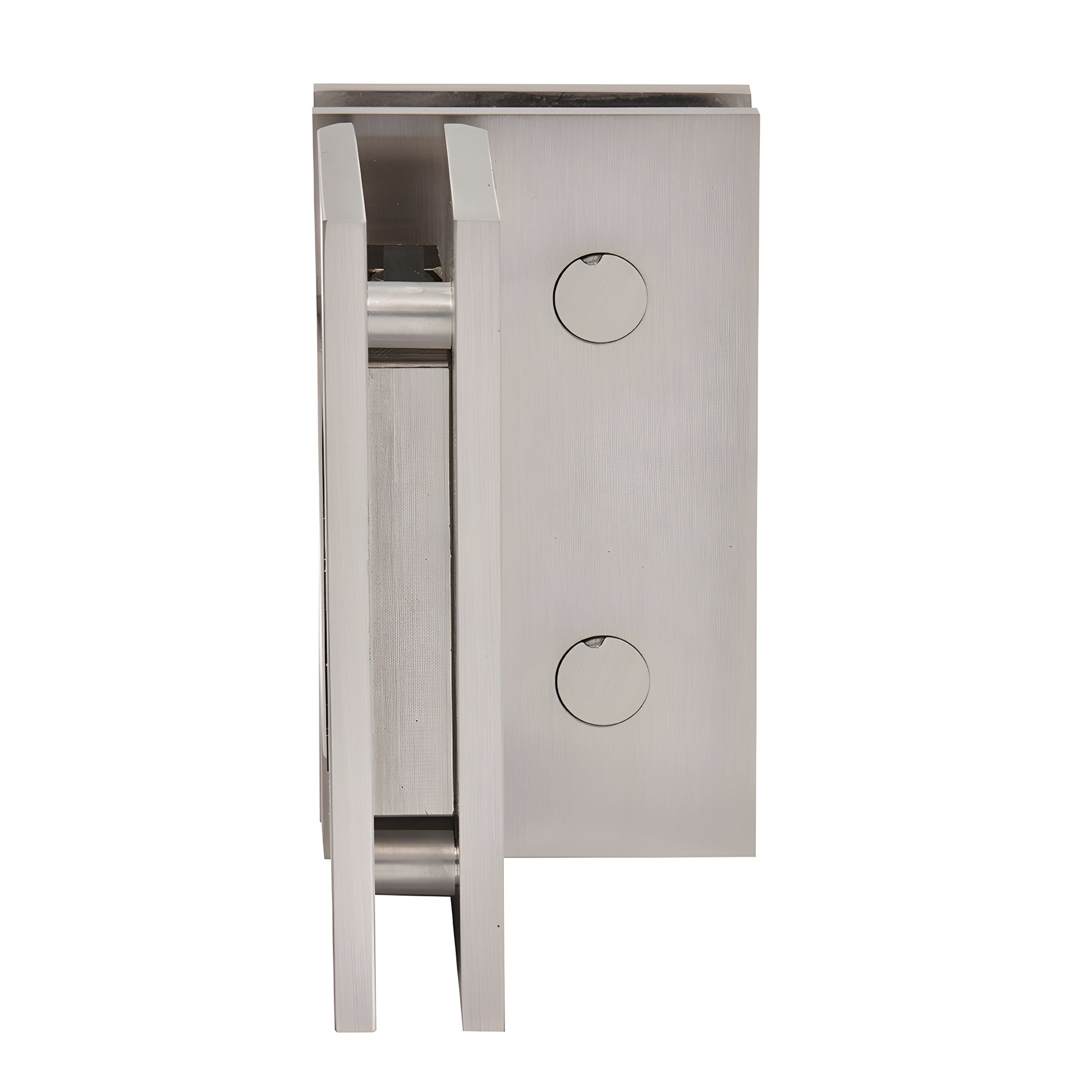

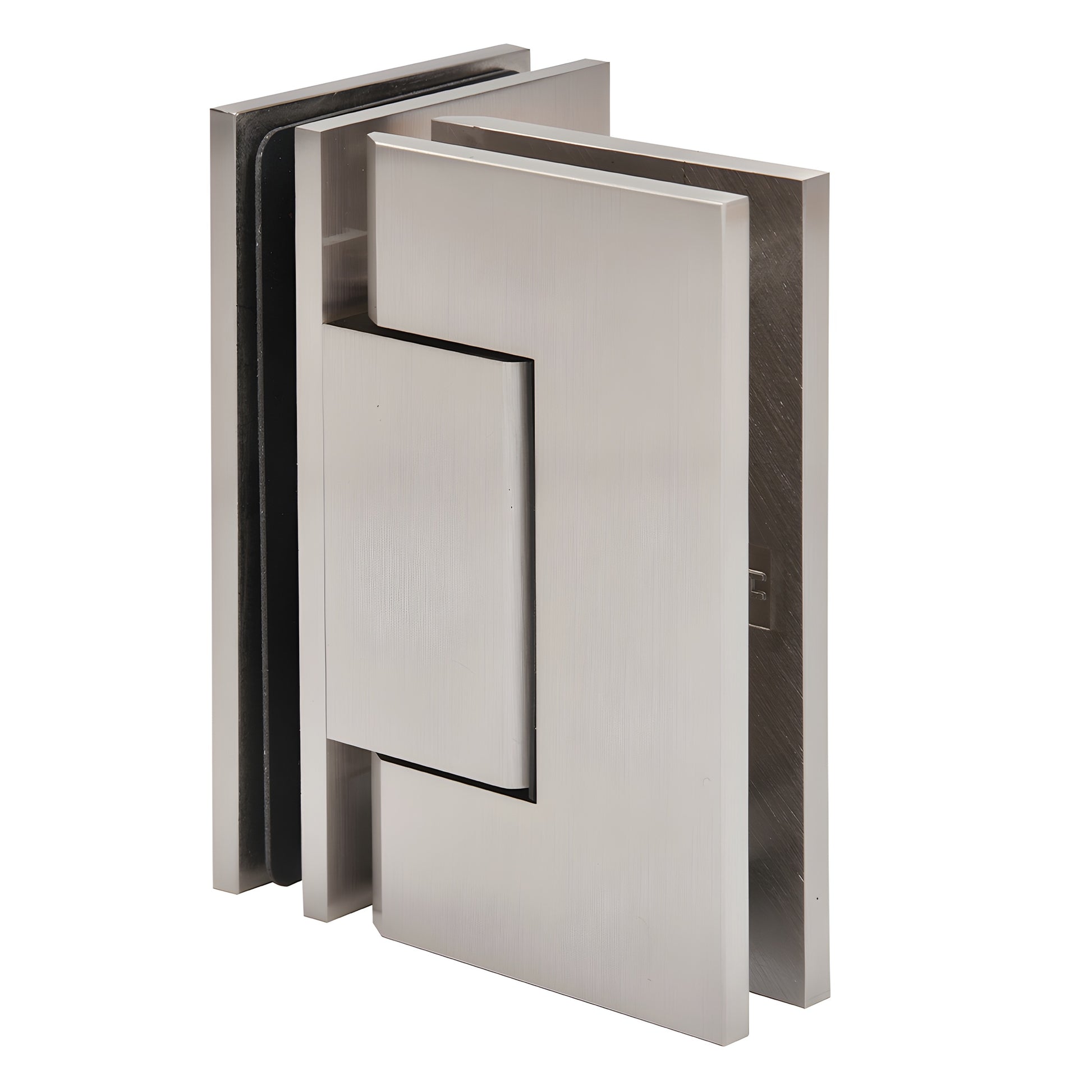

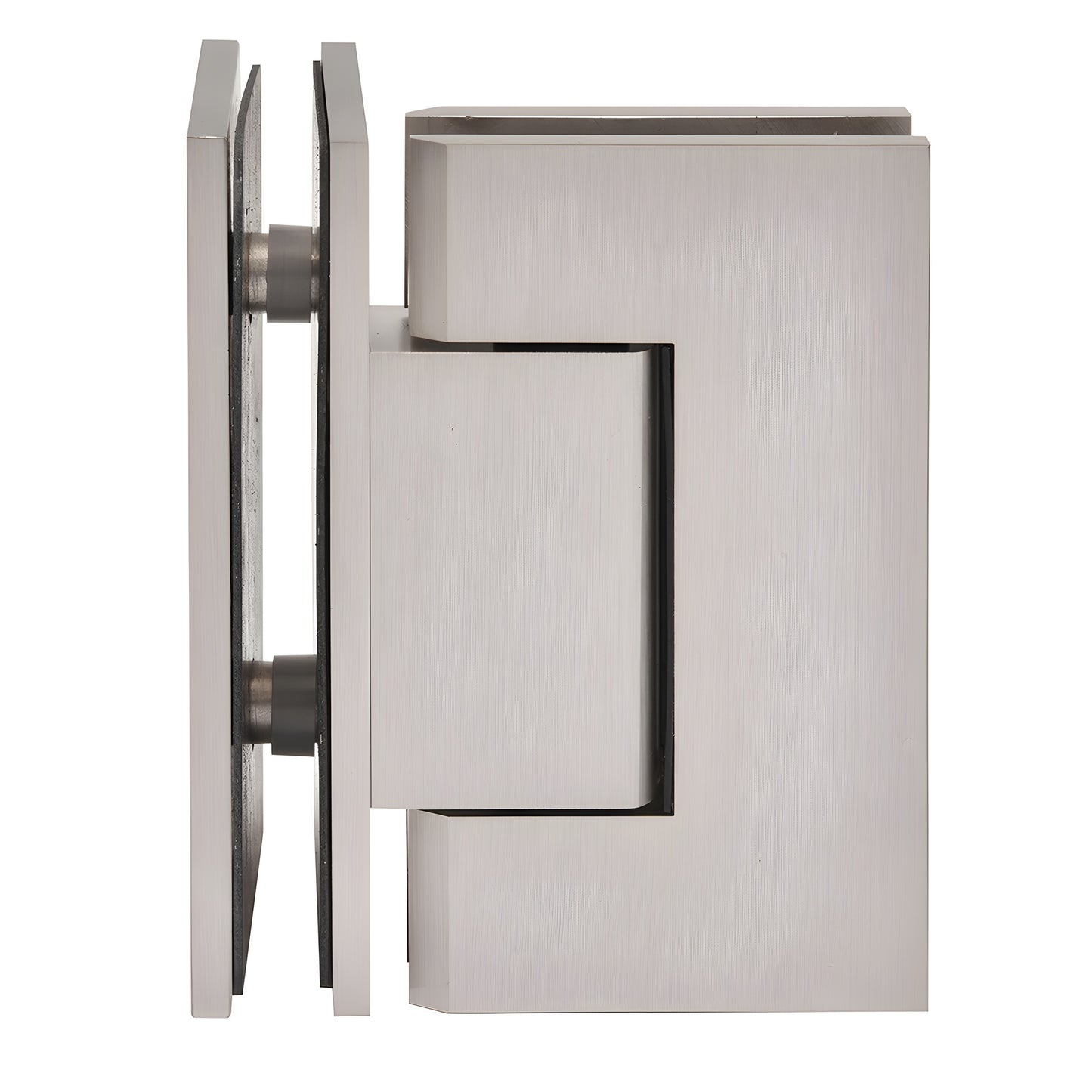

The CRL Trento Hinge is a heavy-duty hinge designed for modern frameless shower doors, supporting panels up to 140 lbs. in a standard two-hinge installation. Its sleek rectangular body features a narrow gap and fully concealed mounting screws for a refined appearance.

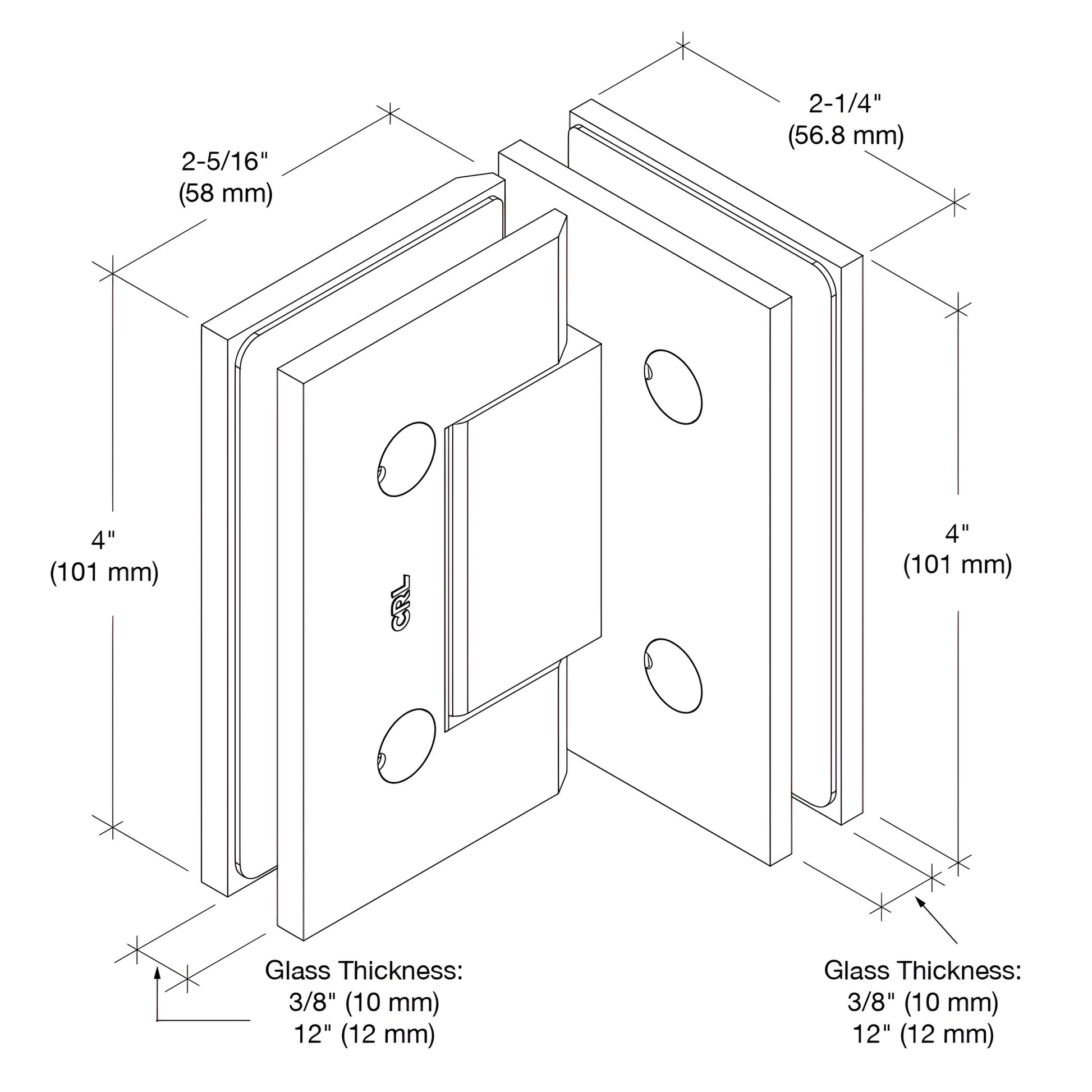

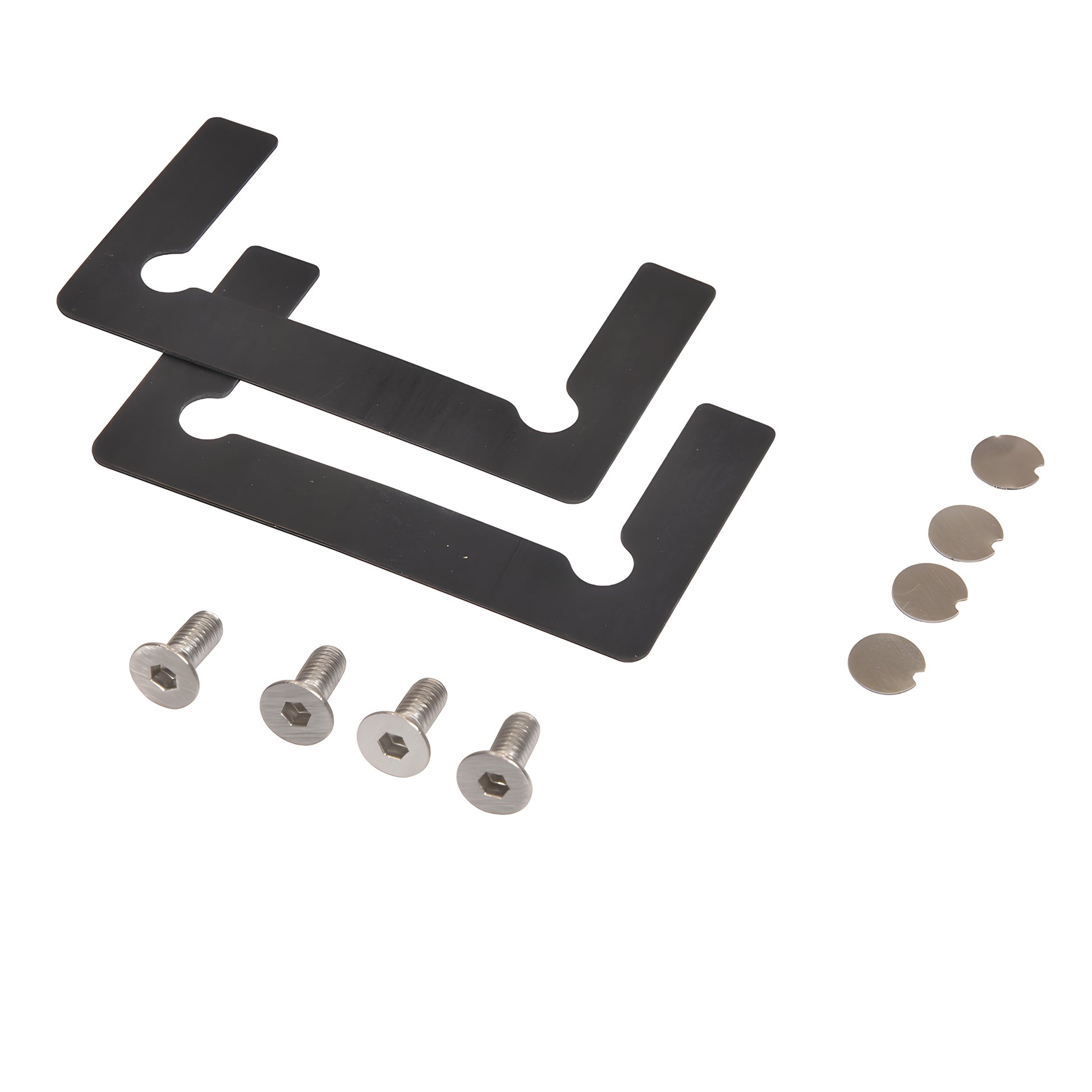

The Trento hinge uses durable NAF Gaskets, compatible with both 3/8" and 1/2" (10 and 12 mm) monolithic tempered glass. This compressible material adapts to help maintain a consistent grip between the hinge and glass across varying surface conditions.
STANDARD REVERSIBLE PIVOT PIN: Each Trento Hinge contains a Reversible Pivot Pin. The standard reversible pivot pin allows you to adjust the door’s closed position. By rotating (not flipping) the pin, you can shift the self-centering angle by 5 degrees—either 95° or 85°—to ensure the door closes properly and aligns correctly with surrounding panels. This adjustment helps maintain a tight seal and smooth operation.
Using two hinges with 3/8" and 1/2" (10 and 12 mm) glass, the hinge can support doors up to 150 lbs. (68 kg) with a maximum width of 40" (1016 mm).
Using three hinges with 3/8" and 1/2" (10 and 12 mm) glass, the hinge can support doors up to 190 lbs. (86 kg) for doors up to 40" (1016 mm) wide.
Product Warning:
CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.
Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
