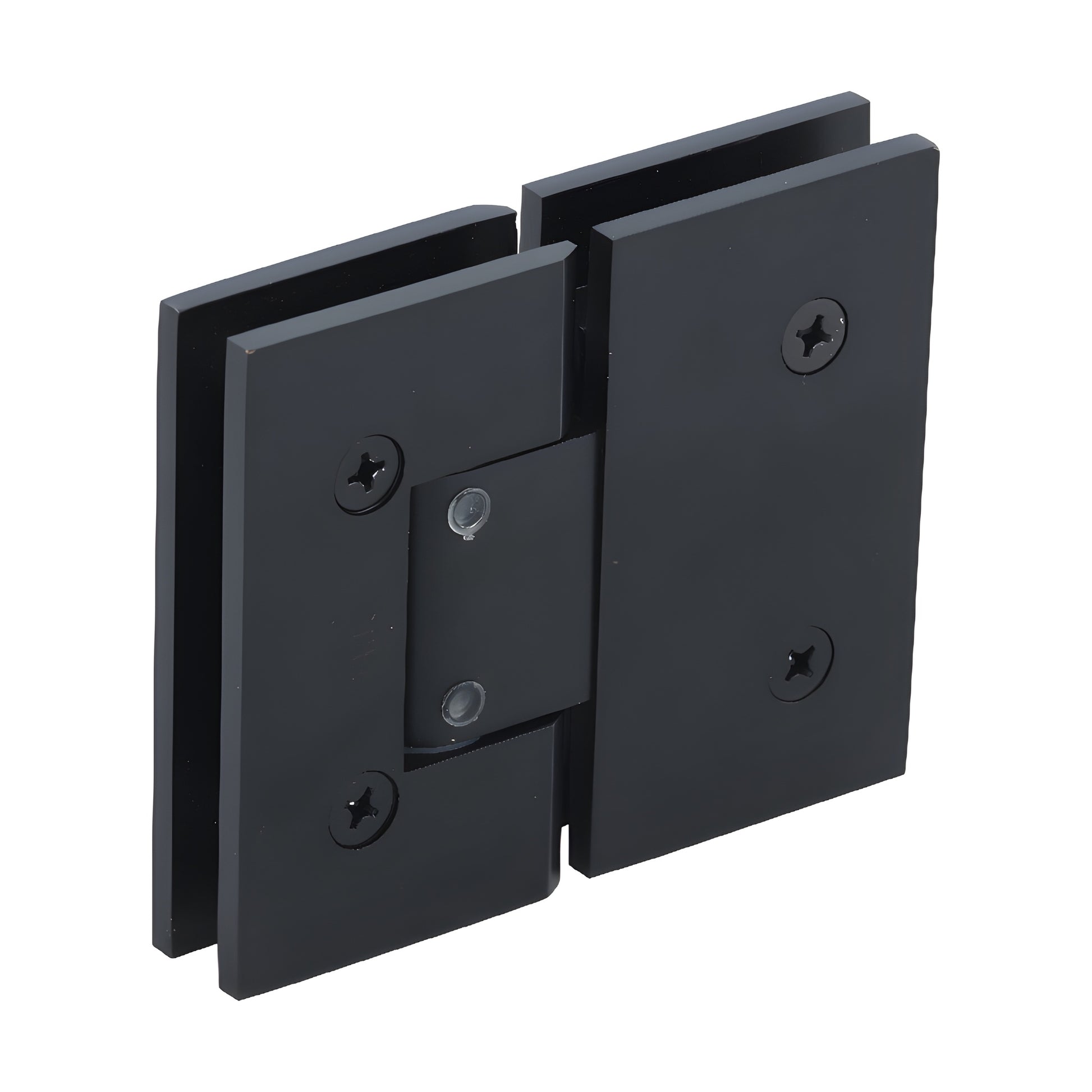

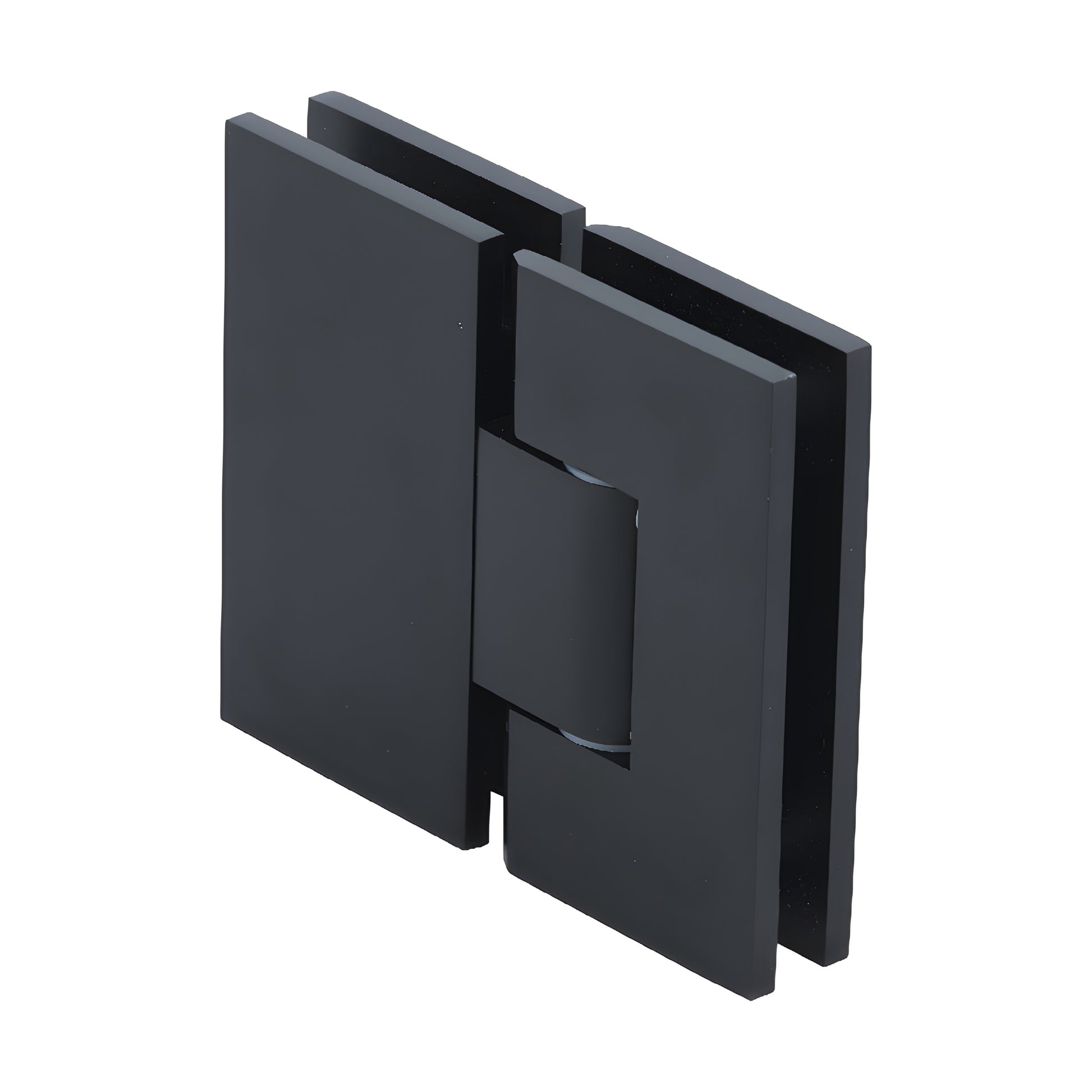

CRL Vienna 380 Oil Rubbed Bronze 180° Adjustable Shower Door Hinge

• Adjustable to any angle up to 90 degrees without removing the door
• Available in several beautiful finishes
• 3 Year Warranty
• Adjustable 180° glass-to-glass option
• Use with monolithic tempered safety glass

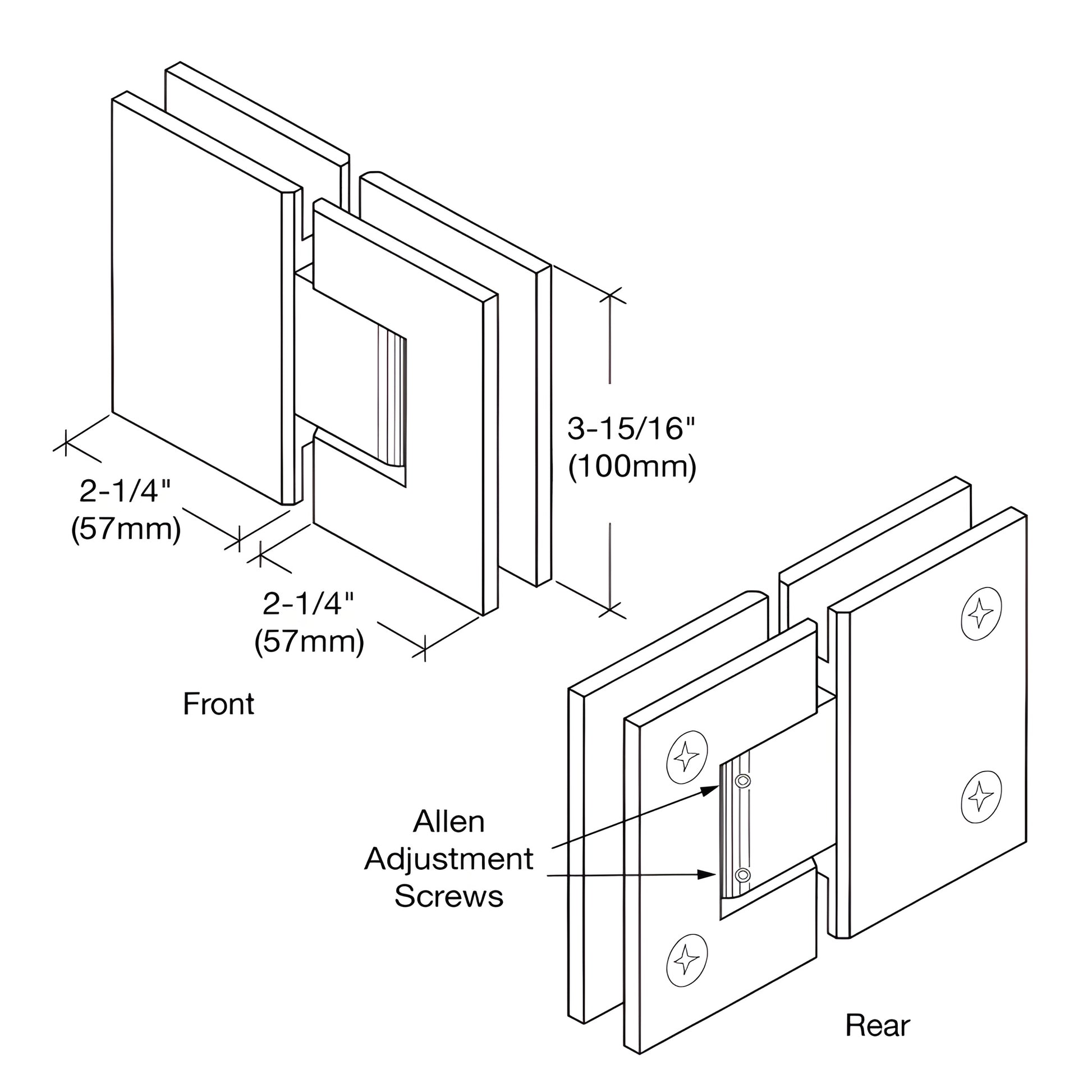

CRL Adjustable Vienna Series (SKU: V1E3800RB) — our Vienna Hinge now features field adjustment after the door is hung. Loosen the Allen set screws, rotate the door to the desired closed position, then tighten the screws. The hinge self-centers when within 15° of the closed position. Door swing at factory setting: 90° in and 90° out. For outward-pulling doors (clear jamb), set the hinge to close 5° into the shower for a snug jamb seal.

Standard Reversible Pivot Pin: Each hinge includes a reversible pivot pin marked 90° on one side and 85° on the other. Standard models ship with 90° activated; pre-set models use the 85° side for a 5° tighter closure. Rotate (do not flip) the pin to switch sides.

Custom Pivot Pin: Specify a custom pivot pin for non‑standard wall angles (up to 45°) when the standard 5° adjustment is insufficient.

Load Capacity:

• Two hinges (3/8"–1/2" glass / 10–12 mm): holds up to 110 lb (50 kg), max door width 36" (914 mm)
• Three hinges (3/8"–1/2" glass / 10–12 mm): holds up to 140 lb (63 kg), max door width 36" (914 mm)

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass
Special Feature: Adjustable to any angle up to 90° without removing the door
Construction: Solid brass
Hinge Swings: 90° in and 90° out (factory set position)
Closing Type: Self-centering within 15° of closed position
Cut-Out Required
Includes: Gaskets, screws, and glass fabrication dimensions
Maximum Clamping Screw Torque: 60 lbf·in (677.9 cN·m)

NOTE: Door glass width may require alteration from standard clearance deductions when adjusting angles. Call for details. Custom finishes are available on request — contact CRL Technical Sales, Shower Door Department.

Product Warning:
CRL shower door hinges are designed for residential or hotel shower use only. For other uses obtain approval from CRL Shower Door Technical Sales. Use only the template included with this hinge — cut
