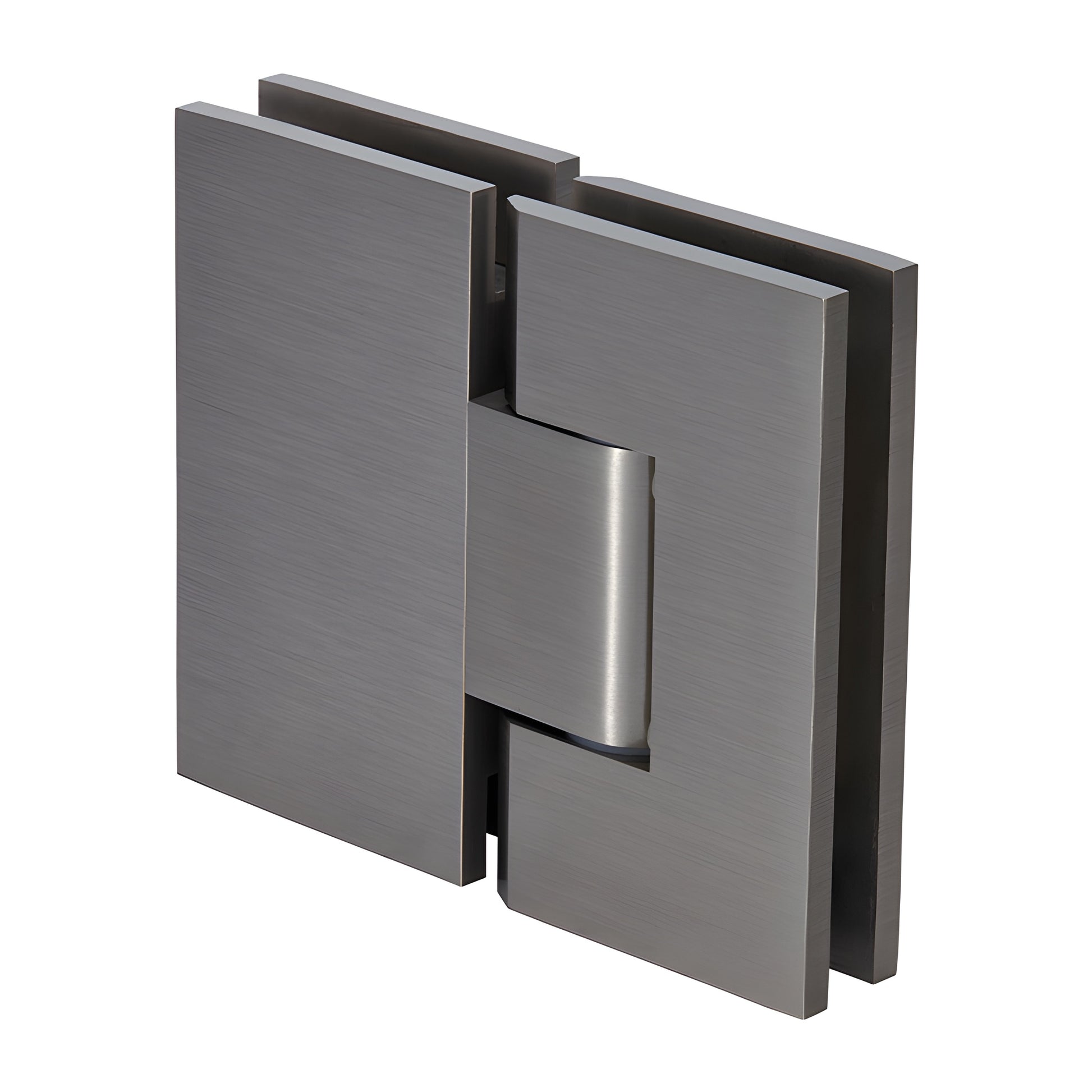

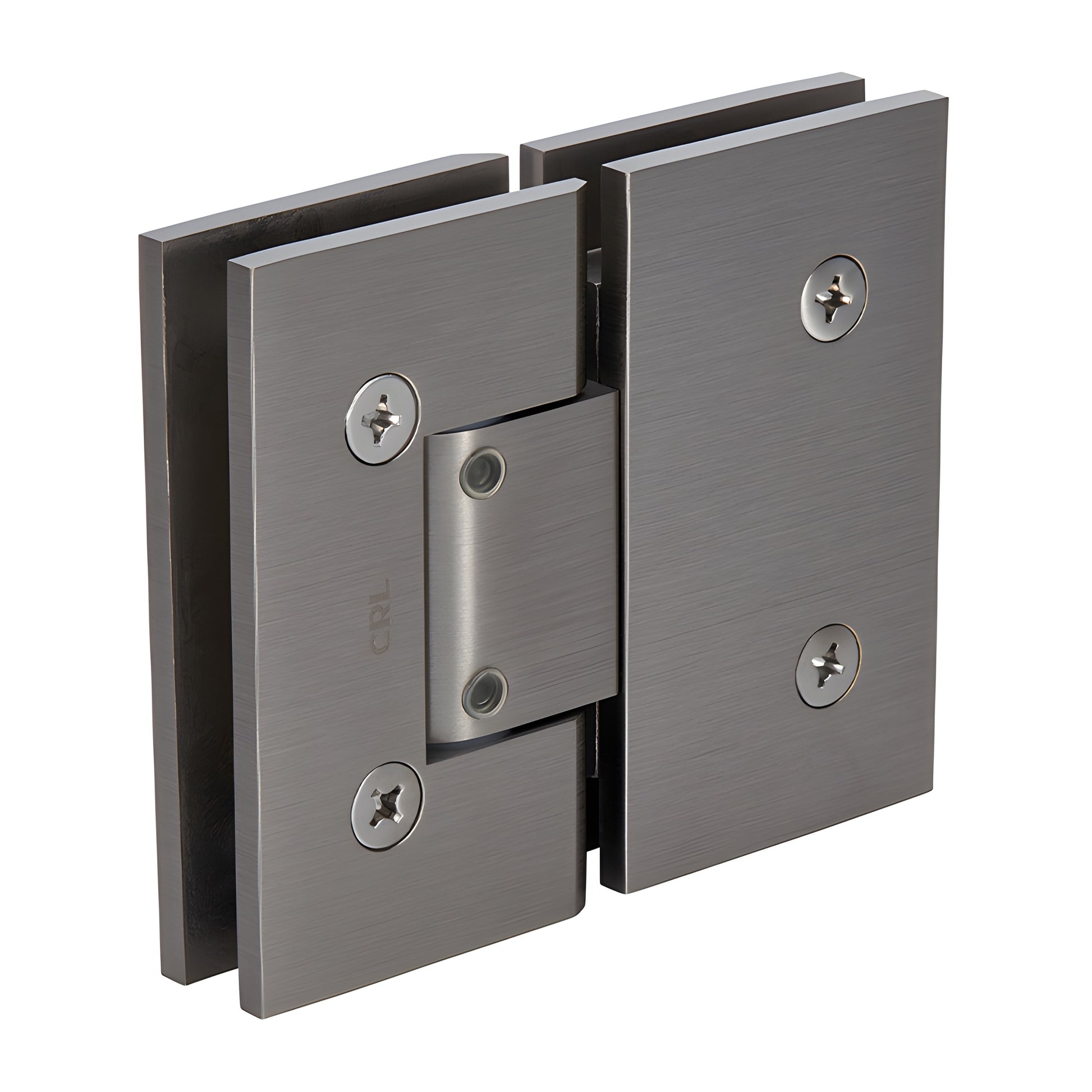

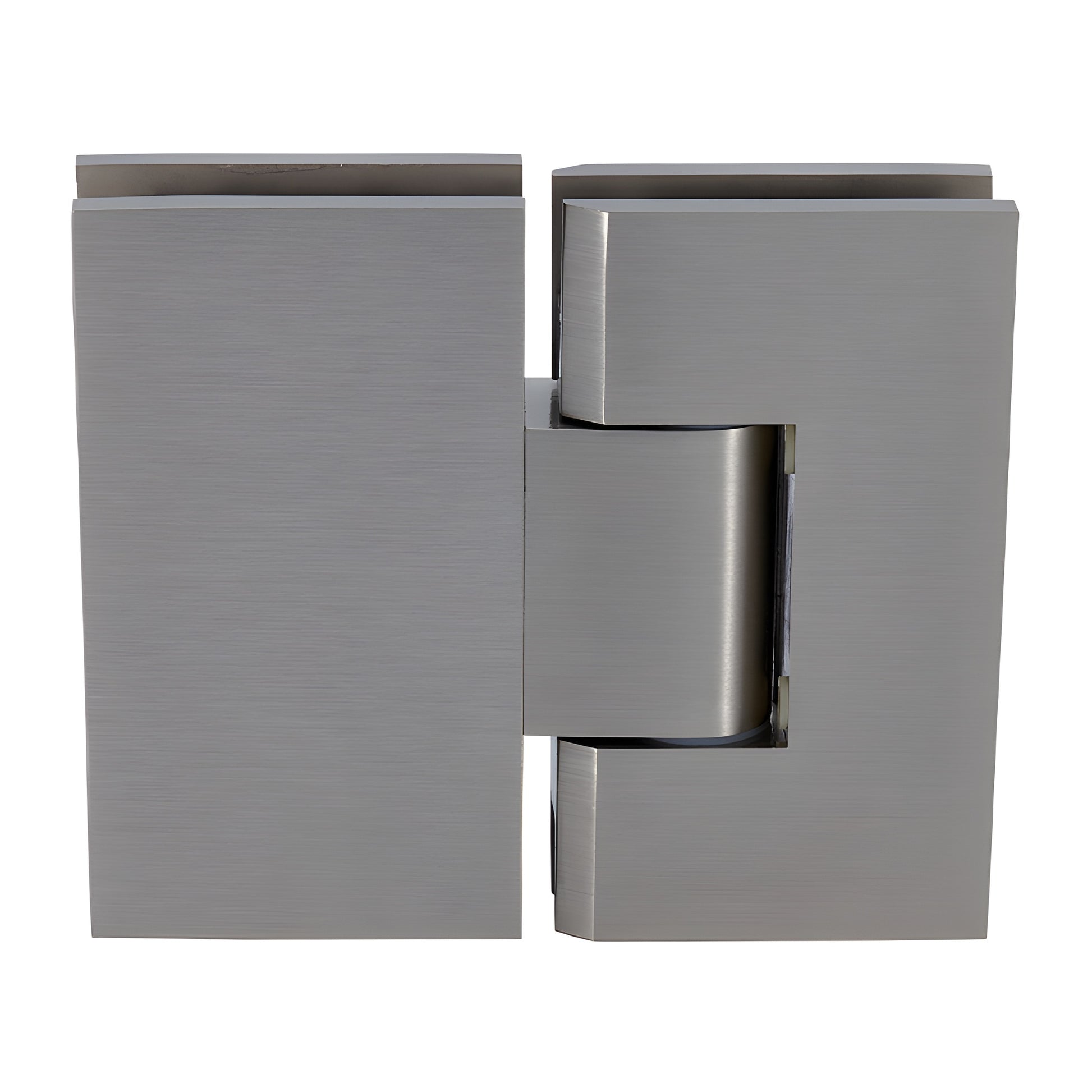

CRL Vienna 380 180° Glass-to-Glass Adjustable Hinge Brushed Nickel

• Adjustable to any angle up to 90 degrees without removing door
• Available in several beautiful finishes
• 3 Year Warranty
• Adjustable 180° glass-to-glass
• Use monolithic tempered glass

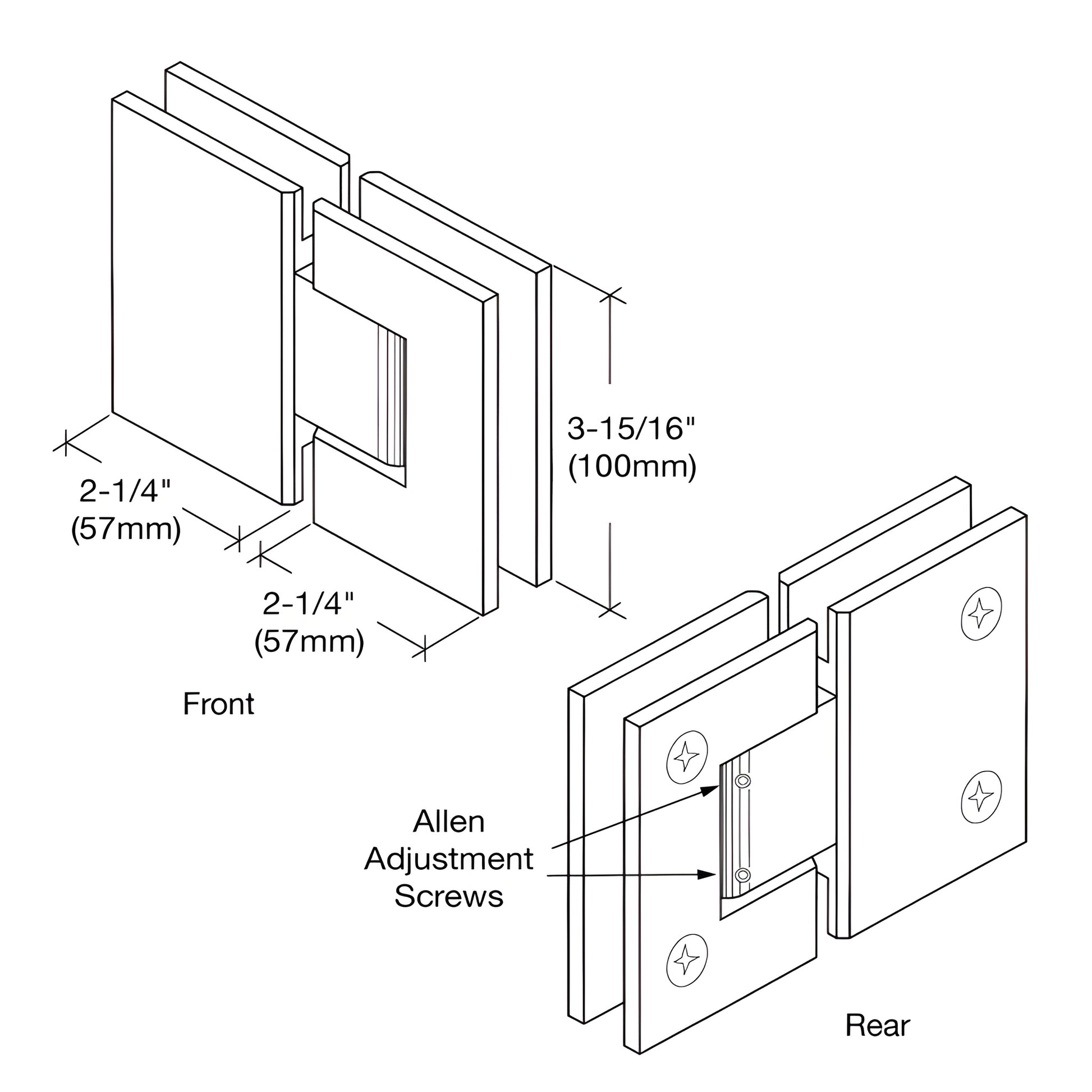

The CRL Adjustable Vienna Series (SKU: V1E380BN) upgrades the popular Vienna hinge into a precision, adjustable shower hinge. Adjust final closing angle up to 90° after the door is hung — simply loosen the Allen set screws, rotate the door to the desired position and retighten. The self-centering mechanism returns the door to the set closed position when within 15°. The hinge permits 90° swing inward and 90° outward at the factory position; adjusting the angle reduces swing in the adjusted direction. For outward-swing doors using a clear jamb, pre-set the hinge to close 5° inside the shower for a snug jamb seal.

STANDARD REVERSIBLE PIVOT PIN: Each hinge includes a reversible pivot pin marked 90° on one side and 85° on the other. Standard models ship with the 90° side activated; Pre-Set models arrive with the 85° side to provide a 5° tighter closure into the shower. Rotate (do not flip) the pin to change sides.

CUSTOM PIVOT PIN: Custom pivot pins can be specified for off-angle installations (up to 45°) when the standard 5° option does not achieve the required closing position.

Load Ratings:

• Two hinges with 3/8"–1/2" glass (10–12 mm): holds up to 110 lbs (50 kg); max door width 36" (914 mm)
• Three hinges with 3/8"–1/2" glass (10–12 mm): holds up to 140 lbs (63 kg); max door width 36" (914 mm)

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass
Special Feature: Adjustable to any angle up to 90° without removing the door
Construction: Solid brass (durable shower hinge / solid brass shower hardware)
Hinge Swings: 90° in and 90° out (factory set position)
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required
Includes: Gaskets, screws, and glass fabrication dimensions
Maximum Clamping Screw Torque: 60 lbf·in (677.9 cN·m)

NOTE: Door glass width may require alteration from standard clearance deductions when adjusting angles. Call for details. Custom finishes available on request — contact CRL Technical Sales, Shower Door Department.
