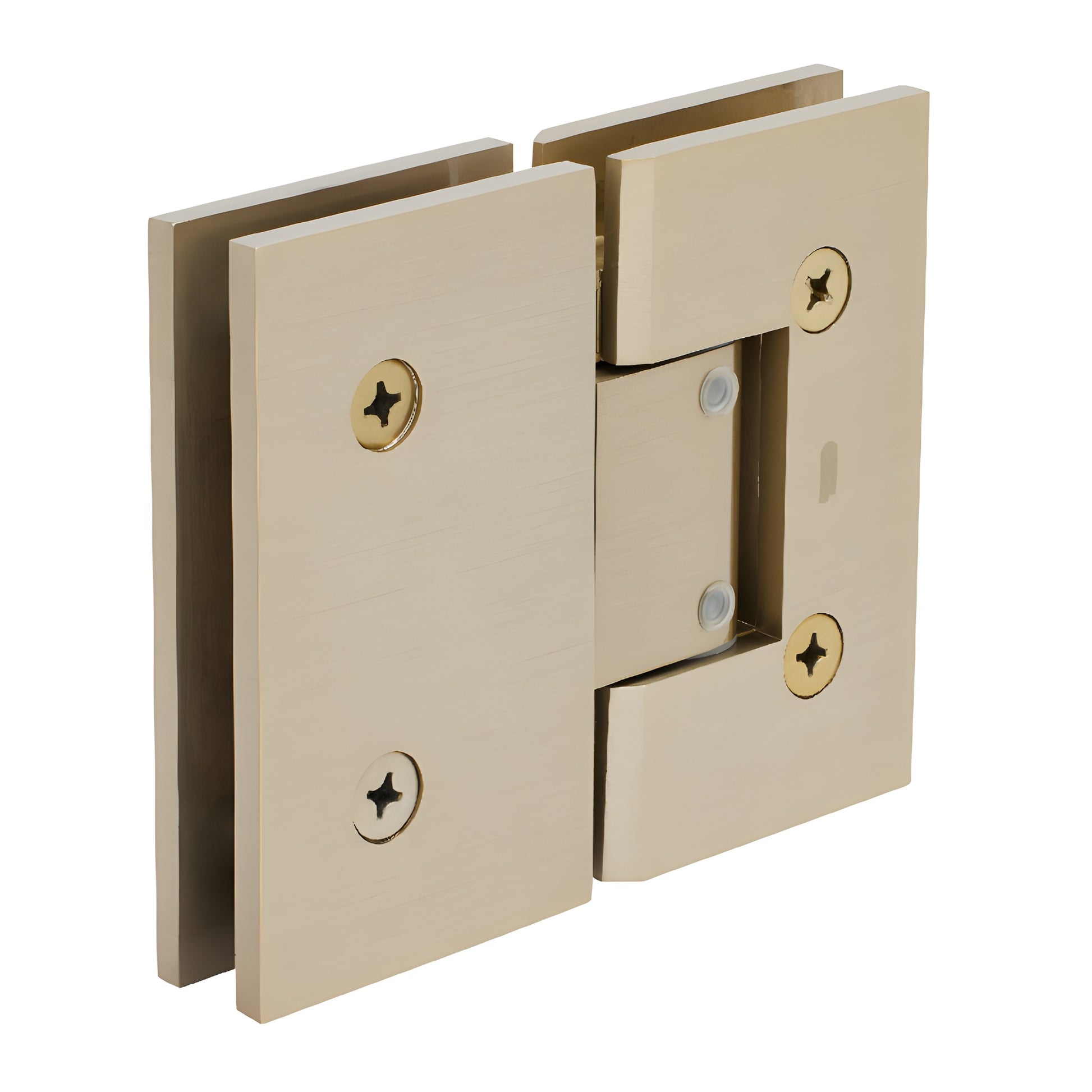

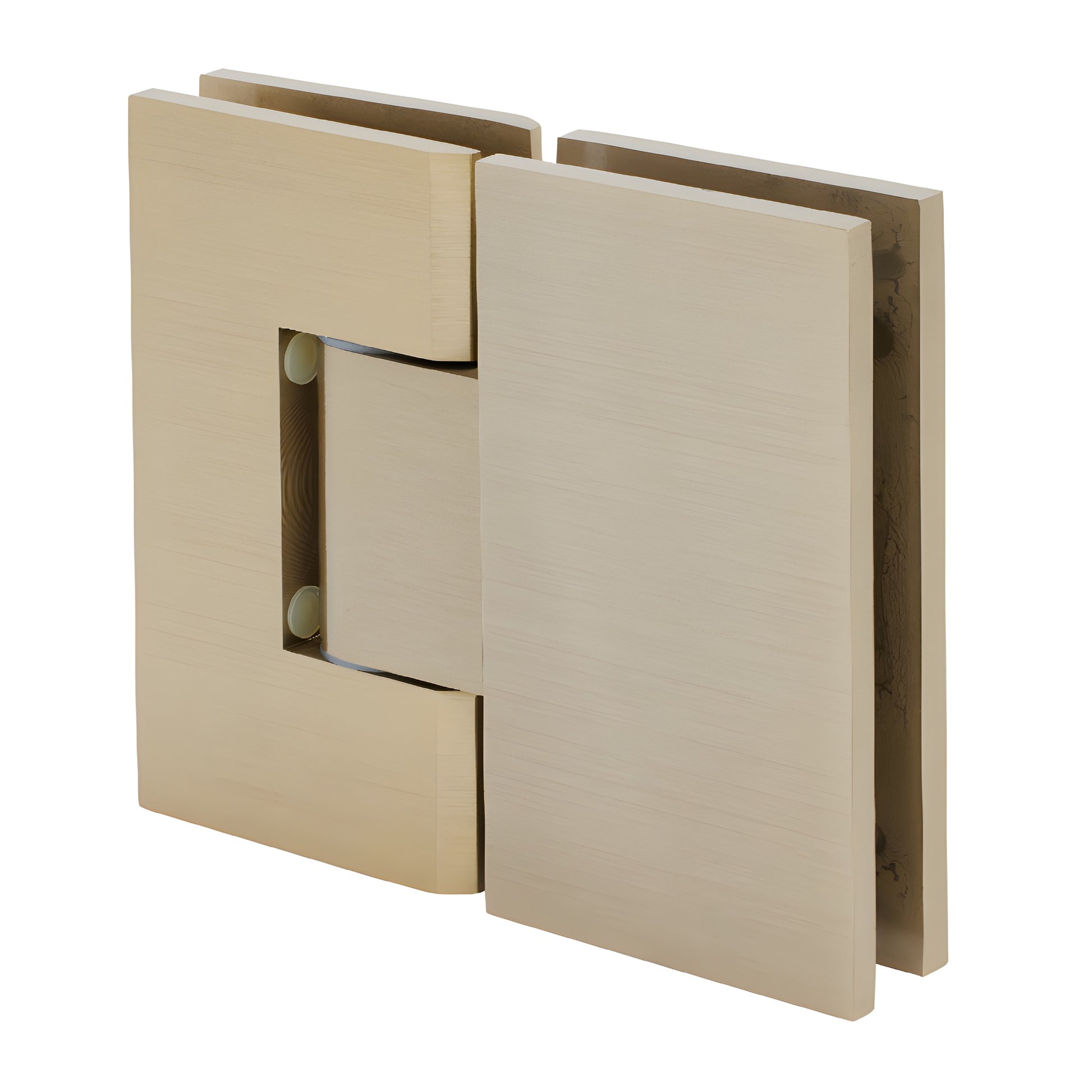

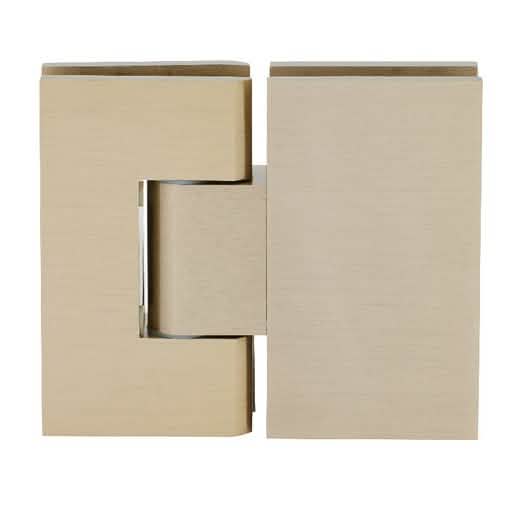

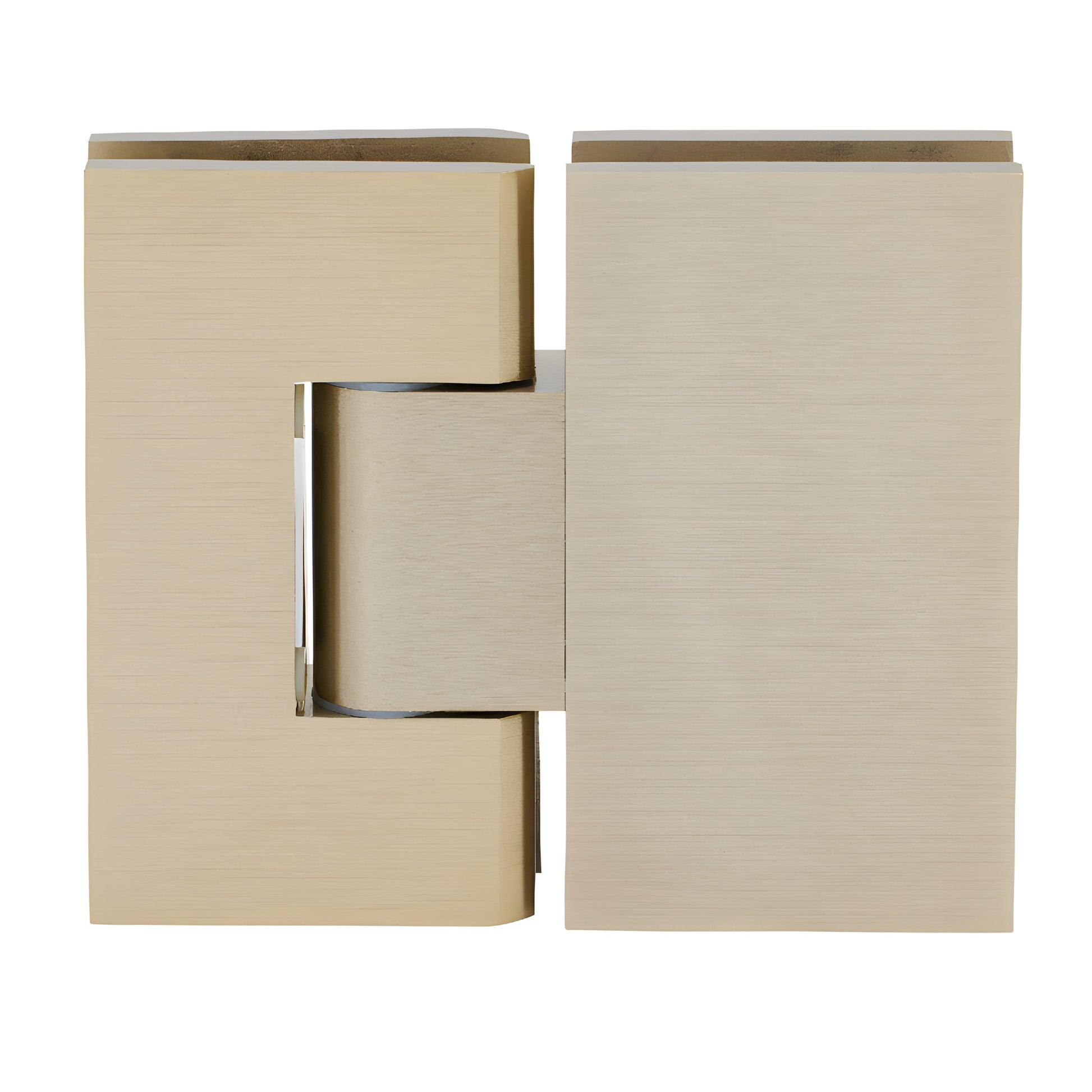

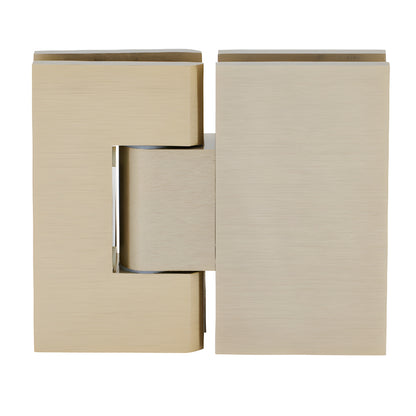

CRL Vienna 380 Brushed Bronze 180° Glass-to-Glass Shower Door Hinge

• Adjustable to any angle up to 90 degrees without removing the door
• Available in several beautiful finishes
• 3 Year Warranty
• Adjustable 180° glass-to-glass application
• Use with monolithic tempered glass

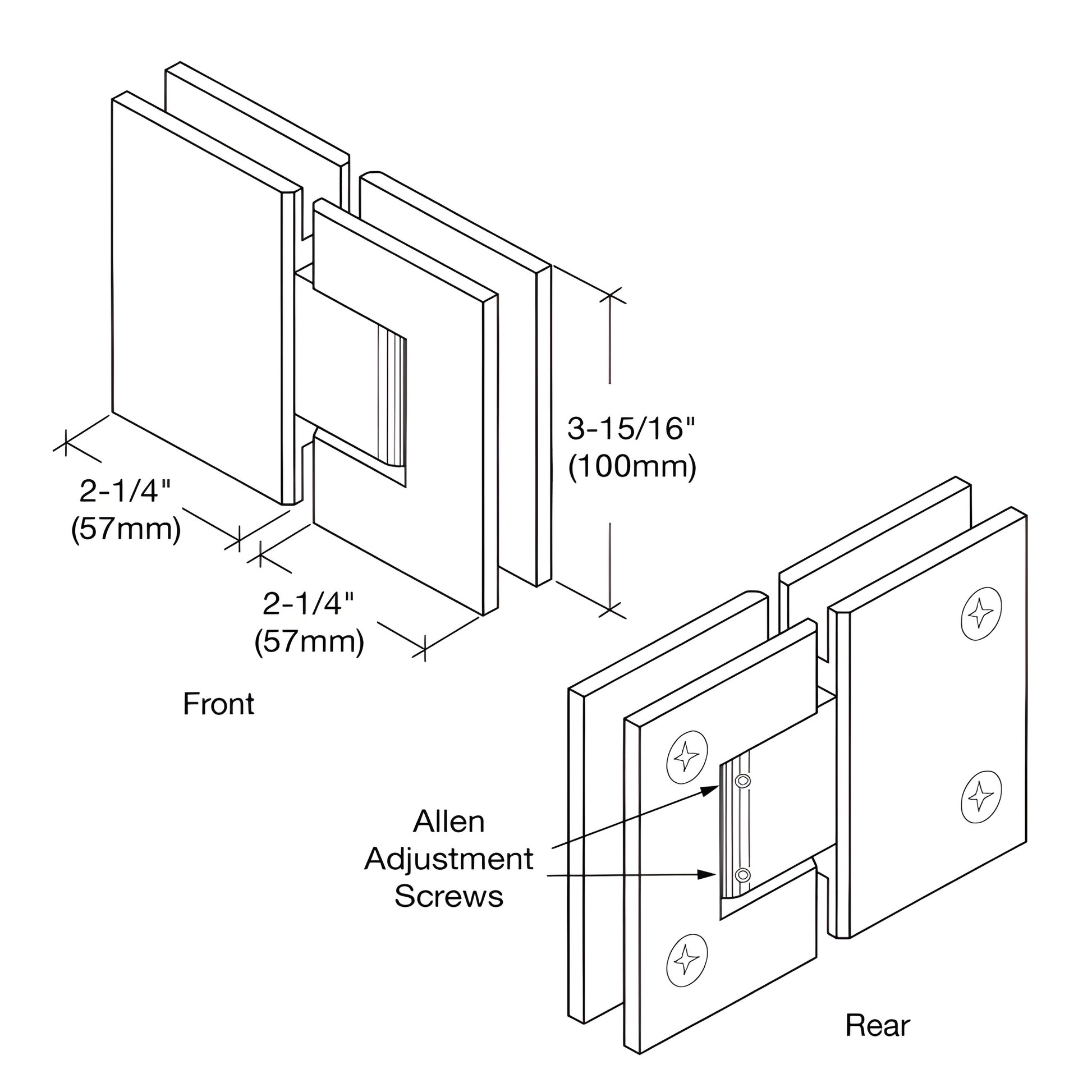

The CRL Adjustable Vienna Series is an adjustable Vienna hinge engineered for glass shower doors. After the door is hung, loosen the Allen set screws and rotate the door to the desired closed position—up to 90 degrees—then retighten. The hinge self-centers when within 15° of closed. Doors can swing 90° inward and 90° outward from the factory-set position. For outward-swinging doors with a clear jamb, set the hinge to close 5° into the shower to achieve a snug jamb seal.

STANDARD REVERSIBLE PIVOT PIN: Each hinge includes a reversible pivot pin. One side is marked 90° (factory active); the opposite side is 85° for a 5° tighter closure into the shower. Rotate (do not flip) the pin to change the active angle. CUSTOM PIVOT PIN: Custom pins are available for off-angle installations—specify up to 45° if needed.

Load Ratings:

• Two hinges with 3/8"–1/2" (10–12 mm) glass: supports up to 110 lbs (50 kg), max door width 36" (914 mm).
• Three hinges with 3/8"–1/2" (10–12 mm) glass: supports up to 140 lbs (63 kg), max door width 36" (914 mm).

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass
Special Feature: Adjustable to any angle up to 90° without removing the door
Construction: Solid brass
Hinge Swings: 90° in and 90° out (factory set position)
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required
Includes: Gaskets, screws, and glass fabrication dimensions
Maximum Clamping Screw Torque: 60 lbf·in (677.9 cN·m)

NOTE: Door glass width may require alteration from standard clearance deductions when adjusting angles. Call for details. Custom finishes available on request—contact CRL Technical Sales Shower Door Department.
