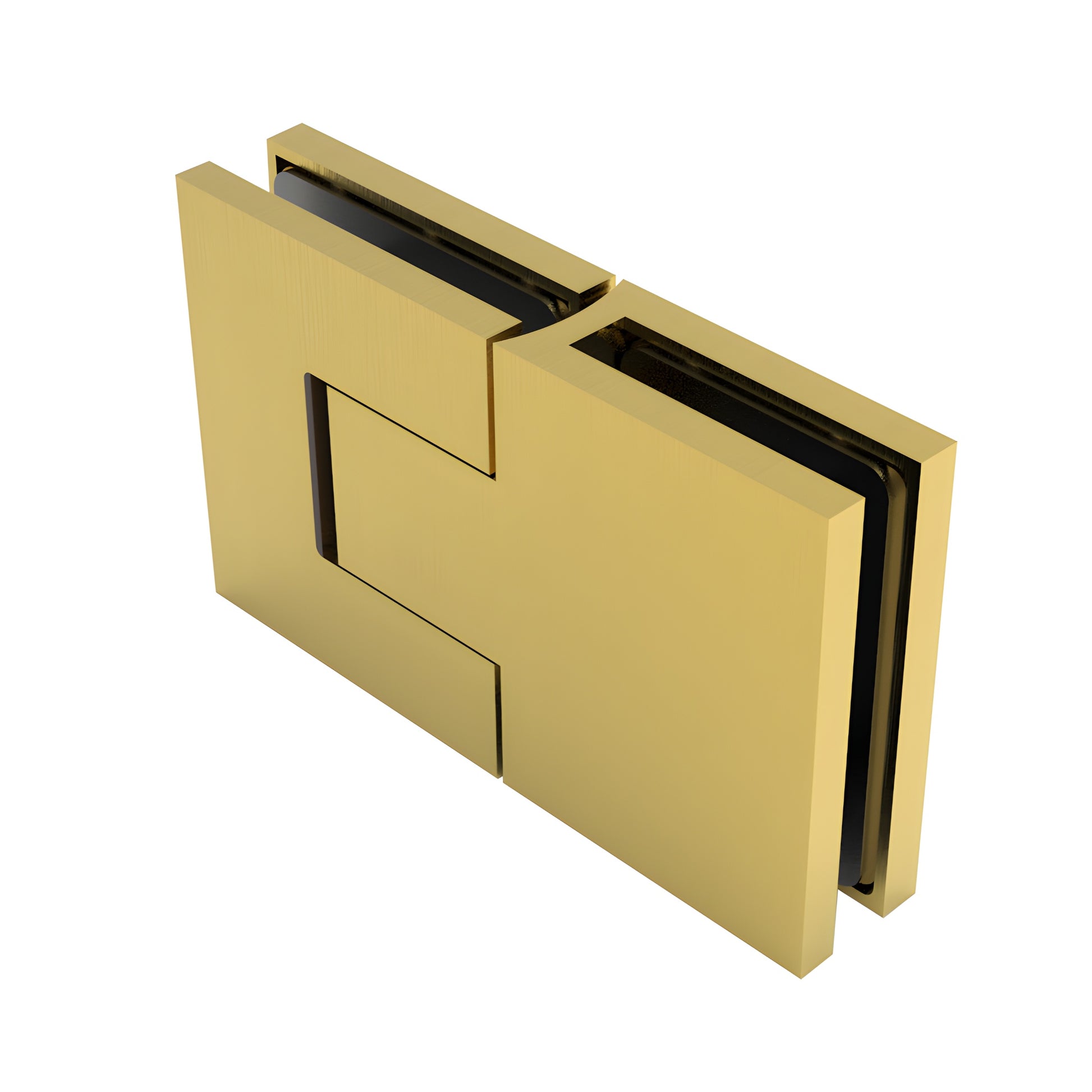

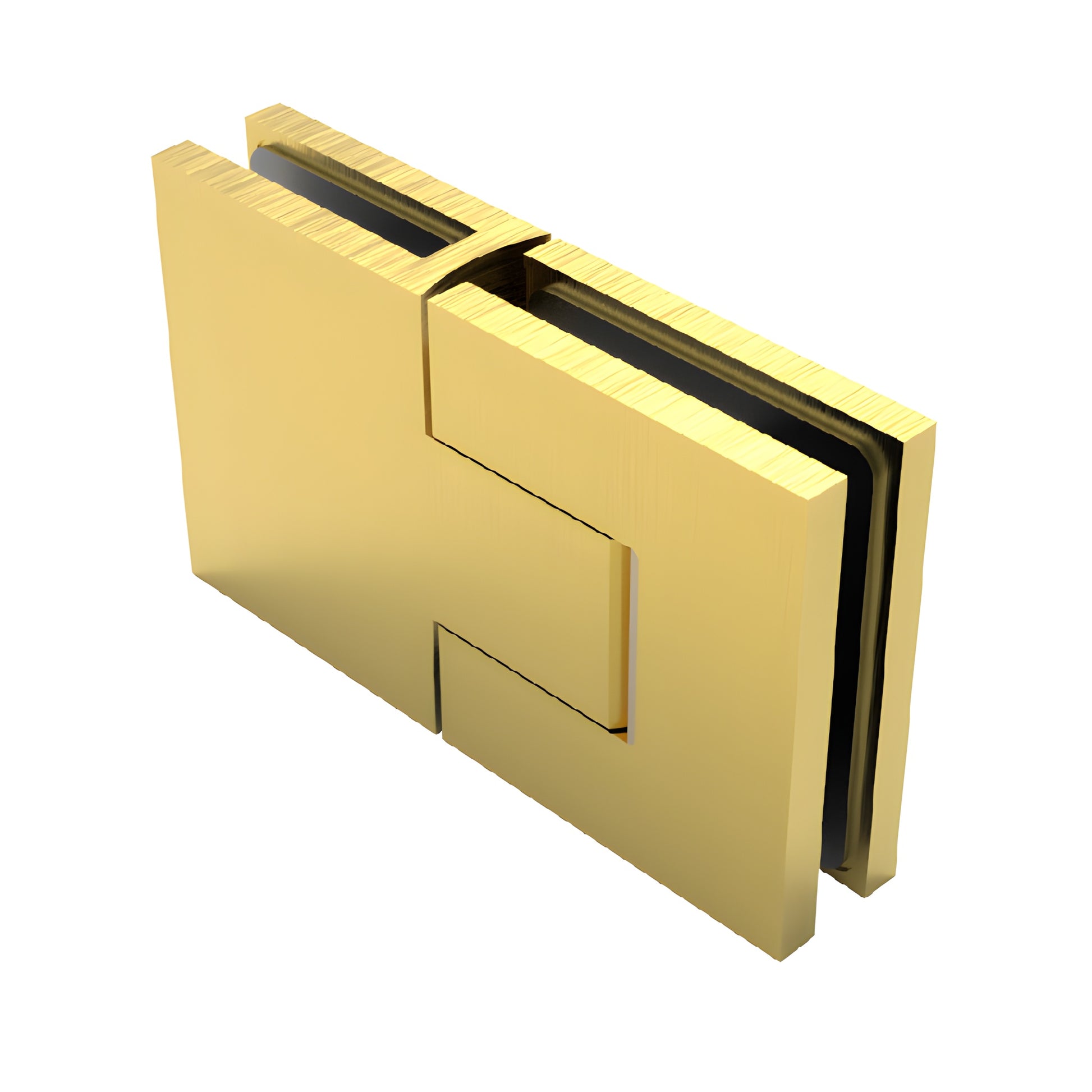

CRL Bellagio Satin Brass 180° Glass-to-Glass Frameless Shower Hinge
Item# BEL380SB
Shipping Weight: 2.29 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 2.29 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 3% Off |
| Buy 5 | 6% Off |
| Buy 8 | 9% Off |
| Buy 11 | 12% Off |
| Buy 16 | 16% Off |
Design Style
Concealed/Premium
Edge Profile
Square
Enclosure Type
Corner, Niche, Bathtub, Tailor Made Solutions
Finish/Color
Satin Brass
Glass To Glass Angle
180
Glazing Thickness
5/16 in. To 3/8 in. (8 mm To 10 mm)
Height
2-15/16 in. (75 mm)
Material
Brass
Maximum Door Weight
110
Maximum Door Width
39 in. (991 mm)
Mounting Type
Glass To Glass
Opening Style
Swing(side)
Series
Bellagio
Width
4-7/8 in. (124 mm)
- Fits 5/16” to 3/8” (8 mm to 10 mm) frameless glass
- Part number: BEL380SB — Bellagio Series hinge for glass shower doors
- Matching Bellagio Series brackets and accessories available
- Tight gaps minimize water infiltration for shower enclosures
- Self-centers within 25° of closed for reliable door alignment
- Adjustable positive closure — set closing tension after installation

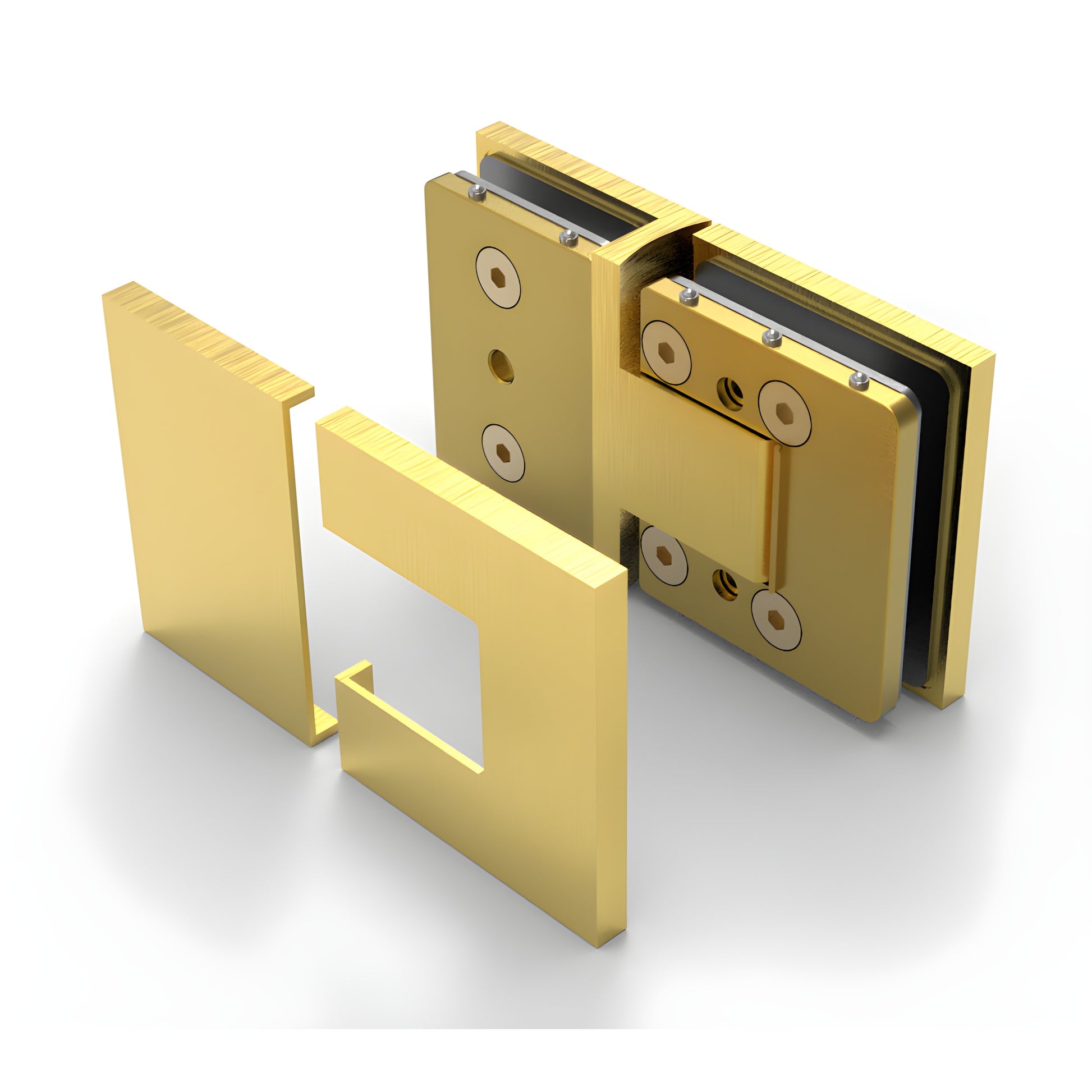

- Snap-on covers conceal screws for a clean, modern look
- Durability tested to 100,000 cycles — 5× more than industry standard
The Bellagio Series hinge (SKU BEL380SB) is a precision-designed hinge for frameless glass shower doors using 5/16” to 3/8” (8–10 mm) glass. All fasteners are concealed behind snap-on covers for a minimalist appearance. Hinges are self-centering and include an adjustable closing position accessible once the door is hung. Typical installation using two hinges supports doors up to 39" (1 m) wide and 110 lb (50 kg) in weight—ideal for residential and light commercial glass shower doors.
Most shipping weights are approximate and have not been verified. If the exact weight is required to determine shipping costs, contact CRL Customer Service before placing your order. Product images are of the actual product or a close representation; color may vary depending on your monitor and video card.
Brass Finish Advisory:
Brass finishes, while durable, can oxidize and develop a tarnished appearance over time. See the Brass Finish Disclaimer in the Technical References section for care and maintenance details.
Order the Bellagio Series hinge BEL380SB today to upgrade your frameless glass shower with a high-performance, self-centering hinge.
