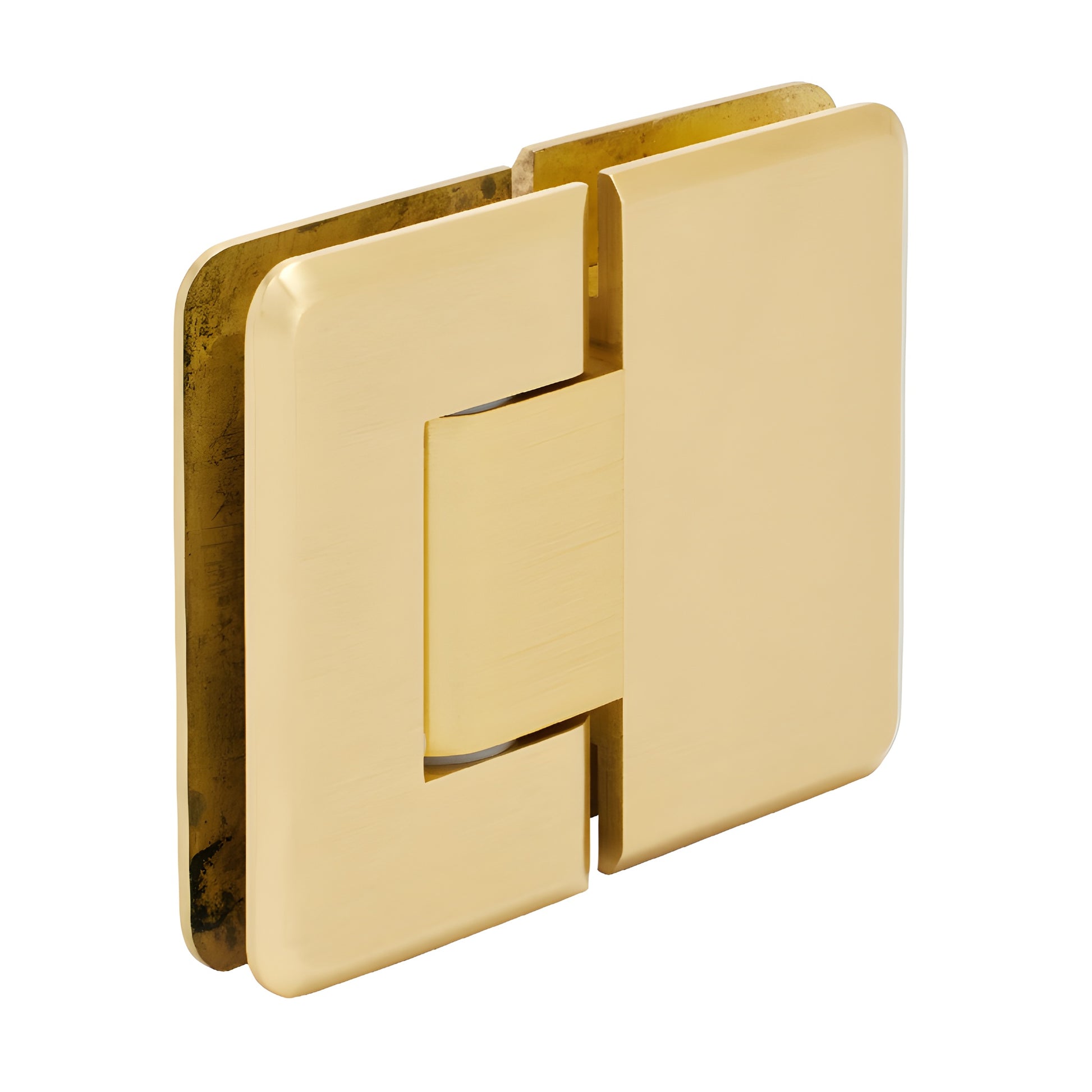

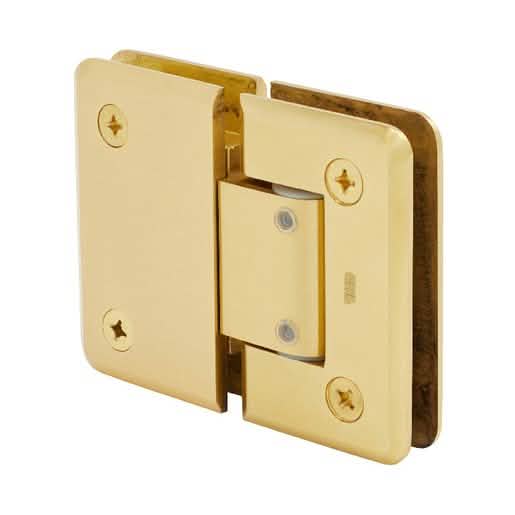

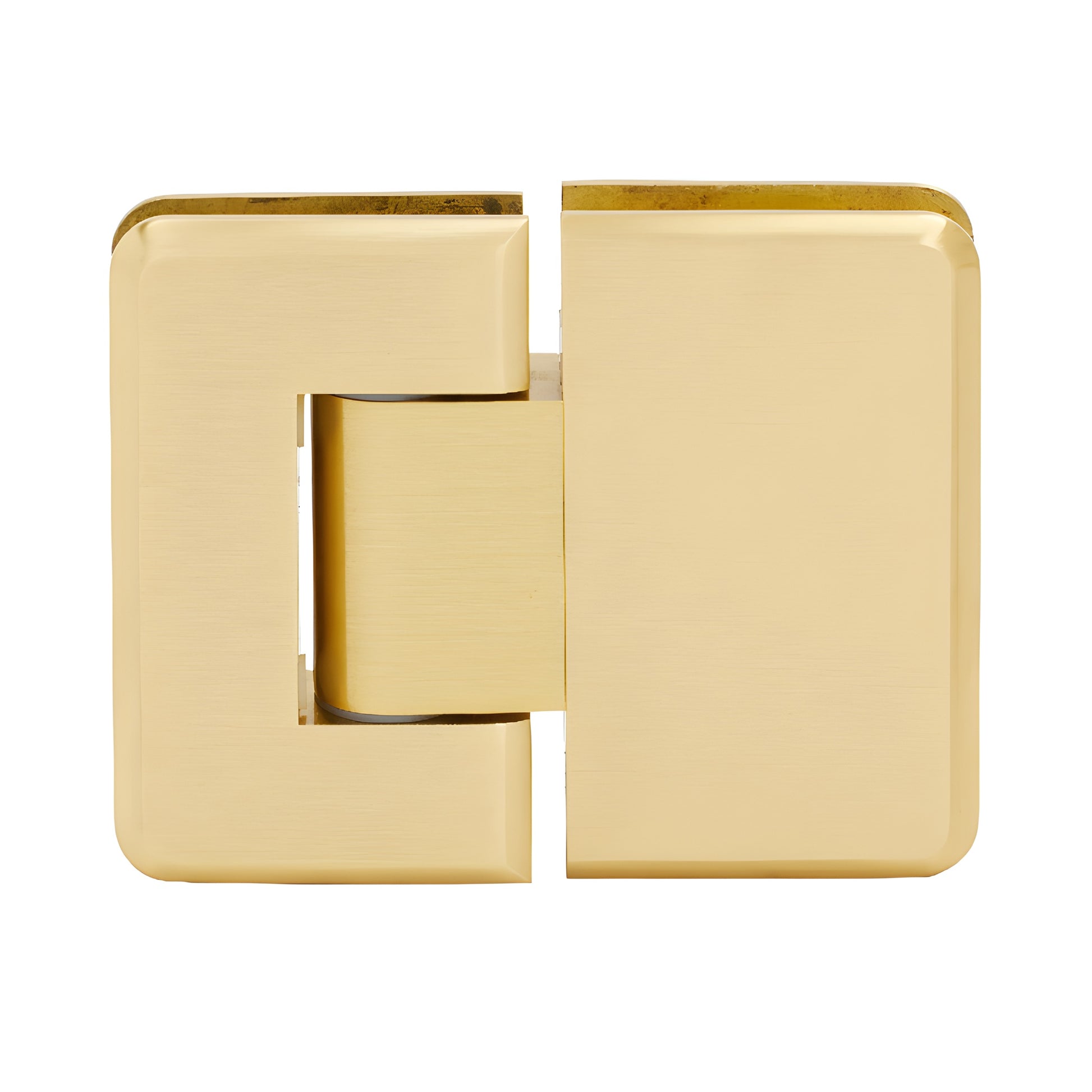

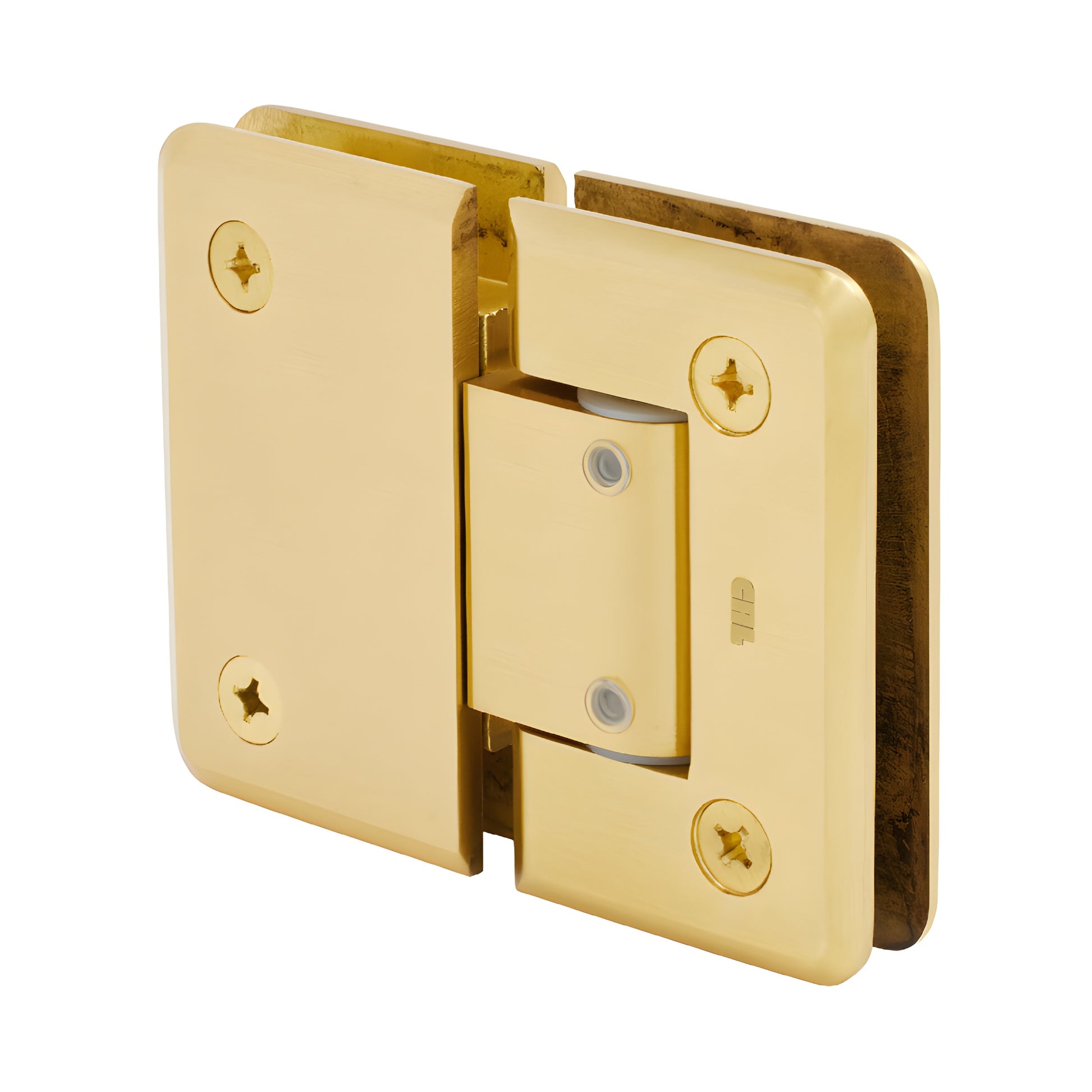

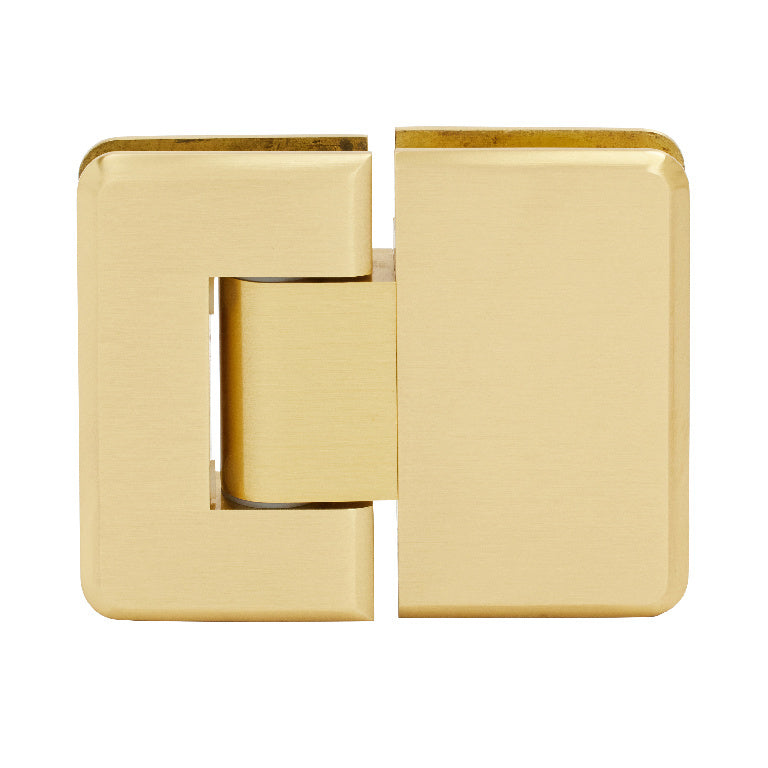

CRL Pinnacle 380 Satin Brass Adjustable 180° Glass-to-Glass Hinge

• Adjustable to any angle up to 90° without removing door
• Available in several beautiful finishes
• Three year warranty
• Adjustable 180° glass-to-glass capability
• Use with monolithic tempered glass

CRL Adjustable Pinnacle Series Hinges upgrade the popular Pinnacle Hinge into a fully adjustable shower door hinge. Fine-tune door alignment after installation — loosen the Allen set screws, rotate the door to the desired closed position, then retighten. The hinge self-centers when within 15° of closed. Hinges allow 90° swing in and 90° swing out at the factory set position; adjusting the factory angle reduces swing on the adjusted side. For outward-swing doors using a clear jamb, you can set a 5° inward close so the door seals snugly against the jamb. SKU: P1N380SB.

Performance & Capacity
Using two hinges: for 5/16"–1/2" (8–12 mm) tempered glass, supports up to 80 lbs (36 kg); maximum door width 28" (711 mm).

Using three hinges: for 5/16"–1/2" (8–12 mm) tempered glass, supports up to 120 lbs (54 kg); maximum door width 32" (813 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass
Special Feature: Adjustable to any angle up to 90° without removing the door
Construction: Solid brass — durable, premium material for shower door hinges
Hinge Swings: 90° in and 90° out (at factory set position)
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required
Includes: gaskets, screws, and glass fabrication dimensions. Cat. No. P1N13 gasket pack must be purchased separately for use with 5/16" (8 mm) tempered glass.

Replacement Hardware:

• P102** - Wall plate replacement screws
• P615** - Cover plate replacement screws

NOTE: Door glass width may require alteration from standard clearance deductions when adjusting angles. Call for details. Custom finishes available on request — contact the CRL Technical Sales Shower Door Department.

Product Warning:
CRL Shower Door Hinges are designed for residential and hotel shower use. For other applications, obtain approval from the CRL Shower Door Technical
