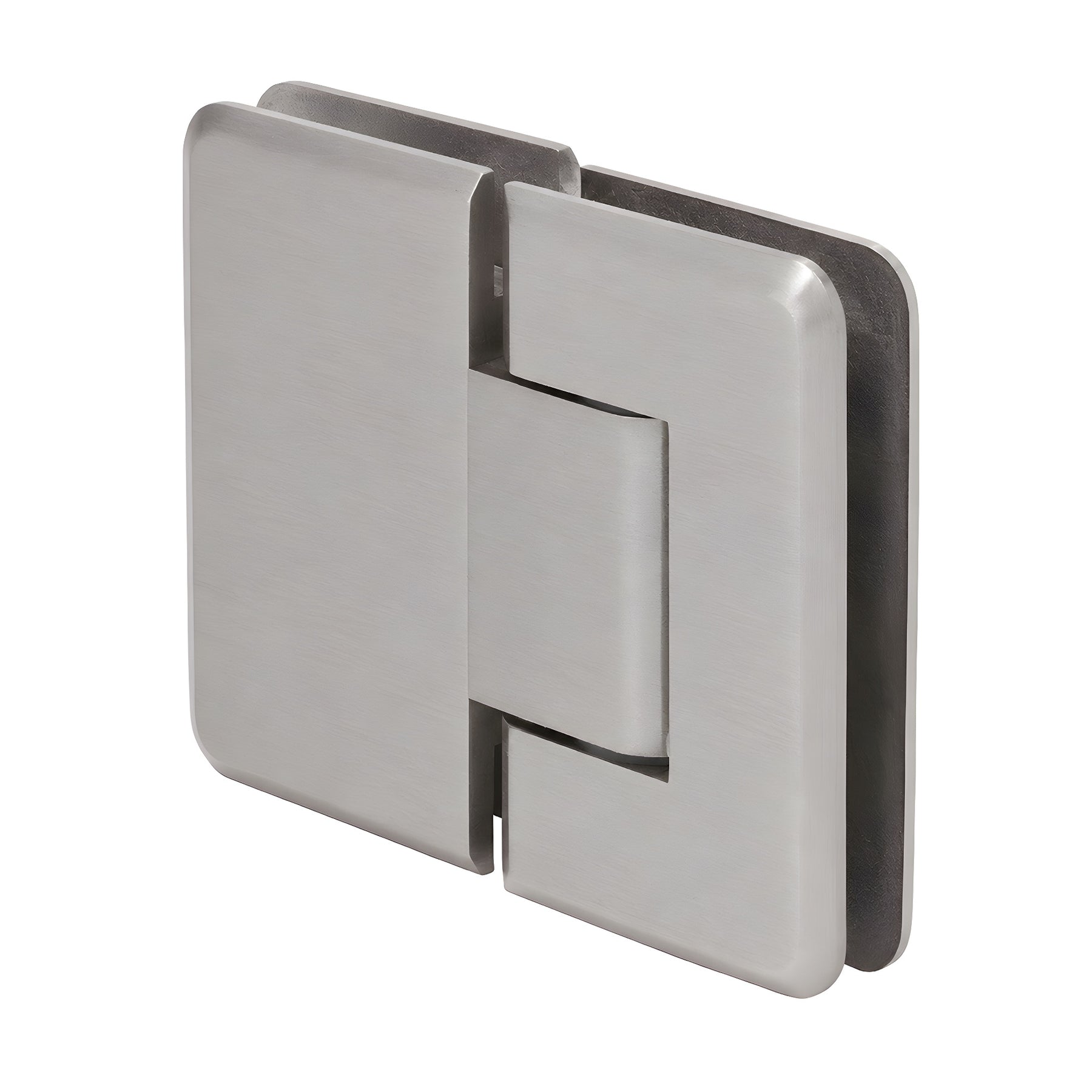

CRL Pinnacle 380 Brushed Nickel 180° Adjustable Glass Hinge

• Adjustable to any angle up to 90° without removing door
• Available in several beautiful finishes
• Three year warranty
• Adjustable 180° glass-to-glass capability
• For use with monolithic tempered safety glass

CRL Adjustable Pinnacle Series Hinges (SKU: P1N380BN)

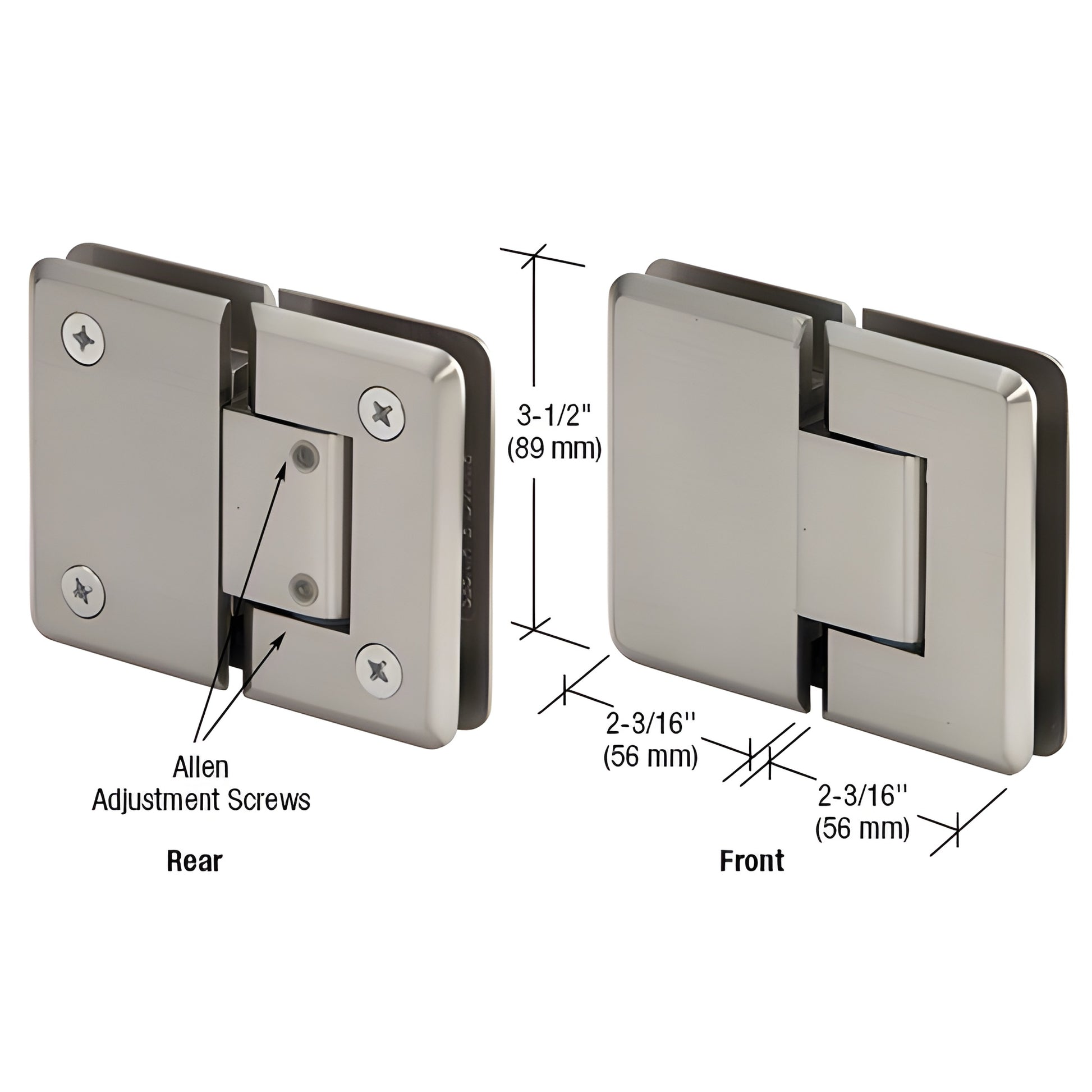

The CRL Adjustable Pinnacle Series upgrades the popular Pinnacle hinge with post-installation angle adjustment. After hanging the door, loosen the Allen set screws, rotate to the desired closed position (up to 90°), then tighten—the hinge self-centers when within 15° of closed. Doors can swing 90° inward and 90° outward (adjusting from factory position reduces full swing in that direction). For outward-swing doors using a clear jamb, the hinge can be set to close 5° inside the shower for a snug jamb seal.

Load Capacity

Using two hinges with 5/16"–1/2" (8–12 mm) tempered glass: holds up to 80 lb (36 kg), maximum door width 28" (711 mm).
Using three hinges with 5/16"–1/2" (8–12 mm) tempered glass: holds up to 120 lb (54 kg), maximum door width 32" (813 mm).

SPECIFICATIONS:

• Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass
• Special Feature: Adjustable to any angle up to 90° without removing door
• Construction: Solid brass
• Hinge Swings: 90° in and 90° out (at factory set position)
• Closing Type: Self-centering when within 15° of closed position
• Cut-Out Required
• Includes: Gaskets, screws, and glass fabrication dimensions. Cat. No. P1N13 gasket pack sold separately for 5/16" (8 mm) glass

Replacement Hardware:

• P102** - Wall plate replacement screws
• P615** - Cover plate replacement screws

NOTE: Door glass width may require alteration from standard clearance deductions when adjusting angles. Contact CRL Technical Sales Shower Door Department for details. Custom finishes are available on request. Product Warning:

CRL shower door hinges are designed for residential
