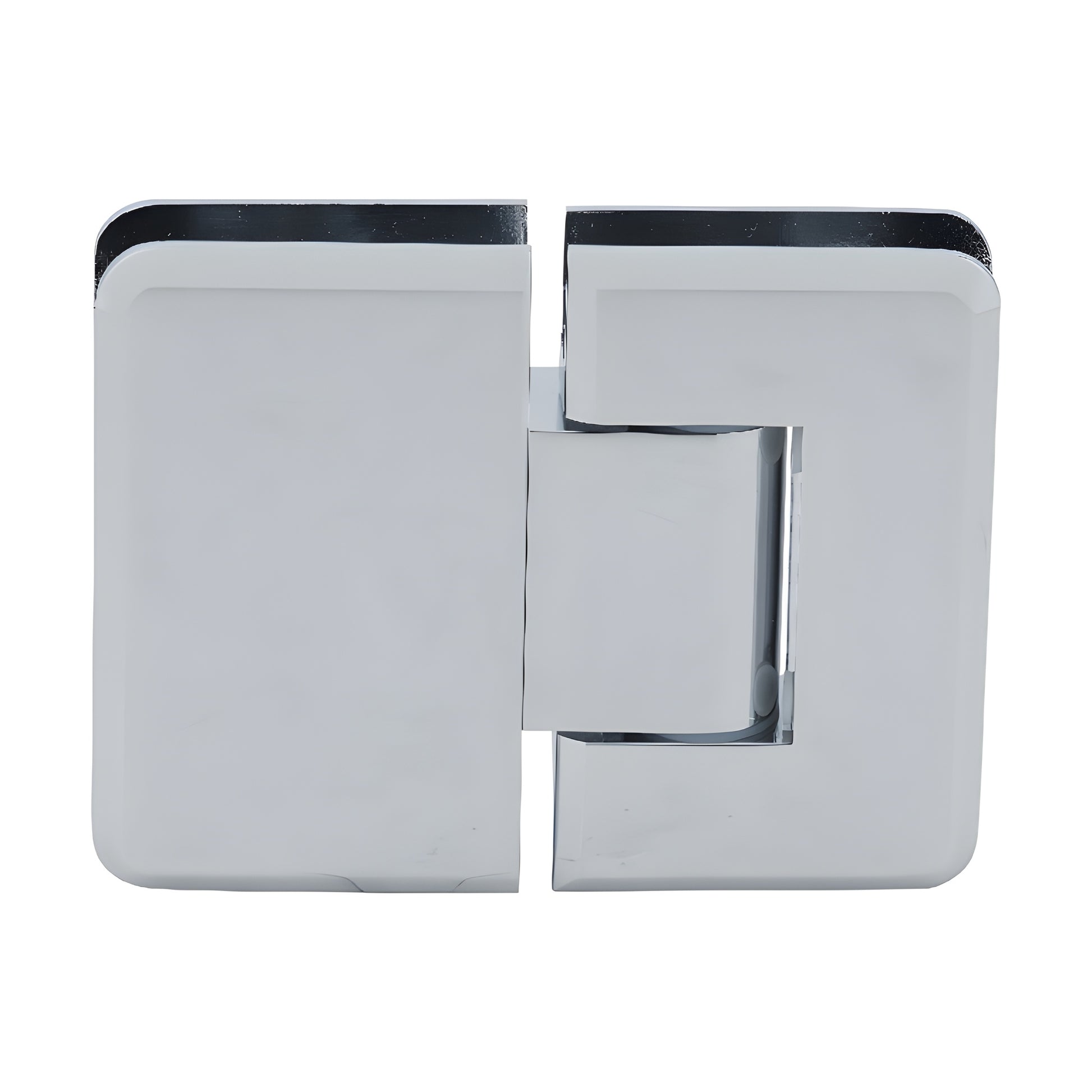

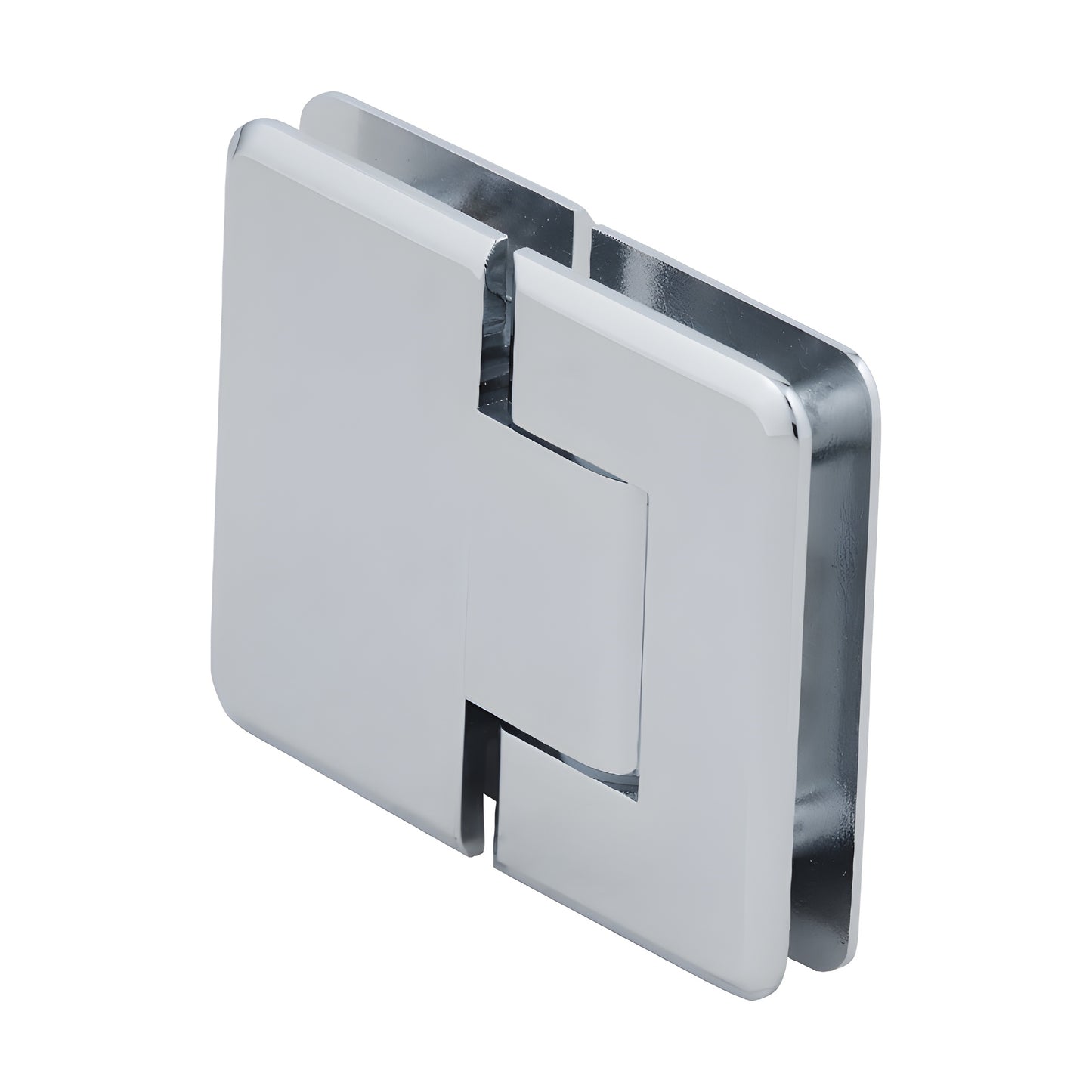

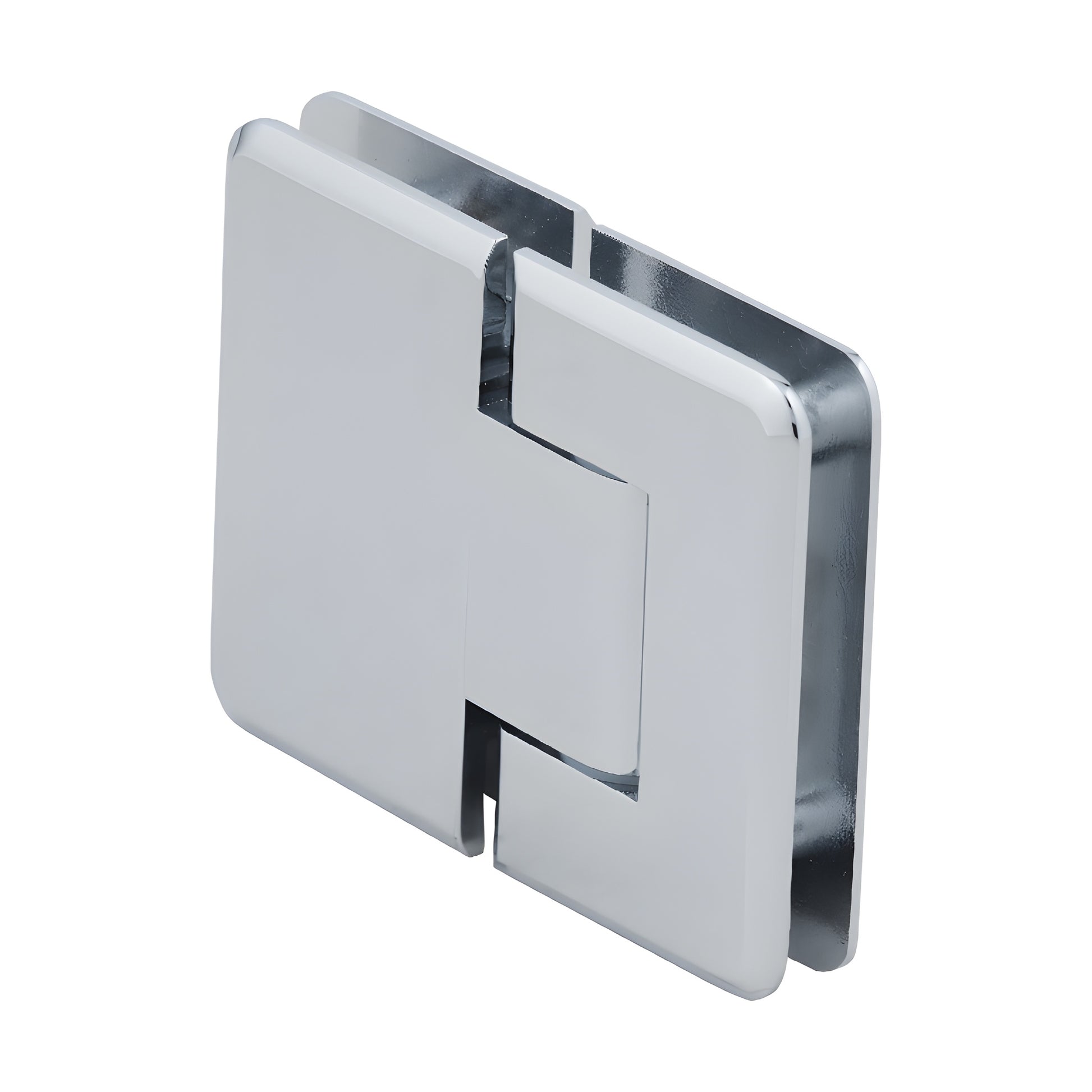

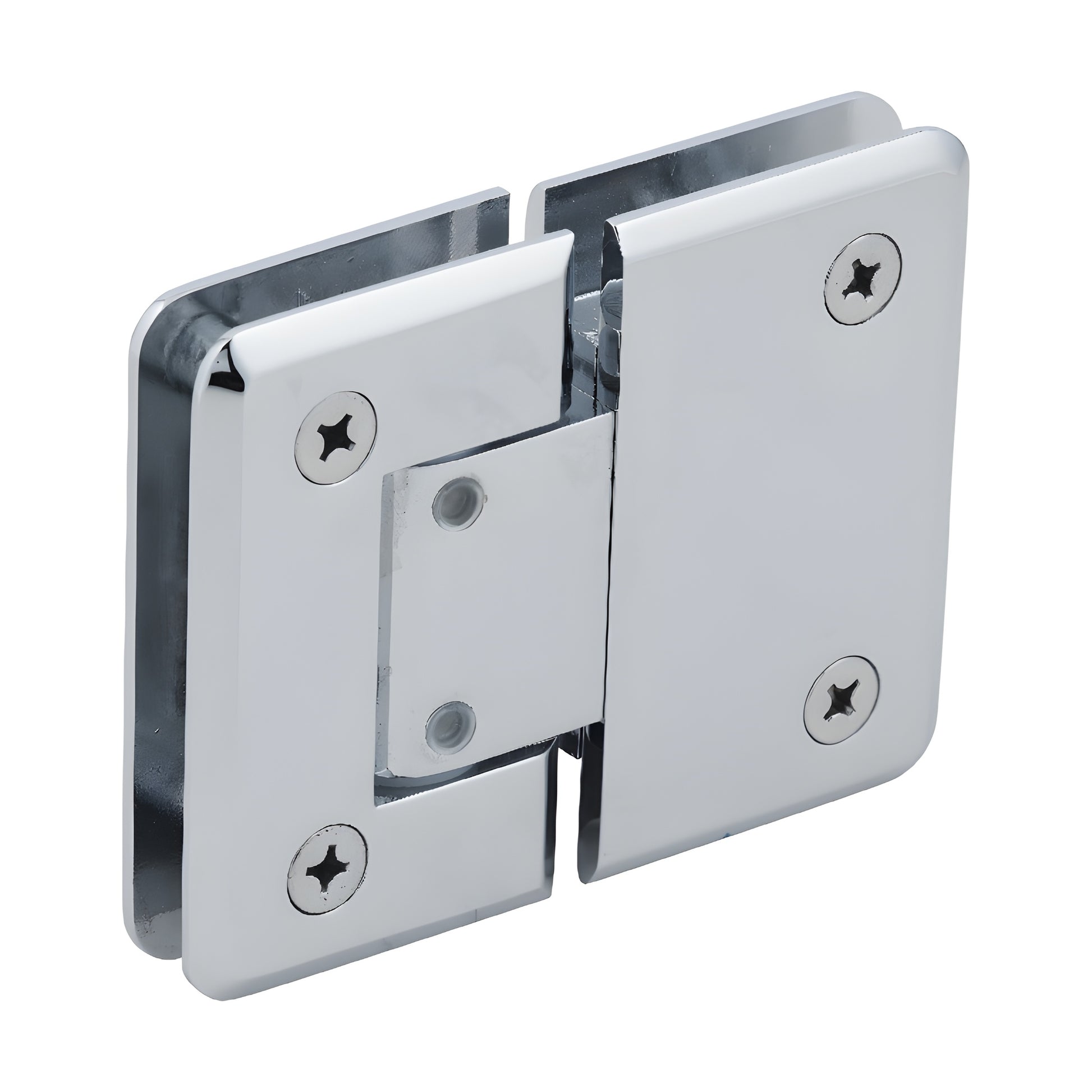

CRL Pinnacle 380 Polished Chrome 180° Frameless Glass Shower Hinge

• Adjustable to any angle up to 90° without removing the door
• Available in several durable finishes
• Three-year warranty
• Adjustable 180° glass-to-glass configuration
• For use with monolithic tempered glass

CRL Adjustable Pinnacle Series Hinges (SKU: P1N380CH) elevate the Pinnacle Hinge with on-install adjustment. After hanging the door, loosen the Allen set screws, rotate the door to the desired closed position, then retighten—hinges self-center to the set position. The hinge permits a 90° swing inward and 90° outward (noting that adjusting away from the factory position reduces the available 90° swing in that direction). For outward-swing doors using a clear door jamb, the hinge can be set to close 5° inside the shower so the door closes snugly against the jamb. These features make it an ideal adjustable shower door hinge for glass shower doors and custom frameless shower installations.

Load Capacity & Glass Size
Using two hinges: fits 5/16"–1/2" (8–12 mm) tempered glass; holds up to 80 lbs (36 kg) with maximum door width 28" (711 mm).

Using three hinges: fits 5/16"–1/2" (8–12 mm) tempered glass; holds up to 120 lbs (54 kg) with maximum door width 32" (813 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass
Special Feature: Adjustable to any angle up to 90° without removing the door
Construction: Solid brass for corrosion resistance and long service life
Hinge Swings: 90° in and 90° out (at factory set position)
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required
Includes: Gaskets, screws, and glass fabrication dimensions. Cat. No. P1N13 gasket pack must be purchased separately for use with 5/16" (8 mm) tempered glass.

Replacement Hardware:

• P102** - Wall plate replacement screws
• P615** - Cover plate replacement screws

NOTE: Door glass width may require alteration from standard clearance deductions when adjusting angles. Call for details.

Custom finishes are available on request. Contact the CRL Technical Sales Shower Door Department.

Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use. For other uses, obtain approval from the CRL Shower Door Technical Sales
