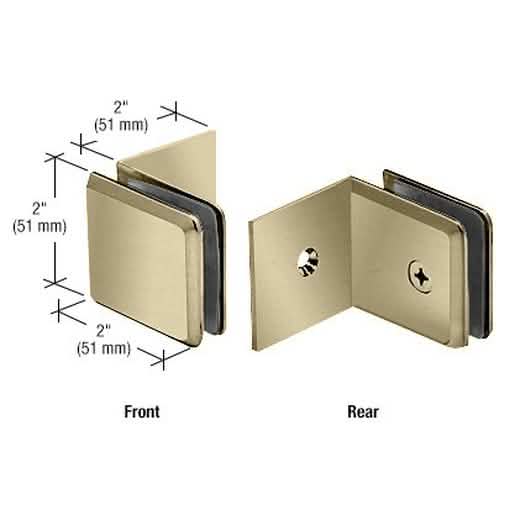

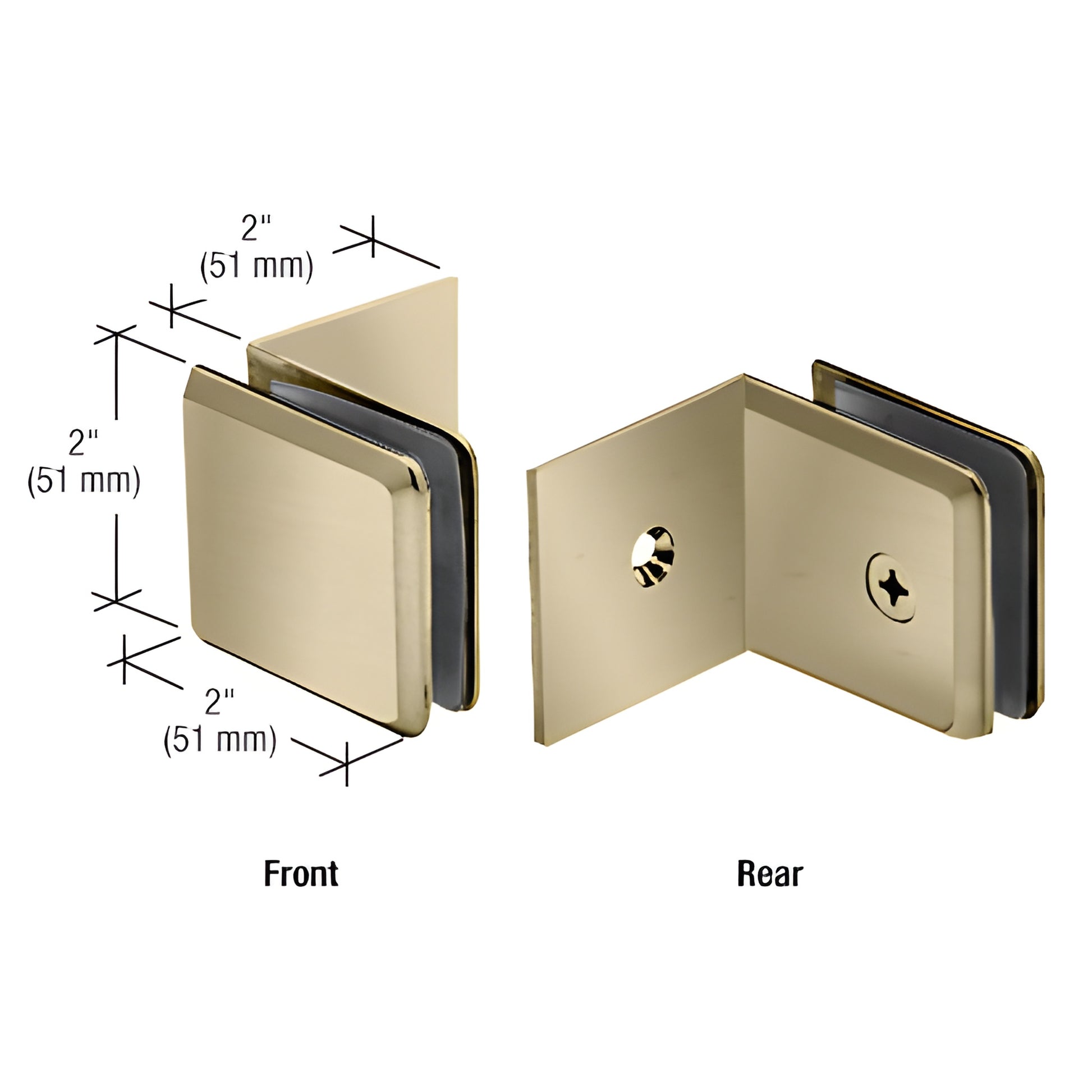

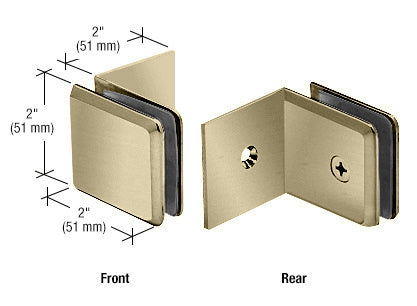

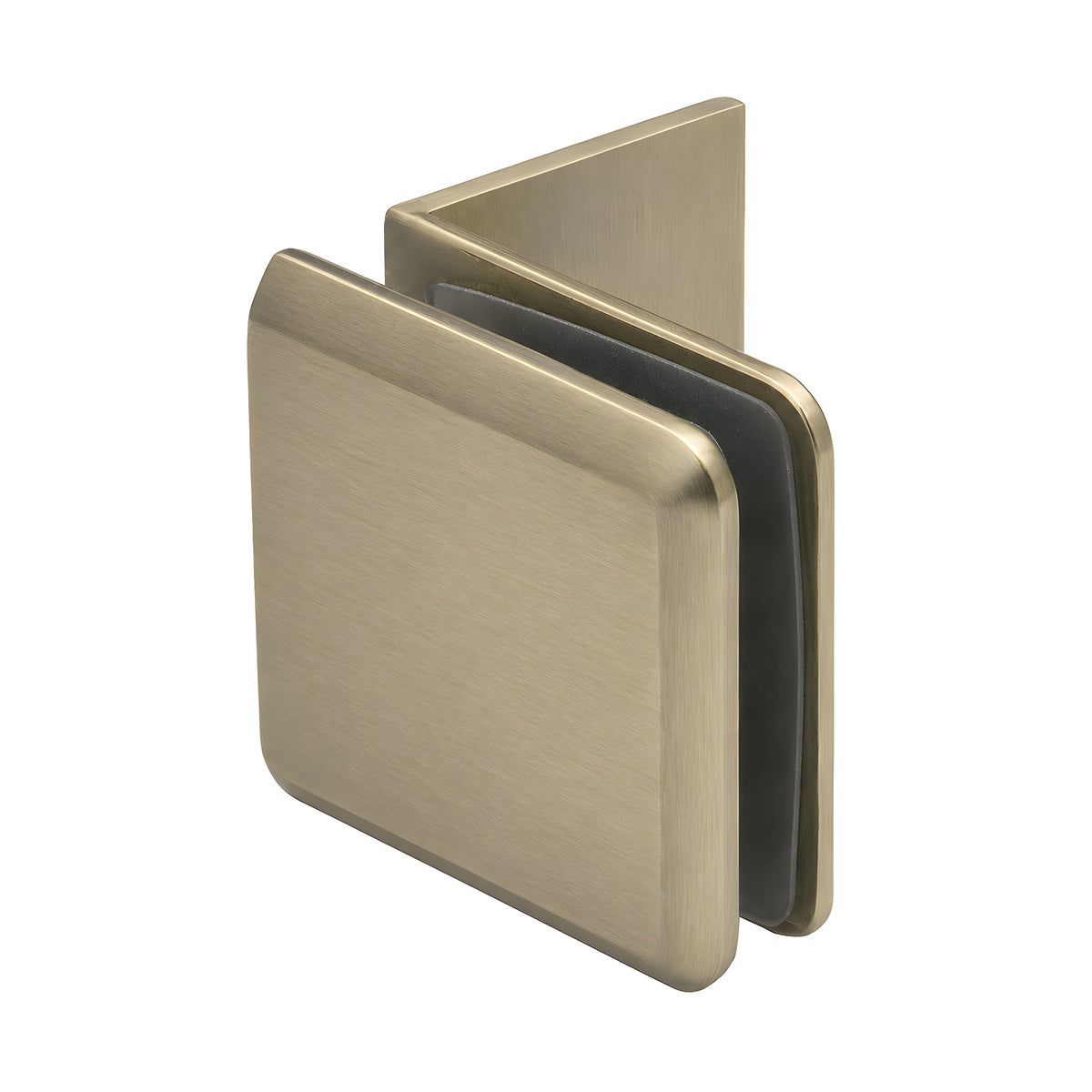

CRL Brushed Bronze Shower Glass Fixed Panel Beveled Clamp, Large Leg

• For 3/8" to 1/2" (10 to 12 mm) glass
• Use with monolithic tempered glass panels
• Requires 3/4" (19 mm) hole in glass
• Available in both small and large leg models

CRL Fixed Panel Beveled Clamps (With Large Leg) — SKU: BGC039BBRZ mount directly to wall, ceiling or floor to secure vertical fixed glass panels in frameless shower and storefront applications. Designed for monolithic tempered glass, these solid brass beveled clamps maintain a 1/16" (2 mm) clearance between glass and wall; clear silicone provides a clean, water-tight seal. The 90º leg adds extra strength while the larger leg covers more tile area—ideal when backing surfaces vary. Replacement gasket: Cat. No. BGCU1G.

Key differentiators:

• Solid brass construction for corrosion resistance and long service life
• Large 90º leg design increases mounting strength and tile coverage
• Engineered for 3/8"–1/2" tempered glass used in frameless shower doors and commercial glazing

SPECIFICATIONS:
Materials: Solid Brass
Glass Thickness Range: 3/8" to 1/2" (10 to 12 mm)
Glass Fabrication Required: BGCU1 requires notch; BCU4, BGC037 and BGC039 require 3/4" (19 mm) holes
Includes: Mounting screws and gaskets

Order the BGC039BBRZ solid brass beveled clamp for reliable frameless glass panel mounting — add to cart or contact sales for bulk pricing.
