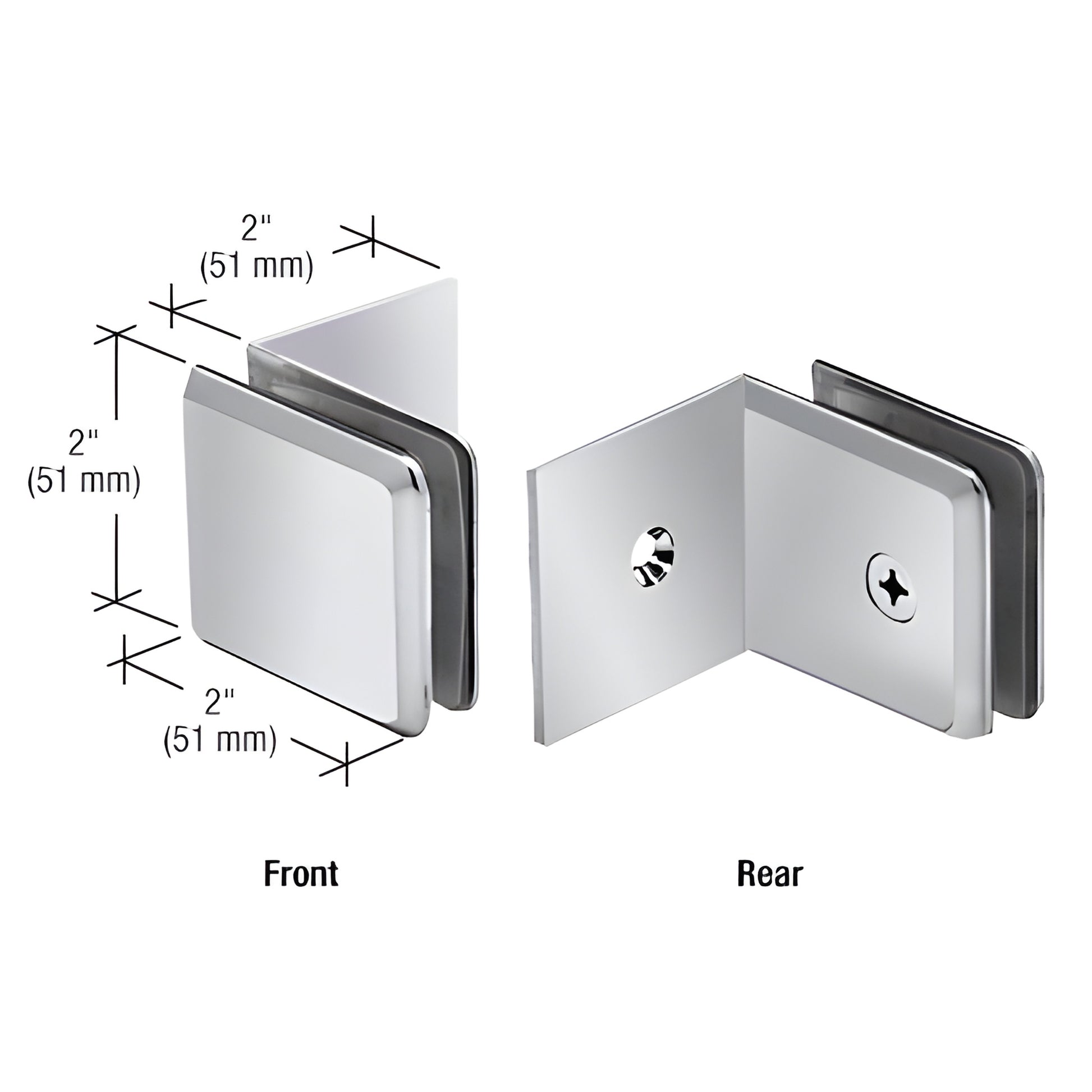

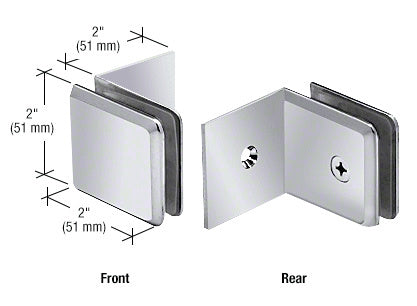

• Polished chrome brass 90 fixed-panel beveled clamp BGC039CH for 3/8-1/2 tempered glass (front and rear views)
1 1

CRL

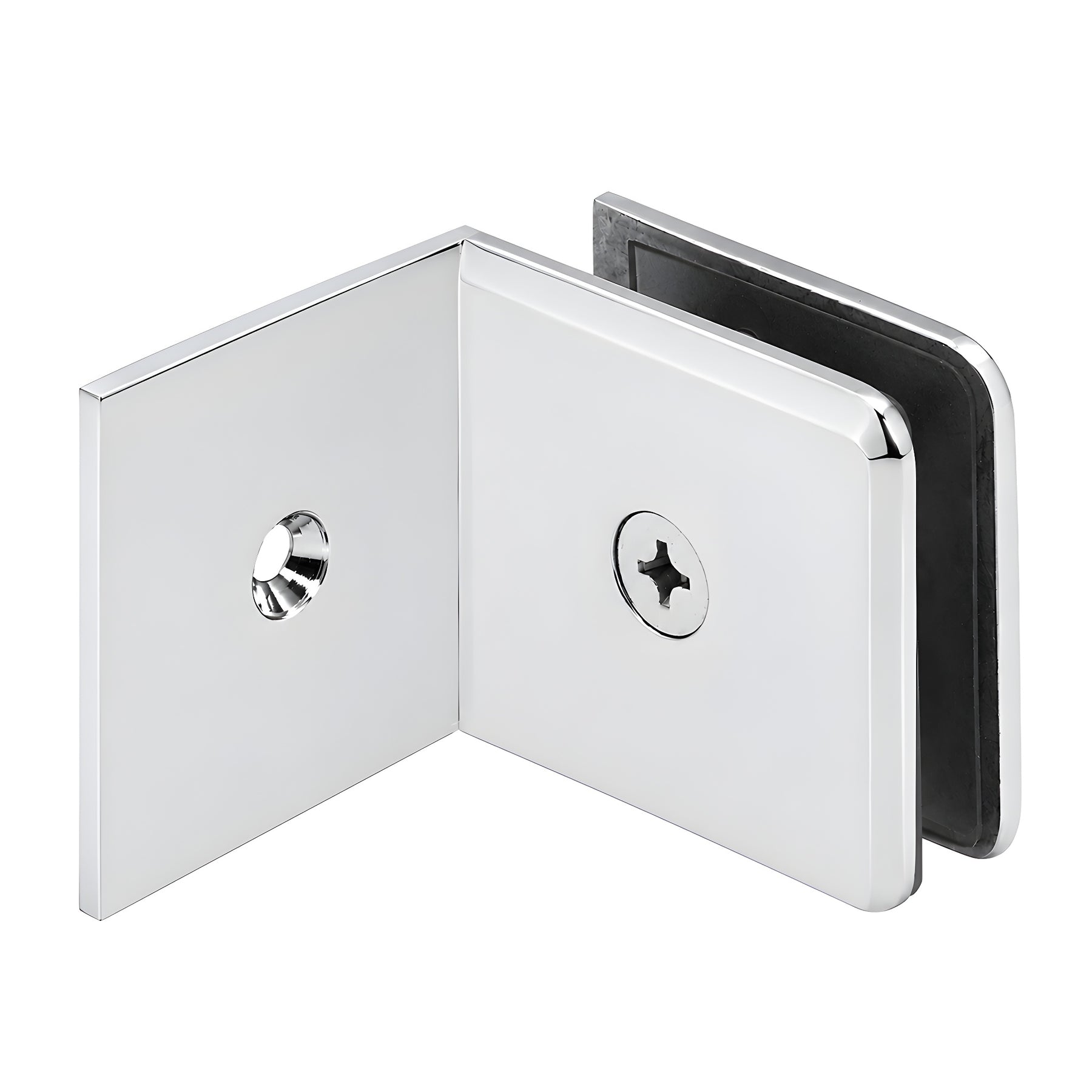

CRL Polished Chrome Beveled Glass Clamp for Fixed Panel (Large Leg)

CRL Polished Chrome Beveled Glass Clamp for Fixed Panel (Large Leg)

$46.58 CAD
$46.58 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# BGC039CH
Shipping Weight: 10.4 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Polished Chrome
Glazing Thickness
3/8 in. To 1/2 in. (10 mm To 12 mm)
Material
Brass
Mounting Type
Wall / Ceiling Mount

Overview

  • For 3/8" to 1/2" (10 to 12 mm) tempered glass
  • Use Monolithic Tempered Glass
  • Requires 3/4" (19 mm) hole in glass
  • Available in both small and large leg models

CRL Fixed Panel Beveled Clamps (With Large Leg) — SKU BGC039CH mount directly to the wall, ceiling, or floor to secure vertical fixed glass panels. Designed for shower door and fixed panel installations, the 90º large leg adds extra strength and covers more tile area for a cleaner finish. Clearance between the glass and wall is 1/16" (2 mm); clear silicone can be used to create a clean, water-tight seal. Replacement gasket: Cat. No. BGCU1G.

SPECIFICATIONS:
Materials: Solid Brass
Glass Thickness Range: 3/8" to 1/2" (10 to 12 mm)
Glass Fabrication Required: BGCU1 requires notch; BCU4, BGC037 and BGC039 require 3/4" (19 mm) holes
Includes: Mounting screws and gaskets

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs before completing your order, please contact CRL Customer Service. Product images shown are of the actual product or a close representation. Colors may vary depending on your monitor settings.


Order the BGC039CH fixed panel beveled clamp for secure, professional tempered glass installations.

Specifications

Templates
SGC039 BGC039 Template
