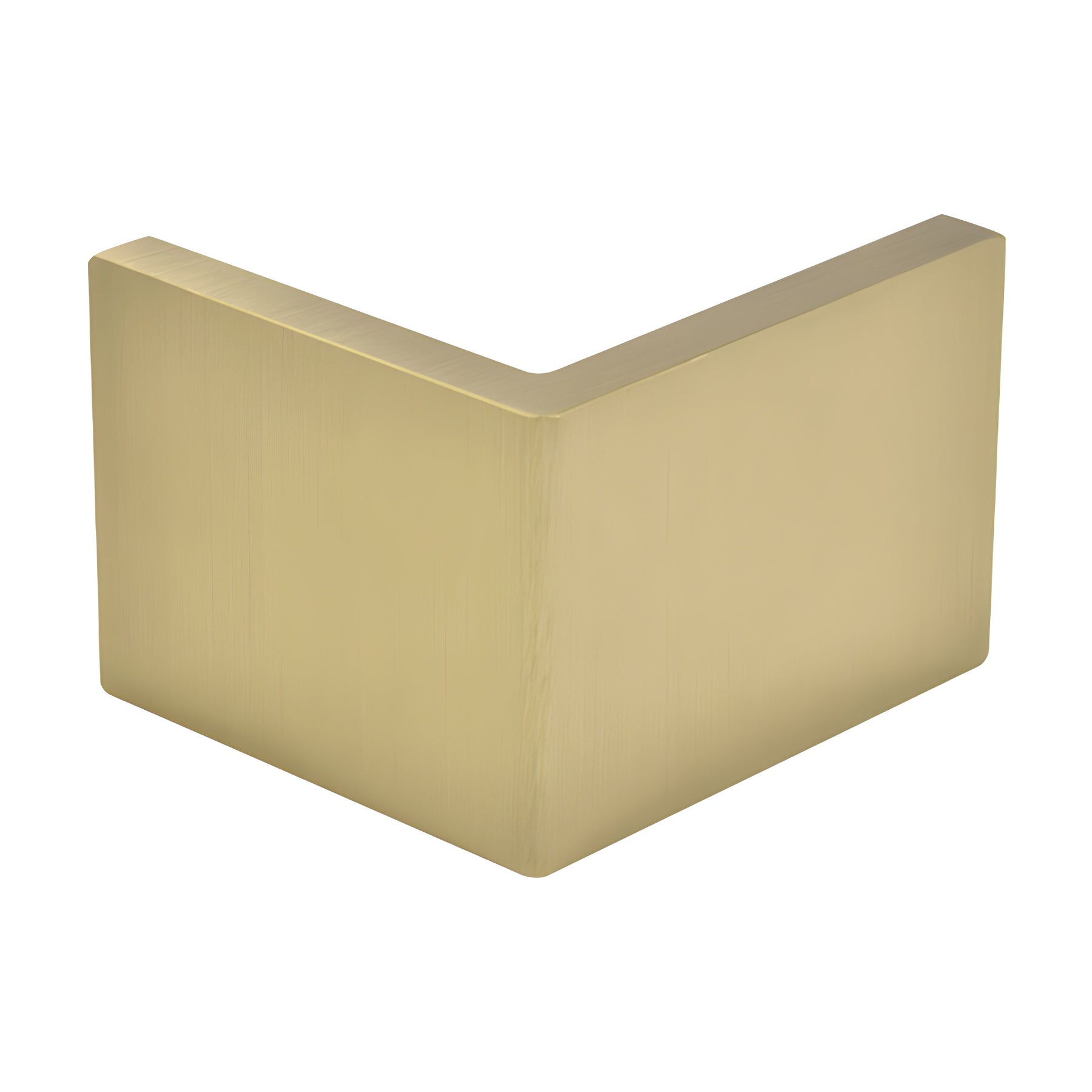

CRL Lugano Brushed Bronze Glass-to-Glass Bracket for Frameless Shower
Item# LU090BBRZ
Shipping Weight: 14.72 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 14.72 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 2% Off |
| Buy 5 | 4% Off |
| Buy 10 | 6% Off |
| Buy 15 | 8% Off |
| Buy 20 | 10% Off |
Design Style
Concealed/Premium
Enclosure Type
Corner, Niche, Bathtub, Tailor Made Solutions
Finish/Color
Brushed Bronze
Glazing Thickness
5/16 in. To 3/8 in. (8 mm To 10 mm)
Height
2 in. (51 mm)
Material
Brass
Mounting Type
Glass To Glass
Opening Style
Swing(side)
Series
Lugano
Width - Door Portion
2-9/16 in. (65 mm)
Width - Sidelite Portion
2-11/16 in. (68.3 mm)
- Works with 5/16” to 3/8” (8 mm to 10 mm) glass
- Use Monolithic Tempered Glass
- Ultra-compact design for tight shower door layouts
- Flush mount inside for easy-to-clean glass
- Snap-on covers conceal screws for a clean aesthetic
CRL Lugano Series glass-to-glass clamps (SKU: LU090BBRZ) are engineered for 5/16" to 3/8" (8 to 10 mm) tempered glass projects such as frameless shower doors and commercial glass partitions. Constructed of solid brass with square corners and edges, these compact clamps match the Lugano hinge family to maintain continuity of design. Available in several decorator finishes; custom finishes can be requested through CRL Technical Sales - Shower Door Department.
SPECIFICATIONS:
Glass Thickness: 5/16" to 3/8" (8 to 10 mm)
Material: Solid Brass
Includes: Gaskets and mounting screws
Required Hole Diameter: One 5/8” (16 mm) hole per panel
Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images are of the actual product or a close representation; colors may vary with monitor settings.
Ideal for frameless shower door and glass partition installations—order LU090BBRZ today to match Lugano hinges and finishes.
