Product Details
- Works with 5/16” to 3/8” (8 mm to 10 mm) glass
- Use Monolithic Tempered Glass
- Ultra-compact Design
- Flush Mount Inside - Easy to Clean Glass
- Snap-on Covers Conceal Screws

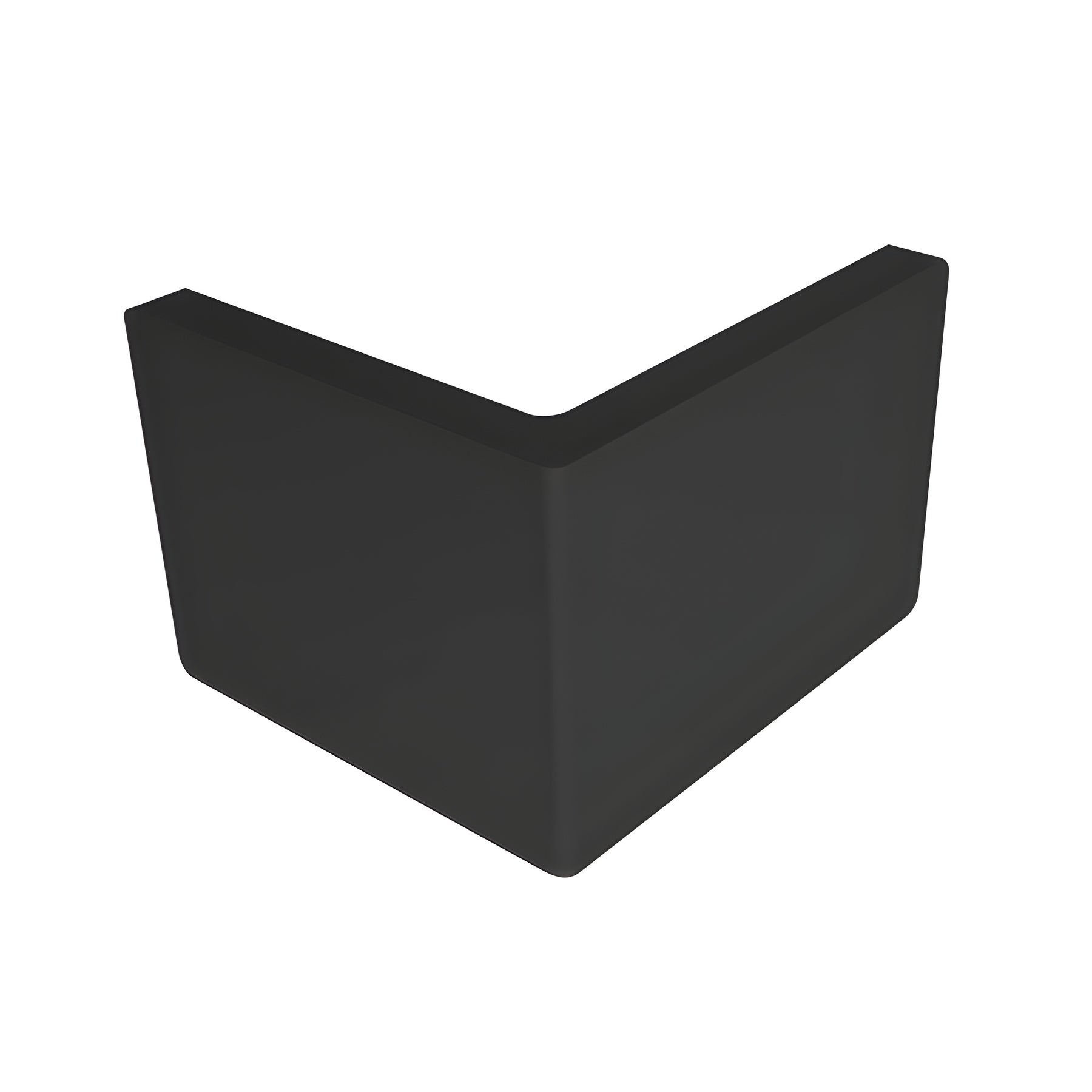

CRL Lugano Series Glass-to-Glass Clamps are designed for 5/16" to 3/8" (8 to 10 mm) thick glass projects. Continuity of design is maintained by matching the look of the hinges used. They feature square corners and edges in several decorator finishes and are constructed of solid brass. Custom finishes are available on request by contacting CRL Technical Sales Shower Door Department.
SPECIFICATIONS:
Glass Thickness: 5/16" to 3/8" (8 to 10 mm)
Material: Solid Brass
Includes: Gaskets and Mounting Screws Hole Diameter
Required: One 5/8” (16 mm) Hole Per Panel
