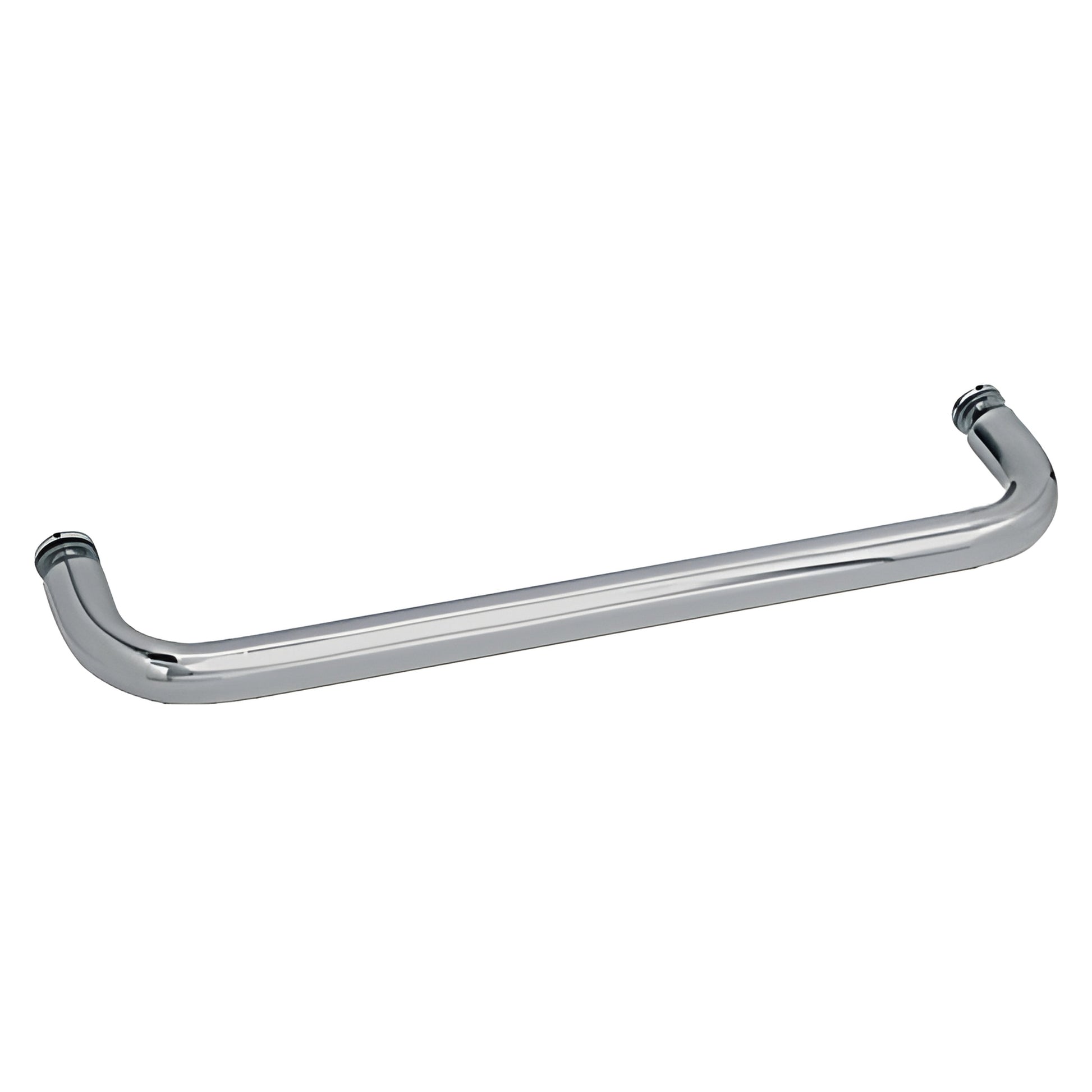

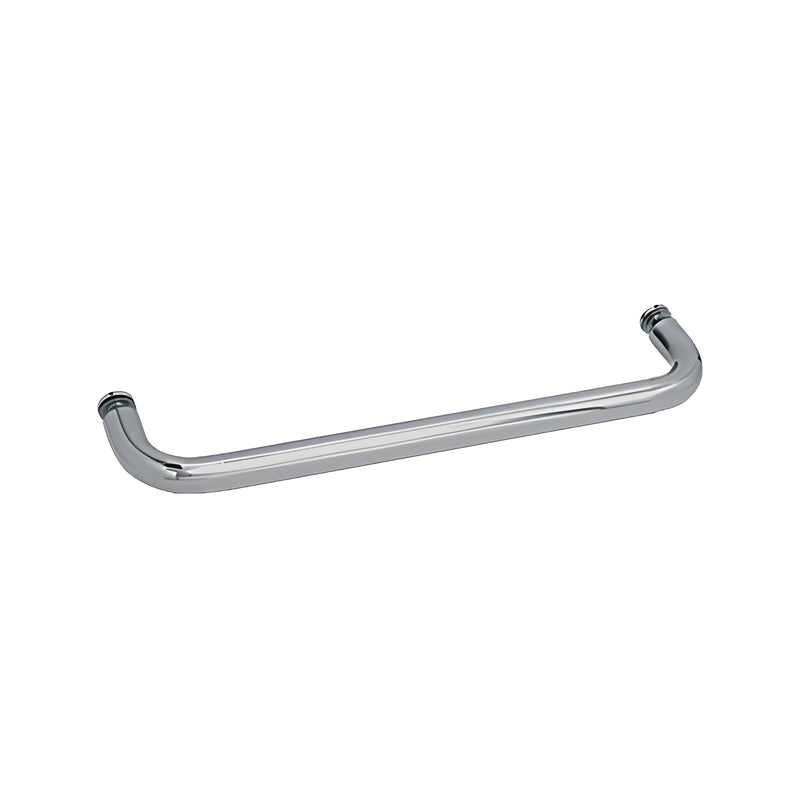

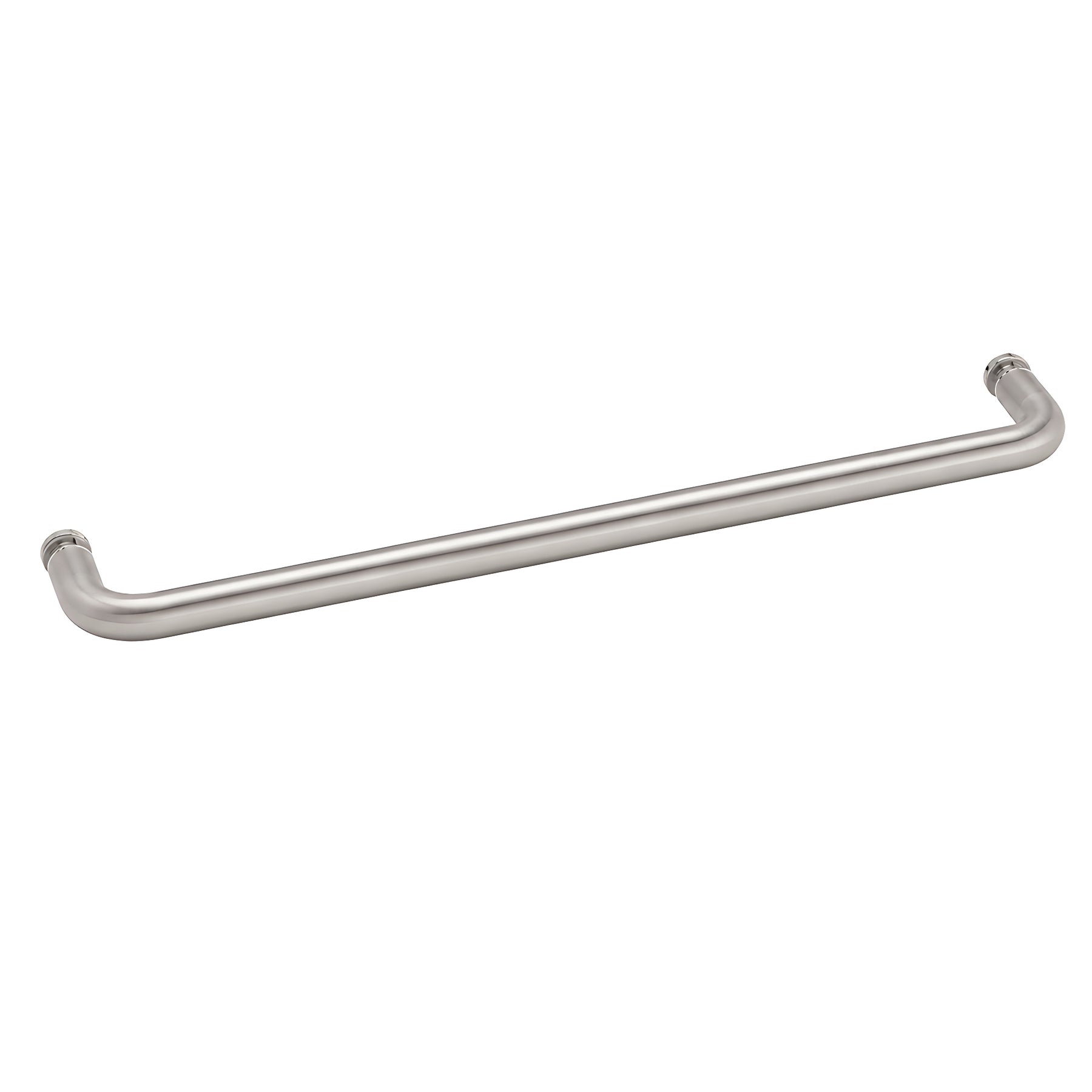

CRL BM Series 22" Brushed Nickel Single-Sided Wall Towel Bar

• Low profile end caps ideal for bypass sliding doors
• Available in several sizes and popular finishes
• Heavy 3/4" (19 mm) diameter tubular brass construction (1.5 mil thick)
• No exposed metal washers for a sleek, continuous profile
• Designed for monolithic tempered glass mounting

CRL BM Series Single-Sided Towel Bars (No Metal Washers) — engineered for glass-mounted towel bars on fixed panels and doors. The 1/8" low-profile end caps make these towel bars especially suitable for bypass sliding doors. Constructed from heavy brass tubing (1.5 mil), with plastic washers to protect against glass-to-metal contact. SKU example: BMNW22BN.

SPECIFICATIONS:
Material: 3/4" (19 mm) diameter brass tubing
Glass Thickness Range: 1/4" to 1/2" (6 to 12 mm)
Hole Diameter Required: 1/2" (12 mm)
Thread Size: 1/4"-20
Center-to-Center Hole Spacing:
12" Towel Bar = 12" (305 mm)
18" Towel Bar = 18" (457 mm)
20" Towel Bar = 20" (508 mm)
22" Towel Bar = 22" (559 mm)
24" Towel Bar = 24" (610 mm)
26" Towel Bar = 26" (660 mm)
27" Towel Bar = 27" (686 mm)
28" Towel Bar = 28" (711 mm)
30" Towel Bar = 30" (762 mm)

AVAILABLE SIZES / CAT. NO.:
CAT. NO. BMNW12 — 12" Towel Bar
CAT. NO. BMNW18 — 18" Towel Bar
CAT. NO. BMNW20 — 20" Towel Bar
CAT. NO. BMNW22 — 22" Towel Bar
CAT. NO. BMNW24 — 24" Towel Bar
CAT. NO. BMNW26 — 26" Towel Bar
CAT. NO. BMNW27 — 27" Towel Bar
CAT. NO. BMNW28 — 28" Towel Bar
CAT. NO. BMNW30 — 30" Towel Bar
