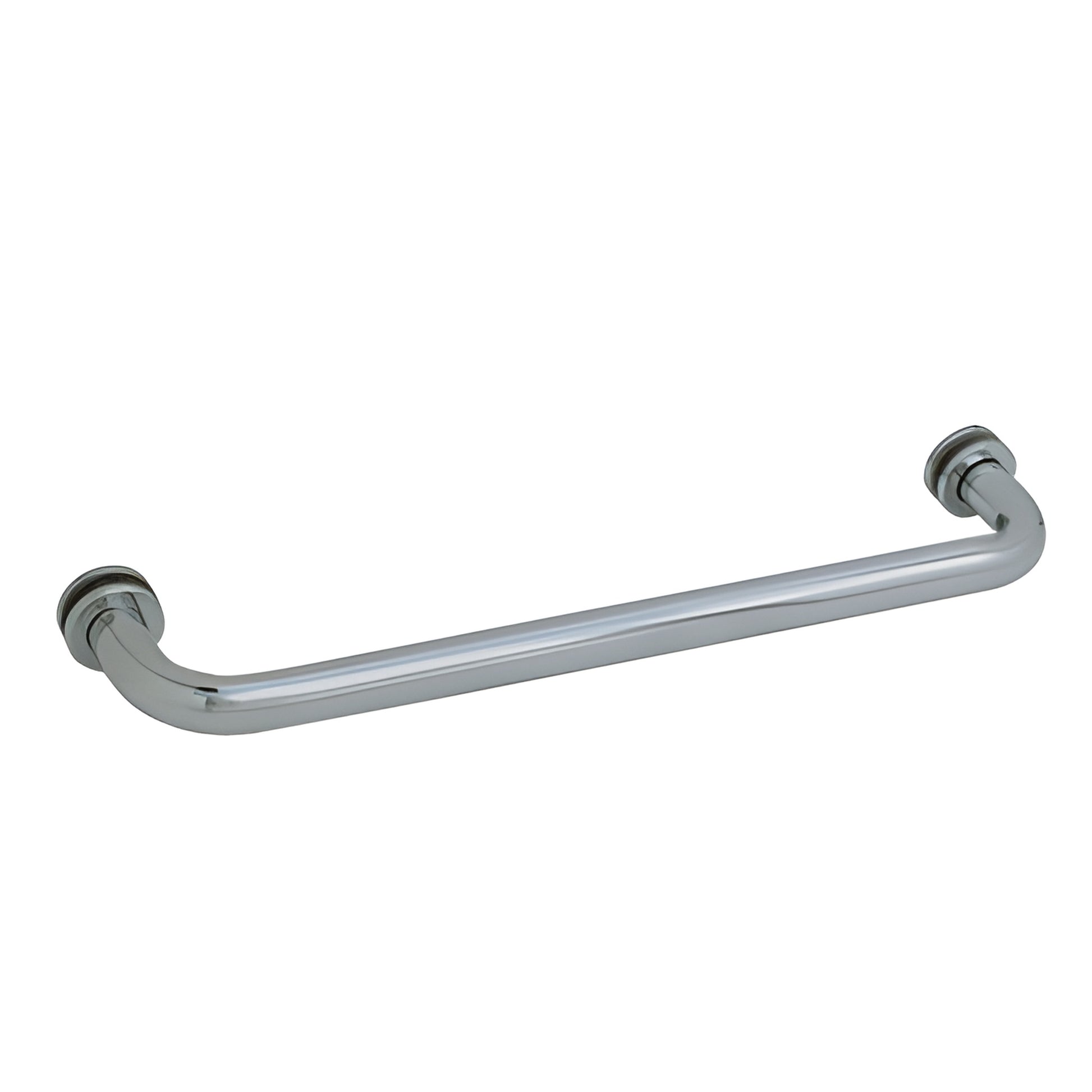

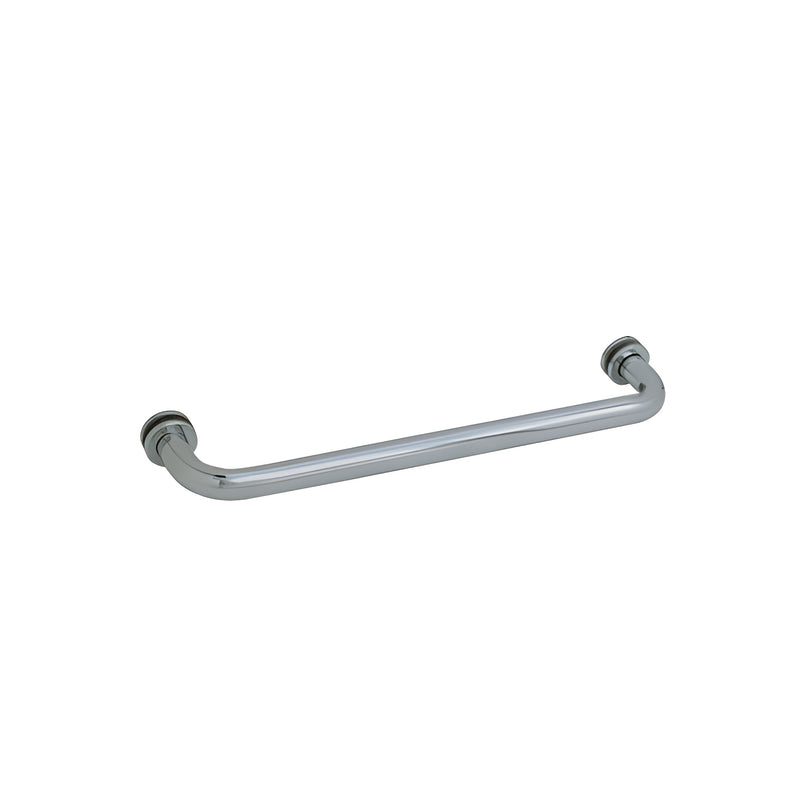

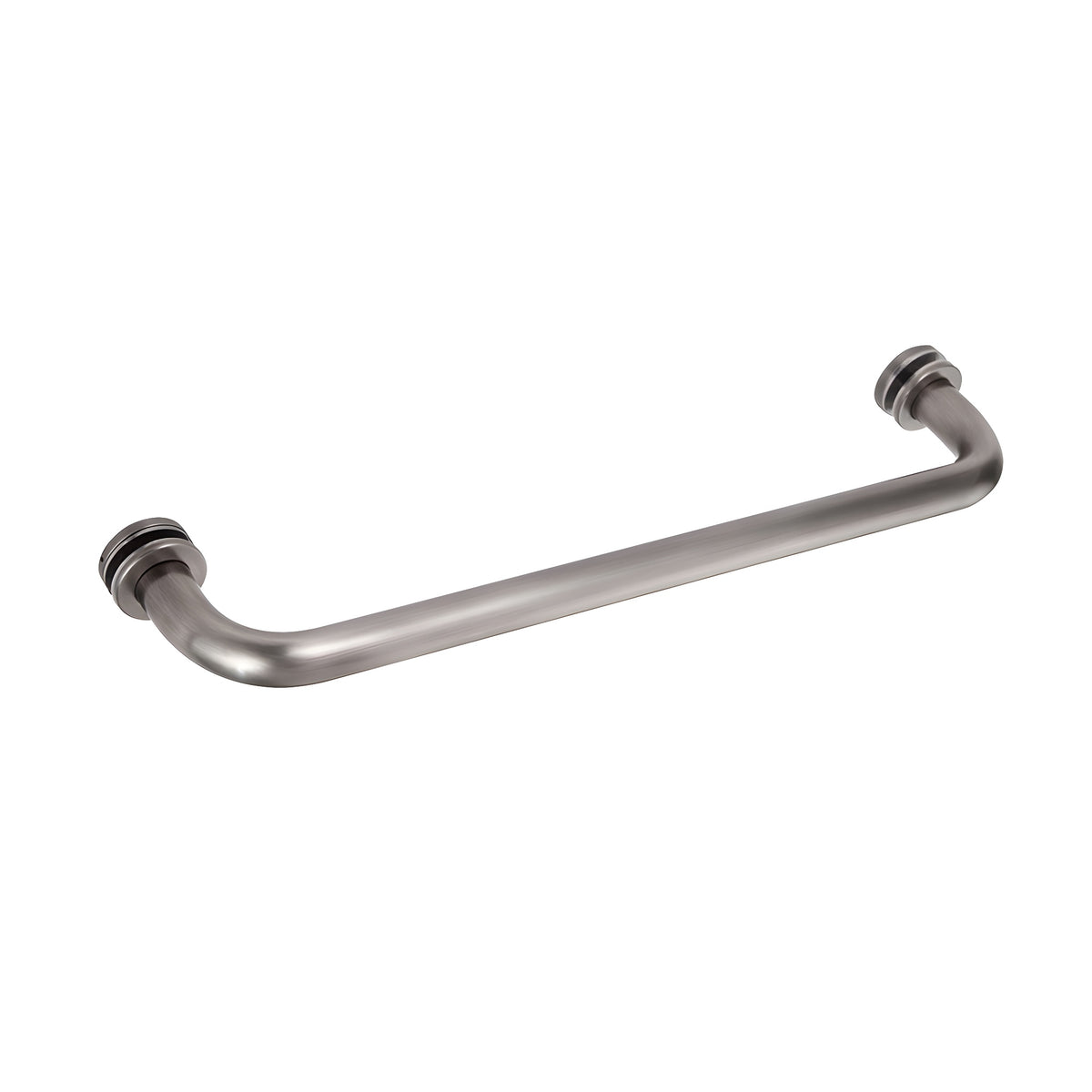

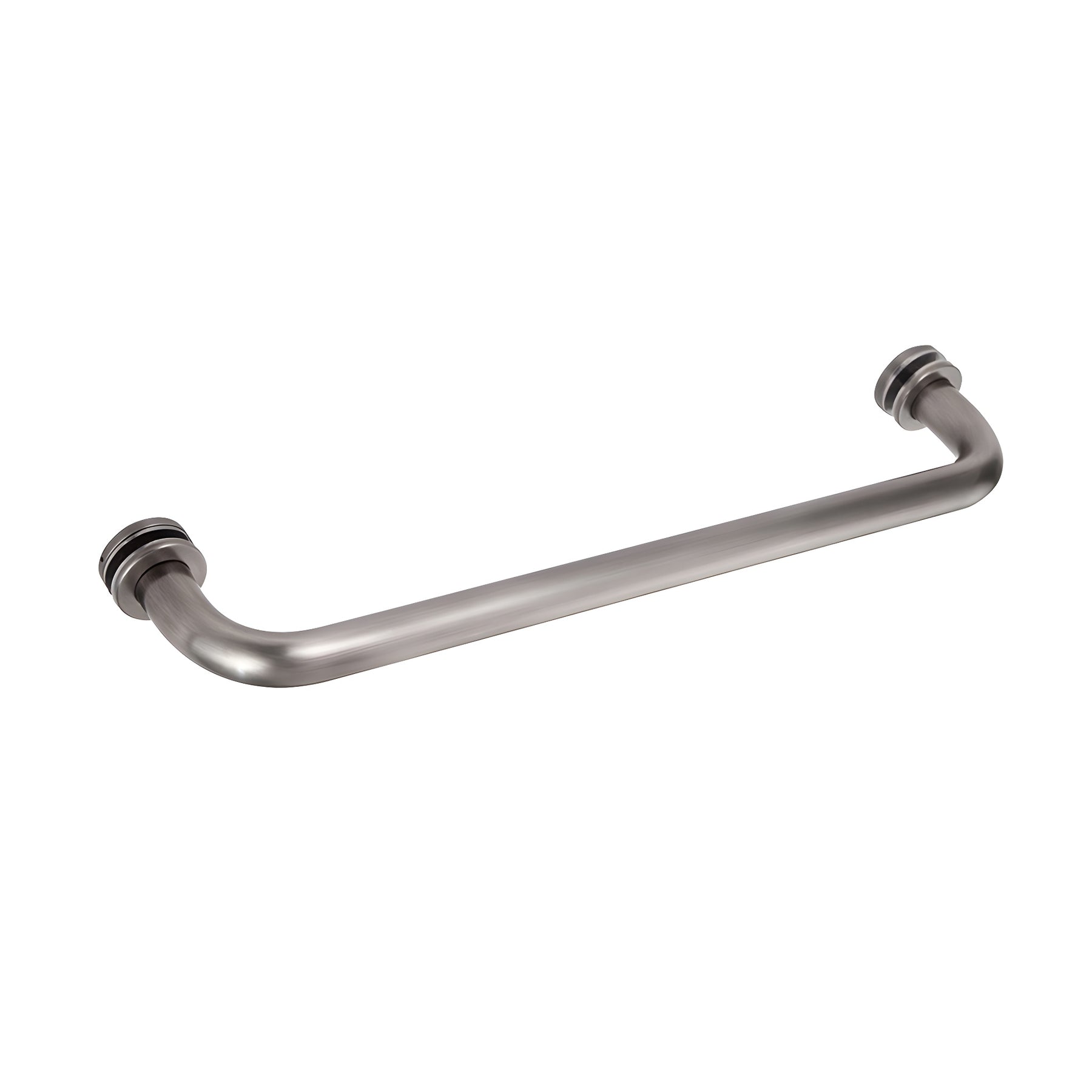

CRL 12 in Brushed Nickel Tubular Towel Bar - Single-Sided Wall Mount

• Most popular single-sided towel bar for glass mounting
• Decorative metal washers cover glass hole and protect finish
• Heavy 3/4" (19 mm) diameter brass tubing (1.5 mil thick)
• Available in multiple finishes and sizes from 12" to 30" (305 to 762 mm); custom finishes available
• Designed for monolithic tempered glass panels and sliding bypass doors

The BM Series Single-Sided Towel Bars with Metal Washers are engineered for glass-mounted applications on fixed panels or doors. Low-profile 3/16" end caps suit sliding bypass doors. Construction uses heavy 1.5 mil brass tubing with included decorative metal backup washers and plastic protectors to prevent glass-to-metal contact, making this a durable brass towel bar option for glass shower doors and panels.


SPECIFICATIONS:
Material: 3/4" (19 mm) diameter brass tubing (1.5 mil thick); 1-1/4" (32 mm) diameter metal washers
Glass Thickness Range: 1/4" to 1/2" (6 to 12 mm)
Thread Size: 1/4"-20
Hole Diameter Required: 1/2" (12 mm)
Center-to-Center Hole Spacing:
12" Towel Bar = 12" (305 mm)
18" Towel Bar = 18" (457 mm)
20" Towel Bar = 20" (508 mm)
22" Towel Bar = 22" (559 mm)
24" Towel Bar = 24" (610 mm)
26" Towel Bar = 26" (660 mm)
27" Towel Bar = 27" (686 mm)
28" Towel Bar = 28" (711 mm)
30" Towel Bar = 30" (762 mm)

AVAILABLE SIZES / CATALOG NUMBERS:
CAT. NO. BM12 — 12" Towel Bar
CAT. NO. BM18 — 18" Towel Bar
CAT. NO. BM20 — 20" Towel Bar
CAT. NO. BM22 — 22" Towel Bar
CAT. NO. BM24 — 24" Towel Bar
CAT. NO. BM26 — 26" Towel Bar
CAT. NO. BM27 — 27" Towel Bar
CAT. NO. BM28 — 28" Towel Bar
CAT. NO. BM30 — 30" Towel Bar
