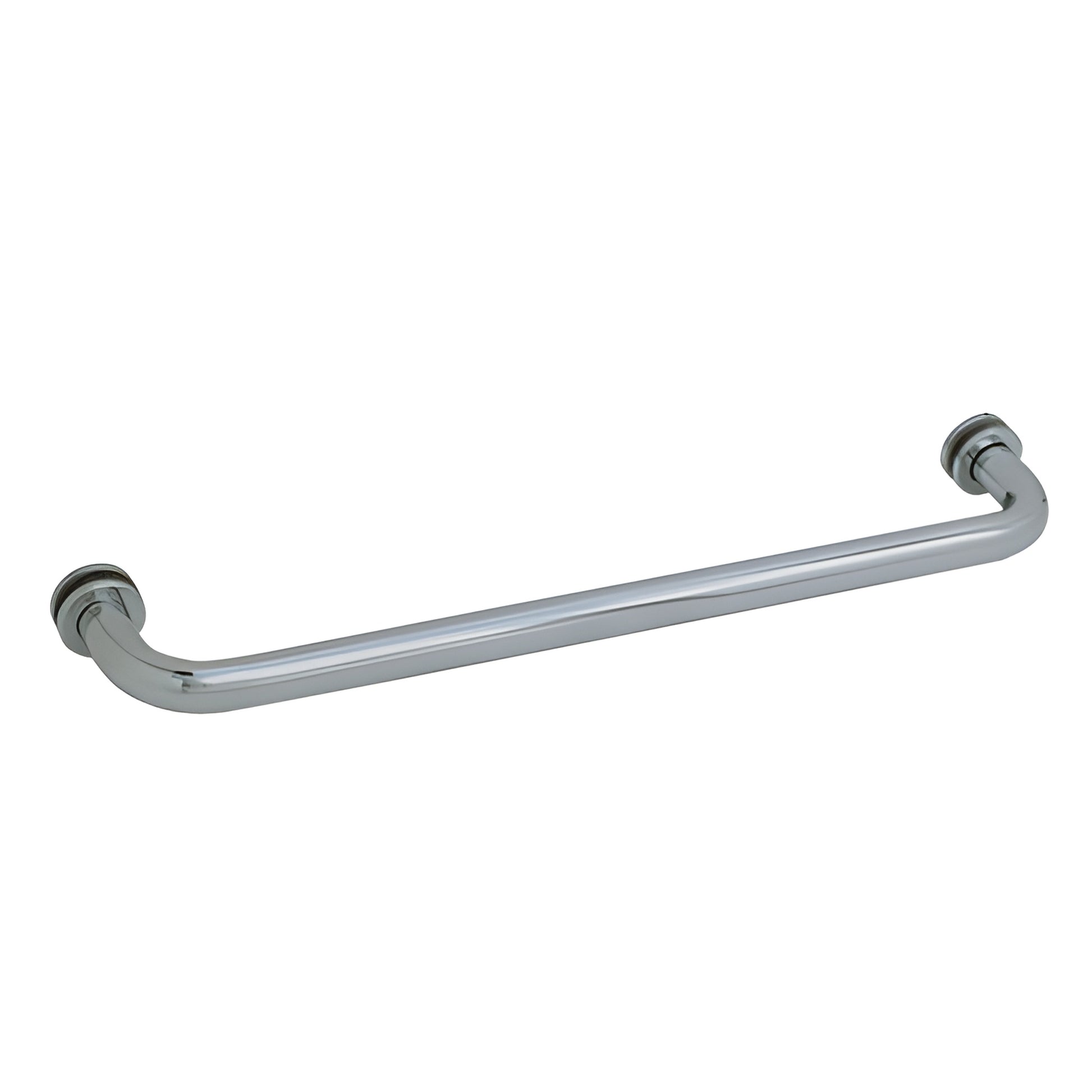

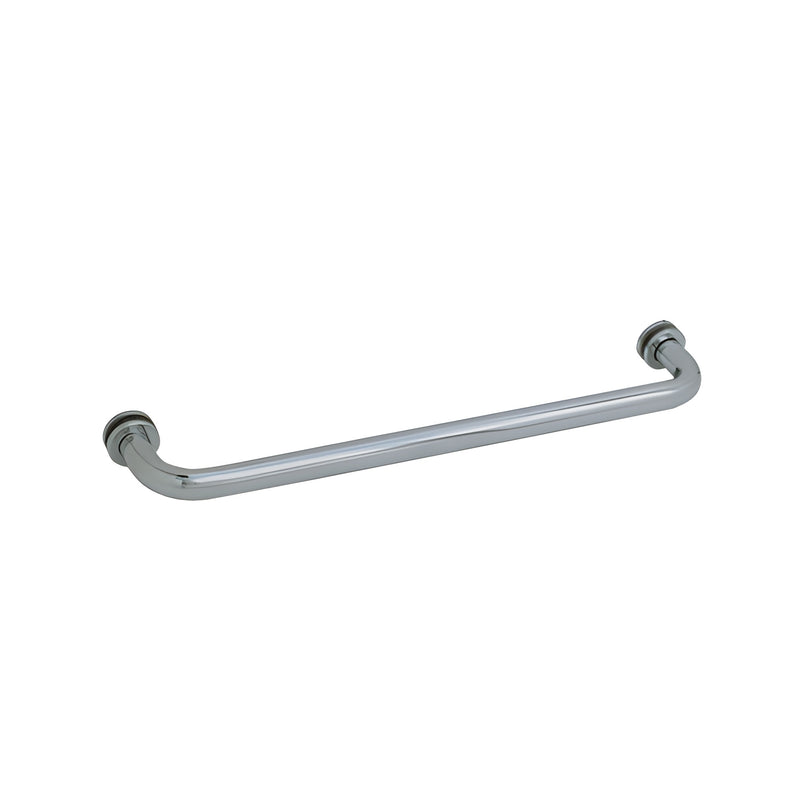

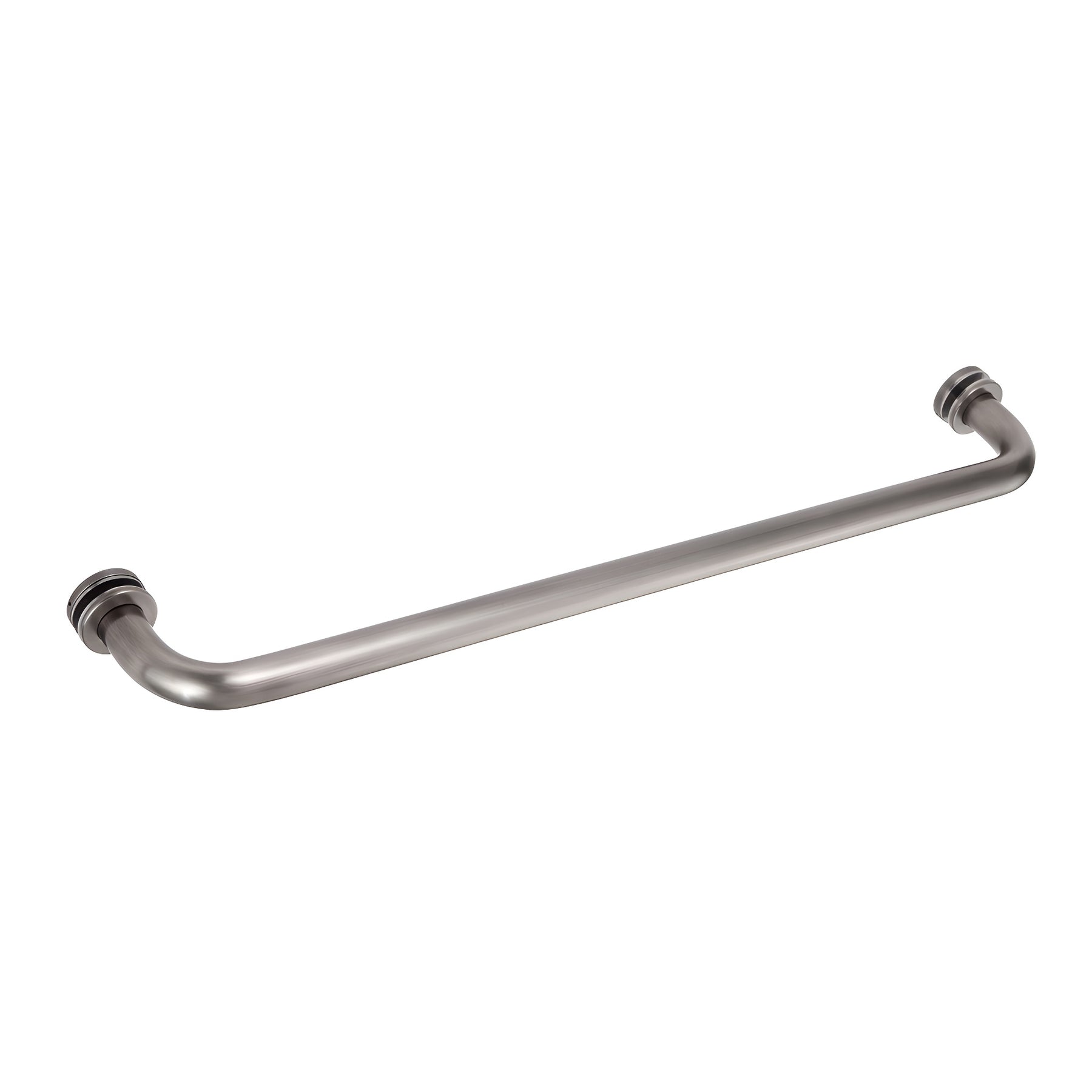

CRL 22-inch Brushed Nickel BM Series Single-Sided Towel Bar

• Most popular single-sided towel bar series for glass shower doors and fixed glass panels
• Decorative metal washers cover glass holes and provide a finished look
• Heavy 3/4" (19 mm) diameter brass tubing (1.5 mil thick) for durable, corrosion-resistant performance
• Available in multiple finishes and sizes from 12" to 30" (305 to 762 mm); custom finishes available
• Designed for monolithic tempered glass

The BM Series of Single-Sided Towel Bars With Metal Washers (SKU: BM22BN) is engineered for glass mounting on fixed panels or doors and works well on sliding bypass doors due to its 3/16" low-profile end caps. Constructed from 1.5 mil thick heavy brass tubing, each bar includes decorative metal back-up washers and protective plastic washers to prevent glass-to-metal contact—an ideal choice as a brass towel bar for tempered glass shower doors and commercial glass enclosures.


SPECIFICATIONS:
Material: 3/4" (19 mm) diameter brass tubing (1.5 mil thick); 1-1/4" (32 mm) diameter metal washers
Glass Thickness Range: 1/4" to 1/2" (6 to 12 mm)
Hole Diameter Required: 1/2" (12 mm)
Thread Size: 1/4"-20
Center-to-Center Hole Spacing:
12" Towel Bar = 12" (305 mm)
18" Towel Bar = 18" (457 mm)
20" Towel Bar = 20" (508 mm)
22" Towel Bar = 22" (559 mm)
24" Towel Bar = 24" (610 mm)
26" Towel Bar = 26" (660 mm)
27" Towel Bar = 27" (686 mm)
28" Towel Bar = 28" (711 mm)
30" Towel Bar = 30" (762 mm)

AVAILABLE SIZES:
Cat. No. BM12 — 12" Towel Bar
Cat. No. BM18 — 18" Towel Bar
Cat. No. BM20 — 20" Towel Bar
Cat. No. BM22 — 22" Towel Bar
Cat. No. BM24 — 24" Towel Bar
Cat. No. BM26 — 26" Towel Bar
Cat. No. BM27 — 27" Towel Bar
Cat. No. BM28 — 28" Towel Bar
Cat. No. BM30 — 30" Towel Bar
