Product Details
- Our Most Popular Towel Bar
- Decorative Metal Washers Also Serve to Cover Any Defect in Hole in Glass
- Heavy 3/4" (19 mm) Diameter Brass Tubing (1.5 mil Thick)
- Numerous Finish Choices in Sizes Ranging from 12" to 30" (305 to 762 mm)
- Custom Finishes Available: Numerous Finish Choices in Sizes Ranging from 12" to 30" (305 to 762 mm)
- Custom Finishes Available
- Use Monolithic Tempered Glass

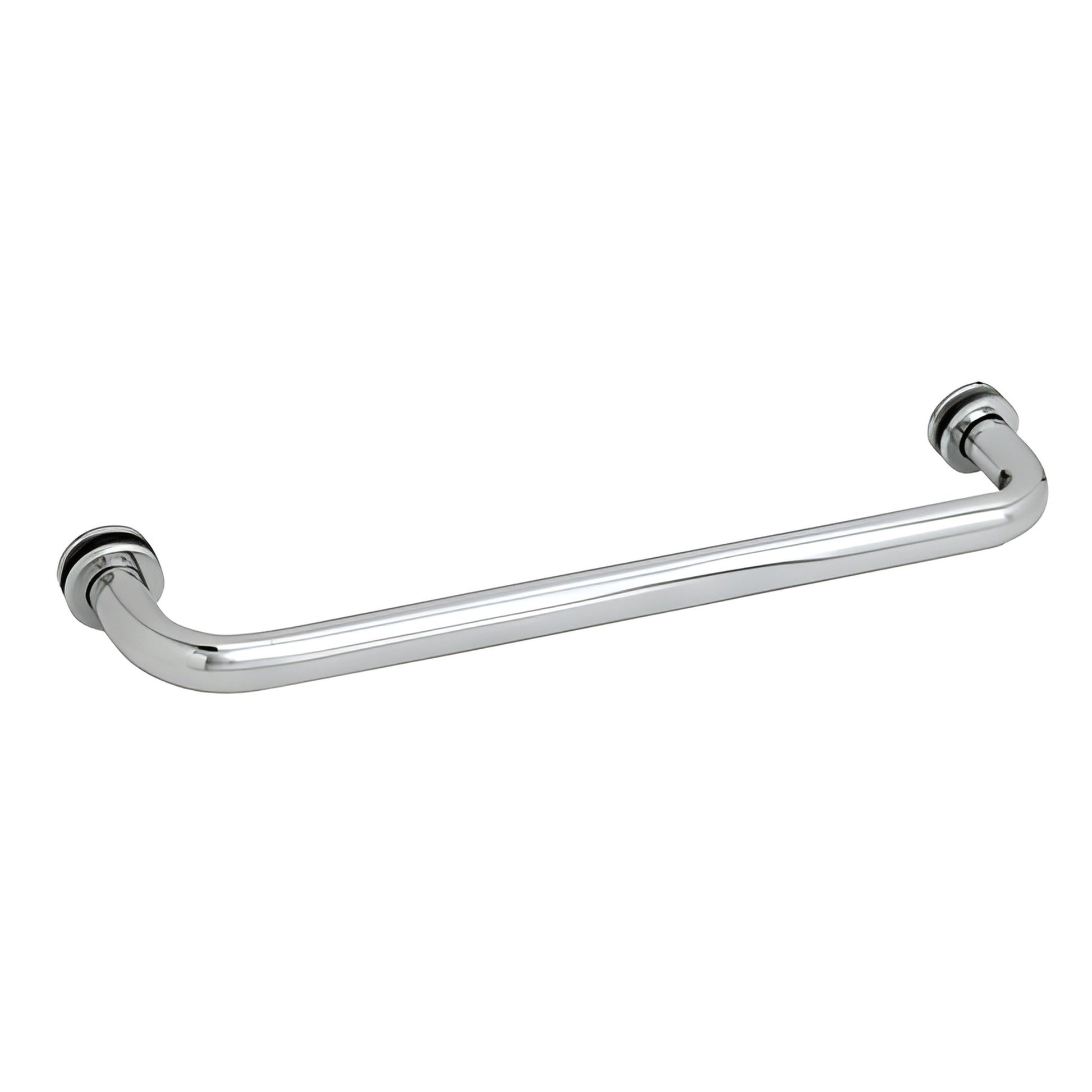

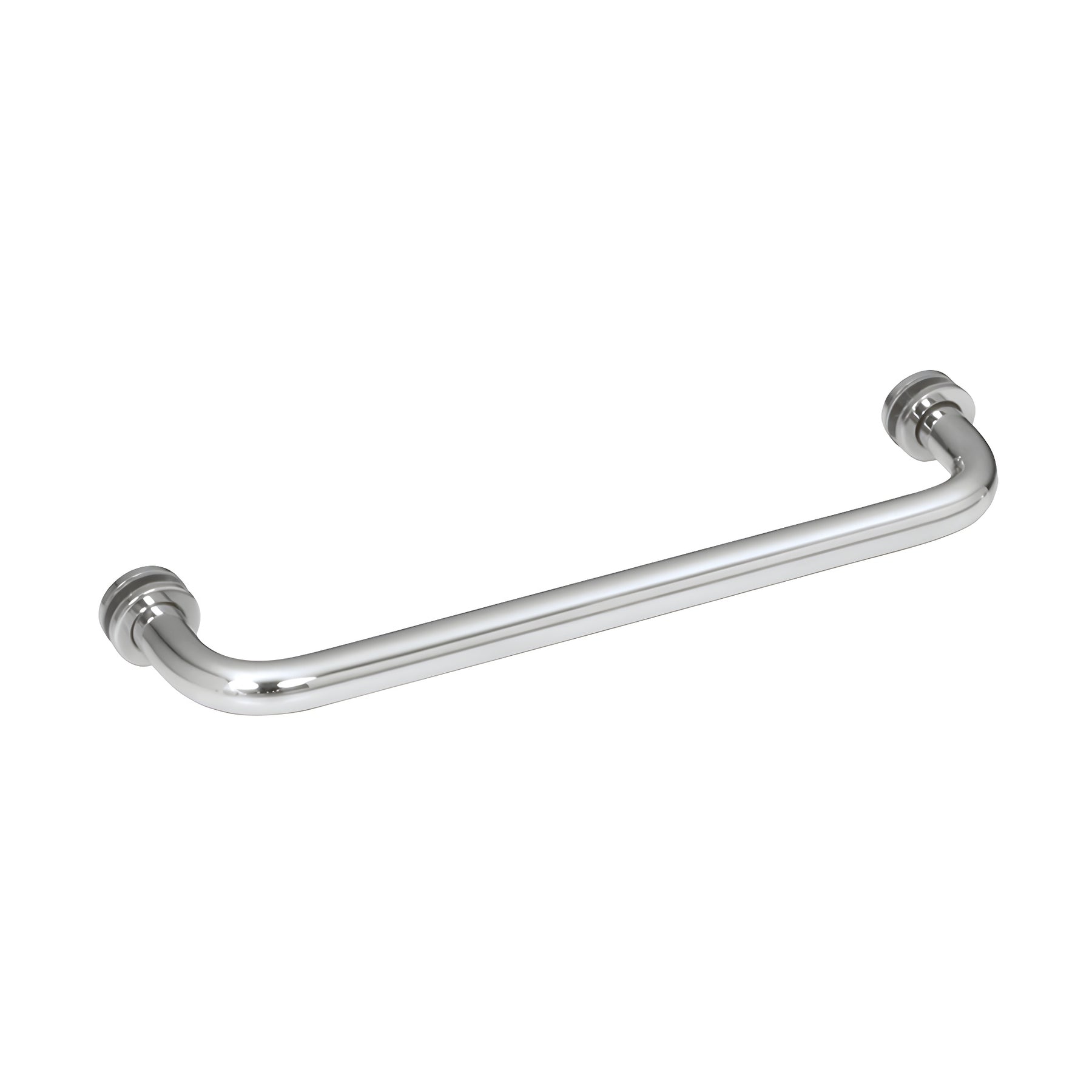

The BM Series of Single-Sided Towel Bars With Metal Washers are designed for glass mounting on fixed panels or doors. The 3/16" low profile end caps make this an ideal bar for sliding bypass doors as well. The bars are constructed of 1.5 mil thick heavy brass tubing. Decorative metal back-up washers are included, as well as plastic washers to protect against glass-to-metal contact.
SPECIFICATIONS:
Material: 3/4" (19 mm) Diameter Brass Tubing (1.5 mil thick); 1-1/4" (32 mm) Diameter Metal Washers
Glass Thickness Range: 1/4" to 1/2" (6 to 12 mm)
Thread Size: 1/4"-20
Hole Diameter Required: 1/2" (12 mm)
Center-to-Center Hole Spacing:
12" Towel Bar = 12" (305 mm)
18" Towel Bar = 18" (457 mm)
20" Towel Bar = 20" (508 mm)
22" Towel Bar = 22" (559 mm)
24" Towel Bar = 24" (610 mm)
26" Towel Bar = 26" (660 mm)
27" Towel Bar = 27" (686 mm)
28" Towel Bar = 28" (711 mm)
30" Towel Bar = 30" (762 mm)
AVAILABLE SIZES:
CAT. NO. BM12 12" Towel Bar
CAT. NO. BM18 18" Towel Bar
CAT. NO. BM20 20" Towel Bar
CAT. NO. BM22 22" Towel Bar
CAT. NO. BM24 24" Towel Bar
CAT. NO. BM26 26" Towel Bar
CAT. NO. BM27 27" Towel Bar
CAT. NO. BM28 28" Towel Bar
CAT. NO. BM30 30" Towel Bar
