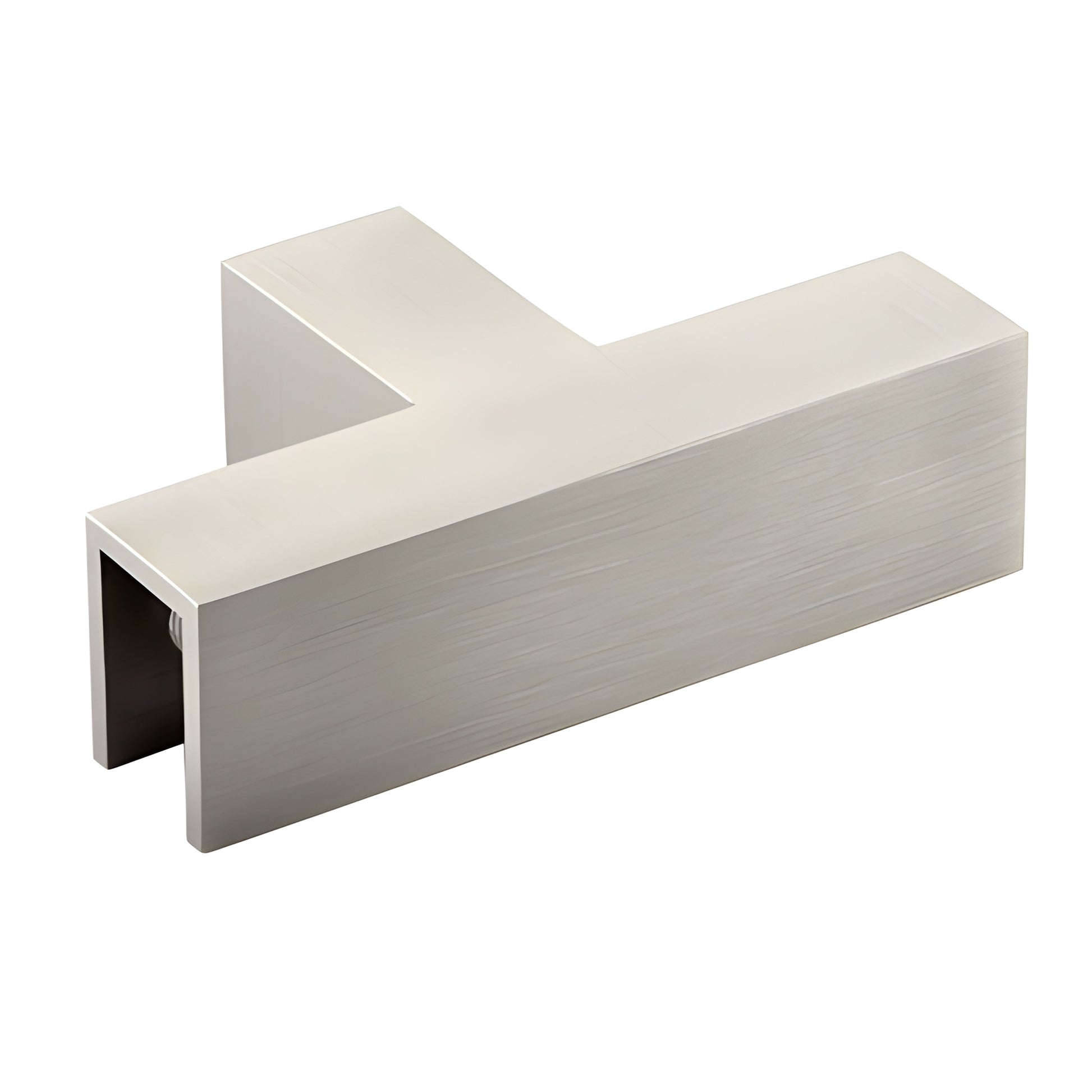

CRL 90° Brushed Nickel T-Junction Clamp for Frameless Glass

• For 5/16" to 1/2" (8 to 12 mm) thick glass
• Solid brass construction
• Use with monolithic tempered glass
• Special T-junction design for glass-to-glass connections
• Assists with shear forces on frameless shower panels

CRL Sleeve Over Glass Glass-to-Glass T-Junction Clamp (SKU: S0GCT90BN) are mechanical fasteners engineered for frameless shower and glass partition applications. The sleeve-over-glass design secures adjacent glass panels and helps resist shear forces without requiring special glass fabrication. Use clamps to hold panels while silicone sealant cures; the sealant provides waterproofing and final pull strength. Clamps are tightened with nylon-tipped Allen set screws.

P612** replacement screws

SPECIFICATIONS:
Glass Thickness: 5/16" to 1/2" (8 to 12 mm)
Material: Solid Brass
Includes: Gaskets
No glass fabrication required

NOTE: Clamps tighten using nylon-tipped Allen screws. These clamps are not designed to replace headers or support bars. Contact CRL Frameless Shower Technical Sales for installation guidance and load limits.

Product Warning:

These clamps are not designed to take the place of headers or a support bar.
