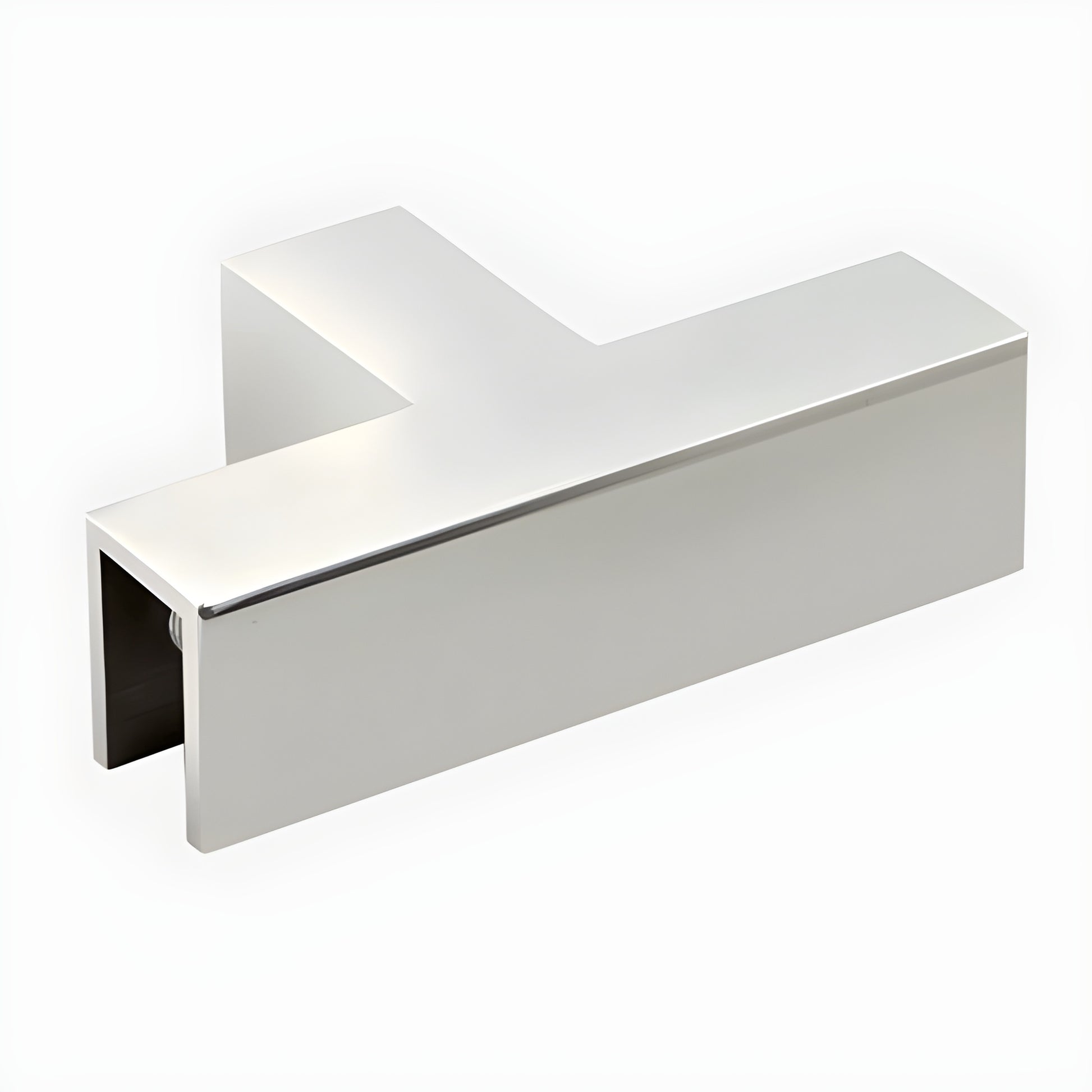

CRL Polished Chrome 90° Sleeve-Over T-Junction Glass Clamp

• For 5/16" to 1/2" (8 to 12 mm) thick glass
• Solid brass construction
• Use with monolithic tempered glass
• Special T-junction design for glass-to-glass connections
• Helps resist shear forces at panel joints

CRL Sleeve Over Glass Glass-to-Glass T-Junction Clamp (SKU: S0GCT90CH) is a solid-brass mechanical fastener engineered to support shear loads on frameless glass panels without special glass fabrication. Ideal for frameless shower enclosures and other glass-to-glass installations, the clamp can temporarily hold panels while silicone sealant cures (sealant provides waterproofing and final pull strength). Clamps secure with nylon-tipped Allen set screws and include protective gaskets to prevent glass damage.

P612** replacement screws

SPECIFICATIONS:
Glass Thickness: 5/16" to 1/2" (8 to 12 mm)
Material: Solid brass
Includes: Gaskets
No glass fabrication required

NOTE: Clamps tighten using nylon-tipped Allen screws. These clamps are not designed to replace headers or a support bar. Contact CRL Frameless Shower Technical Sales for application guidance.


Product Warning:

These clamps are not intended to take the place of headers or a support bar; use them only as specified for shear support and temporary positioning.
