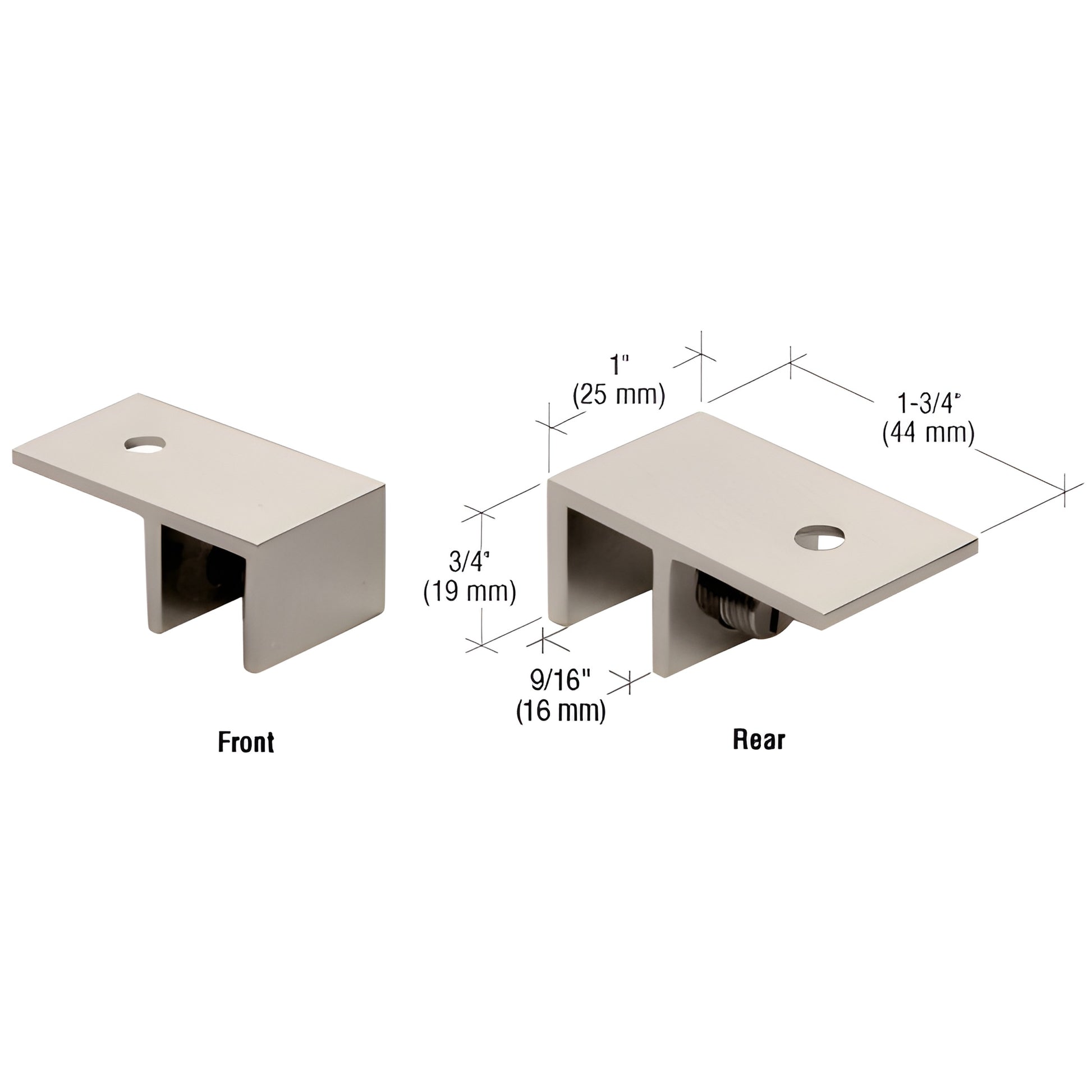

CRL Brushed Nickel Ceiling-Mount Sleeve-Over Clamp for Glass Panels

• For 5/16" to 1/2" (8 to 12 mm) thick glass
• Ceiling-mount sleeve-over-glass clamp
• Use with monolithic tempered glass
• Solid brass construction
• Assists with shear forces on glass panels
• Holds panels in position while sealant cures

CRL Sleeve Over Glass Clamps (SKU: S0GC01BN) are brass sleeve-over-glass clamps designed to provide a mechanical fastener to resist shear forces on shower and frameless glass panels. No special glass fabrication is required—clamps tighten with nylon-tipped Allen set screws and include gaskets to protect the glass. Use these ceiling-mount clamps to temporarily secure tempered glass panels while silicone sealant cures; the sealant provides water-tight joints and the long-term pull strength once cured.

SPECIFICATIONS:
Material: Solid Brass
Glass Thickness Range: 5/16" to 1/2" (8 to 12 mm)
No Glass Fabrication Required: Clamps tighten using nylon-tipped Allen screws.
Includes: Gaskets

NOTE: These clamps are not designed to replace headers or support bars. Can be used on square-cut or mitered panels. Contact CRL Frameless Shower Technical Sales for application guidance.

Product Warning:
These clamps are not designed to take the place of headers or a support bar.
Order the S0GC01BN solid brass ceiling-mount sleeve-over-glass clamp today to secure tempered shower glass during installation.
