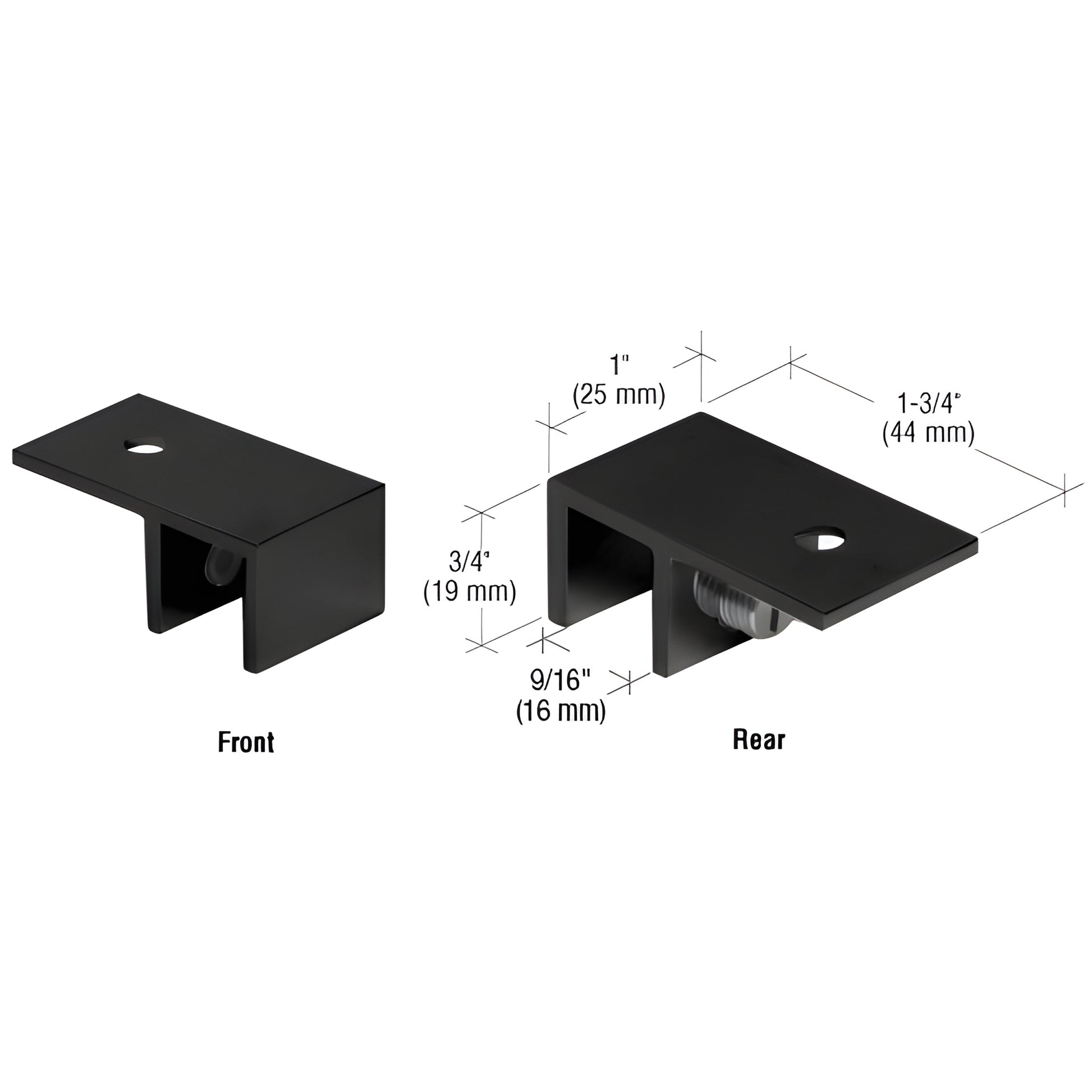

CRL Matte Black Ceiling-Mount Sleeve-Over Glass Clamp

• Fits 5/16" to 1/2" (8 to 12 mm) tempered monolithic glass
• Ceiling-mount sleeve-over-glass clamp for frameless shower panels
• Solid brass construction with nylon-tipped Allen set screws
• Includes gaskets; holds panels while silicone sealant cures
• Assists with shear forces; no glass fabrication required

CRL Sleeve Over Glass Clamps (SKU: S0GC01MBL) are solid brass ceiling-mount clamps designed to absorb shear forces and temporarily secure 8–12 mm monolithic tempered glass panels during installation. No special glass fabrication is required—the clamps tighten with nylon-tipped Allen screws and include gaskets to protect glass. Use with silicone sealant to create a watertight joint; the sealant provides final pull strength while clamps hold panels in position. SPECIFICATIONS:
Material: Solid Brass
Glass Thickness Range: 5/16" to 1/2" (8 to 12 mm)
Glass Type: Monolithic tempered glass recommended
No Glass Fabrication Required: Clamps secure with nylon-tipped Allen screws
Includes: Gaskets NOTE: These clamps are not a replacement for headers or support bars. Can be used on square-cut or mitered panels. Contact CRL Frameless Shower Technical Sales for guidance on structural support and load requirements. Product Warning:
These clamps are not designed to take the place of headers or a support bar.

Shop now to add reliable brass ceiling-mount glass clamps to your frameless shower installation.
