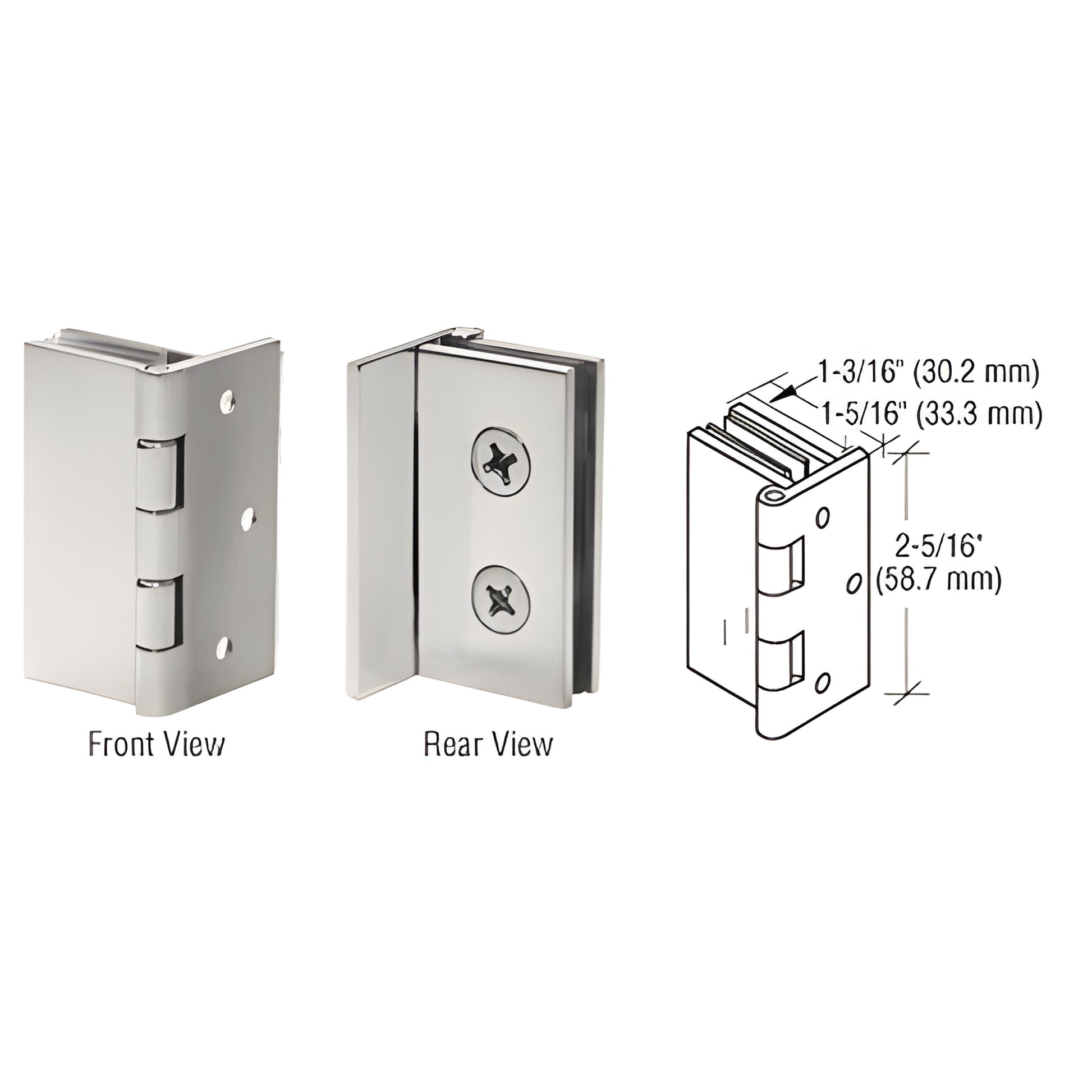

CRL Brushed Nickel Double Wall-to-Glass Hinges

Finish (3)

Overview

SKU	EH245
Sold as	1 Pack
Finish/Color:	Brushed Nickel
Glazing Thickness	1/4 in. To 5/16 in. (6mm To 8 mm)
Height	2-5/16 in. (58.7 mm)
Material	Brass
Maximum Door Width	22 in. (558.8 mm)
Weight Capacity	30 lbs. (13.6 kg)
Width	1-5/16 in. (33.3 mm)

Description

Product Details

For 1/4" to 5/16" (6 to 8 mm) Glass
Two Per Package
Two 1/2" (12 mm) Holes Required

For wall mounted tempered glass applications. CRL Brass Double Wall-to-Glass Hinges are made of forged brass construction with a screw attachment feature. Clear vinyl pad inserts protect glass. Available in polished brass with lacquered finish or chrome plated. Requires 1/2" (12 mm) holes in glass for mounting.

The maximum recommended door width is 22" (559 mm) and maximum weight should not exceed 30 lbs. (13.6 kg).
