CRL Chrome Double Wall-to-Glass Hinges for Shower Doors
CRL Chrome Double Wall-to-Glass Hinges for Shower Doors
Regular price
$96.73 CAD
Regular price
Sale price
$96.73 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# EH246
Shipping Weight: 1.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pack
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pack
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Polished Chrome
Glazing Thickness
1/4 in. To 5/16 in. (6mm To 8 mm)
Height
2-5/16 in. (58.7 mm)
Material
Brass
Maximum Door Width
22 in. (558.8 mm)
Pack Quantity
2
Weight Capacity
30 lbs. (13.6 kg)
Width
1-5/16 in. (33.3 mm)
Overview
- For 1/4" to 5/16" (6 to 8 mm) tempered glass
- Two per package
- Requires two 1/2" (12 mm) holes in glass for mounting

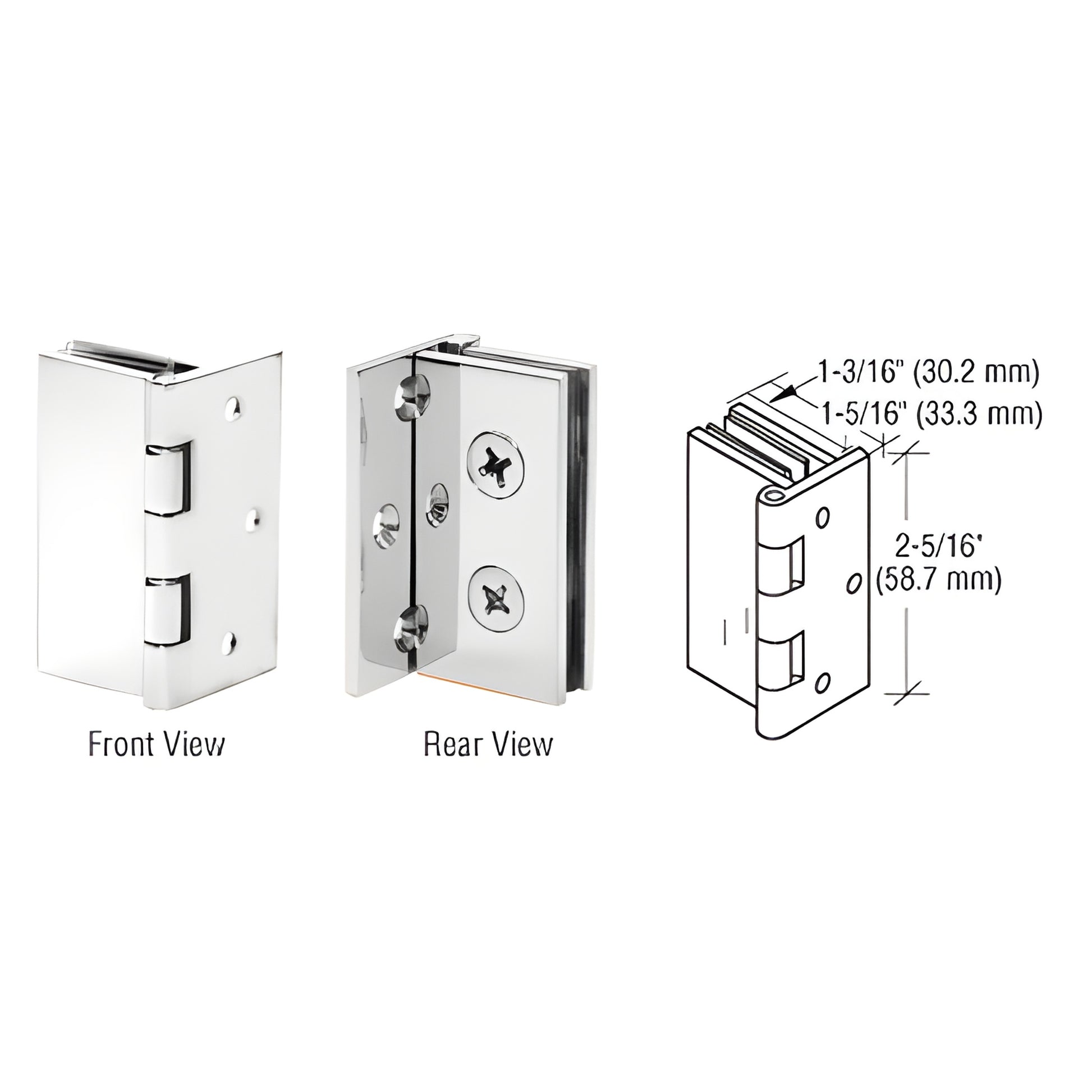

For wall-mounted tempered glass doors and partitions. CRL Brass Double Wall-to-Glass Hinges feature forged brass construction with a secure screw-attachment design and clear vinyl pad inserts to protect glass. Available in polished brass with a lacquered finish or chrome-plated — durable hardware for glass shower doors, display cases, and frameless glass doors.
Maximum recommended door width: 22" (559 mm). Maximum recommended weight: 30 lb (13.6 kg).
SKU: EH246 — Shop now to get durable, forged-brass wall-to-glass hinges for tempered glass doors.
Specifications
CAD Drawings - dwg
