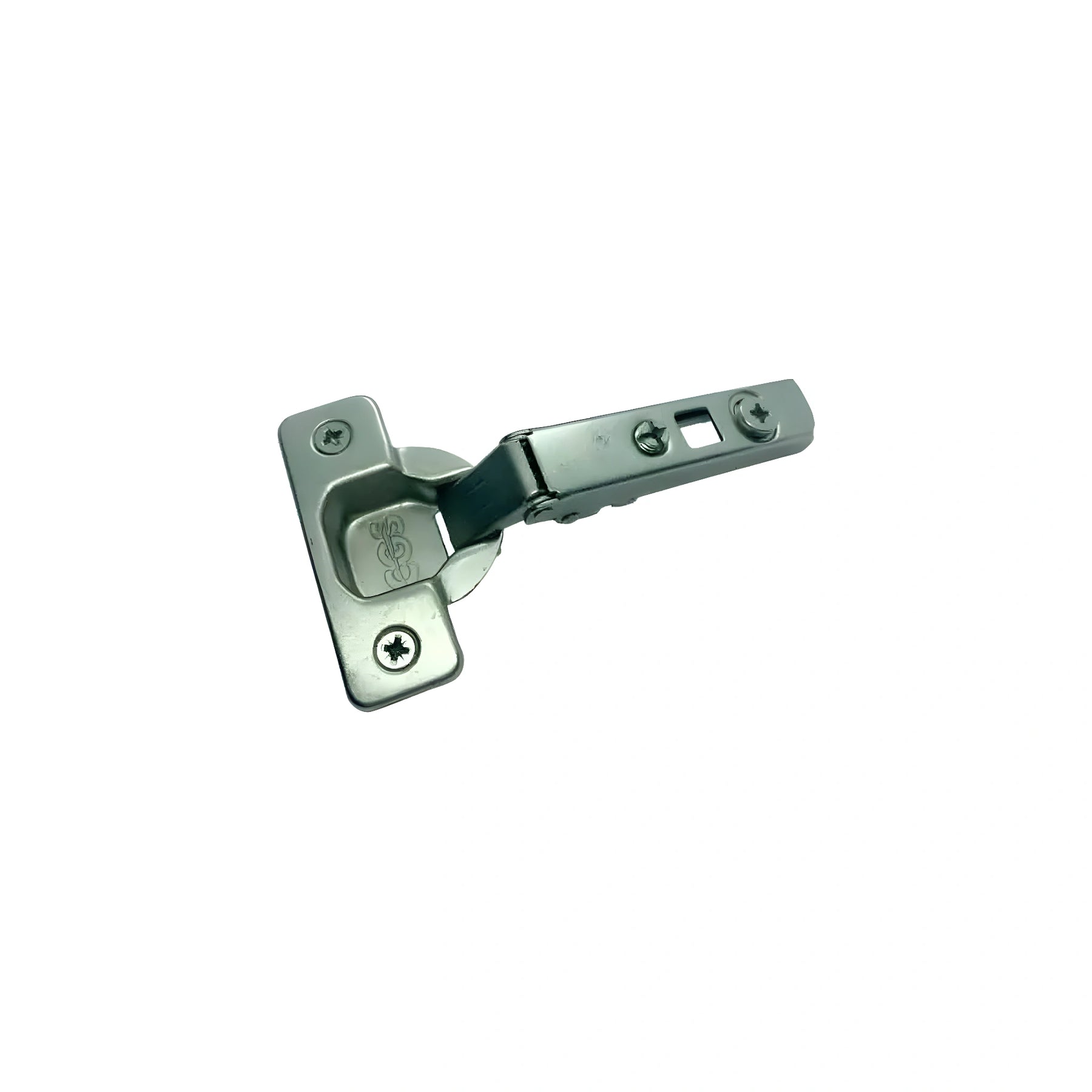

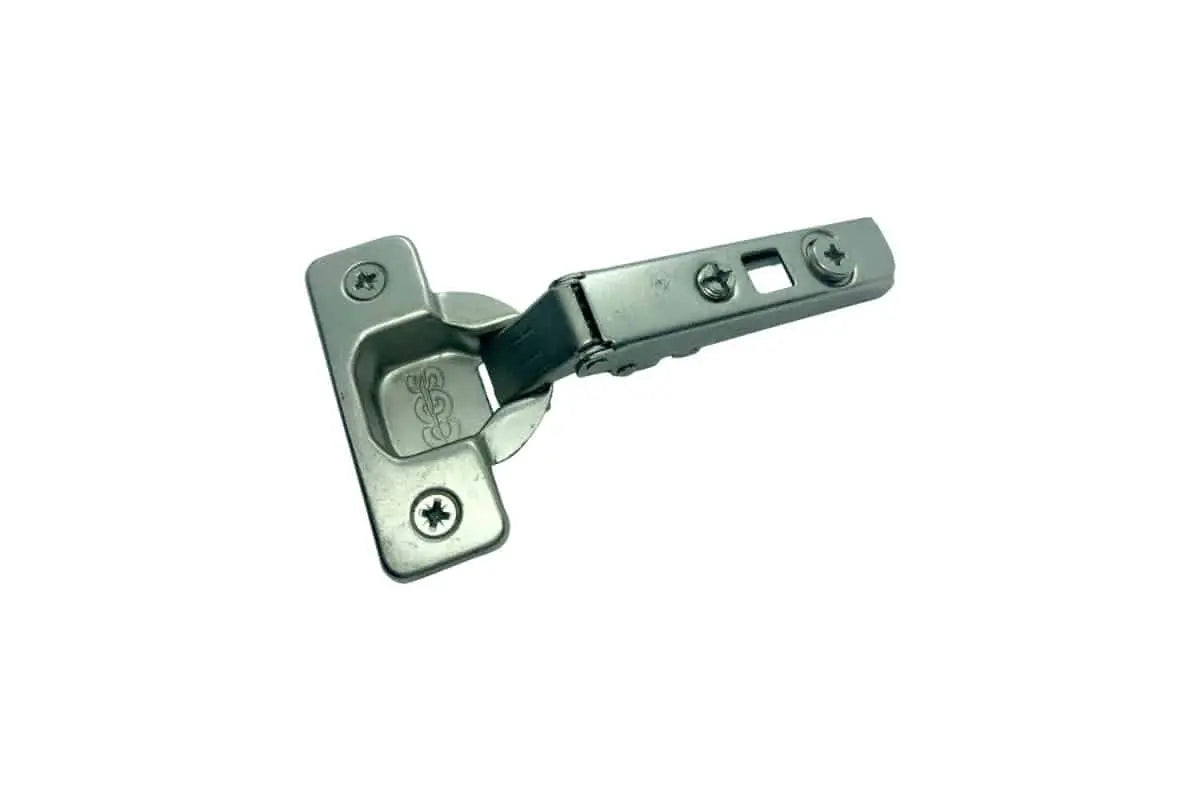

CGS 110 Degree Clip Self Closing Hinge, 110 Degree, Clip Self Closing Hinge, Full Overlay, with 8mm dowels

Product Details

• Type: Concealed, self-closing hinge (non-soft close)
• Mounting Style: Face frame or frameless (with compatible mounting plate)
• Opening Angle: 110° (standard wide access for cabinets)
• Material: Heavy-duty steel
• Finish: Nickel-plated (corrosion and wear resistant)
• Overlay Options: ½” overlay (other configurations available)
• Cup Diameter: 35 mm (standard European hinge size)
• Cup Depth: 11.5-12 mm
• Adjustment: 3-way (side-to-side, height, and depth)
• Closing Mechanism: Self-closing spring action for reliable shut
• Door Thickness Compatibility: 14 mm – 22 mm (typical range)
• Mounting Plate: Clip-on system for easy installation and removal
• Cycle Testing: Exceeds 50,000 open/close operations
• 110° Opening Angle – Provides wide cabinet door access.
• Self-Closing Mechanism – Doors automatically pull shut for convenience.
• Concealed European-Style Design – Hidden inside the cabinet for a sleek look.
• Clip-On Mounting System – Enables fast installation and easy door removal.
• Durable Steel Build – Designed for long-lasting use.
• Nickel-Plated Finish – Corrosion-resistant, suitable for kitchens and bathrooms.
• Standard 35 mm Cup Size – Industry standard for easy replacements and upgrades.
• 3-Way Adjustment – Allows precise door alignment after installation.
• Smooth & Reliable Performance – Tested for consistent long-term function.
• Cost-Effective Option – Provides reliable closing action without added soft-close hardware.
• Kitchen Cabinets – Everyday use cabinetry with wide door openings.
• Bathroom Vanities – Reliable self-closing in moisture-prone areas.
• Laundry Room Cabinets – Withstands frequent use with consistent performance.
• Closet & Wardrobe Units – Keeps doors securely shut.
• Office Furniture & Storage – Adds dependable functionality to workstations and cabinets.
• Entertainment Centers & Media Units – Maintains a clean, concealed look.
• Custom Cabinetry & Millwork – Suitable for premium or standard cabinet builds.
• Retail & Commercial Fixtures – Provides professional-grade hinge reliability.
• Hospitality Projects – Hotels, apartments, and condos needing long-lasting hardware.
• RV & Mobile Home Cabinetry – Ensures doors stay shut securely during travel.
