CRL Chrome Surface Mount Pivot Hinges for Cabinet Doors
CRL Chrome Surface Mount Pivot Hinges for Cabinet Doors
Regular price
$118.84 CAD
Regular price
Sale price
$118.84 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# FA50CH
Shipping Weight: 14.4 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pack
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 14.4 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pack
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Polished Chrome
Glazing Thickness
1/4 in. To 5/16 in. (6mm To 8 mm)
Height
1-5/8 in. (41.3 mm)
Material
Brass
Maximum Door Width
24 in. (609.6 mm)
Pack Quantity
2
Weight Capacity
50 lbs. (22.7 kg)
Width
2-1/2 in. (63.5 mm)
Overview
- For 1/4" to 5/16" (6 to 8 mm) glass
- Requires one hole and one cut-out for glass fabrication
- One set (top and bottom) per package

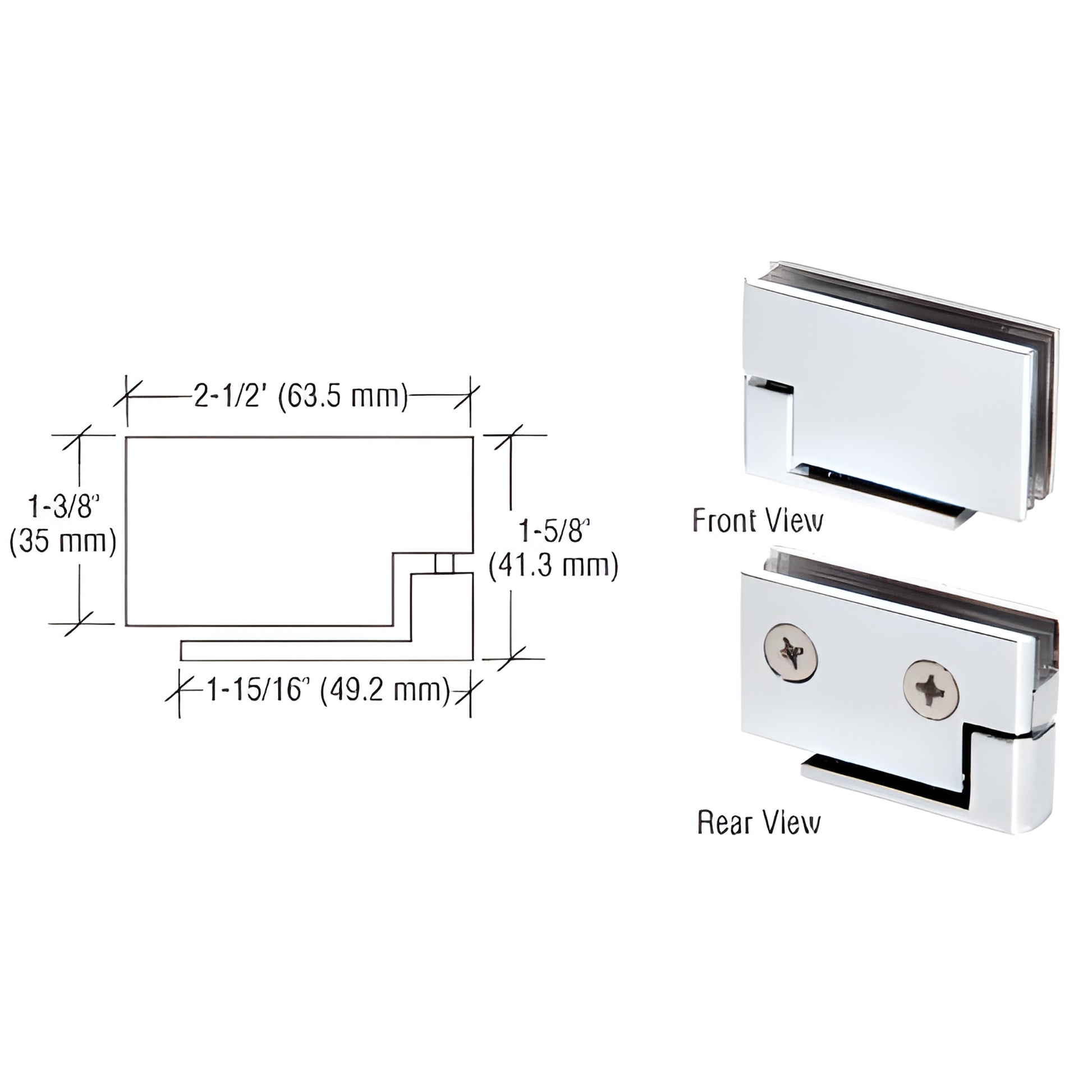

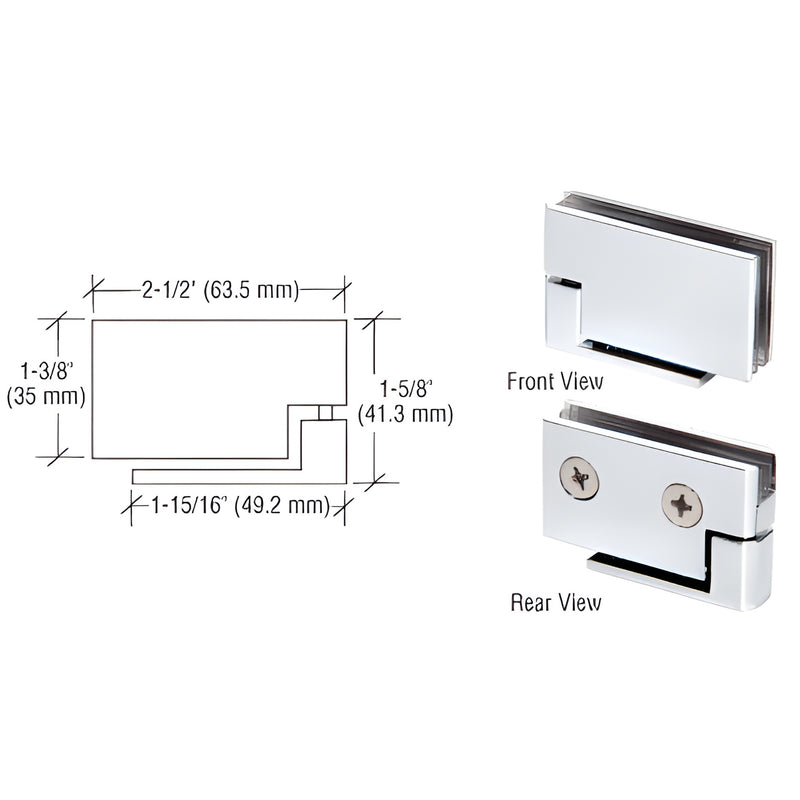

The CRL Surface Mount Cabinet Pivot Hinge (SKU: FA50CH) is a durable surface-mount pivot hinge engineered for frameless glass cabinet doors and display cases. Fits 1/4" or 5/16" (6 mm or 8 mm) glass and is recommended for door widths up to 24" (610 mm) with a maximum door weight of 50 lbs (22.7 kg). Minimum clearance required: 1/4" (6 mm) top and 1/4" (6 mm) bottom. Glass must be fabricated with one hole and one cut-out for installation. One set includes both top and bottom hinges.
Ideal for frameless glass cabinet doors and retail display cases requiring a compact, surface-mount pivot hinge—order SKU FA50CH today.
Specifications
CAD Drawings - dwg
