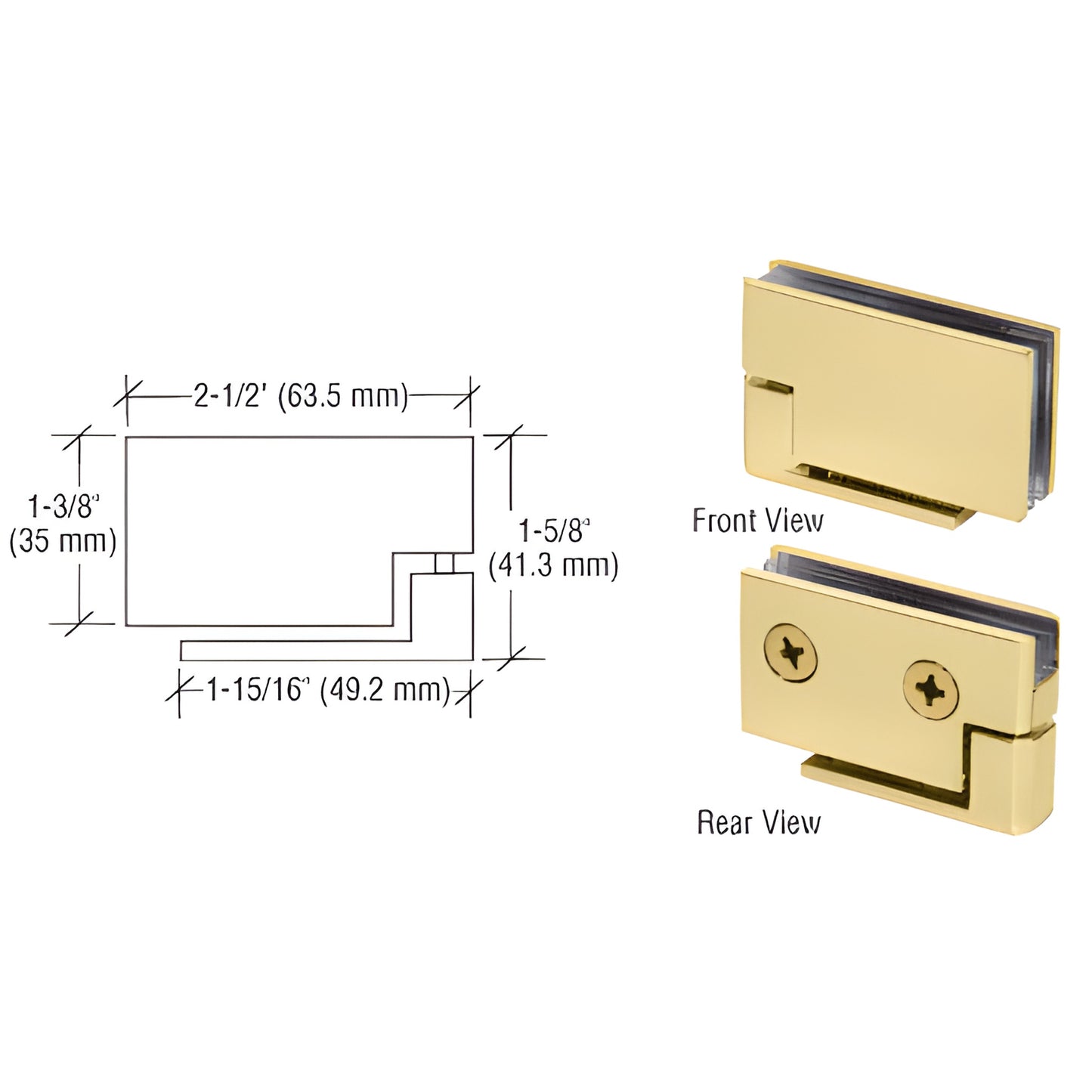

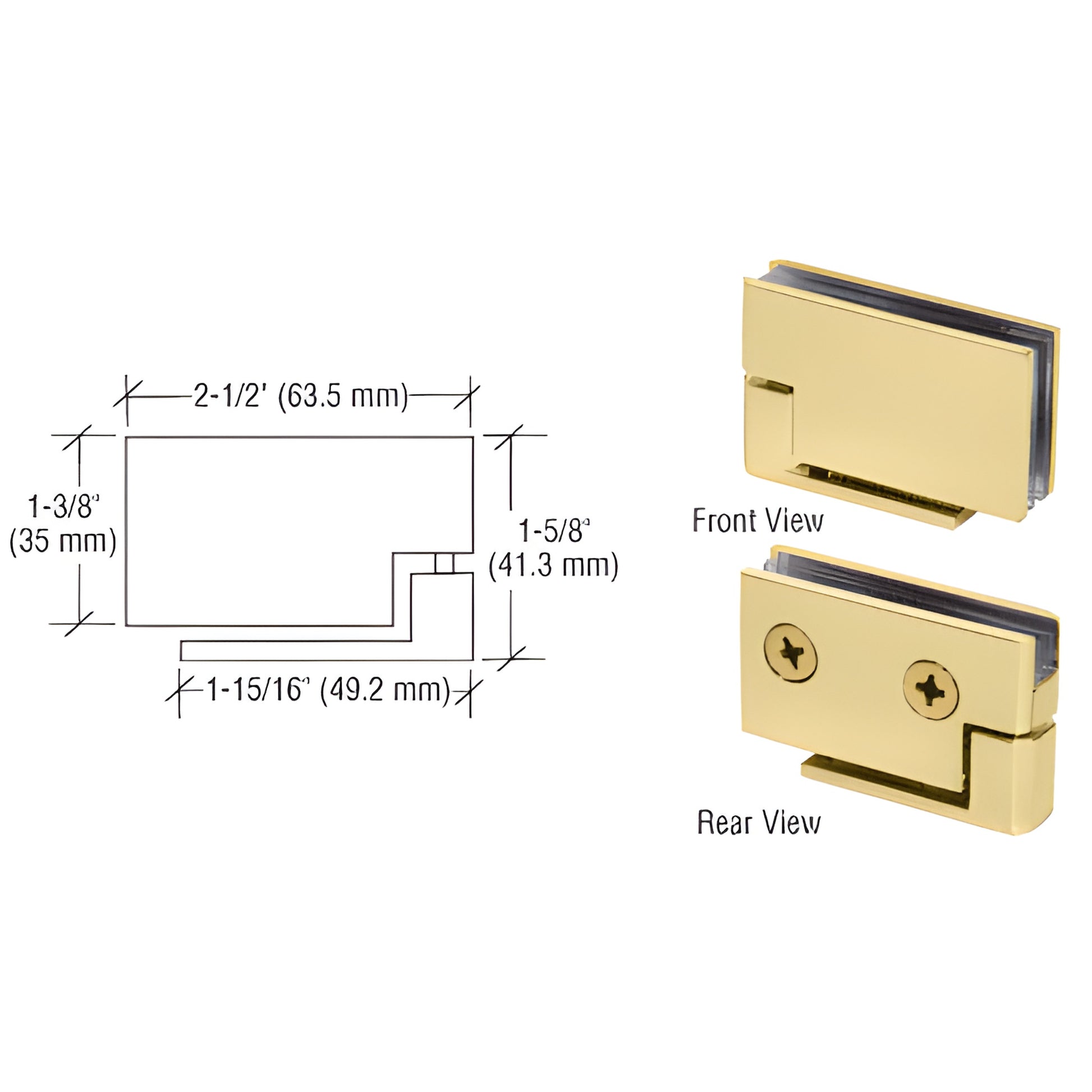

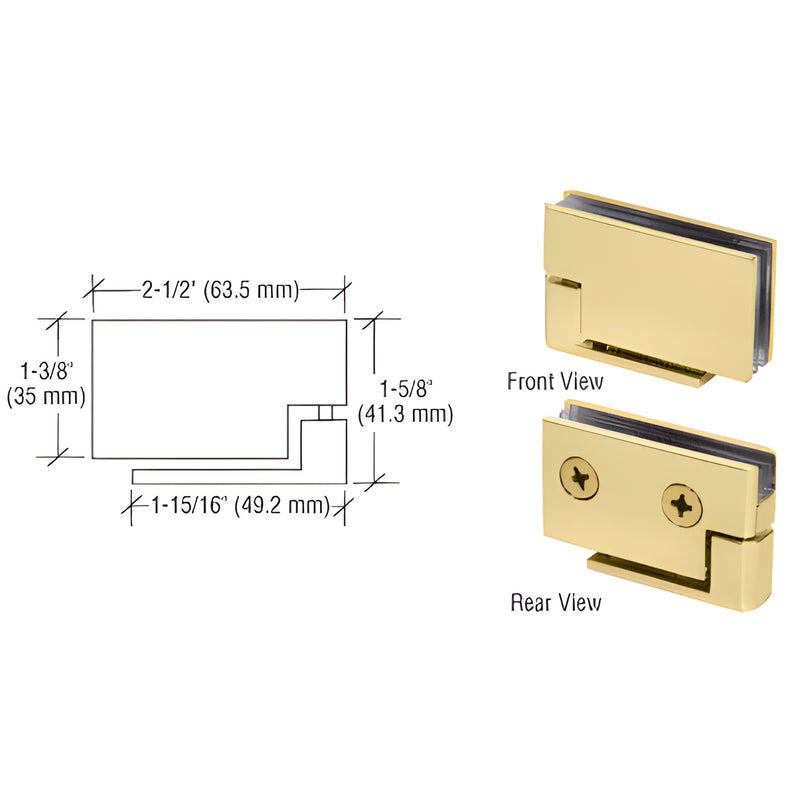

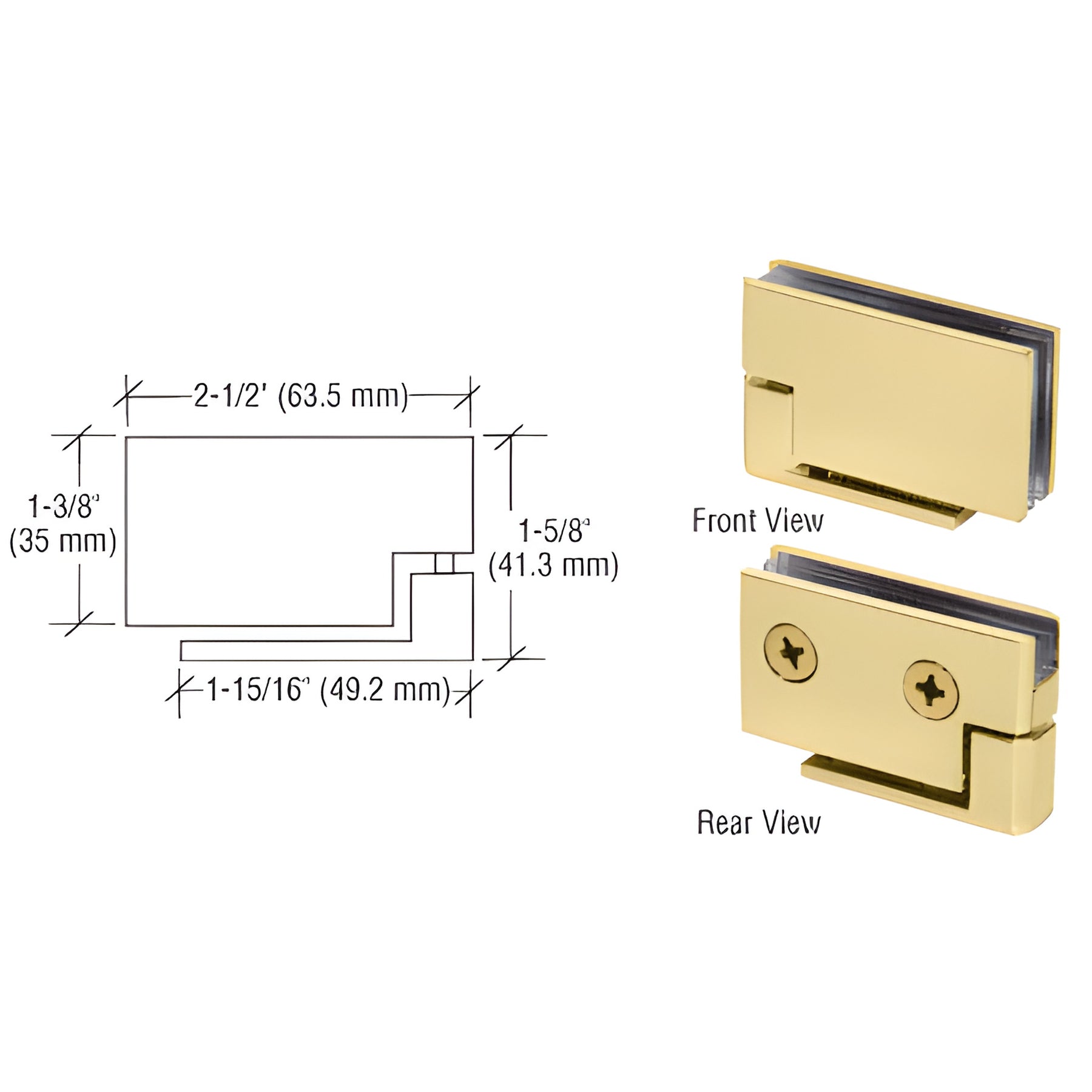

CRL Brass Surface Mount Pivot Hinges for Cabinets
CRL Brass Surface Mount Pivot Hinges for Cabinets
Regular price
$113.31 CAD
Regular price
Sale price
$113.31 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# FA50BR
Shipping Weight: 13.6 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pack
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 13.6 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pack
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Polished Brass
Glazing Thickness
1/4 in. To 5/16 in. (6mm To 8 mm)
Height
1-5/8 in. (41.3 mm)
Material
Brass
Maximum Door Width
24 in. (609.6 mm)
Pack Quantity
2
Weight Capacity
50 lbs. (22.7 kg)
Width
2-1/2 in. (63.5 mm)
Overview
- For 1/4" to 5/16" (6 to 8 mm) Glass
- Requires One Hole and One Cut-Out
- One Set Top and Bottom Per Package
The CRL Surface Mount Cabinet Pivot Hinge (SKU: FA50BR) is designed for 1/4" or 5/16" (6 or 8 mm) glass cabinet doors and other glass furniture applications. Recommended maximum door width is 24" (610 mm) with a maximum door weight of 50 lbs. (22.7 kg). Minimum clearance required is 1/4" (6 mm) top and 1/4" (6 mm) bottom. Required glass fabrication: one hole and one cut-out. One set (top and bottom) per pack. This surface-mount pivot hinge is suitable for glass cabinet doors where a durable pivot hinge with a brass finish is desired.
Brass Finish Advisory:
Although durable, brass is prone to oxidation and can develop a tarnished appearance over time regardless of initial packaging or storage. See the Brass Finish Disclaimer in Technical References for care and maintenance guidance.
Order the FA50BR surface mount cabinet pivot hinge for reliable glass door performance—contact CRL or add to cart to purchase.
Specifications
CAD Drawings - dwg
