CRL Brushed Nickel Surface-Mount Pivot Hinge for Cabinet Doors
CRL Brushed Nickel Surface-Mount Pivot Hinge for Cabinet Doors
Regular price
$118.84 CAD
Regular price
Sale price
$118.84 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# FA50BN
Shipping Weight: 1.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pack
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pack
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Brushed Nickel
Glazing Thickness
1/4 in. To 5/16 in. (6mm To 8 mm)
Height
1-5/8 in. (41.3 mm)
Material
Brass
Maximum Door Width
24 in. (609.6 mm)
Pack Quantity
2
Weight Capacity
50 lbs. (22.7 kg)
Width
2-1/2 in. (63.5 mm)
Overview
- For 1/4" to 5/16" (6 to 8 mm) Glass
- Requires One Hole and One Cut-Out
- One Set Top and Bottom Per Package

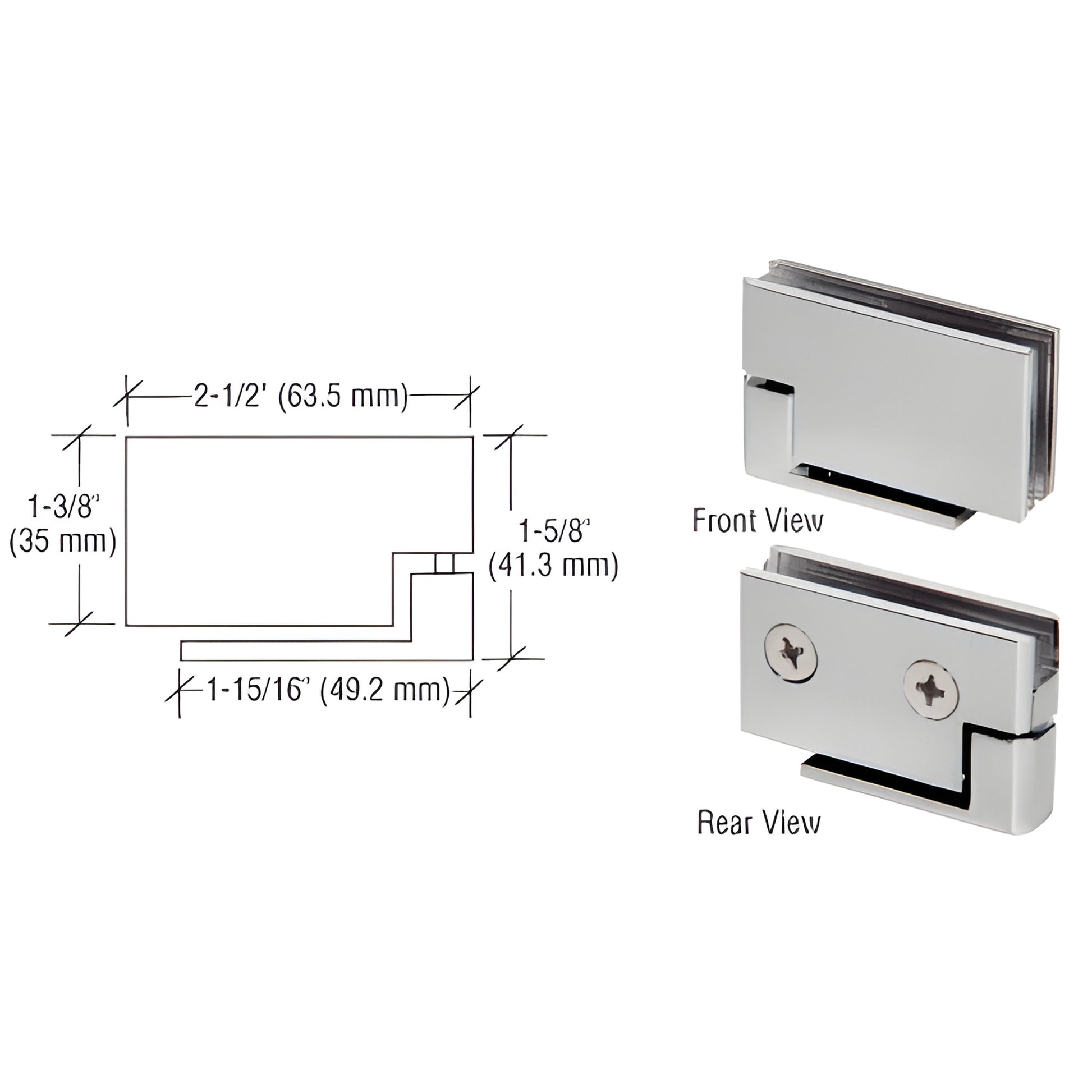

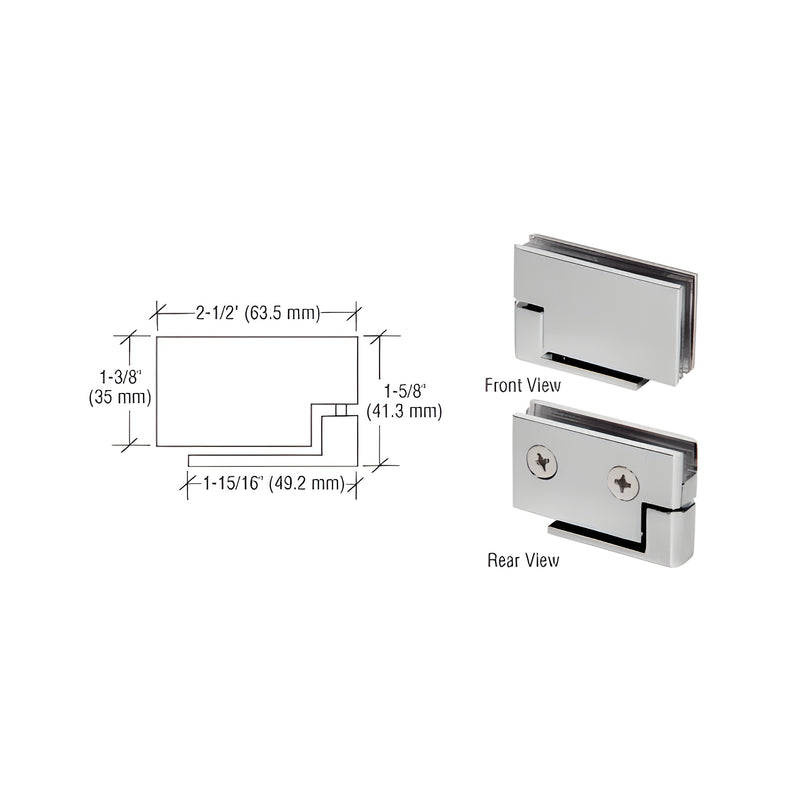

CRL Surface Mount Cabinet Pivot Hinge (SKU: FA50BN) — heavy-duty surface mount pivot hinge for glass cabinet doors, compatible with 1/4" or 5/16" (6 or 8 mm) glass. Designed for glass display cabinets and frameless glass doors, this surface-mounted glass pivot hinge supports doors up to 24" (610 mm) wide with a recommended maximum weight of 50 lbs (22.7 kg). Minimum clearance required: 1/4" (6 mm) top and 1/4" (6 mm) bottom. Required glass fabrication: one hole and one cut-out. Each package contains one top and one bottom hinge set.
Optimize your glass cabinet installation with FA50BN surface mount pivot hinges—order now for reliable, low-profile glass door hardware.
Specifications
CAD Drawings - dwg
