CRL Satin Chrome Surface-Mount Pivot Hinge for Cabinet Doors
CRL Satin Chrome Surface-Mount Pivot Hinge for Cabinet Doors
Regular price
$132.66 CAD
Regular price
Sale price
$132.66 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# FA50SC
Shipping Weight: 1.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pack
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pack
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Satin Chrome
Glazing Thickness
1/4 in. To 5/16 in. (6mm To 8 mm)
Height
1-5/8 in. (41.3 mm)
Material
Brass
Maximum Door Width
24 in. (609.6 mm)
Pack Quantity
2
Weight Capacity
50 lbs. (22.7 kg)
Width
2-1/2 in. (63.5 mm)
Overview
- For 1/4" to 5/16" (6 to 8 mm) glass
- Requires one hole and one cut-out for glass fabrication
- One set (top and bottom) per package — SKU: FA50SC

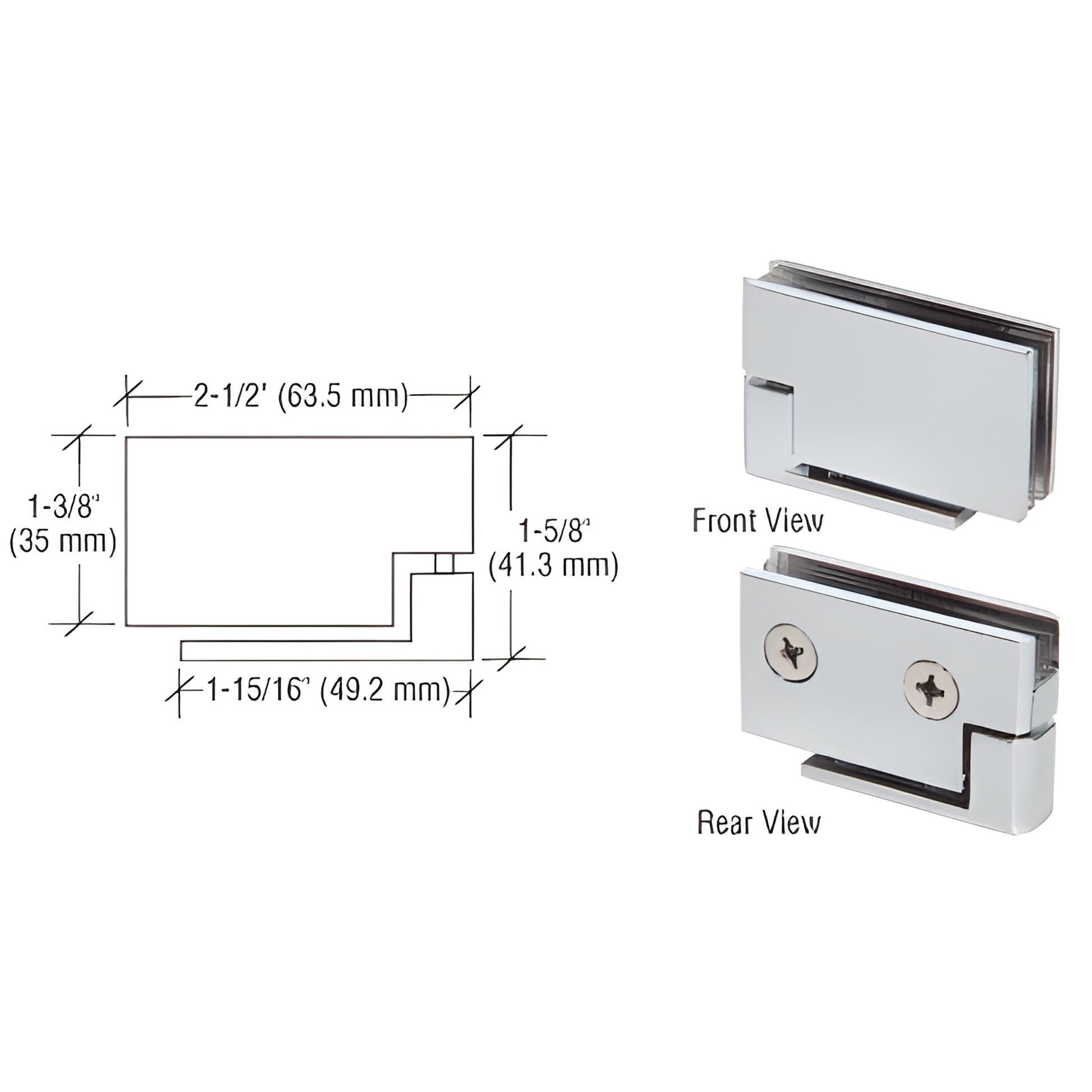

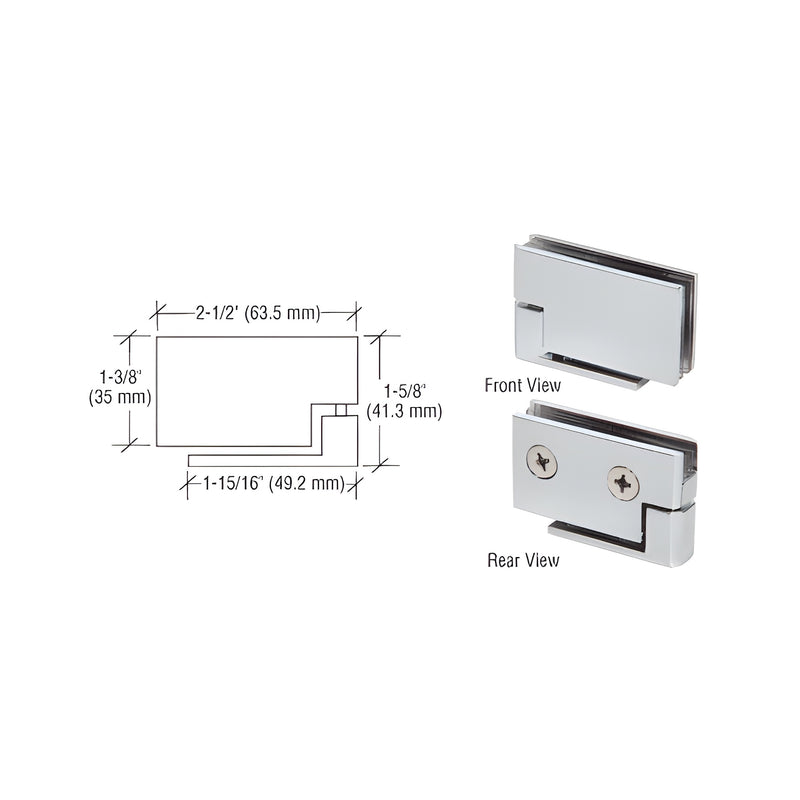

The CRL Surface Mount Cabinet Pivot Hinge (SKU: FA50SC) is a surface-mount pivot hinge designed for glass cabinet doors and display cases using 1/4" (6 mm) or 5/16" (8 mm) glass. Recommended maximum door width is 24" (610 mm) with a maximum door weight of 50 lbs (22.7 kg). Minimum clearance required is 1/4" (6 mm) top and 1/4" (6 mm) bottom. Required glass fabrication: one hole and one cut-out. Each pack contains one top and one bottom hinge set—ideal for glass cabinet doors, retail display cases, and frameless glass installations.
Order the FA50SC surface mount pivot hinge for glass cabinets today to secure and smoothly pivot your frameless glass door.
Specifications
CAD Drawings - dwg
