CRL
CRL Chrome Standard Mount Frameless Glass Shower Door Hinge
Item# GDH5CH
Shipping Weight: 1.856 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.856 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 3% Off |
| Buy 5 | 6% Off |
| Buy 8 | 9% Off |
| Buy 11 | 12% Off |
| Buy 16 | 16% Off |
Finish/Color
Polished Chrome
Glazing Thickness
3/16 in. To 1/4 in. (5 mm To 6 mm)
Height
33/64 in. (13.1 mm)
Material
Brass
Maximum Door Width
18 in. (457.2 mm)
Pack Quantity
2
Weight Capacity
16 lbs. (7.3 kg)
Width
1-19/32 in. (40.5 mm)
- Precision-machined, finished hinges for 3/16" (5 mm) tempered glass
- Also compatible with 1/4" (6 mm) glass
- Use with monolithic tempered glass
- Weight: 0.2 (shipping approximation)

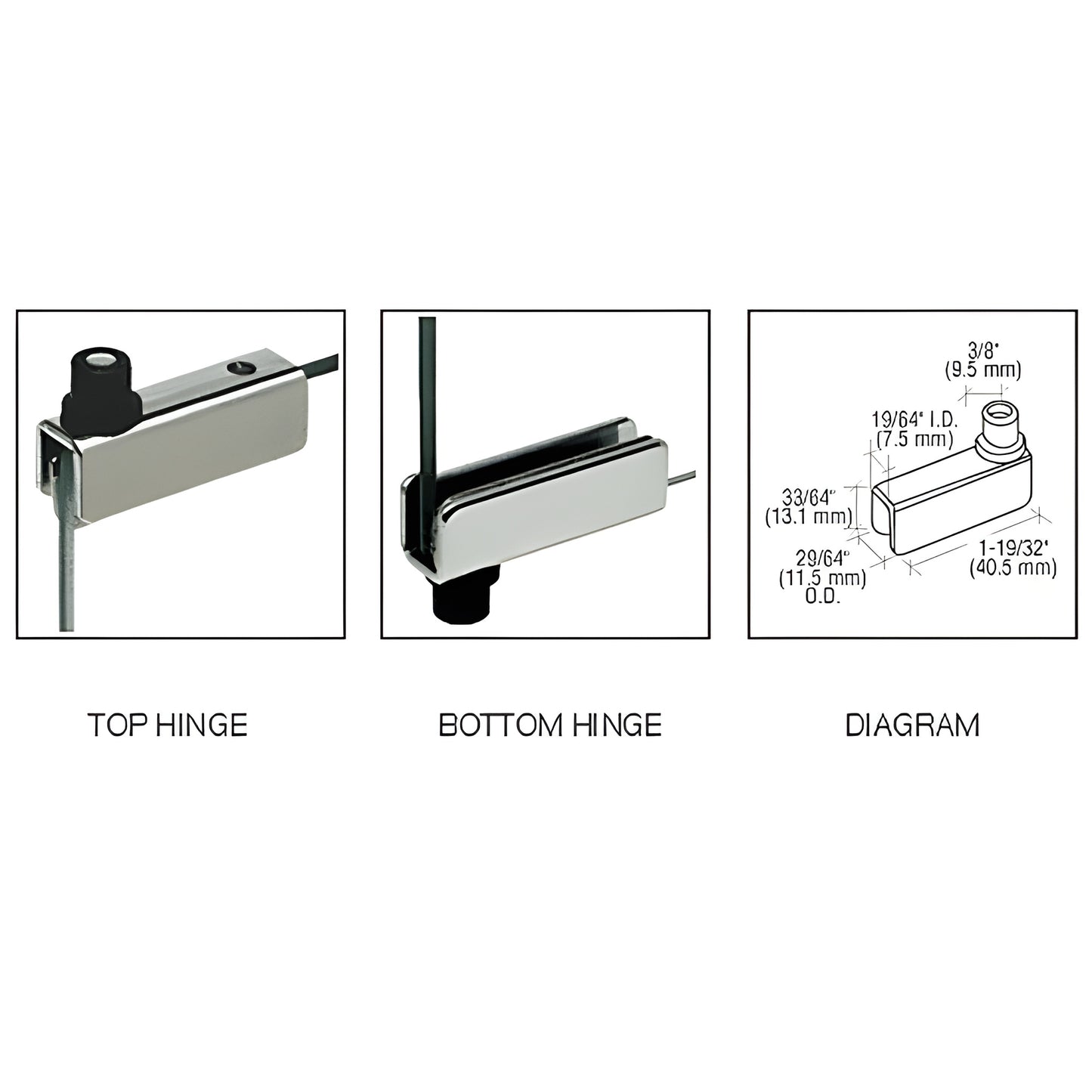

CRL Standard Mount Hinges (SKU: GDH5CH) are mounted in drilled holes in the cabinet frame and secured with set screws. Nylon bushings protect drilled holes and ease installation. For faster installation use Cat. No. GDH5J1G drill jig and Cat. No. GDH5WDFAB drill bit. Hinges are made of steel and support a maximum weight per pair of 16 pounds (7 kg). Ideal for glass cabinet doors, stereo cabinet hinges, and display case hardware.
CRL Stereo Cabinet Hardware is engineered for cabinets that house electronic components, china, or collectibles. Manufactured for a precise fit and long service life, our hinges and accessories are available in brass, chrome, and black to match wood finishes and room décor. All components are designed to work with 3/16" (5 mm) tempered glass for reliable, long-lasting performance.
SPECIFICATIONS:
Glass Height: Opening Minus 3/8" (10 mm)
Single Door Width: Opening Minus 3/32" (2.4 mm)
Double Door Width: Opening Divided by 2, Minus 5/64" (2 mm)
Maximum Door Dimensions: 18" (457 mm) W x 39" (991 mm) H
Product Warning:
The dimensions are guidelines and should be satisfactory in most cases. For a very tight fit calculate your own dimensions.
Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs, contact CRL Customer Service before ordering. Product images are of the actual product or a close representation; colors may vary by monitor.
Buy the GDH5CH glass cabinet hinges today — order now for fast shipping and reliable display hardware.
