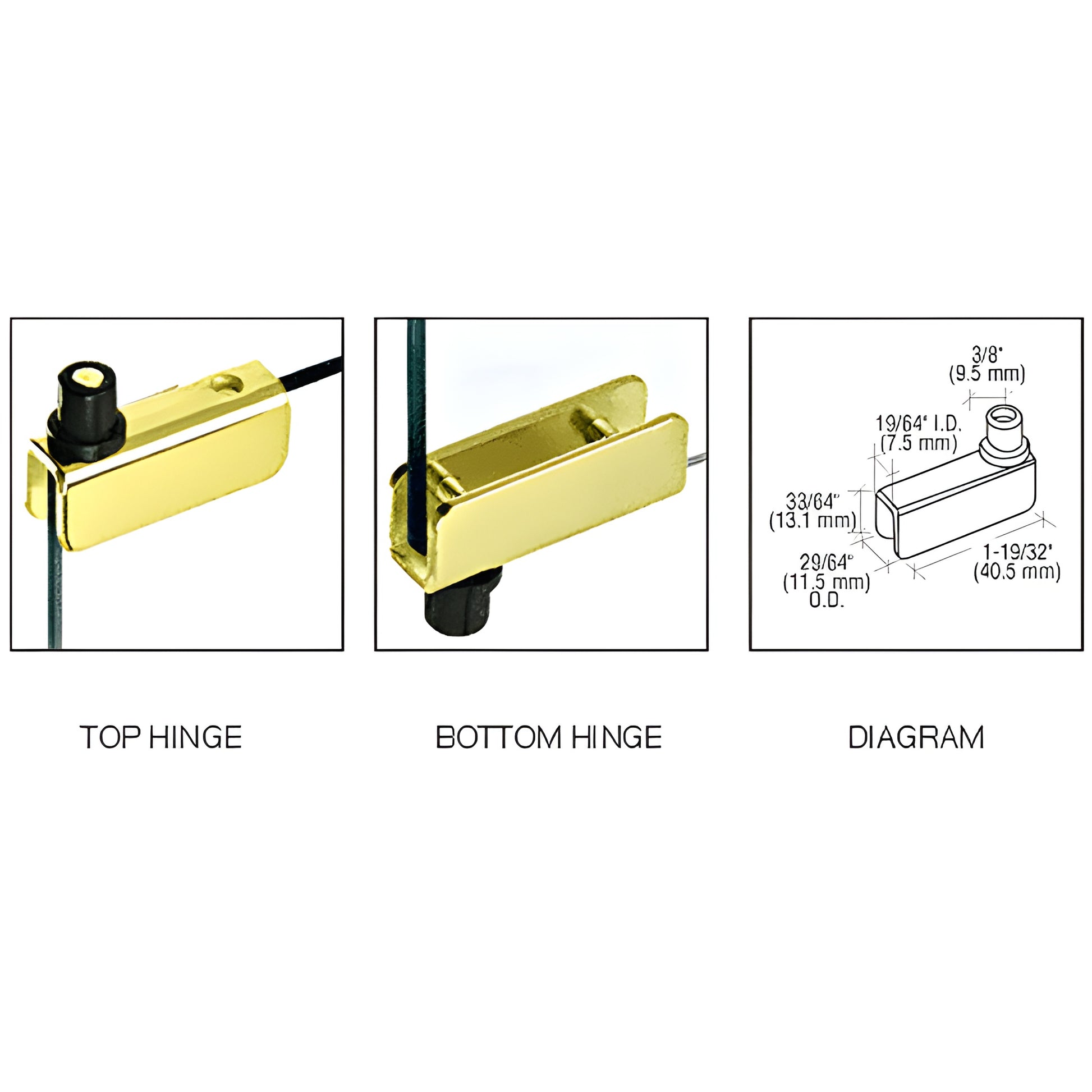

• Polished brass top and bottom glass cabinet hinge pair (GDH5BR), fits 5-6mm tempered glass, includes diagram.
1 1

CRL

CRL Brass Standard-Mount Glass Door Hinge for Frameless Doors

CRL Brass Standard-Mount Glass Door Hinge for Frameless Doors

$9.66 CAD
$9.66 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# GDH5BR
Shipping Weight: 1.76 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Polished Brass
Glazing Thickness
3/16 in. To 1/4 in. (5 mm To 6 mm)
Height
33/64 in. (13.1 mm)
Material
Brass
Maximum Door Width
18 in. (457.2 mm)
Pack Quantity
2
Weight Capacity
16 lbs. (7.3 kg)
Width
1-19/32 in. (40.5 mm)

Overview

  • Precision-machined, quality-finished hinges for monolithic tempered glass
  • Fits 3/16" (5 mm) and 1/4" (6 mm) glass panels
  • Use with monolithic tempered glass; includes nylon bushings for drilled holes
  • Shipping weight (approx.): 0.2 lb

CRL Standard Mount Hinges (SKU: GDH5BR) are installed in drilled holes in the cabinet frame and secure glass with set screws. Includes nylon bushings for drilled holes. For quick installation use Cat. No. GDH5J1G drill jig and Cat. No. GDH5WDFAB drill bit. Hinges are made of steel; maximum weight per pair is 16 lb (7 kg).

CRL Stereo Cabinet Hardware is engineered for cabinets that hold electronic components, china, or collectibles. Precision-manufactured hinges and accessories are available in brass, chrome, and black to match wood finishes and décor. Designed specifically to work with 3/16" (5 mm) tempered glass, these stereo cabinet glass hinges provide durable, accurate fit and long service life.

SPECIFICATIONS:
Glass Height: Opening minus 3/8" (10 mm)
Single Door Width: Opening minus 3/32" (2.4 mm)
Double Door Width: Opening divided by 2, minus 5/64" (2 mm)
Maximum Door Dimensions: 18" (457 mm) W x 39" (991 mm) H.

Product Warning:

Dimensions are guidelines suitable in most cases. For a very tight fit, calculate your own dimensions before fabrication.

Most shipping weights are approximate and may not be verified. If exact weight is required for shipping cost calculation, contact CRL Customer Service before ordering. Product images represent the actual product or a close representation; colors may vary by monitor.

Brass Finish Advisory:
Brass is durable but prone to oxidation and may develop a tarnished appearance over time regardless of initial packaging or storage. See the Brass Finish Disclaimer in Technical References for care guidance.


Key Differentiators:
  • Designed for monolithic tempered glass in stereo cabinets and display cases
  • Steel construction with nylon bushings for secure, precise mounting
  • Available finishes: brass, chrome, black to coordinate with décor
