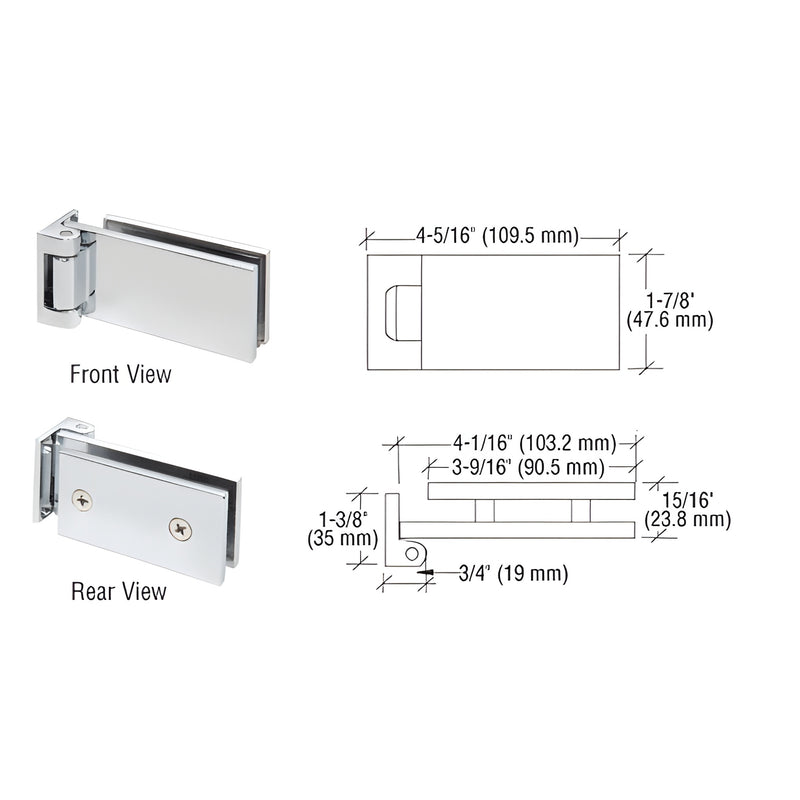

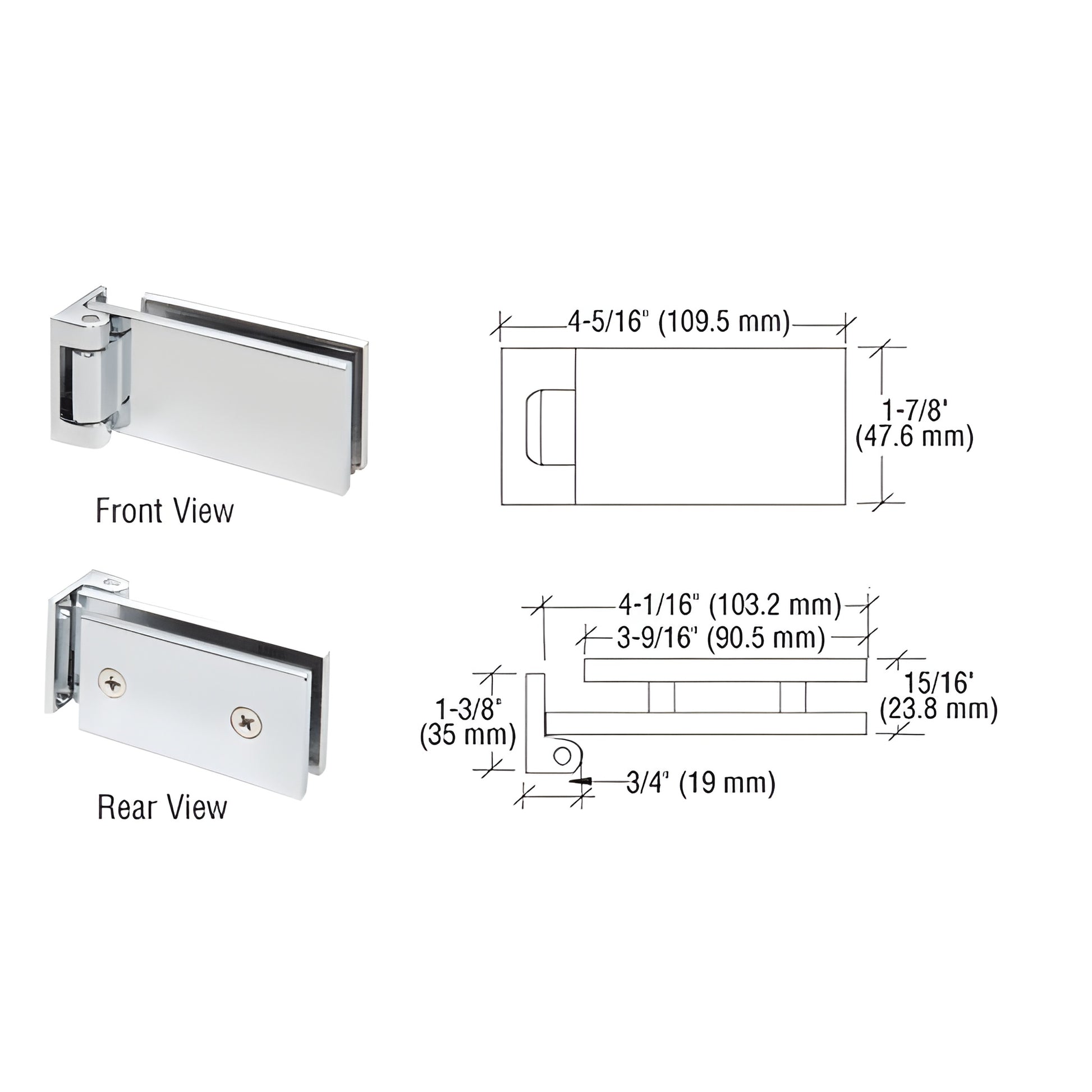

CRL Chrome Free-Swinging Offset Pivot Hinge for Glass Doors
CRL Chrome Free-Swinging Offset Pivot Hinge for Glass Doors
Regular price
$120.21 CAD
Regular price
Sale price
$120.21 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# FA044CH
Shipping Weight: 11.2 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 11.2 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Polished Chrome
Glazing Thickness
5/16 To 3/8 in. (8 mm To 10 mm)
Height
1-7/8 in. (47.6 mm)
Material
Brass
Maximum Door Width
32 in. (812.8 mm)
Weight Capacity
96 lbs. (43.5 kg)
Width
4-5/16 in. (109.5 mm)
Overview
- For 5/16" to 3/8" (8 to 10 mm) glass
- Offset pivot point allows full 180° swing
- Two 5/8" (16 mm) holes required in glass
The free-swinging CRL Offset Pivot Hinge (SKU FA044CH) is engineered for light-duty glass doors — ideal for partitions, smaller entry doors, and cabinet doors. Its offset pivot delivers a full 180° swing while requiring only two 5/8" (16 mm) drilled holes, minimizing glass fabrication. Available in popular polished brass and polished chrome finishes. Includes gaskets and a drilling template for easy installation.
SPECIFICATIONS
- Glass thickness: 5/16" and 3/8" (8 and 10 mm)
- Construction: Solid brass casting
- Closing type: Free swinging
- Glass fabrication: Two 5/8" (16 mm) holes required
- Includes: Gaskets and hole drilling template
The maximum recommended door width using two hinges is 32" (813 mm) with a maximum weight of 96 lbs. (43 kg). Using three hinges, the recommended door width is up to 36" (914 mm) with a maximum weight of 140 lbs. (63 kg).
Optimize your glass door hardware with this durable offset pivot hinge — order SKU FA044CH today.
Specifications
CAD Drawings - dwg
