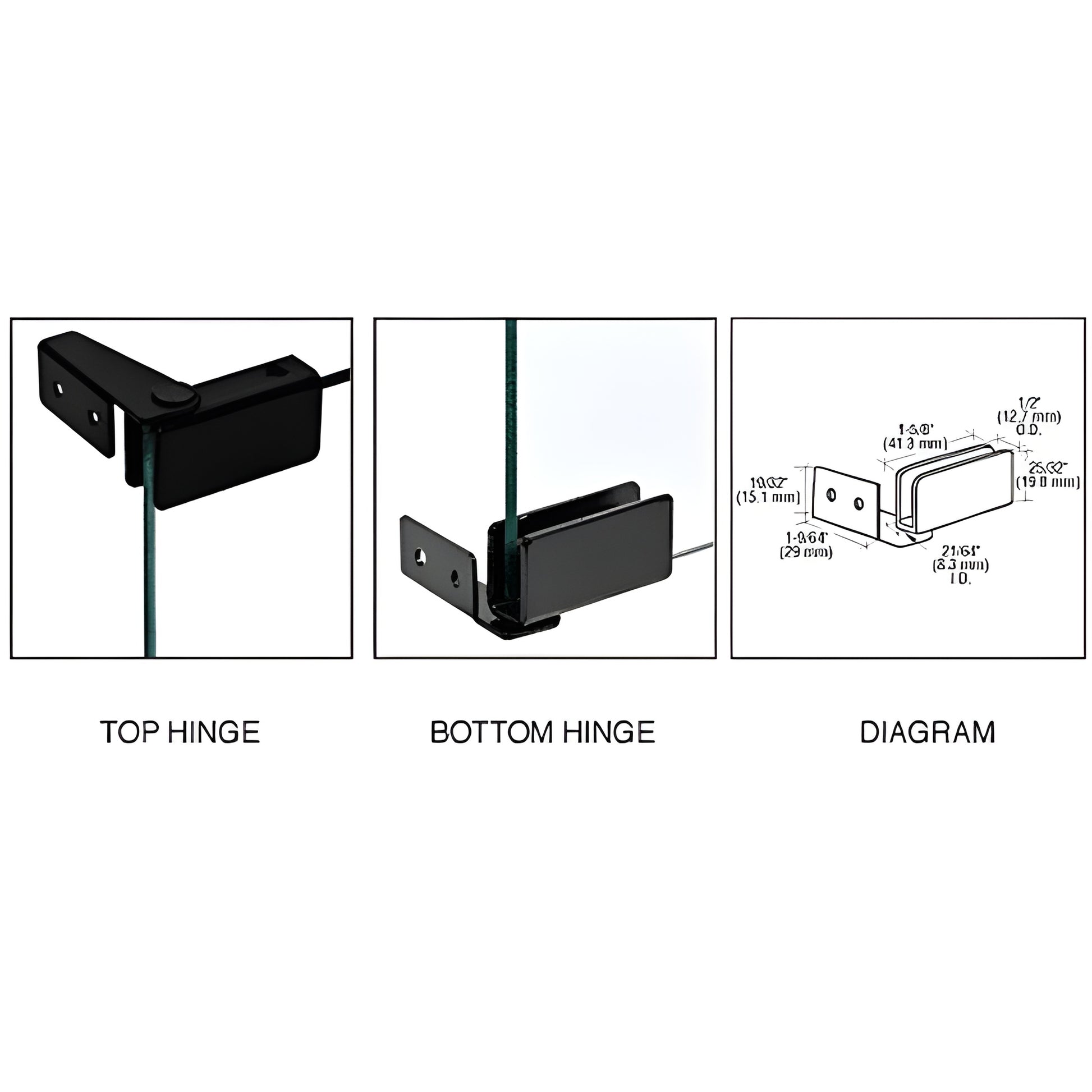

CRL Black Recessed Mount Hinge for Glass Doors
CRL Black Recessed Mount Hinge for Glass Doors
Regular price
$9.66 CAD
Regular price
Sale price
$9.66 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# GDH86BL
Shipping Weight: 3.2 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 3.2 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Gloss Black
Glazing Thickness
3/16 in. To 1/4 in. (5 mm To 6 mm)
Height
25/32 in. (19.8 mm)
Material
Brass
Maximum Door Width
18 in. (457.2 mm)
Pack Quantity
2
Weight Capacity
16 lbs. (7.3 kg)
Width
1-5/8 in. (41.3 mm)
Overview
- Precision machined hinge for 3/16" (5 mm) tempered glass
- Also fits 1/4" (6 mm) glass — for monolithic tempered glass doors
- Includes nylon bushings and set screws to secure glass in drilled holes
CRL Standard Mount Hinges mount in drilled holes in the cabinet frame and use set screws to secure the glass. Includes nylon bushings for the drilled holes. Pair with Cat. No. GDH5J1G drill jig and GDH5WDFAB drill bit for fast, accurate installation. Made of steel, these stereo cabinet hinges support up to 16 lbs. (7 kg) per pair and are available in brass, chrome, and black to match wood finishes and room décor. Ideal for glass display cabinets, electronics cabinets, and collectible cabinets. SKU: GDH86BL.
SPECIFICATIONS:
Glass Height: Opening Minus 1/2" (12.7 mm)
Single Door Width: Opening Minus 3/32" (2.4 mm)
Double Door Width: Opening Divided by 2, Minus 5/64" (2 mm)
Maximum Door Dimensions: 18" (457 mm) W x 39" (991 mm) H
Glass Height: Opening Minus 1/2" (12.7 mm)
Single Door Width: Opening Minus 3/32" (2.4 mm)
Double Door Width: Opening Divided by 2, Minus 5/64" (2 mm)
Maximum Door Dimensions: 18" (457 mm) W x 39" (991 mm) H
Product Warning:
The dimensions are guidelines and will be satisfactory in most cases. For a very tight fit, calculate and verify your own dimensions before installation.
Order CRL GDH86BL hinges for reliable, precision-fit glass cabinet doors — add to cart or contact us for installation guidance.
