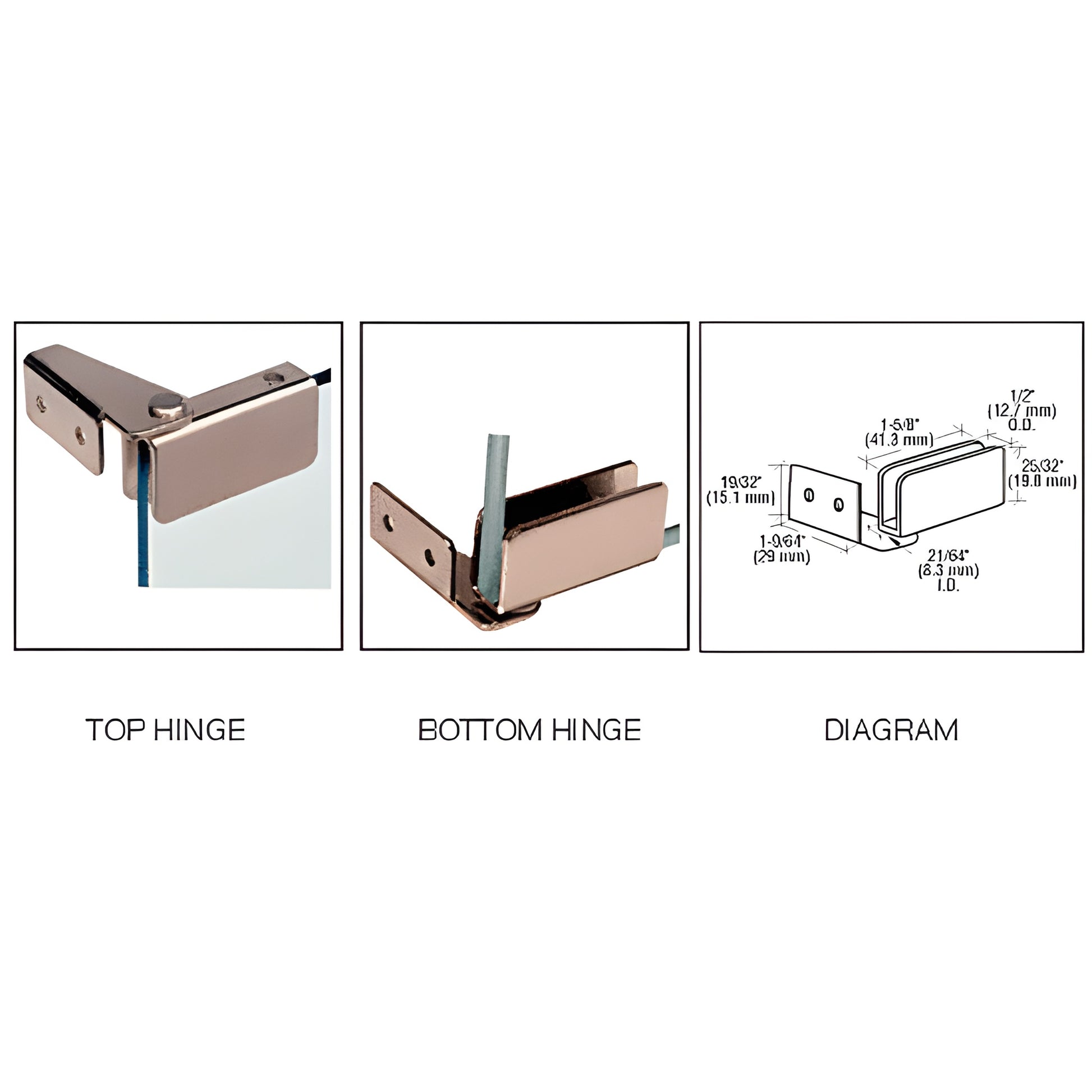

CRL Brass Recessed Mount Hinge for Frameless Glass Doors
CRL Brass Recessed Mount Hinge for Frameless Glass Doors
Regular price
$9.66 CAD
Regular price
Sale price
$9.66 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# GDH86BR
Shipping Weight: 3.2 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 3.2 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Polished Brass
Glazing Thickness
3/16 in. To 1/4 in. (5 mm To 6 mm)
Height
25/32 in. (19.8 mm)
Material
Brass
Maximum Door Width
18 in. (457.2 mm)
Pack Quantity
2
Weight Capacity
16 lbs. (7.3 kg)
Width
1-5/8 in. (41.3 mm)
Overview
- Precision-machined hinge for 3/16" (5 mm) glass — also fits 1/4" (6 mm) with correct installation
- Designed for monolithic tempered glass panels
- Nylon bushings in drilled-hole mount for smooth operation and secure fit
CRL Standard Mount Hinges mount in drilled holes in the cabinet frame and secure glass with set screws. Includes nylon bushings for the drilled holes to reduce wear. Use Cat. No. GDH5J1G drill jig and Cat. No. GDH5WDFAB drill bit for faster, accurate installation. Constructed of steel, each pair supports up to 16 lbs. (7 kg). SKU: GDH86BR.
CRL Stereo Cabinet Hardware is engineered for cabinets that house electronics, china, or collectibles. Precision manufacturing ensures consistent fit and long service life. Hinges and accessories are available in brass, chrome, and black finishes to match wood finishes and room décor. Compatible with 3/16" (5 mm) tempered glass for stereo cabinet and display cabinet applications.
SPECIFICATIONS:
Glass Height: Opening Minus 1/2" (12.7 mm)
Single Door Width: Opening Minus 3/32" (2.4 mm)
Double Door Width: Opening Divided by 2, Minus 5/64" (2 mm). Maximum Door Dimensions 18" (457 mm) W x 39" (991 mm) H.
Product Warning:
Dimensions are guidelines suitable for most installations. For a tight-fit application, calculate dimensions specifically for your project.
Brass Finish Advisory:
Brass finishes are durable but can oxidize and develop a tarnished appearance over time, regardless of initial packaging or storage. See the Brass Finish Disclaimer in Technical References for care and maintenance.
Shop now to order CRL GDH86BR cabinet hinges for tempered glass display cabinets — contact us for installation tools and exact shipping weight.
