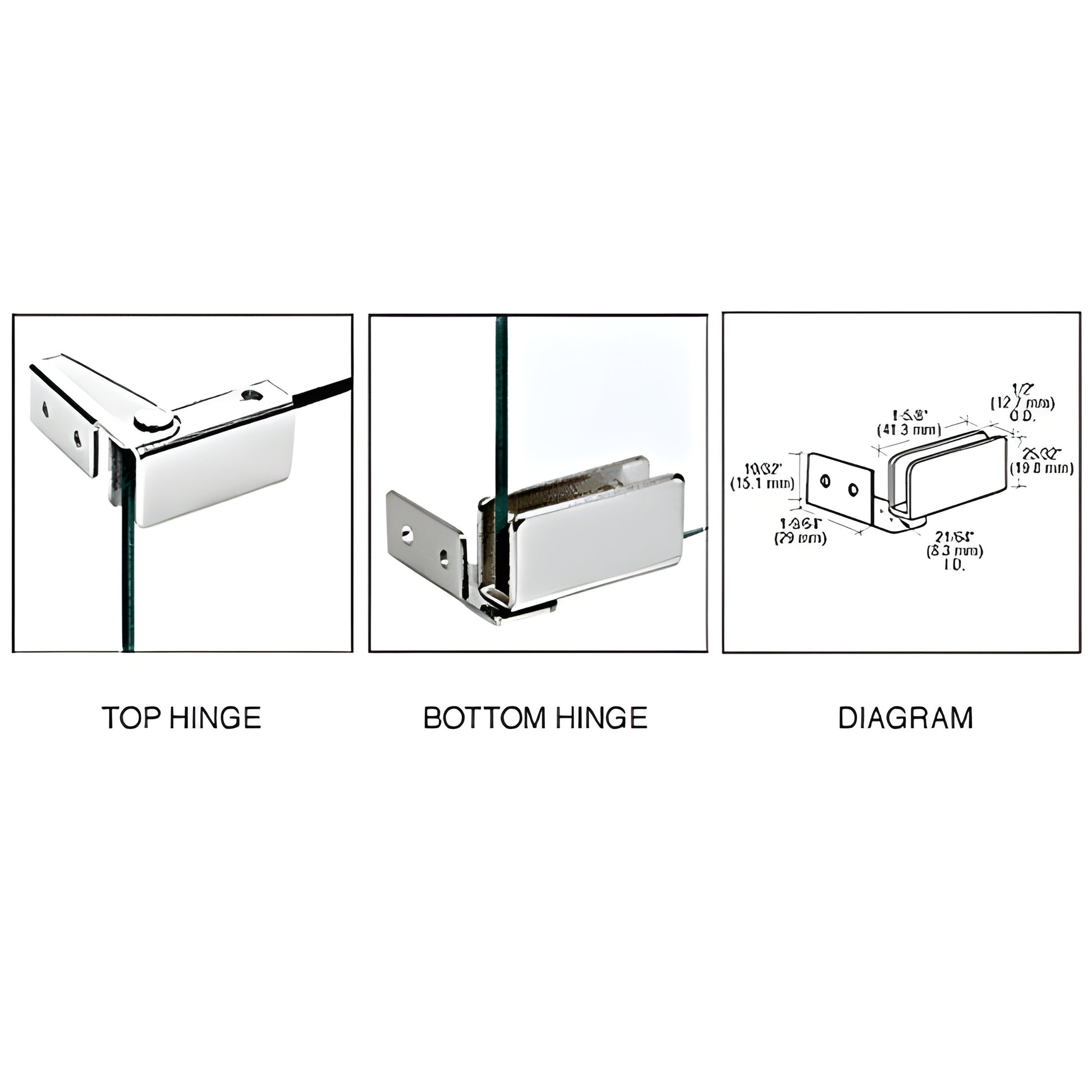

CRL Chrome Recess Mount Hinge for Frameless Glass Doors
CRL Chrome Recess Mount Hinge for Frameless Glass Doors
Regular price
$13.80 CAD
Regular price
Sale price
$13.80 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# GDH86CH
Shipping Weight: 3.2 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 3.2 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Polished Chrome
Glazing Thickness
3/16 in. To 1/4 in. (5 mm To 6 mm)
Height
25/32 in. (19.8 mm)
Material
Brass
Maximum Door Width
18 in. (457.2 mm)
Pack Quantity
2
Weight Capacity
16 lbs. (7.3 kg)
Width
1-5/8 in. (41.3 mm)
Overview
- Precision-machined hinge for 3/16" (5 mm) tempered glass
- Compatible with 3/16" and 1/4" (5 and 6 mm) glass thicknesses
- Use with monolithic tempered glass for cabinet doors
CRL Standard Mount Hinges mount in drilled holes in the cabinet frame and secure glass with set screws. Nylon bushings protect drilled holes. For faster installation use Cat. No. GDH5J1G drill jig with Cat. No. GDH5WDFAB drill bit. Hinges are steel and support a maximum weight of 16 lbs. (7 kg) per pair.
CRL Stereo Cabinet Hardware is engineered for cabinets that house electronic components, china, or collectibles. Precision manufacturing ensures a consistent fit and durable service life. Hinges and accessories are offered in brass, chrome, and black to match wood finishes and room décor. Designed to work with 3/16" (5 mm) tempered glass, this hardware is ideal for glass display cabinet doors and stereo cabinet projects.
SPECIFICATIONS:
Glass Height: Opening Minus 1/2" (12.7 mm)
Single Door Width: Opening Minus 3/32" (2.4 mm)
Double Door Width: Opening Divided by 2, Minus 5/64" (2 mm)
Maximum Door Dimensions: 18" (457 mm) W x 39" (991 mm) H
Product Warning:
Dimensions are guidelines that should be satisfactory in most cases. For a very tight fit, calculate your own dimensions.
SKU: GDH86CH
Order GDH86CH now to get precision glass cabinet hinges for your display or stereo cabinet project.
