Product Details
- Sturdy and Attractive
- Requires 3/4" (19 mm) Hole in Glass
- Small 90º Leg Provides Extra Secure Mounting Surface
- Use Monolithic Tempered Glass

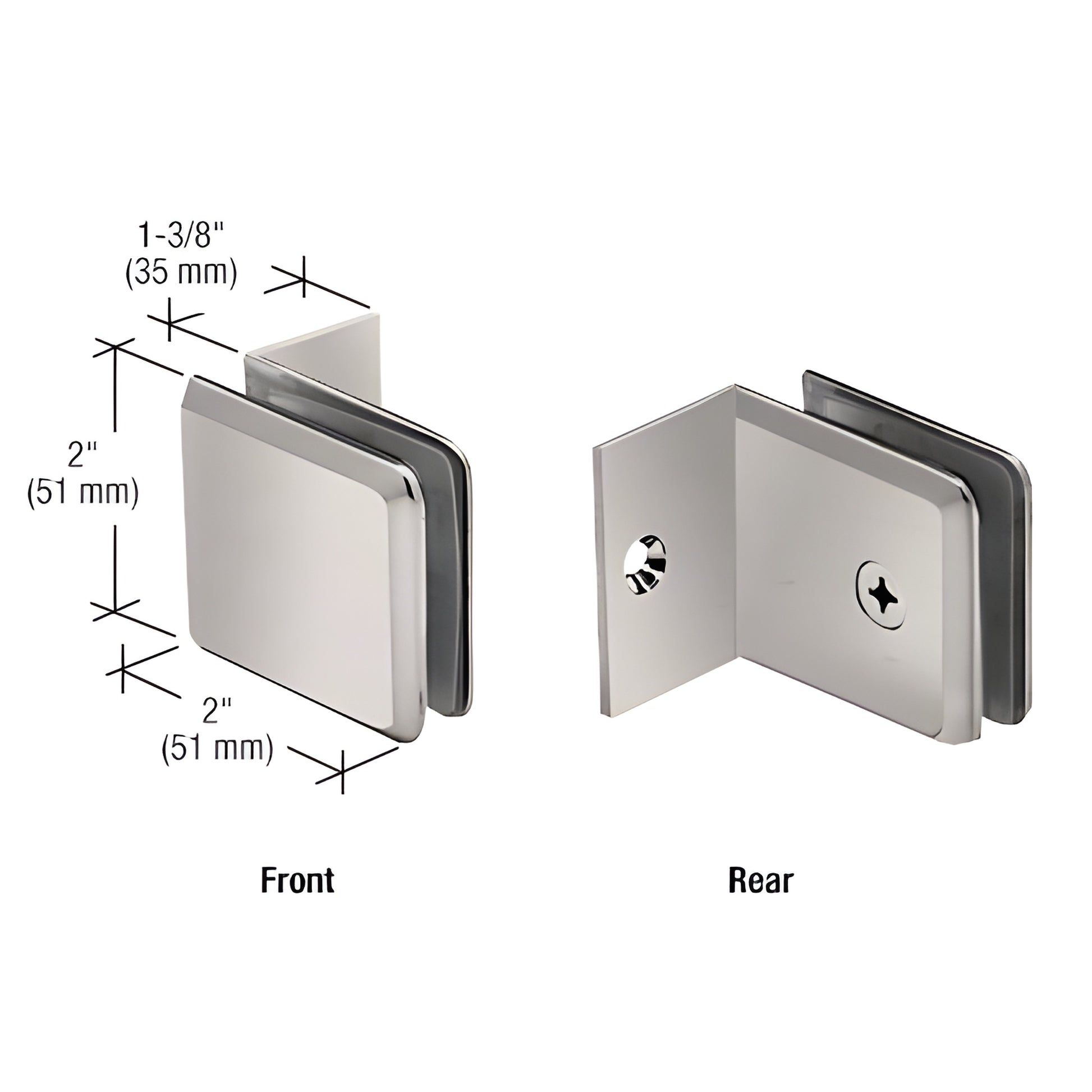

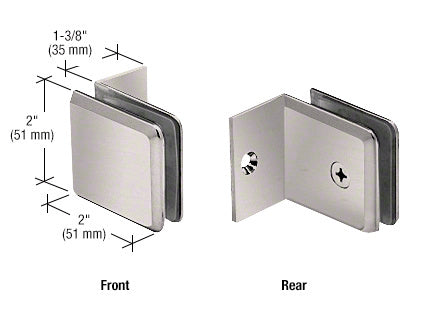

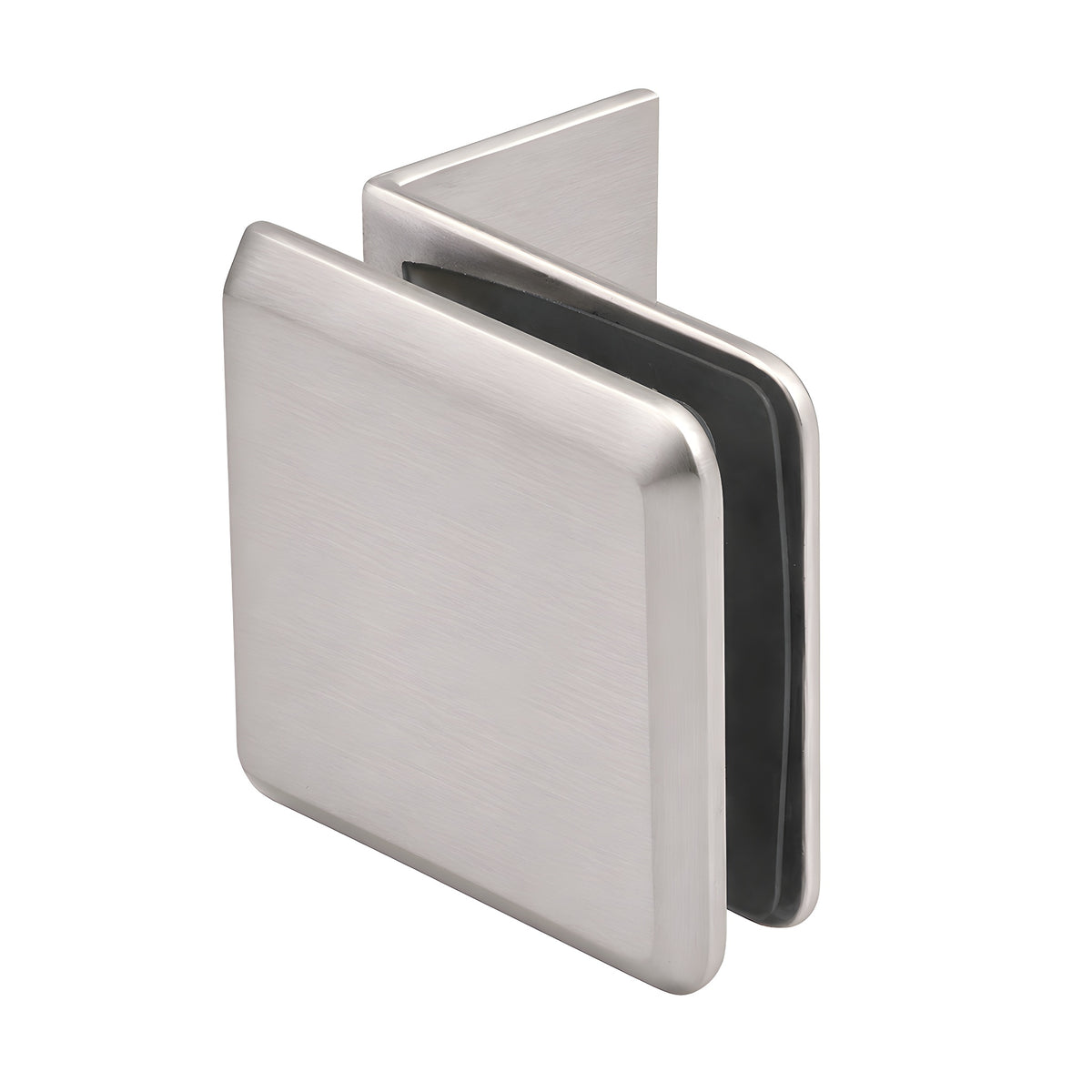

CRL Fixed Panel Beveled Clamps (With Small Leg) mount directly to the wall, ceiling or floor to secure vertical fixed glass panels. Clearance between the glass and wall is 1/16" (2 mm). Clear silicone can be used to provide a clean, water-tight seal. 90º leg provides extra strength.
SPECIFICATIONS:
Materials: Solid Brass
Glass Thickness Range: 3/8" to 1/2" (10 to 12 mm)
Glass Fabrication Required: BGCU1 Requires Notch; BCU4, BGC037 and BGC039 Require 3/4" (19 mm) Holes
Includes: Mounting Screws and Gaskets
