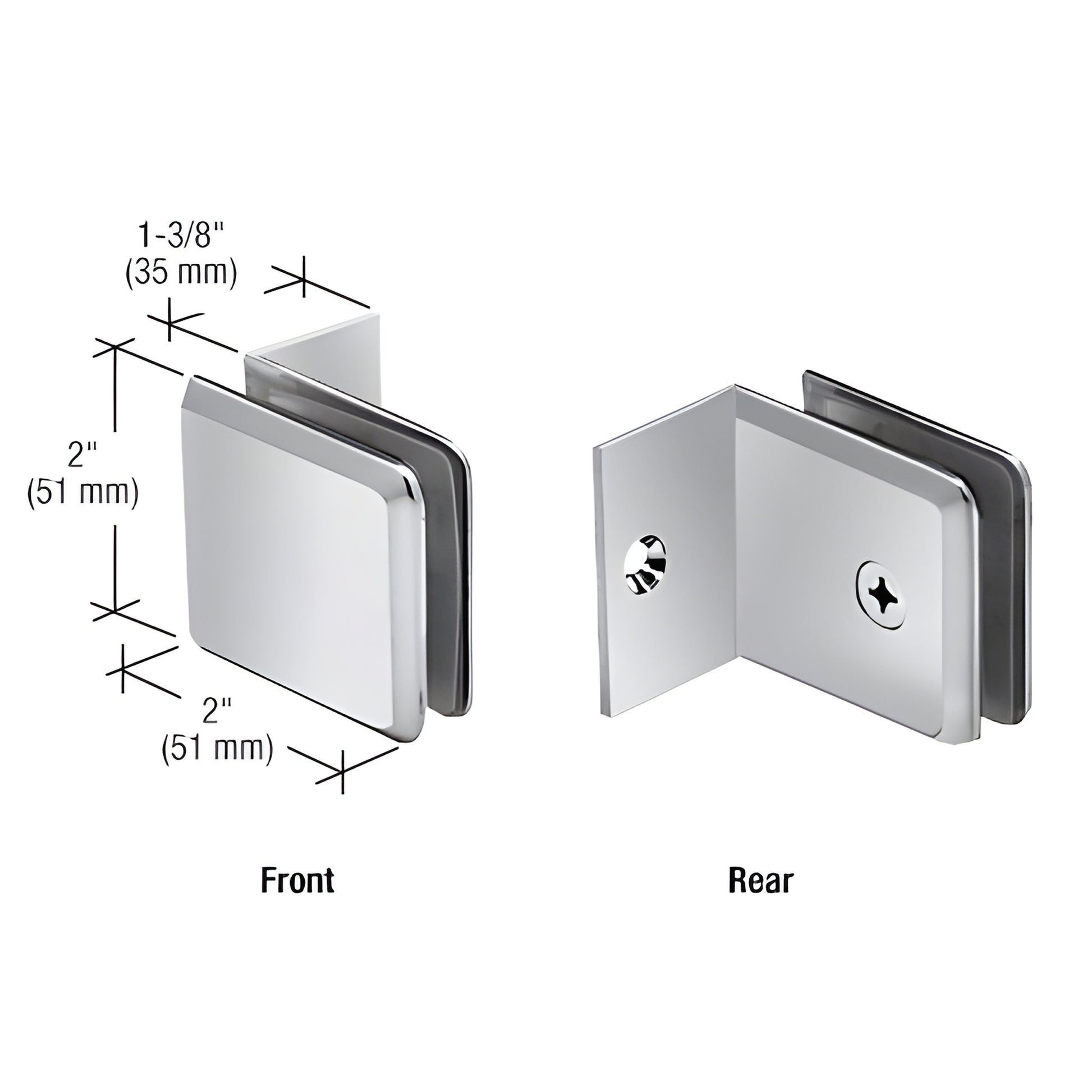

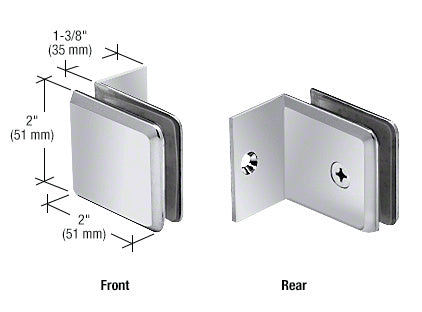

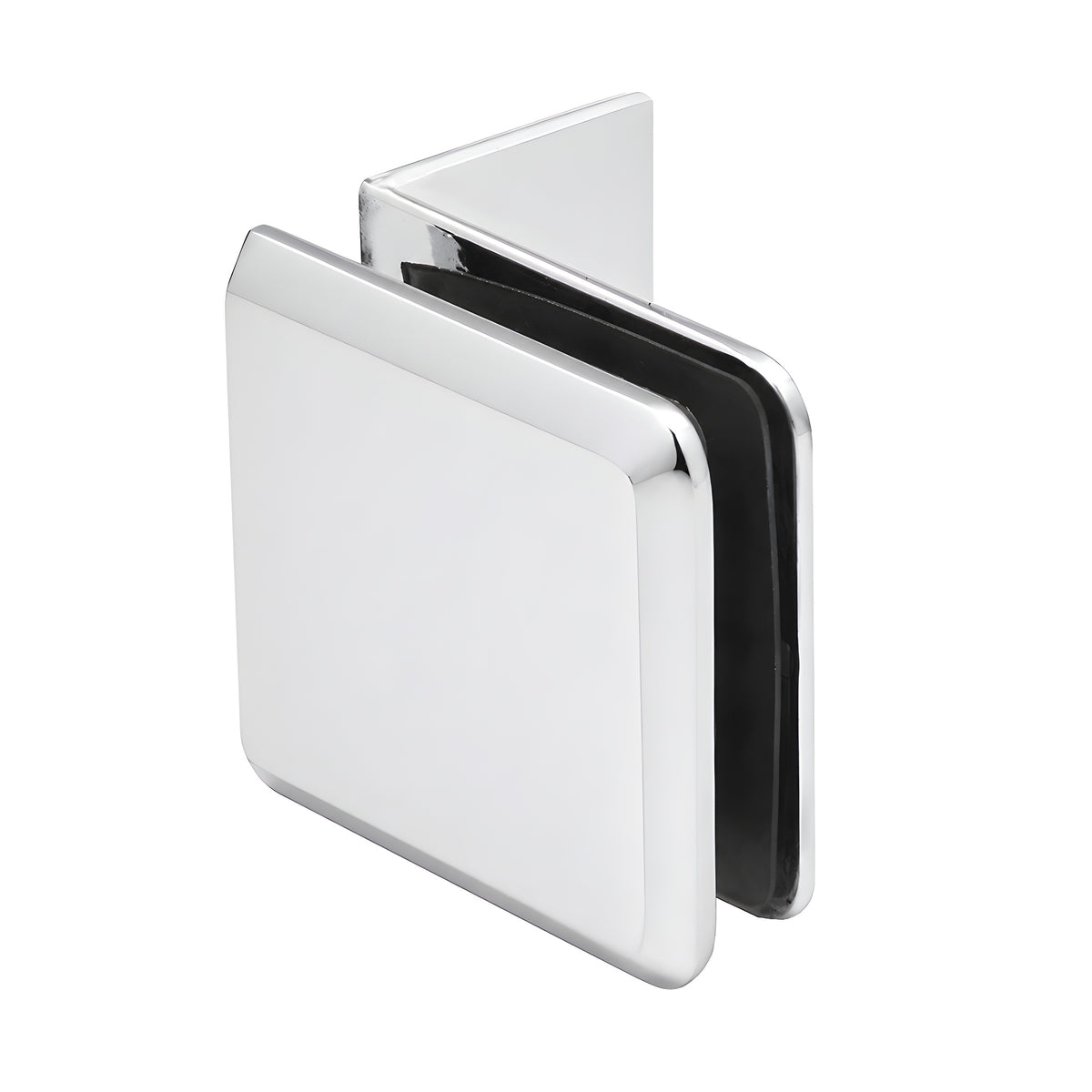

CRL Polished Chrome Beveled Glass Clamp for Fixed Panel, Small Leg
CRL Polished Chrome Beveled Glass Clamp for Fixed Panel, Small Leg
Regular price
$38.99 CAD
Regular price
Sale price
$38.99 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# BGC037CH
Shipping Weight: 8.16 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 8.16 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Design Style
Beveled
Enclosure Type
Corner, Niche, Bathtub, Tailor Made Solutions
Finish/Color
Polished Chrome
Glazing Thickness
3/8 in. To 1/2 in. (10 mm To 12 mm)
Material
Brass
Mounting Type
Wall / Ceiling Mount
Overview
- Sturdy and attractive solid brass construction
- Requires 3/4" (19 mm) hole in glass
- Small 90º leg provides extra secure mounting surface
- Use monolithic tempered glass
CRL Fixed Panel Beveled Clamps (With Small Leg) — SKU BGC037CH mount directly to the wall, ceiling, or floor to secure vertical fixed glass panels. Clearance between the glass and wall is 1/16" (2 mm); clear silicone can be used for a clean, water-tight seal. The integrated 90º leg increases mounting strength and stability for fixed panel installations such as glass shower enclosures and frameless glass partitions.
SPECIFICATIONS:
Materials: Solid Brass
Glass Thickness Range: 3/8" to 1/2" (10 to 12 mm)
Glass Fabrication Required: BGCU1 requires notch; BCU4, BGC037 and BGC039 require 3/4" (19 mm) holes
Includes: Mounting screws and gaskets
Order the BGC037CH solid brass beveled clamp for durable, secure mounting of fixed tempered glass panels—add to cart now.
