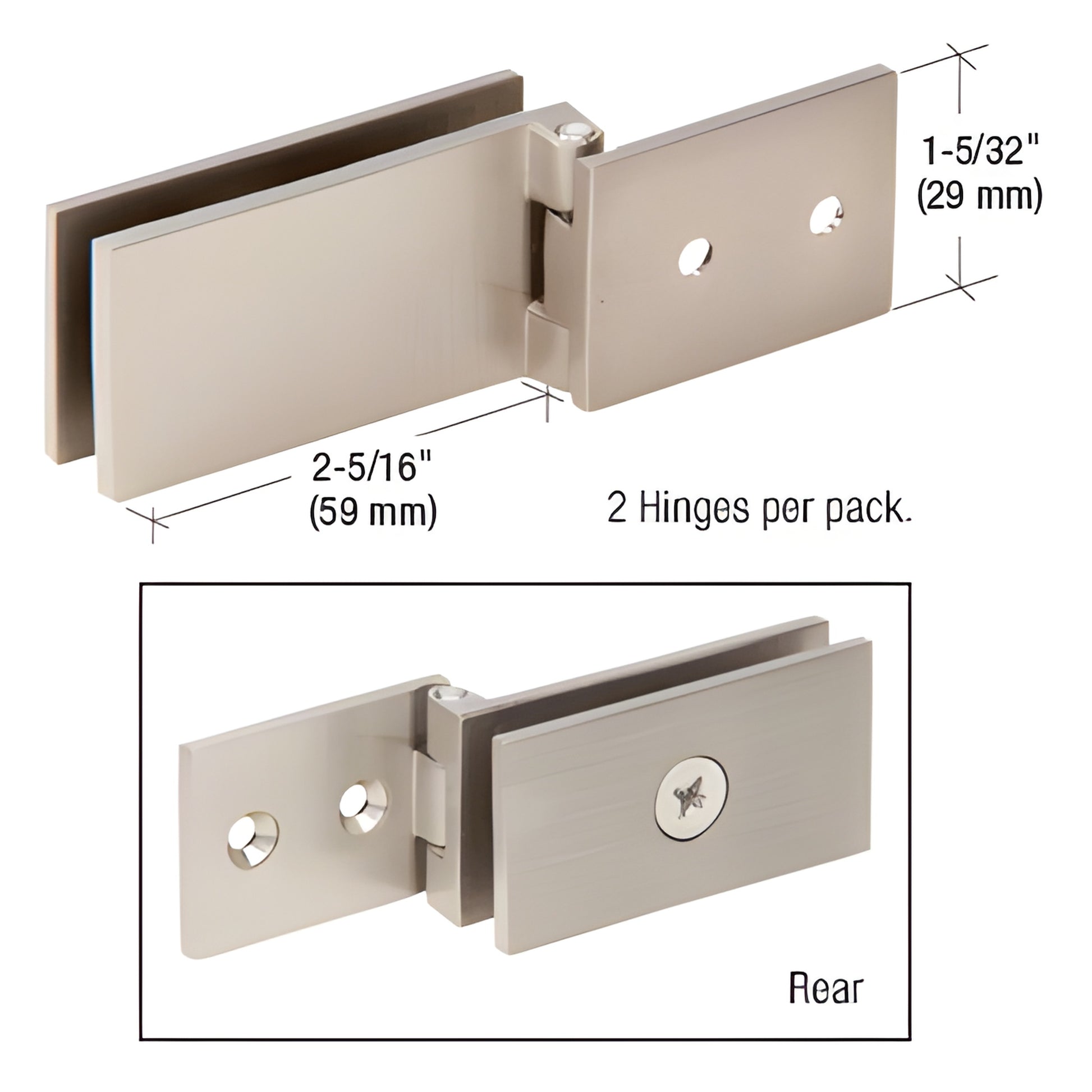

CRL Brushed Nickel Light Duty Frameless Cabinet Door Hinge - Square Corner Style

Finish (3)

Volume pricing

Save up to 10%

Applied automatically

Overview
SKUEH85
Sold as1 Pack
Finish/Color:Brushed Nickel
Glazing Thickness1/4 in. To 5/16 in. (6mm To 8 mm)
Height1-5/32 in. (29.4 mm)
MaterialBrass
Maximum Door Width24 in. (609.6 mm)
Weight Capacity50 lbs. (22.7 kg)
Width2-5/16 in. (58.7 mm)

Description

Product Details

  • Designed for 1/4" to 5/16" (6 to 8 mm) Glass
  • One 9/16" (14 mm) Hole Required
  • 3 Year Warranty
  • Use Monolithic Tempered Glass

These CRL Light Duty Frameless Cabinet Door Hinges are an excellent choice in many cabinet applications. Available in both chrome and brass finishes, they are free-swinging with a 180 degree outswing. The maximum recommended width is 24" (610 mm) and maximum weight should not exceed 50 lbs. (23 kg). Two per pack.

Specifications

Technical Resources

Templates

PDF
EH84 EH85 TemplateOpen PDF ↗

CAD Drawings - pdf

PDF
EH85 Detailed CAD Drawings.pdfOpen PDF ↗

CAD Drawings - dwg

DWG
EH85 Detailed CAD Drawings.dwgOpen DWG ↗
