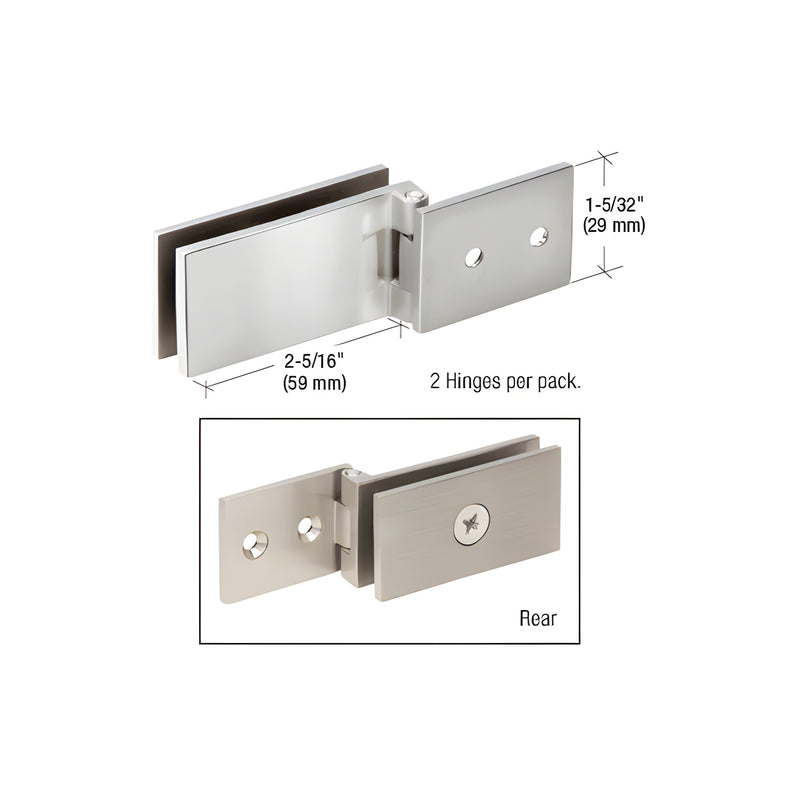

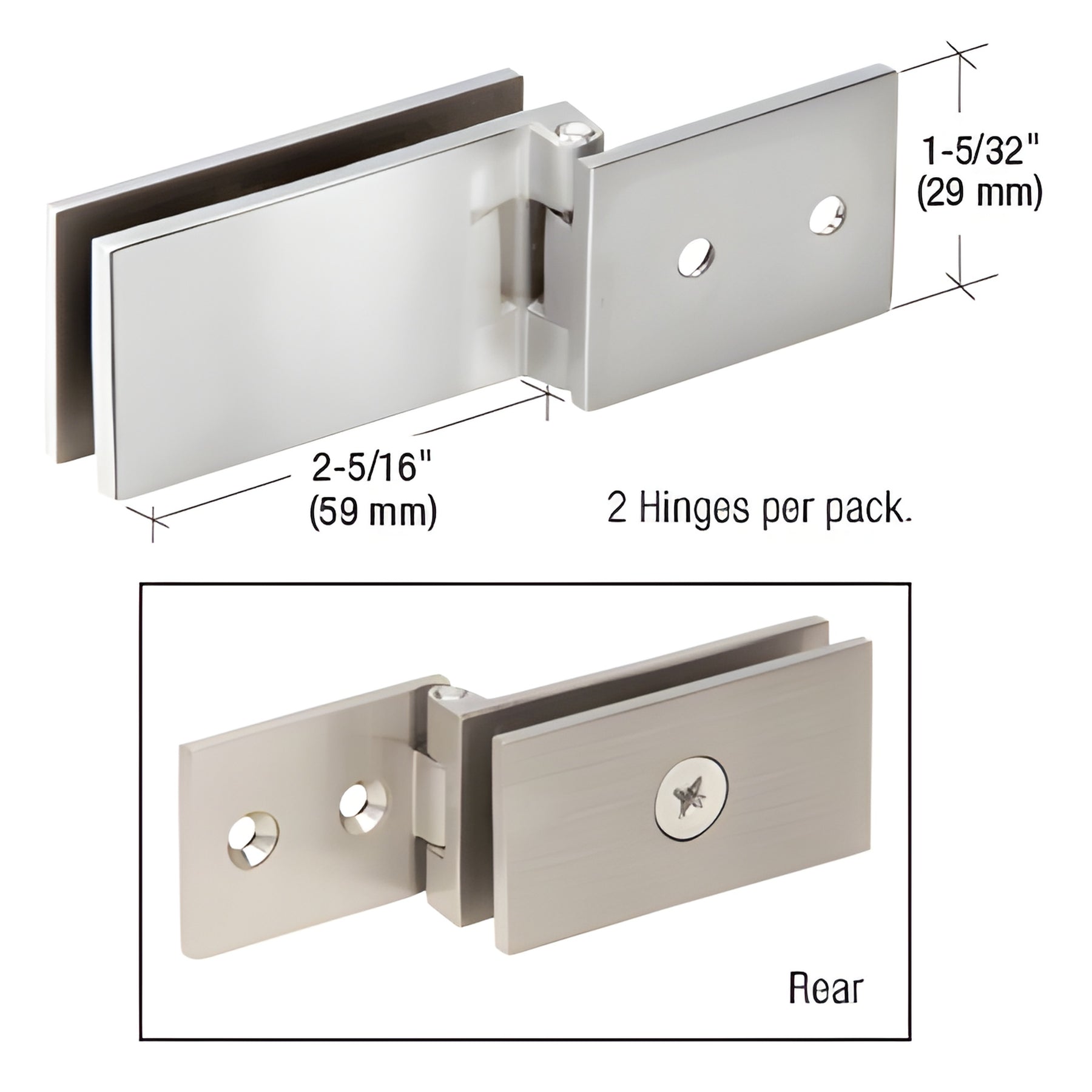

CRL Polished Chrome Light Duty Frameless Cabinet Door Hinge - Square Corner Style

CRL Polished Chrome Light Duty Frameless Cabinet Door Hinge - Square Corner Style
CRL Polished Chrome Light Duty Frameless Cabinet Door Hinge - Square Corner Style

Buy More, Save More!

Product quantity Discount
Buy 3 2% off
Buy 5 4% off
Buy 10 6% off
Buy 15 8% off
Buy 20 10% off

Overview

SKUEH84
Sold as1 Pack
Finish/Color:Polished Chrome
Glazing Thickness1/4 in. To 5/16 in. (6mm To 8 mm)
Height1-5/32 in. (29.4 mm)
MaterialBrass
Maximum Door Width24 in. (609.6 mm)
Weight Capacity50 lbs. (22.7 kg)
Width2-5/16 in. (58.7 mm)

Description

Product Details

  • Designed for 1/4" to 5/16" (6 to 8 mm) Glass
  • One 9/16" (14 mm) Hole Required
  • 3 Year Warranty
  • Use Monolithic Tempered Glass

These CRL Light Duty Frameless Cabinet Door Hinges are an excellent choice in many cabinet applications. Available in both chrome and brass finishes, they are free-swinging with a 180 degree outswing. The maximum recommended width is 24" (610 mm) and maximum weight should not exceed 50 lbs. (23 kg). Two per pack.

Specifications

Technical Resources

Templates

PDF
EH84 EH85 TemplateOpen PDF ↗

CAD Drawings - pdf

PDF
EH84 Detailed CAD Drawings.pdfOpen PDF ↗

CAD Drawings - dwg

DWG
EH84 Detailed CAD Drawings.dwgOpen DWG ↗
