CRL Grade 1 Brushed Nickel Heavy-Duty Passage Door Lever Lockset
CRL Grade 1 Brushed Nickel Heavy-Duty Passage Door Lever Lockset
Regular price
$160.17 CAD
Regular price
Sale price
$160.17 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# D20PASSBN
Shipping Weight: 2.02 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 2.02 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Backset
2-3/4
Category
Door Accessories
Certification
ANSI A156.2 Grade 1
Door Thickness Range
1-3/8" To 1-3/4"
Door Type
Aluminum, Wood, Hollow Metal
Finish/Color
Brushed Nickel
Fire Rating Hour
3
Function
Passage
Handing
Non Handed and Reversible
Handle Length
4-5/8
Includes
Strike
Operation Type
F75 Passage Lever
Projection
2-1/2
Rosette Base Height
11/16
Rosette Base Width
3-3/8
Strike Height
4-7/8
Strike Width
1-1/4
Type
Heavy Duty Lever Lockset
UL Listed
Yes
Overview
- 3 Year Warranty
- ANSI A156.2 Grade 1 commercial lever lockset
- Clutch feature (Grade 1)
- UL Listed — 3-hour fire rating

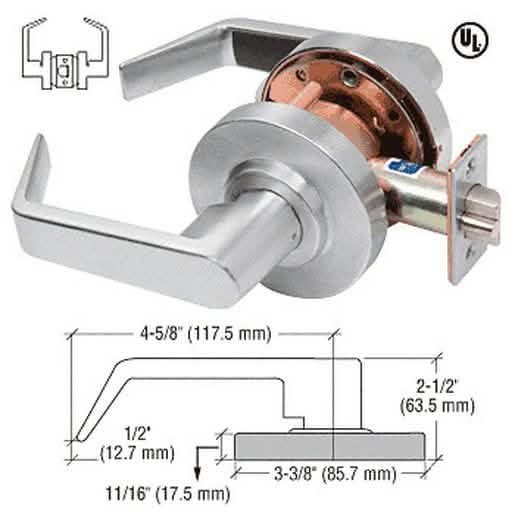

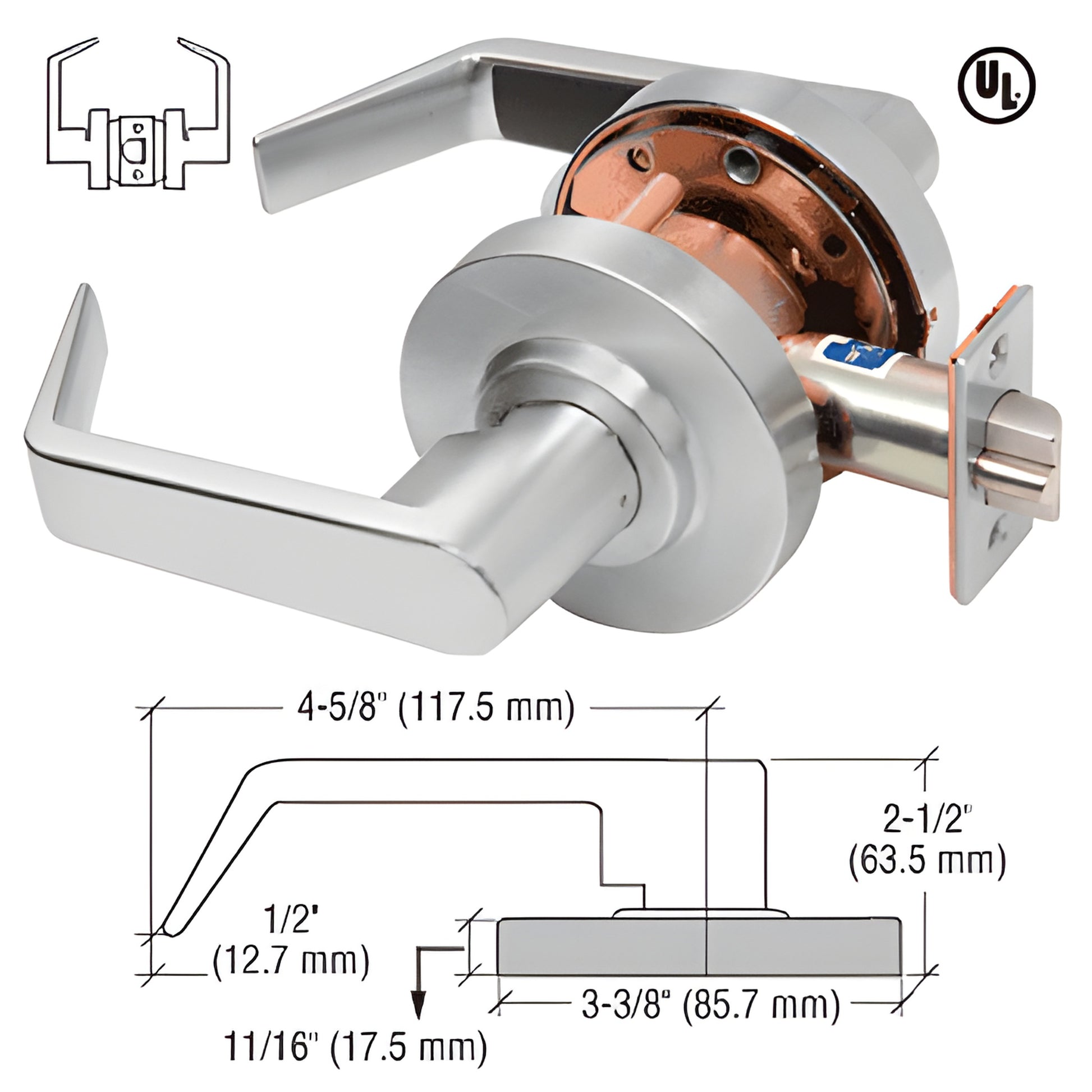

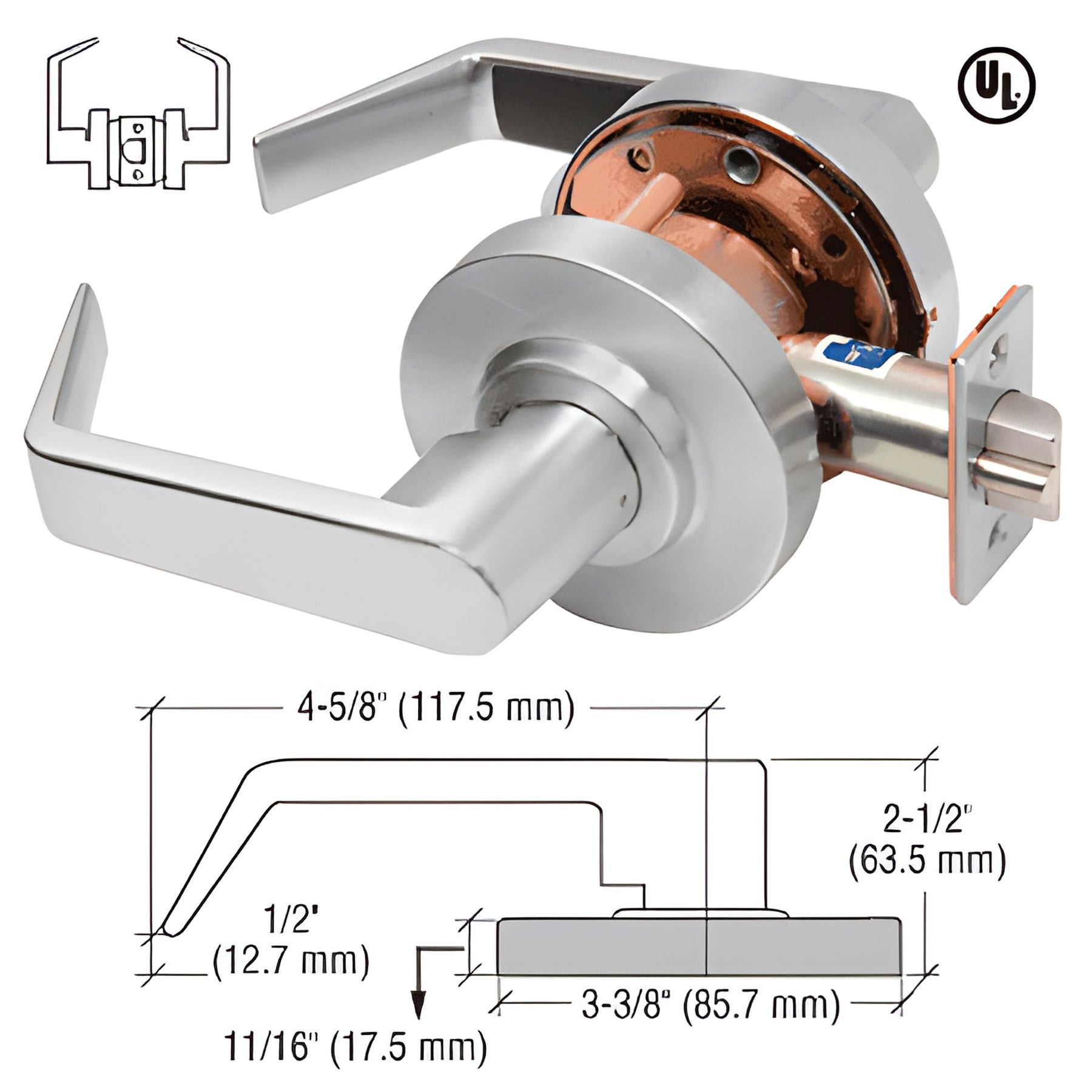

These CRL heavy-duty commercial Grade 1 and 2 lever locksets are non-handed and reversible for left- or right-handed doors. UL Listed with a 3-hour fire rating, they fit door thicknesses from 1-3/8" to 1-3/4" (35–45 mm) and use a 2-3/4" (70 mm) backset. Includes ANSI strike (1-1/4" x 4-7/8" / 32 x 124 mm). Ideal for commercial exterior and interior doors requiring a fire-rated, high-cycle lever lockset.
PASSAGE FUNCTION DESCRIPTION: Both levers are always free.
SKU: D20PASSBN — Shop this commercial-grade, UL-listed 3-hour fire-rated lever lockset now.
