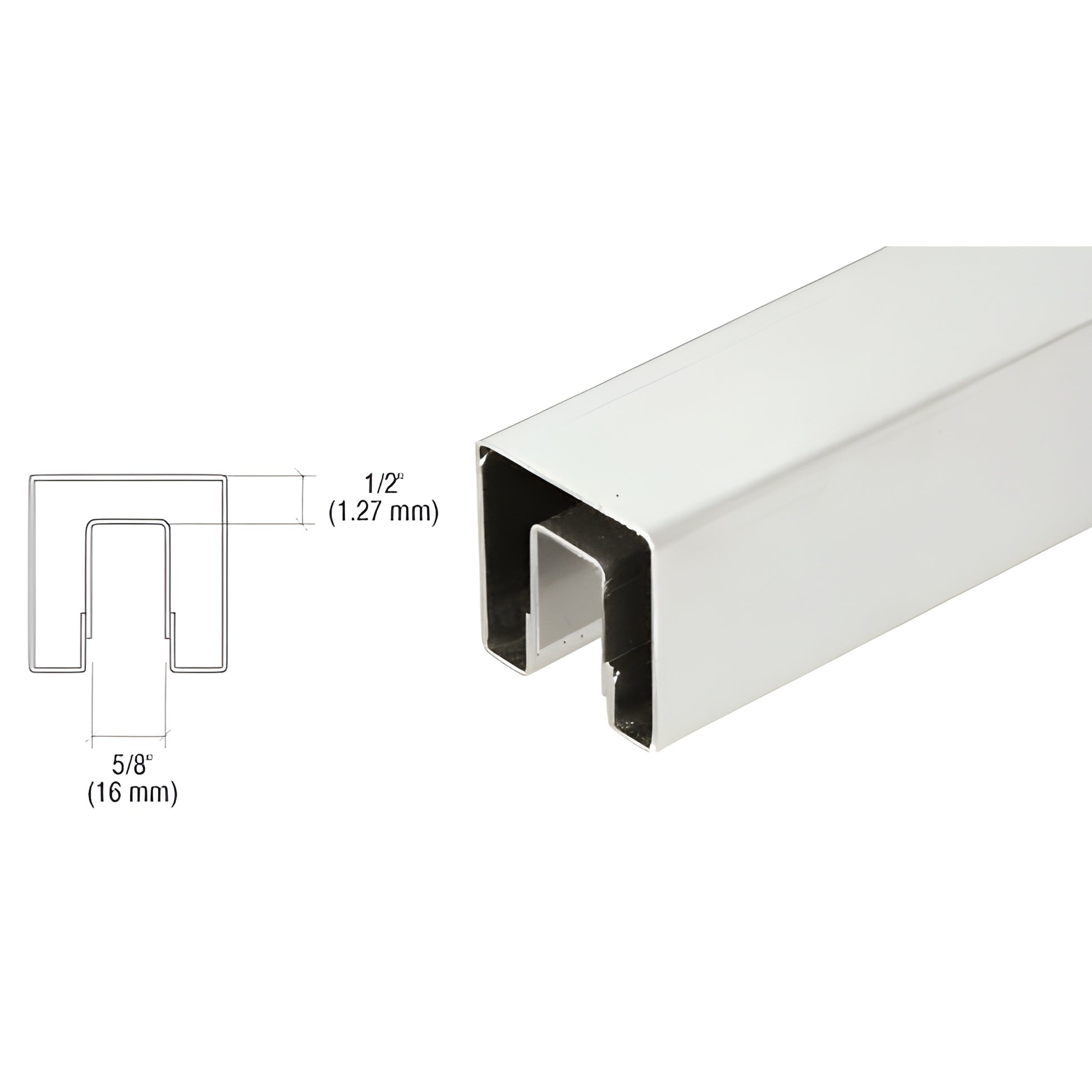

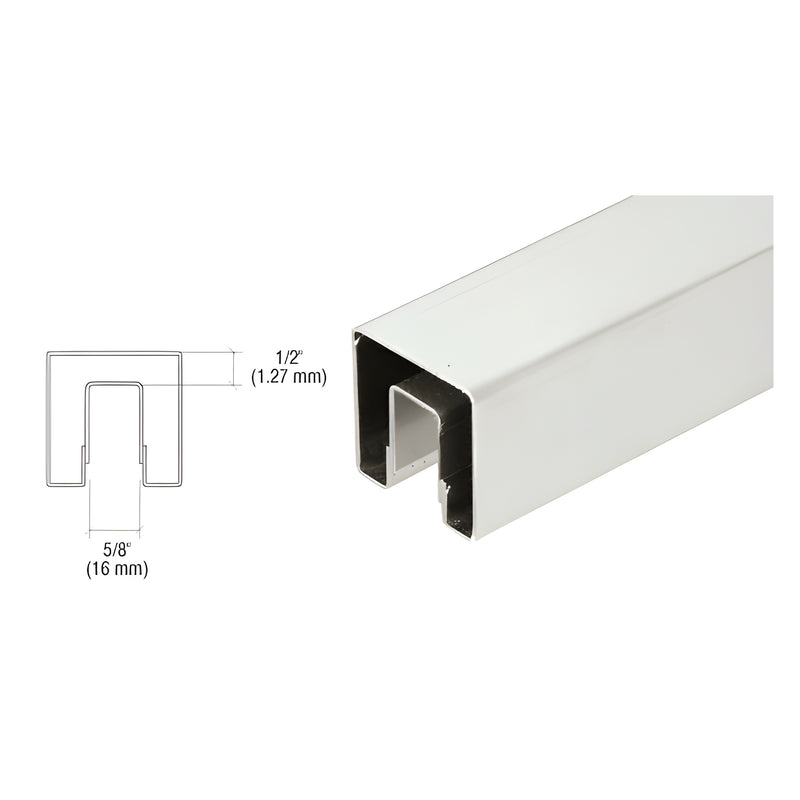

CRL Brushed Stainless 1-1/2" Square Cap Rail for 1/2" Glass, 120"
Item# GRS15BS
Shipping Weight: 15.991 Pounds
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 15.991 Pounds
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Finish/Color
Brushed Stainless Steel
Glazing Thickness
1/2 in. (13 mm)
Height
1-1/2 in. (38 mm)
Length
120 in. (3048 mm)
Material
Stainless Steel
Profile
Square
Thickness
.05 in. (1.27 mm)
Width
1-1/2 in. (38 mm)
- 120" (3.05 m) stock lengths available in three sizes and two architectural finishes
- Compatible with premium corners (use sleeve No. GRS15CSS)
- Profiles range from 1-1/2" (38 mm) to 2-1/2" (64 mm)
- 304 stainless alloy standard; 316 alloy available on special order
All CRL Premium Square Cap Rails (SKU: GRS15BS) are formed with precision tooling to maintain uniform profiles for smooth hairline transitions at splices, corners, and end caps. An internal channel is welded in place to increase strength and stability for fabrication. Use Cat. No. 32629 Metal Contact Cement to achieve a secure, permanent bond at all connections.
Product Warning:
- 1-1/2" (38 mm) square premium cap rail works only with 1/2" (12 mm) glass, secured with 95CBL silicone and shims.
Most shipping weights are approximate and have not been verified. If exact weight is needed to determine shipping costs, contact CRL Customer Service before submitting your order. Product images are of the actual product or a close representation; colors may vary by monitor.
Stainless Steel Advisory:
Stainless steel is corrosion-resistant but not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in the Technical References section for details.
Ideal for glass railing systems, balustrade projects, and architectural stair applications where a clean, square-cap stainless steel rail is required. Order SKU GRS15BS or contact us for pricing and lead times—316 stainless available by special request.
