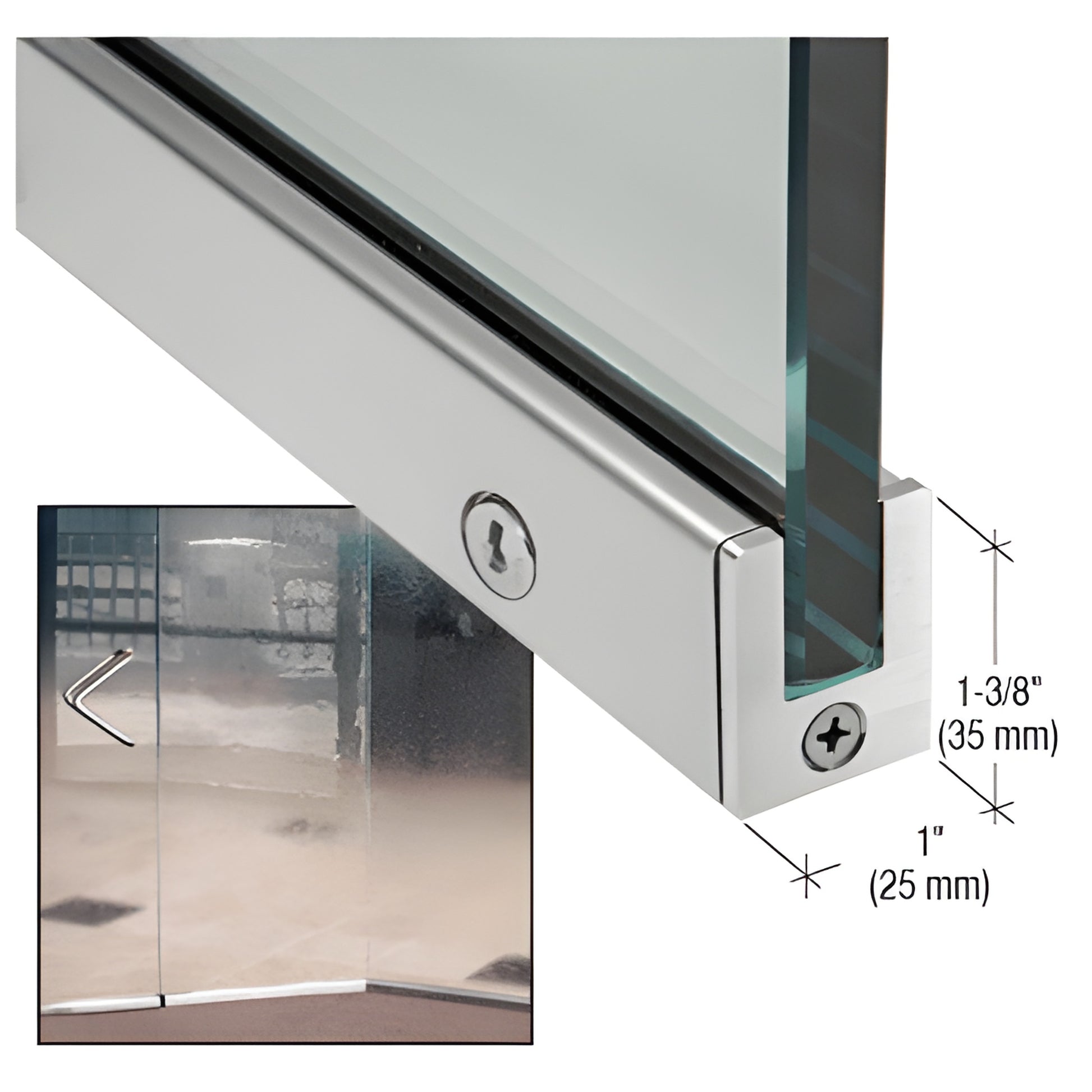

CRL 1-3/8" Brushed SS Left-Hand Exterior Door Rail w/ Lock - Custom
CRL 1-3/8" Brushed SS Left-Hand Exterior Door Rail w/ Lock - Custom
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# SP35BS12CL
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Brushed Stainless Steel
Glazing Thickness
1/2 in. (12 mm)
Glazing Type
Monolithic Tempered Glass
Height
1-3/8 in. (35 mm)
Includes Lock
7150 Cam Lock
Length
Specify
Maximum Panel Weight
205 lbs. (93 kg)
Maximum Panel Width
42 in. (1067 mm)
Profile
Slender
Width
1 in. (25 mm)
Overview
- For 1/2" (12 mm) monolithic tempered glass
- Available in three heights, with or without a lock
- Dry-glaze slender profile door rails: only 1" (25 mm) wide
- Brushed or polished stainless steel finishes
- Custom 1" (25 mm) slender profile vertical stiles available on special order
All of our CRL Slender Profile Door Rails are fabricated to length and can include an integrated lock or be supplied without one. Custom finishes and special-order vertical stiles are available. These rails are ideal for frameless glass doors requiring a low-profile stainless steel rail for 1/2" tempered glass.
NOTE: Not all door closers or locking hardware are compatible with these slender rails. Contact the CRL Technical Sales Department for compatibility information.
Example of handing: Handing is determined by viewing the rail from the exterior. A left-hand (LH) rail hinges on the left; the lock unit will be positioned near the right-hand end of the rail when viewed from the outside.
Product Warning:
- Custom rails are made to your specified size and finish and are not returnable.
- Glass fabrication is required for installation of a lock—refer to the template.
- Maximum system width: 42" (1.07 m).
Stainless Steel Advisory:
Although stainless steel resists corrosion, it is not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in the Technical References for full guidance.
For specification questions, hardware compatibility, or to place a special-order finish, contact CRL and reference SKU SP35BS12CL. Request a quote or technical assistance today.
Specifications
CAD Drawings - dwg
