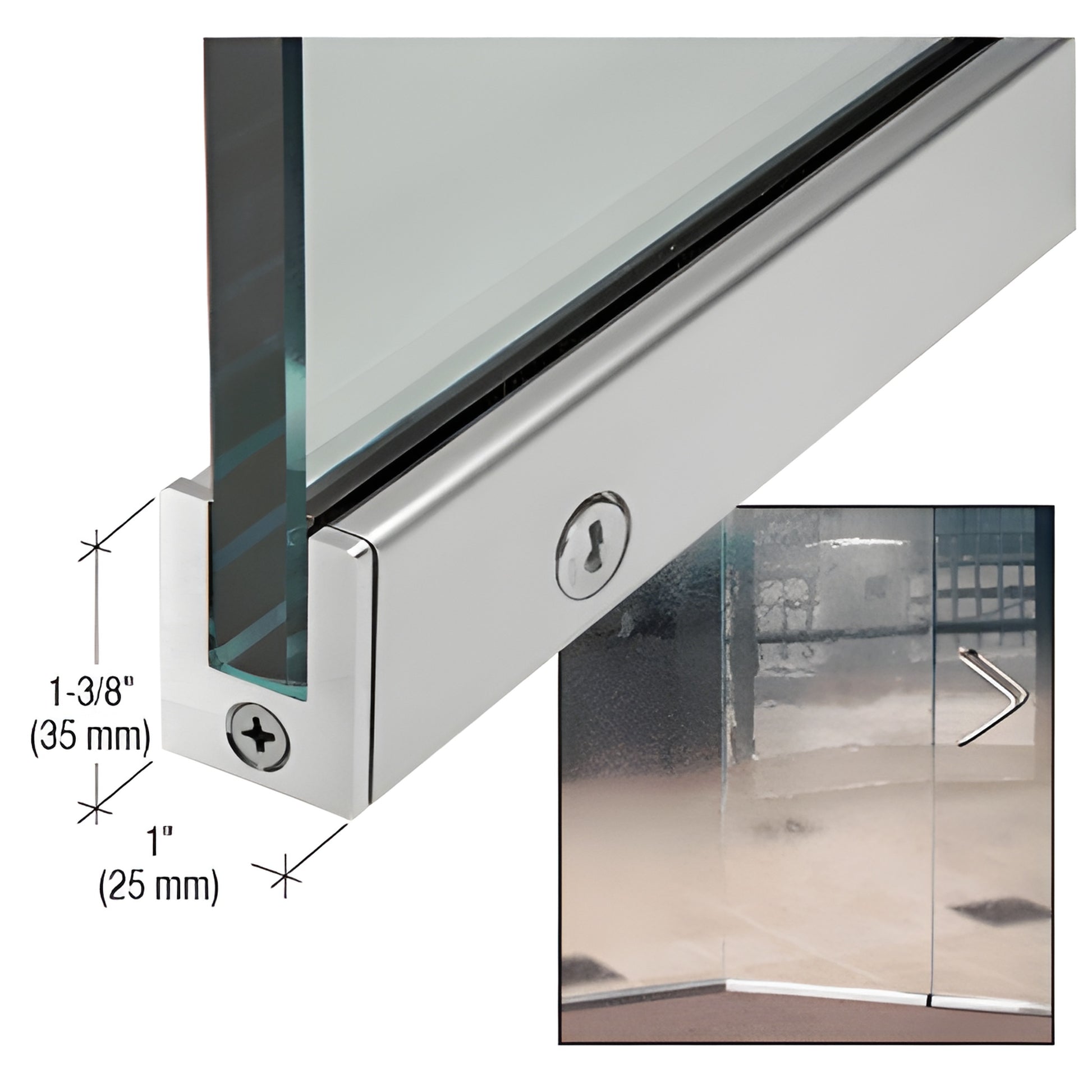

CRL Brushed Stainless 1-3/8 in RH Locking Door Rail, Custom Length
CRL Brushed Stainless 1-3/8 in RH Locking Door Rail, Custom Length
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# SP35BS12CR
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Brushed Stainless Steel
Glazing Thickness
1/2 in. (12 mm)
Glazing Type
Monolithic Tempered Glass
Height
1-3/8 in. (35 mm)
Includes Lock
7150 Cam Lock
Length
Specify
Maximum Panel Weight
205 lbs. (93 kg)
Maximum Panel Width
42 in. (1067 mm)
Profile
Slender
Width
1 in. (25 mm)
Overview
- Fits 1/2" (12 mm) monolithic tempered glass
- Available in three heights, with or without a lock
- Dry-glaze slender profile door rails — only 1" (25 mm) wide
- Brushed or polished stainless steel finishes
- Custom 1" (25 mm) slender profile vertical stiles available on special order
All of our CRL Slender Profile Door Rails (SKU: SP35BS12CR) can be fabricated to required lengths with or without locks. Custom finishes and special-order vertical stiles are available.
NOTE: Not all closer or locking hardware is compatible with these rails. For compatibility details, contact the CRL Technical Sales Department.
Handing Example: Handing is determined by viewing the rail from the exterior. A left-hand (LH) rail hinges on the left; the lock unit will be positioned near the right-hand end of the rail when viewed from the outside.
Product Warning:
Custom rails are made to your specified size and finish and are not returnable.
Glass fabrication is required for lock installation—please see the template.
Maximum width for the Slender Profile Door Rail System is 42" (1.07 m).
Stainless Steel Advisory:
Stainless steel resists corrosion but is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for care instructions.
Ideal for 1/2-inch tempered glass shower doors and commercial glass door retrofit projects, these 1" slender profile rails deliver a minimalist look with durable stainless finishes. Contact CRL for compatibility, templates, and custom finish options — order or request a quote today.
