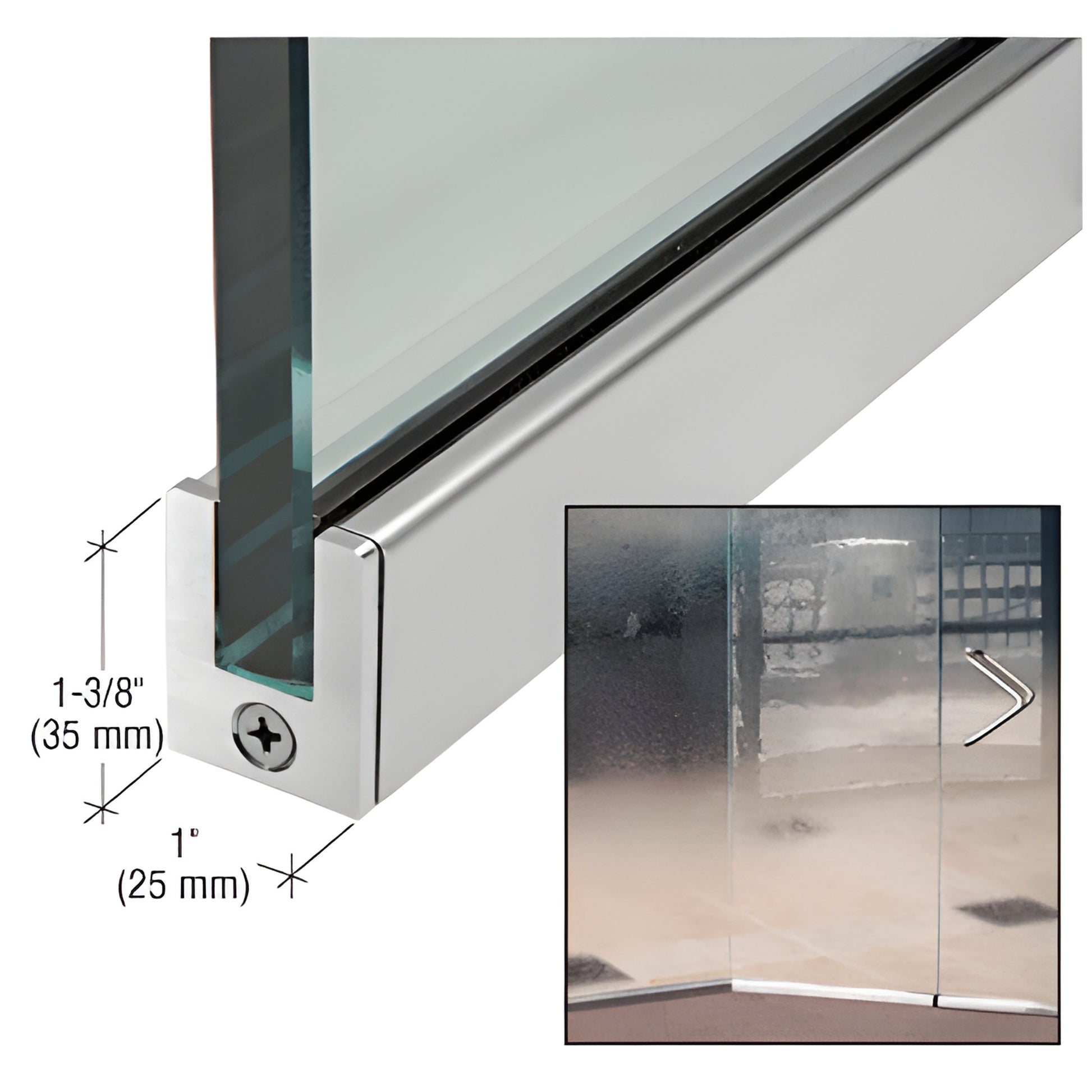

CRL Brushed Stainless Steel 1-3/8" Slender Door Rail No Lock - Custom
CRL Brushed Stainless Steel 1-3/8" Slender Door Rail No Lock - Custom
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# SP35BS12C
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Brushed Stainless Steel
Glazing Thickness
1/2 in. (12 mm)
Height
1-3/8 in. (35 mm)
Includes Lock
No
Profile
Slender
Width
2-3/8 in. (60 mm)
Overview
- For 1/2" (12 mm) glass — use monolithic tempered glass
- Custom length and finish — made to order (SKU: SP35BS12C)
- Available in three heights, with or without a lock
- Dry-glaze slender profile door rails are only 1" (25 mm) wide
- Brushed or polished stainless steel finishes
- Custom 1" (25 mm) slender profile vertical stiles available on special order
All of our CRL Slender Profile Door Rails (SKU: SP35BS12C) are fabricated to your required length and can be supplied with or without locks. Custom finishes and special-order vertical stiles are available.
NOTE: Not all closer or locking hardware is compatible with these rails. For compatibility details, contact the CRL Technical Sales Department.
Product Warning:
Maximum width for the slender profile door rail system is 42" (1.07 m).
Stainless Steel Advisory:
Stainless steel is corrosion resistant but not rust- or stain-proof. CRL recommends periodic maintenance to help preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
Shop the SP35BS12C slender profile door rail for 1/2" glass — contact CRL for pricing, lead times, and technical assistance.
Specifications
CAD Drawings - dwg
