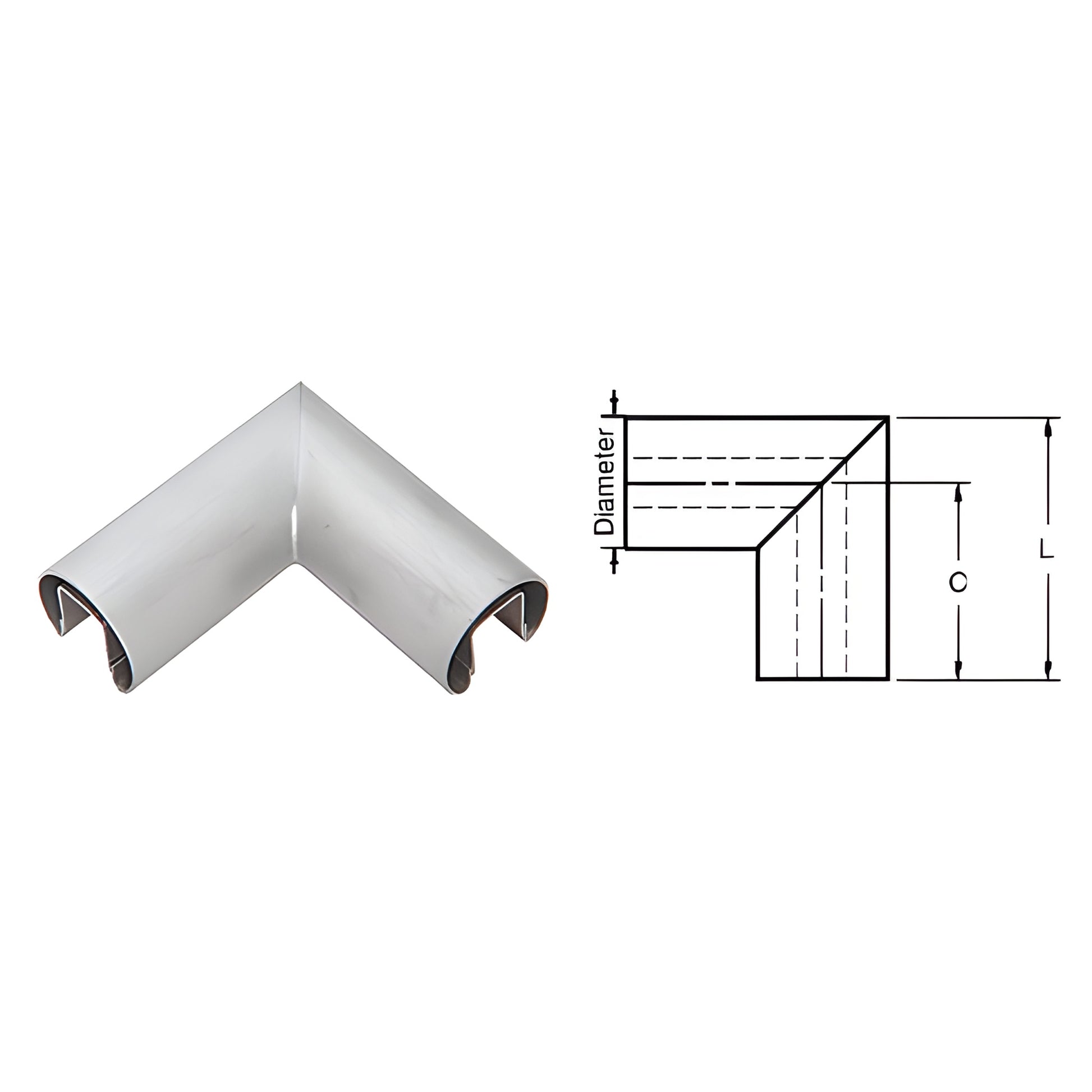

CRL Brushed Stainless 1.66in 90° Corner for 1/2–5/8in Glass Cap Rail
CRL Brushed Stainless 1.66in 90° Corner for 1/2–5/8in Glass Cap Rail
Regular price
$419.09 CAD
Regular price
Sale price
$419.09 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# GR16HBS
Shipping Weight: 1.12 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.12 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Angle
90
Diameter
1.66 in. (42 mm)
Finish/Color
Brushed Stainless Steel
Material
Stainless Steel
Thickness
.05 in. (1.27 mm)
Overview
- Welded, finished, and ready-to-install interior slip-fit horizontal corner
- Four architectural finishes; matches CRL Premium Cap Rail
- Requires two connector sleeves (not included)
SKU: GR16HBS
Interior slip-fit horizontal corners for 1/2" (12 mm) or 5/8" (16 mm) thick glass allow hairline joint assemblies with straight lengths of CRL Cap Rail. Use CRL Cat. No. 32629 Metal Contact Cement to achieve a secure, permanent bond. Two connector sleeves are required per corner.
Each horizontal corner is fabricated, finished, and individually packed. Stainless and brass corners are made from CRL Premium Cap Rail and welded and finished to match. Standard stainless alloy is 304; 316 stainless is available on special order. Standard brass alloy is 260.
Installation notes: For 1/2" (12 mm) glass use GR5PV Cap Rail Vinyl and 95CBL Silicone to secure the glass. For GR15 Series corners or 5/8" (16 mm) glass, secure with 95CBL Silicone and shims only.
Product warning: Follow the securement recommendations above for 1/2" and 5/8" glass to ensure a safe, permanent installation.
Please contact CRL Technical Sales for technical assistance, finishes, or a quote. Order accessories (connector sleeves, adhesives) separately.
Stainless Steel Advisory:
Stainless steel resists corrosion but is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
