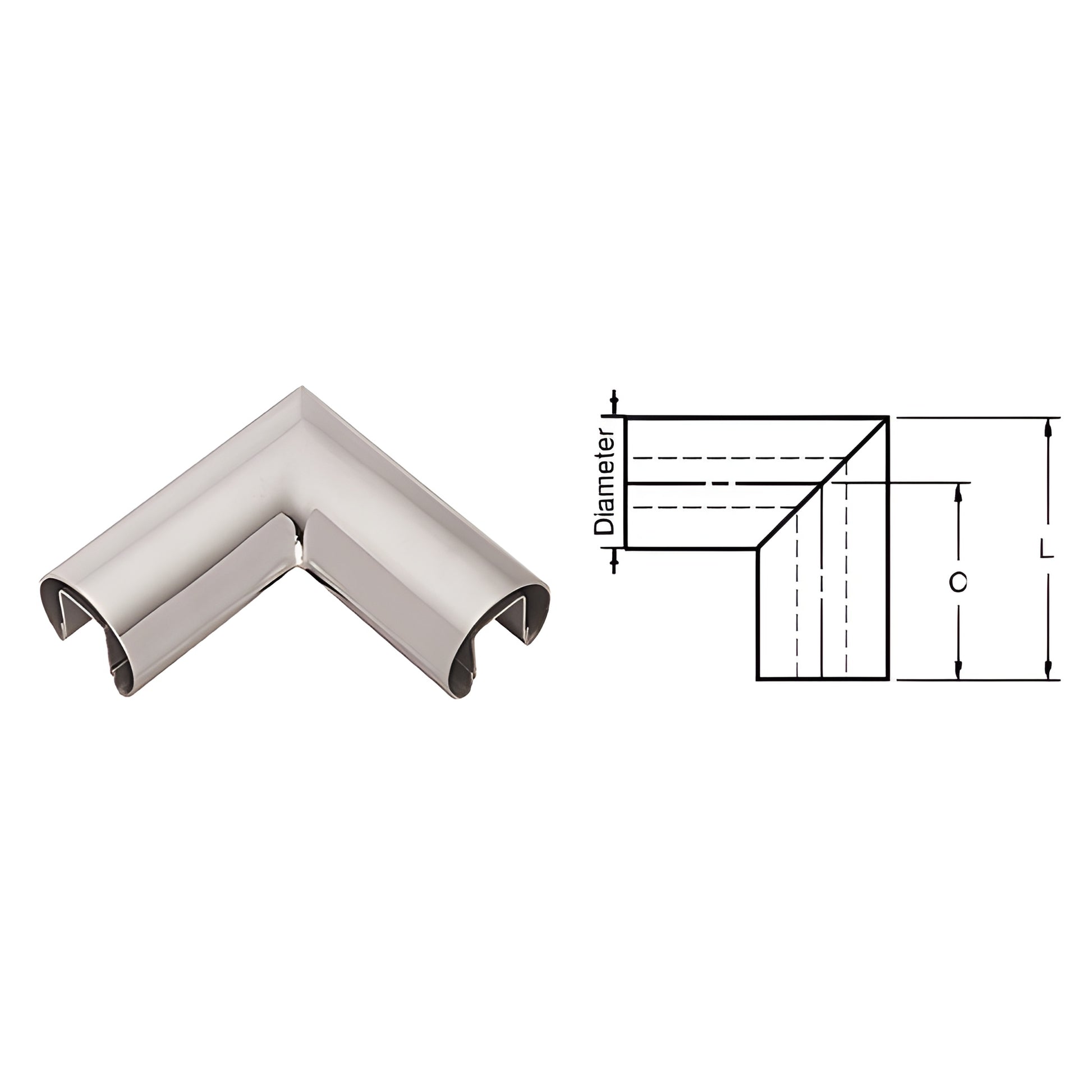

CRL Polished Stainless 1.66" 90° Corner for 1/2–5/8" Glass Railing

• Welded, finished, and ready-to-install interior slip-fit horizontal corners — SKU GR16HPS
• Fits 1/2" (12 mm) or 5/8" (16 mm) glass for hairline joint assemblies with CRL Cap Rail
• Available in four architectural finishes; stainless 304 standard (316 special order), brass alloy 260 standard
• Requires two connector sleeves (not included) and Cat. No. 32629 Metal Contact Cement for a permanent bond

Interior slip-fit horizontal corners for 1/2" (12 mm) or 5/8" (16 mm) thick glass allow hairline joint assemblies with straight lengths of CRL Cap Rail. Use CRL Cat. No. 32629 Metal Contact Cement to achieve a secure, permanent bond. Two connector sleeves are required with each corner (sold separately).

Each horizontal corner is fabricated, finished, and individually packed. All stainless and brass corners are produced from CRL Premium Cap Rail and are welded and finished to match. Standard stainless alloy is 304; stainless 316 is available on special order. Brass uses alloy 260 as standard.

Glass retention notes: For 1/2" (12 mm) glass use GR5PV Cap Rail Vinyl plus 95CBL Silicone to secure the glass (except when using GR15 Series Cap Rail Corners). For GR15 Series Cap Rail Corners or 5/8" (16 mm) glass, use 95CBL Silicone and shims only.

Product Warning: Follow the glass retention notes above to ensure safe, secure installation.

Stainless Steel Advisory:

For technical questions, pricing, or a quote for GR16HPS, please contact CRL Technical Sales. Order or request a quote today.
