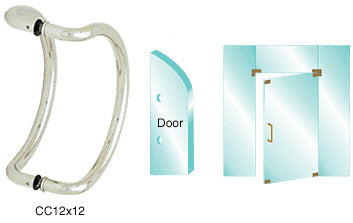

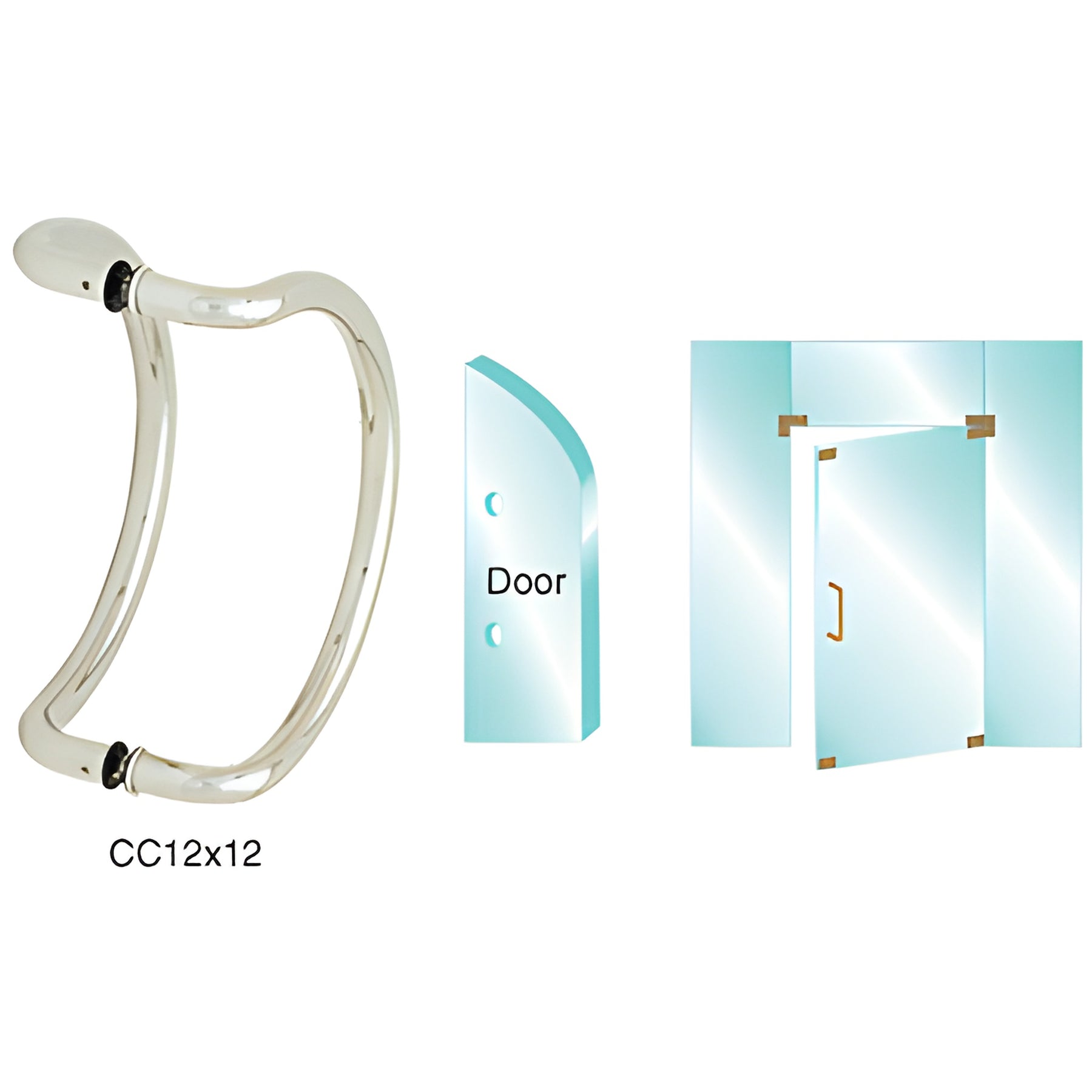

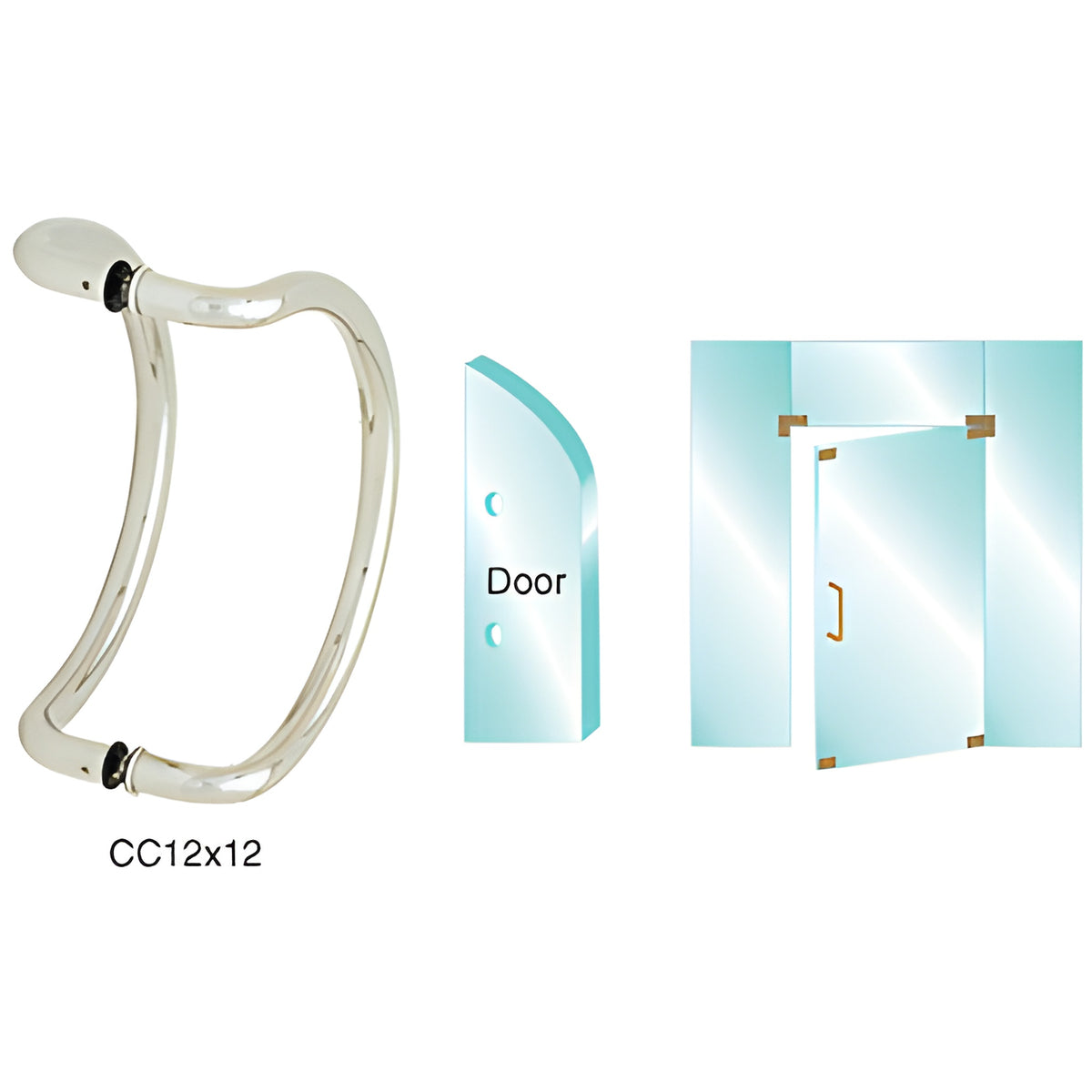

CRL Brushed Stainless 12" Glass Mounted Curved Pull Handle

Finish (4)

Overview

SKU	CC12X12BS
Sold as	1 Each
Diameter	1 in. (25 mm)
Finish/Color:	Brushed Stainless Steel
Glazing Thickness	3/8 in. To 3/4 in. (10 mm To 19 mm)
Material	Stainless Steel
Mounting Center To Center	12 in. (305 mm)
Mounting Hole Diameter	5/8 in. (16 mm)
Mounting Type	Back-to-Back
Style Washer Diameter	1-1/4 in. (32 mm)
Style Washers	Yes

Description

Product Details

For Use with: 3/8" to 3/4" (10 to 19 mm) Glass
1" (25.4 mm) Diameter Stainless Steel or Brass Tubing
Use Monolithic Tempered Glass

This CRL Glass Mounted Curved Pull Handle is available in several finishes.

SPECIFICATIONS:

For Use With: 3/8" to 3/4" (10 to 19 mm) Glass

Construction: 1" (25 mm) Diameter Stainless Steel or Brass Tubing

Glass Fabrication Required: Two 5/8" (16 mm) Diameter Holes

INCLUDES:

2 Each: Through-Bolts for Glass Mounting

4 Each: 1-1/4" (32 mm) Diameter Matching Finish Metal Washers and Rubber Gaskets

Stainless Steel Advisory:

Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
