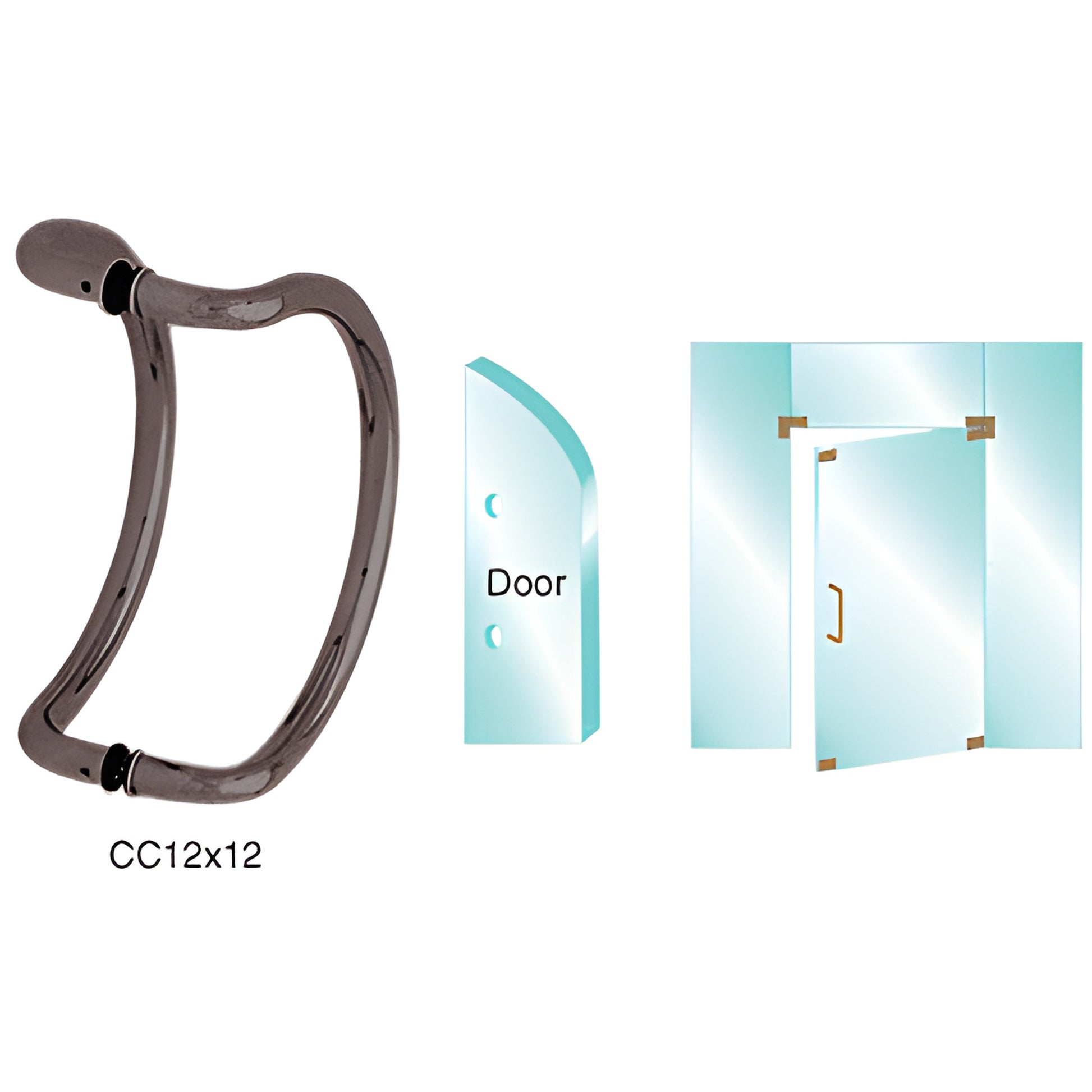

CRL Dark Bronze 12" Glass Mounted Curved Pull Handle

Finish (4)

Mounting Type (2)

Back-to-Back
Single Sided

Overview

SKU	CC12X12DU
Sold as	1 Each
Diameter	1 in. (25 mm)
Finish/Color:	Black Bronze Anodized
Glazing Thickness	3/8 in. To 3/4 in. (10 mm To 19 mm)
Mounting Center To Center	12 in. (305 mm)
Mounting Hole Diameter	5/8 in. (16 mm)
Mounting Type	Back-to-Back
Style Washer Diameter	1-1/4 in. (32 mm)
Style Washers	Yes

Description

Product Details

For Use with: 3/8" to 3/4" (10 to 19 mm) Glass
1" (25.4 mm) Diameter Stainless Steel or Brass Tubing
Use Monolithic Tempered Glass

This CRL Glass Mounted Curved Pull Handle is available in several finishes.

SPECIFICATIONS:

For Use With: 3/8" to 3/4" (10 to 19 mm) Glass

Construction: 1" (25 mm) Diameter Stainless Steel or Brass Tubing

Glass Fabrication Required: Two 5/8" (16 mm) Diameter Holes

INCLUDES:

2 Each: Through-Bolts for Glass Mounting

4 Each: 1-1/4" (32 mm) Diameter Matching Finish Metal Washers and Rubber Gaskets

Specifications

Technical Resources

Specifications

CC12X12 SpecificationsOpen PDF ↗

CRL Dark Bronze 12" Glass Mounted Curved Pull Handle
